Unique UGP-170L1 Bedienungsanleitung

170L / 6.0 cu. ft.

SOLAR POWERED

DC FRIDGE

OWNER’S GUIDE

UGP-170L1

serial number:

JUL17V1

TABLE OF CONTENTS

03 Important safety notes

07 Installation

08 Parts list

08 Door removal and reversal instructions

10 DC power connection

12 Operation

16 Cleaning

16 Energy saving tips

17 Troubleshooting

19 Appliance information

19 Parts diagram and list

22 Notes

23 Contact us

23 Limited warranty

Back Technical speciﬁcations

IMPORTANT SAFETY NOTES

Congratulations! You have purchased one of the most ecient re-

frigeration products available on the market today. The Unique 170L1

solar powered DC fridge is designed to provide years of trouble-free

operation. The design is optimized for energy savings with an e-

cient DC compressor and highly ecient insulation.

Before using the appliance, read through this manual carefully

including all the information on safety, installation, operation, and

cleaning. These guidelines do not cover every possible condition or

situation that may occur. Be safe using common sense and caution

when installing, operating and cleaning this appliance. If you are un-

sure about any of these instructions or warnings, contact your local

product dealer or Unique O-Grid Appliances for assistance.

IMPORTANT: After transit where the fridge has been

on its side or back, ensure that the fridge is in a level,

upright position for 12 hours to allow compressor ﬂuids

to redistribute evenly before use.

• To allow the interior to cool down properly, run the fridge for at

least 4 hours empty before adding food.

• This fridge is designed to operate on 12 or 24 volts DC ONLY. DO

NOT CONNECT THIS FRIDGE TO AN AC (alternating current)

POWER SOURCE.

• This fridge is designed for domestic use only! It is intended for the

storage of edible/consumable food and drinks. It is not intended

for commercial or industrial use.

• Never use excessive force on the handle to open the door.

• If the room/ambient temperature approaches the fridge’s oper-

ating temperature, the fridge may not function correctly. If the

room/ambient temperature exceeds 100˚F (38˚C) the fridge may

not function correctly.

• A DC powered fridge has a lower cooling capacity than typical AC-

powered appliances. Because the compressor is small, the fridge/

freezer runs more eciently but lacks the ability to cool larger

warm loads as quickly as typical AC-powered appliances.

IMPORTANT SAFETY NOTES continued

These warnings are provided in the interest of your safety. Please

ensure that you understand them all before installing or using this

fridge. Your safety is of paramount importance. If you are unsure

about any of these meanings or warnings, contact your local prod-

uct dealer or Unique O-Grid Appliances for assistance.

PRIOR TO INSTALLATION:

At delivery, please check that the fridge is complete and has not

been damaged during transport. It is not advised to connect an ap-

pliance that has been damaged, especially damage to the electrical

supply cable or refrigerant circuit. In the event of damage please

contact your local product dealer or Unique O-Grid Appliances for

assistance.

GENERAL SAFETY

• Before cleaning or repositioning the fridge/freezer, always discon-

nect from the electrical power supply.

• Service the fridge/freezer only if you are a trained or authorized

refrigeration technician.

• This appliance contains refrigerant R-134a and a polyolester com-

pressor oil in its refrigerant circuit. Take utmost care when handling

your fridge so as to not cause damage to the refrigerant circuit

with consequent possible leakage.

• Do not use other electrical appliances (such as ice cream makers)

inside of the refrigerating appliance.

CHILD SAFETY

• Do not allow children to play in, on or around the fridge. It is not

a toy. THERE IS A DANGER OF SUFFOCATION IF A CHILD BE-

COMES TRAPPED INSIDE.

• When the appliance is not in use, secure or remove the doors to

prevent children from playing inside the cabinets.

• DANGER OF SUFFOCATION - Keep children away from all

packaging material.

INSTALLATION

• This appliance is heavy. Care should be taken when moving it.

• This appliance operates on 12 or 24 Volts DC (Direct Current) only!

• Under no circumstances should this appliance be directly connect-

ed to an AC (Alternating Current) power source.

• Be sure that the appliance does not stand on the electrical

IMPORTANT SAFETY NOTES continued

supply cable. Also, be sure the electrical cable is not squeezed or

bent when the appliance is being installed or moved.

• Installation work and adjustments on the appliance must be carried

out by qualiﬁed personnel only. Work performed by persons with

inadequate technical knowledge may adversely eect the perfor-

mance of the appliance, causing damage to the equipment, and

void the warranty.

• It is dangerous to make alterations or attempt to modify this prod-

uct in any way. Product alterations will void the warranty.

DURING USE

• This appliance is designed for domestic use only, specically for the

storage of food and drinks. This appliance is not designed for com-

mercial or industrial use.

• Do not store any containers with ammable vapors or liquids in

or around the appliance, such as organic solvents, spray cans, gas

cans, etc. Danger of explosion!

CLEANING

• Before cleaning always turn the fridge/freezer o and disconnect it

from the electrical power supply.

• Allow inside of fridge/freezer to fully thaw, then wash the inside

and outside of the appliance with luke warm water and a mild soap

or detergent. Abrasive or corrosive cleaning agents, steel wool,

scouring sponges, or chemical cleaning agents should not be used

under any circumstances.

SERVICING

• This product should be serviced by an authorized technician and

only genuine spare parts should be used.

• Under no circumstances should you attempt to repair the appliance

yourself. Repairs carried out by inexperienced persons may cause

injury or serious malfunctioning of the appliance. Unauthorized

work may void the warranty.

DISPOSING OF THE APPLIANCE

• When disposing of your fridge, use an authorized disposal site. The

refrigerant must be completely drained and collected by an au-

thorized technician for recycling prior to disposal. Check with your

local Environmental Agency for recommendations on recycling this

appliance in your area. Remove the electrical connection wiring and

also ensure that the lid is removed to prevent children from being

trapped inside - DANGER OF SUFFOCATION!

INSTALLATION

UNPACKING AND CLEANING

Remove all packaging and securing tapes from the appliance.

To avoid injury and causing damage to the appliance, be extremely

cautious when using sharp or pointed tools to complete this task.

Keep children away from the packaging material - DANGER OF SUF-

FOCATION! Wash the inside and outside of the appliance with luke

warm water and a mild soap or detergent. Abrasive or corrosive

cleaning agents, steel wool, scouring sponges, or chemical cleaning

agents should not be used under any circumstances. A sponge, soft

brush or towel is recommended. After cleaning, thoroughly rinse and

dry. You may want to leave the doors open allowing the compart-

ments to ventilate for 20-30 minutes to get rid of residual odors.

Check with your local Environmental Agency for recommendations

on recycling packaging materials in your area.

POSITIONING THE APPLIANCE

The area in which the fridge is to be installed must be relatively cool,

dry, and suitably ventilated. The area must be protected against any

inclement weather (rain, snow) and excessive surface dust. To ensure

proper function, the appliance must be placed on a at, rm, and

stable surface resting level on all four supports. The oor must be

strong enough to support a fully loaded cabinet. Use wood or metal

shims to level the fridge if necessary.

Do not place the fridge close to heat sources (heater, stove, boiler,

chimney, etc.), and avoid prolonged exposure to direct sunlight. This

appliance uses the exterior walls to transfer heat from the inside of

the cabinet. Ensure that there is adequate space between the fridge

and neighboring walls or large objects. A minimum spacing of 3

inches (7.5 cm) is highly recommended. This will provide sucient

airow around the appliance resulting in more ecient operation and

longer appliance lifetime. Always keep the air vent openings of the

compressor housing cover free from dust and obstructions.

The default left side orientation of the door can be changed to the

right side. Use the following procedure to change the side of the

door hinge.

Tools required: Slot screwdriver, Cross screwdriver, Spanner

1. Set the thermostat to the 0 position and disconnect the power

plug from the electrical outlet.

2. Remove the shelves, crisper and egg tray from the unit.

3. Tilt the appliance backwards to an angle of 45° and securely sup

port it.

4. Unscrew the adjustable feet (A-10) on the bottom.

5. Unscrew the low adjustable foot (A-11).

6. Unscrew ange screws (A-12) and lower hinge parts (A-13) with a

at head screw driver then reverse the lower hinge parts and x to

other side (B-13 to 16)

7. Remove the fridge door (A-8)

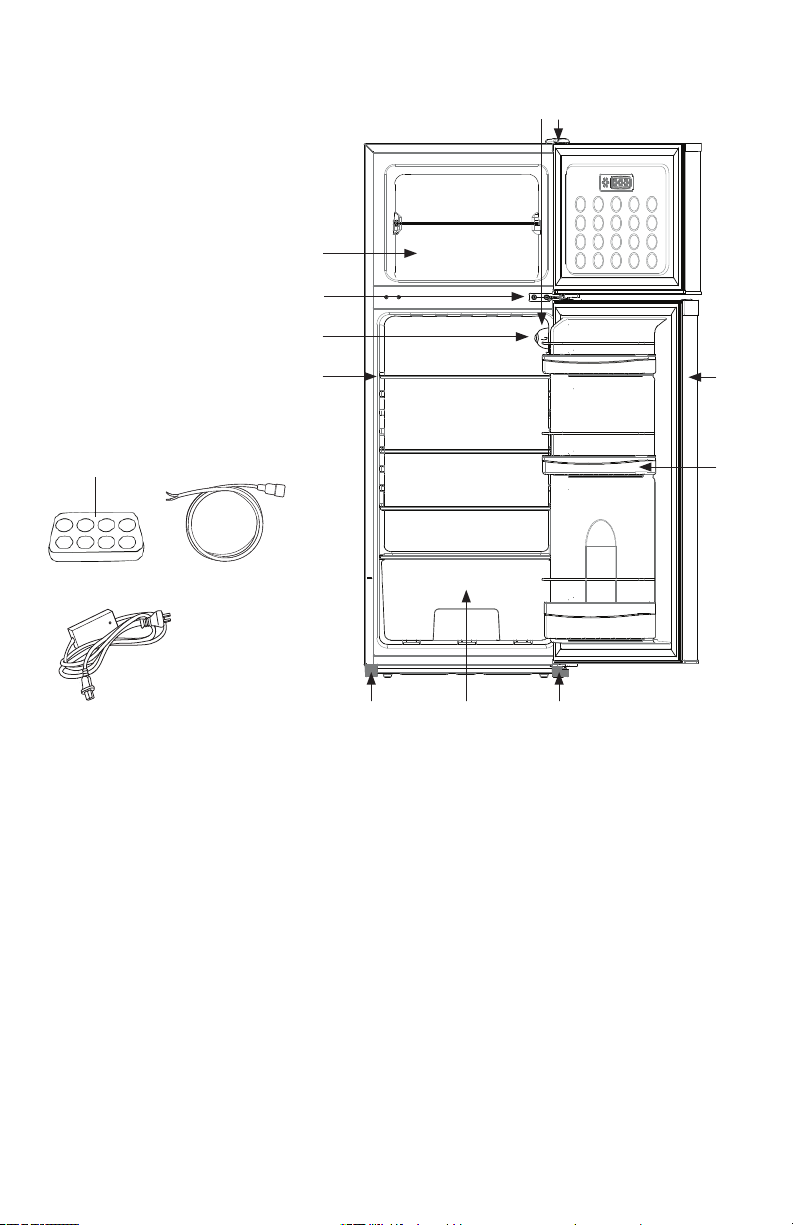

PARTS LIST

1: Shelf

2: Freezer compartment

3: Bulb with cover

4: Thermostat 0 - 7

5: Door

6: Upper hinge

7: Lower hinge

8: Adjustable feet

9: Crisper

10: Detachable door rack

11: Middle hinge

12: Egg Tray

13: Power Cable

14: AC/DC Plug (optional

for on-grid use)

12 13

DOOR REMOVAL AND REVERSAL

AC/DC plug

(optional for on-grid use)

*sold separately

78 9

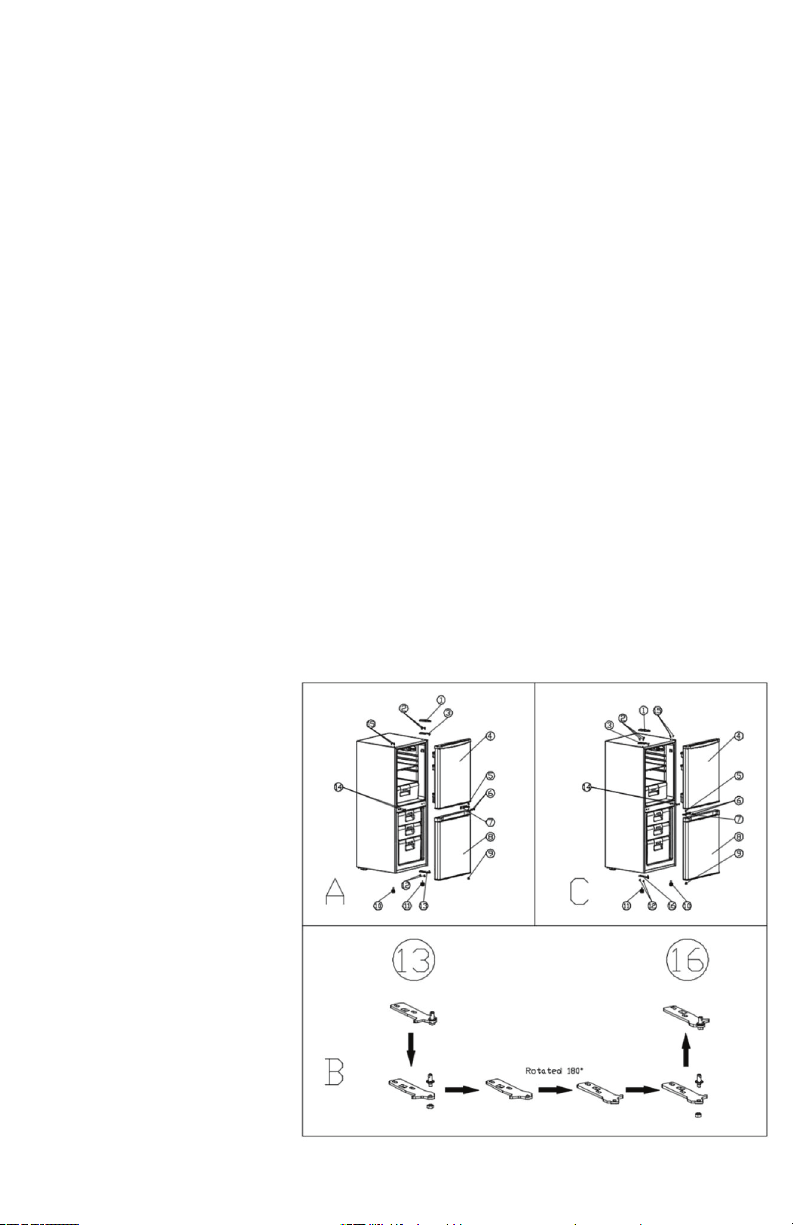

8. Unscrew the stop block model on the bottom right of fridge door

(A-9) and  x the stop block model to the bottom of left of fridge

door (C-9)

9. Unscrew the middle hinge (A-7)

10. Remove the freezer door (A-4)

11. Unscrew the stop block model on the right bottom of freezer

door (A-5) and  x the stop block model to the left bottom of

freezer door (C-5)

12. Unscrew the hinge plastic cap  ange screws from upper hinge

(A-1, 2, 3) and screw it to the other side of the fridge (C-1, 2, 3)

13. Check now if all the hinges and shafts are moved to same side

14. Attach the freezer door to the upper hinge

15. Attach the middle hinge to the freezer door and screw them

together

16. Attach the fridge door to the middle hinge

17. Attach the lower hinge parts to the fridge door and screw them

together (C-11, 12, 16)

18. Attach the adjustable feet on the bottom (C-10)

19. Cover the top hinge and middle hinge holes with screw caps

20. Put glass shelves, crisper and egg tray in their original position

21. Make sure that the door is in the vertical position and can be

closed easily

PARTS LIST

1. Plastic cap

2. Flange screw M5*16

3. Top hinge parts

4. Freezer door

5. Stop block model of

freezer door

6. Flange screw M5x12

7. Middle hinge

8. Fridge door

9. Stop block model of

fridge door

10. Adjustable foot

11. Low adjustable foot

12. Flange screw M5x16

13. Lower hinge parts

14. Screw caps

15. Screw caps

16. Lower hinge parts

DOOR REMOVAL AND REVERSAL continued

IMPORTANT: After reversing the door hinge, the door gasket may be

loose. Should you notice a gap between the gasket and the cabinet,

use a hairdryer or heat gun and heat the gasket while on the appli-

ance. The gasket will expand to meet the cabinet. Allow 30 mins to

cool before opening. A correct gasket positioning is the key to pre-

vent refrigerated air from escaping.

THIS FRIDGE MUST NEVER BE CONNECTED DIRECTLY

TO ANY AC (alternating current) POWER SOURCE!

THE FRIDGE MUST ONLY BE CONNECTED TO A 12V OR 24V DC

POWER SOURCE, SUCH AS A SOLAR

BATTERY SYSTEM OR CHARGE CONTROLLER.

THE FRIDGE WILL AUTOMATICALLY OPERATE ON EITHER 12V OR

24V DC. THE USER DOES NOT NEED TO MAKE ANY ADJUSTMENT.

ATTENTION: Polarity is important in wiring this DC appliance. Be

sure that the positive terminal of the battery or charge controller

coincides with the positive wire to the compressor, and the nega-

tive terminal of the battery or charge controller coincides with the

negative wire to the compressor. The leads should be connected

using cable shoes and screwed connections. Joined leads should be

avoided.

ELECTRICAL DIAGRAM

+ to + and - to -

positive to positive / negative to negative

(red wire) / (black wire)

DC POWER CONNECTION

UGP-260L1 Wiring Diagram

UGP-260L1 Schéma de Câblage

UGP-260L1 Wiring Diagram Label

1: Input power 12VDC /24VDC

2: Fuse 15 A

3: Main PCBA cooling unit

4: Interior light

5: Thermostat

6: LED Error light

7: R1(Speed selection)

1: La puissance d’entrée

12VDC/24VDC

2: Fusible 15A

3: Unité principale de refroid-

issement PCBA

4: Lumiére d’intérieur

5: Thermostat

6: LED (lumiére error)

7: R1 (sélection de vitesse)

WHITE

RED

BROWN

BLACK

YE/GN

F+

R E S I S TA N C E

LED errors Light/lumiere errors

Interior Light

BLANC

ROUGE

RED

ROUGE

MARRON

NOIR

BLACK

NOIR

BLACK

NOIR

BLACK

NOIR

BLACK

NOIR

Lumiere Interior

JAUNE/VERT

FUSE

FUSIBLE

BLACK

NOIR

RED

ROUGE

6”

4”

UGP-260L1 Wiring Diagram

UGP-260L1 Schéma de Câblage

UGP-260L1 Wiring Diagram Label

1: Input power 12VDC /24VDC

2: Fuse 15 A

3: Main PCBA cooling unit

4: Interior light

5: Thermostat

6: LED Error light

7: R1(Speed selection)

1: La puissance d’entrée

12VDC/24VDC

2: Fusible 15A

3: Unité principale de refroid-

issement PCBA

4: Lumiére d’intérieur

5: Thermostat

6: LED (lumiére error)

7: R1 (sélection de vitesse)

WHITE

RED

BROWN

BLACK

YE/GN

F+

R E S IS TA N C E

LED errors Light/lumiere errors

Interior Light

BLANC

ROUGE

RED

ROUGE

MARRON

NOIR

BLACK

NOIR

BLACK

NOIR

BLACK

NOIR

BLACK

NOIR

Lumiere Interior

JAUNE/VERT

FUSE

FUSIBLE

BLACK

NOIR

RED

ROUGE

6”

4”

Inhaltsverzeichnis

Andere Unique Kühlschrank Handbücher

Unique

Unique UGP-108L1 Bedienungsanleitung

Unique

Unique UGP-80L1 W Bedienungsanleitung

Unique

Unique UGP290L1SS Bedienungsanleitung

Unique

Unique Prestige UGP-328L P S/S Bedienungsanleitung

Unique

Unique UGP-120L1 W Bedienungsanleitung

Unique

Unique UGP 22 Bedienungsanleitung

Unique

Unique UGP-290L Bedienungsanleitung

Unique

Unique UGP 6C Bedienungsanleitung

Unique

Unique UGP 13 Montageanleitung

Unique

Unique UGP-275L B AC Bedienungsanleitung

Unique

Unique Classic UGP-510L W AC Bedienungsanleitung

Unique

Unique UGP 22 DV Bedienungsanleitung

Unique

Unique UGP-470L1 Bedienungsanleitung

Unique

Unique UGP-275L W Bedienungsanleitung

Unique

Unique UGP 3 Montageanleitung

Unique

Unique Classic UGP-385L CR Bedienungsanleitung

Unique

Unique UGP-60L1 Bedienungsanleitung

Unique

Unique LGP 18 Bedienungsanleitung

Unique

Unique UGP 8 Bedienungsanleitung

Unique

Unique UGP 3 SM Leitfaden

Unique

Unique UGP-470L Bedienungsanleitung

Unique

Unique PRESTIGE UGP-278L P S/S Bedienungsanleitung

Unique

Unique UGP-260L1 Bedienungsanleitung

Unique

Unique UGP-370L1 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
