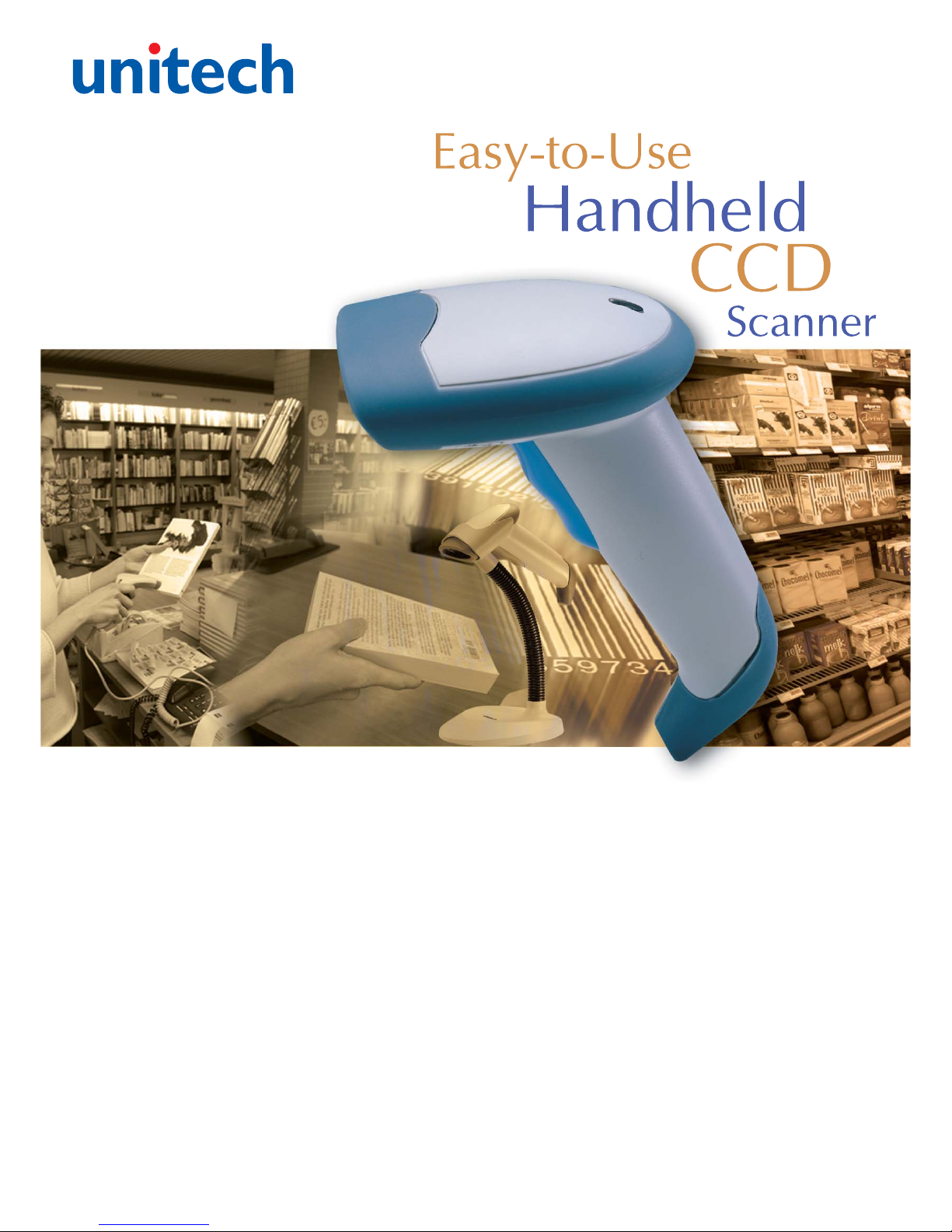

Unitech MS335 Bedienungsanleitung

MS335

The MS335 delivers the ultimate combination of performance

and reliability for linear barcode scanning applications such as

retail point of sale, healthcare, office automation, post offices

and light industry.

Premium Performance

With an extra long range CCD scan engine, the MS335 offers

an increased depth of field, an aggressive read rate of 230

scans a second and a scan width of up to 18mm. With no

moving parts, its CCD engine provides excellent reliability,

even when knocked or dropped.

Never Miss a Scan

With adjustable audible good read beepers and a visible good

read LED, your users can always be assured that they’ve

captured each and every barcode.

Easy to Set Up & Change

With the option to configure the MS335 using Windows based

software or by scanning barcodes, setting up the

MS335 couldn’t be easier. If the cable needs replacing this

can be done quickly and easily by the user, minimising downtime

and reducing the total cost of ownership.

Rugged & Reliable

Accidents happen and should the MS335 get knocked off a desk onto the

floor then you can be assured that it will still work. Drop tested to 1.5m,

the MS335 has been designed to give you maximum reliability.

Flexible Usage

The MS335’s ergonomic design works with the user to provide

comfortable use in scan intensive applications. If presentation

scanning is required, a hands free stand supports the scanner for

desk based applications.

A range of connectivity options are supported including USB,

RS232 and keyboard wedge.

Features

• Long range CCD scan engine

• Reads all common linear barcodes

• Aggressive scan rate

• Audible and visible good read indicators

• Rugged design able to withstand 1.5m drops to concrete

• User changeable cable

• Optional stand for hands free scanning

• Quick and easy set up using Windows based software or barcodes

Optical / Performance

Receiving Device 2048 Pixels CCD

Light Source 4 LED Used HP LED Chips

660 nm Visible LED

Sensor CCD

Scan Rate 230 scans/sec

Ambient Light Immunity 5000 Lux/Max (Fluorescent Light)

Print Contrast 60%

Scan Width 140mm (PCS=90%, 1mm Code)

Depth of field Resolution

Code39

4 mil 80~90mm;

5mil 70~120mm

EAN

15.6mil 30~360mm

Decoder

Operation Mode Trigger, Flash and Continuous Mode

Symbologies UPC-A/UPC-E, EAN-8/EAN-13,

Industrial 2 of 5, Codabar,

Matrix 2 of 5, Code 11, Code 93,

Code 32, Code 128,

Standard Code 39, Full ASCII Code 39,

Interleaved 2 of 5,

China Postal Code, MSI Plessy Code,

UK Plessy Code, Toshiba code, MSI

Electrical

Peak current consumption 1000mA

Idle current consumption 180mA

Power Requirement Power Input 5VDC

Communication and I/O

Interface Keyboard wedge,

RS232,

USB

Machanico

Mechanical Shock 1.6m onto concrete

Weight 155g ±5g (not include cable)

Environmental

Operating Temperature 0°C to 50°C

Storage Temperature -20°C to 60°C

Relative Humidity 20% RH ~ 85% RH (Non Condensing)

Regulatory Approvals

CE, FCC, BSMI, VCCI

Accressories

Hands-free stand

Interface cables

02/ 08 REV. C

MS335

All product and company names are trademarks, service marks, or registered trademarks of their respective owners.

Unitech America

Los Angeles, Houston, Guadalajara

http://www.ute.com e-mail: inquiry@ute.com

http://latin.unitech-adc.com e-mail: [email protected]

Unitech Asia Pacific

Taipei

http://www.unitech-adc.com e-mail: aidcsales@tw.ute.com

Unitech Japan

Tokyo

http://www.unitech-japan.co.jp e-mail: [email protected]

Unitech Europe

Tilburg / Netherlands

http://www.unitech-europe.com e-mail: sales@eu.ute.com

Unitech Greater China

Beijeng, Shanghai, Guang Zhou, Xiamen

http://www.ute.com.cn http://www.ute.cn unitech@cn.ute.com

Taipei http://adc-utt.unitech.com.tw barcode@tw.ute.com

Head Office

Taipei

http://www.unitech-adc.com e-mail: marketing@tw.ute.com

product

design

award

2006
