Unitech MS351 Bedienungsanleitung

Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: MS351QGENV1.2.

MS351 Cordless Scanner Quick Guide

Notice

Parts of the scanner

①Scan window ②Trigger (Press to triggr / Long press 10 seconds to turn on)

③Beeper ④On Base indicator (Blue LED) ⑤Successful decoding indicator (Green LED) /

Communication fail indicator (Red LED) / Charging (Red/Greed LED)

Parts of the cradle

⑥Power indicator (Blue LED)

⑦Communication indicator (Green LED)

⑧Key (Long press 10 seconds to restore factory default setting of

cradle)

Installation of cradle

1. Switch off power of the host. Refer to the below pictures, connect the host with the scanner with different

cables firstly, and then connect the adaptor to the power socket.

2. Ensure that all connections are secure. Switch on the power of the host. After a few seconds, if only the

blue LED on the cradle is ON, it indicates the cradle is in normal working mode.

USB cable

RS232 cable

PS/2 keyboard cable

Charge battery

1. Please charge the battery before the first time use. The charge

indicator (Red LED) on the scanner is turned on when the charging is

in progress. When the charging process completes, the charge

indicator (Red LED) is turned off, and the Green LED is turned on.

2. Charging time: 4 hours for fully charged.

3. You can charge the battery via a USB port on the device or an optional

5 VDC adapter.

Indication of scanner for wireless data transmission

Successful

Transmission

Beeper

Red LED

Vibration

Yes

Off

Two long beeps

Blinks 2 times, and then

turns off

Short vibrates 2 times, and

then turns off

Programming instruction and example

Two programming modes have been provided as bellows:

Single-scan setting

Scan the related

Single-scan setting

Example: To set Flow control to be XON/XOFF.

Multiple-scan setting

Example: To set Flow control to be XON/XOFF.

Turn off/on handheld unit

1. If you want to turn off the scanner, scan the barcode as shown right.

2. If you want to turn off the scanner via trigger key, please press and hold the trigger key, after the laser beam

turns off, wait for another 5 seconds, the scanner will be turned off, then you can release the trigger key at this

moment.

3. If you want to turn on the scanner again, please keep the trigger key being pressing for 3 seconds.

A standard kit contains: a scanner, a cradle, a USB cable, and a CD-ROM (containing software and manuals).

It is suggested to read the user manual in details before use.

Note: 1. See user manuals for more information. 2. For better readability, please print this document with laser printer. 3. Version: MS351QGENV1.2.

Pair the scanner with cradle

1. Make sure that both the handheld unit and the cradle are in normal working mode. You can see only the blue

LED on the cradle is ON.

2. Use the scanner to scan the MAC address at the bottom of the cradle. At the same time, the scanner will make

a beep-beep-beep sound.

3. Once the connection is done, the scanner can be used directly. If the attempt of connection fails, the scannerl

will make a beep-beep sound, and the red LED on the scanner will blinks 2 times, and then turns off.

4. If you want to disconnect, you can scan the barcode below:

Initialization settings and information display

Quick setting

1. Keyboard layout (USB interface)

USA （default）

Turkish F

Turkish Q

French

Italian

Spanish

Slovak

Denmark

Japanese

German

Belgian

Russian

Czech

Alt+ keypad

Alt+ keypad: the scanner will output code result as pressing Alt+ numeric key (on keypad). Note that the Num

Lock control key must be ON. This setting can be specially adapted for use with different national keyboard

layout.

2.Bluetooth mode

HID mode

SPP mode

Cradle mode*

3.Scan mode

Good-read off

Momentary*

Alternate

4.Add suffix

Enter (default)

Tab

Note: If the reader USB input too fast causing the host can not normally receive data, please scan the

barcode below:

Note: The factory default settings are indicated with asterisks (*).

Some parameters of handheld unit return to default setting

All parameters of handheld unit return to default setting

Return to default setting of cradle

Handheld unit firmware version display

Cradle firmware version display

Bluetooth version display

Bluetooth MAC address display

Bluetooth name display

Andere Handbücher für MS351

Andere Unitech Barcode-Lesegerät Handbücher

Unitech

Unitech MS910 Bedienungsanleitung

Unitech

Unitech MS910 Bedienungsanleitung

Unitech

Unitech MS838 Bedienungsanleitung

Unitech

Unitech MS100 Bedienungsanleitung

Unitech

Unitech AS10 Bedienungsanleitung

Unitech

Unitech MS925 Bedienungsanleitung

Unitech

Unitech RH767 Bedienungsanleitung

Unitech

Unitech MS912+ Bedienungsanleitung

Unitech

Unitech MS330 Bedienungsanleitung

Unitech

Unitech MS926P Bedienungsanleitung

Unitech

Unitech MS340 Bedienungsanleitung

Unitech

Unitech PA96 Series Betriebsanleitung

Unitech

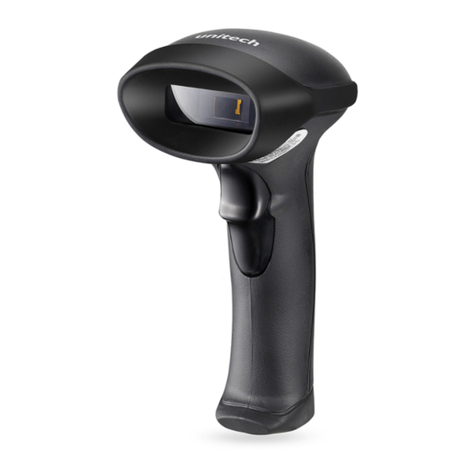

Unitech MS842HP Bedienungsanleitung
