Serial Bluetooth adapter Setup guide for Windows 8.1 64-bit

(Tested in Oracle VM VirtualBox version 4.3.6 r91406)

We are in this example using the UCBT232EXA serial Bluetooth adapter and the ES-388 USB Bluetooth

dongle which has a CSR (Cambridge Silicon Radio 41B14) based chipset. Both are available from

www.usconverters.com. We cannot guarantee same functionality if you are using a USB Bluetooth

dongle with a different chipset.

UCBT232EXA ES-388

Serial Bluetooth adapter USB Bluetooth dongle

www.usconverters.com

Insert the USB Bluetooth dongle into your computer’s USB port.

Check in Device Manager that it is recognized by your computer.

www.usconverters.com

Click the Bluetooth icon in the lower task bar:

And select “Add a Bluetooth Device”.

If for some reason the Bluetooth icon does not appear in the lower task bar, you can instead search for

“Bluetooth” and select “Bluetooth settings”:

www.usconverters.com

The Bluetooth management screen will open. Click the “Serial Adaptor” and click “Pair”:

www.usconverters.com

Enter the pairing code “1234” and click “Next”

Windows will now show that the serial adapter is connected:

www.usconverters.com

And after a few seconds it will show “Not connected”:

This means that the serial adapter’s COM port is closed; however the adapter is still paired and

connected over Bluetooth to your computer.

www.usconverters.com

In Device Manager you should now see the two serial over Bluetooth COM ports created by the USB

Bluetooth dongle (even Windows says “Not connected”):

www.usconverters.com

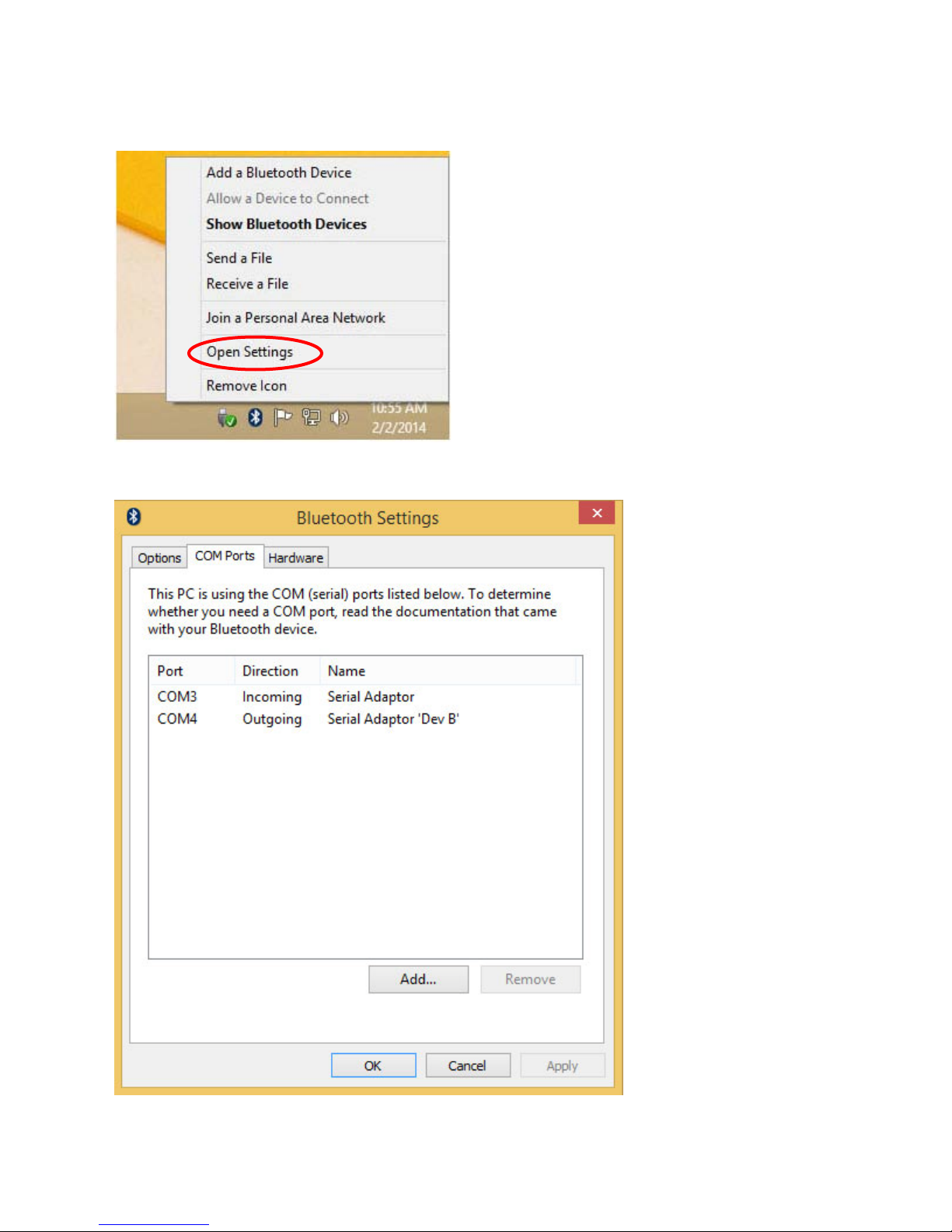

By selecting “Open Settings” from the Bluetooth menu in the task bar:

You will also be able to see the created COM ports under the “COM Ports” tab:

www.usconverters.com

Make a loop-back test to verify communication.

To verify that the UCBT232EXA is working properly and paired and connected successfully you can make

a loop-back test. In this test you will check if you can send data from your computer out through your

computer’s Bluetooth (which actually is a virtual serial COM port over Bluetooth) to the TX (transmit)

wire on the UCBT232B/EXA (pin 2), loop it back (by the help of a paper clip) and then receive it back on

the RX (receive) wire of the UCBT232EXA, and finally receive it back on your computer.

1. First pair and connect the UCBT232EXA with your computer as described earlier in this guide.

2. Loop-back TX to RX (pin 2 to pin 3) at the DB9 connector of the serial adapter. Use for example a

paperclip:

3. Download the terminal software AccessPort from www.usconverters.com

4. Start AccessPort.

5. Click Tools > Configuration and enter the parameters of the UCBT232EXA at the outgoing COM

port which it has created, in this case COM4.

It is important you enter the correct COM port

number otherwise you will not be able to communicate with the UCBT232B/EXA.

www.usconverters.com

Notice: serial number 14090200 and up has 9600 baud as default.
