Usconverters WA232E Handbuch

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

How to setup the WA232E Serial WiFi adapter

(based on Windows 10, 32/64-bit)

This step-by-step guide explains how to get started using the Serial RS232 WiFi Adapter part WA232E.

This product has many more advanced features and functions than described in this guide so you

should consider this guide only as a quick-start guide to help you get started with the basic functions.

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

UConfiguring the parameters …………………………………………….. 3U

UConfiguring the parameters using a Web browser ……………….. 4U

UConfiguring the parameters using the software utility ……………….. 14U

UConfiguring the parameters over the RS232 serial port ……………….. 22U

UCreating a virtual COM port with the software utility ………………. 25U

UVerifying communication with a loop-back test ………………………… 30U

UCreating a virtual COM/TCP port - example using PortShare …….. 34U

UCreating a virtual COM/TCP port - example using Fabulatech ……… 37U

UPoint-to-point setup ……………………………………………………… 44U

UConnecting with Android ……………………………………………. 46U

UConnecting with iOS …………………………………………………….. 47U

UHow to connect the WA232E using a wireless router ……………… 48U

UTroubleshooting / Known issues…………………………………………… 55U

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

Configuring the parameters

The WA232E’s parameters can be configured several ways:

• Web browser over WiFi

• Configuration utility software (included) over WiFi

• Serial RS232 port

We will here describe each one of these methods.

The default network settings are:

Adhoc mode (Simple AP), DHCP enabled

SSID: Serial2WiFi_ab_cd (ab_cd is the last 4 numbers of the MAC address)

No Security

IP: 192.168.0.3

Socket port: 5000

Channel: 11

The default COM port settings are:

Baud rate: 9600 bps

Data bit: 8

Parity: none

Stop bit: 1

Flow control: none

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

Configuring the parameters using a Web browser

Use your WiFi adapter’s connection manager or Windows WiFi manager to connect to the adapter. In this

example we use Windows connection manager:

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

The WA232E has DHCP enabled by default so make sure your wireless network has “Obtain an IP

address automatically” selected. Go to “Control Panel\All Control Panel Items\Network Connections”,

right-click wireless network and click “Properties”. Select “Internet Protocol Version 4 (TCP/IPv4)”

and click “Properties”.

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

Open Internet Explorer and enter the IP address http://192.168.0.3. You should now see the login screen.

The default username is: admin

The default password is: admin

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

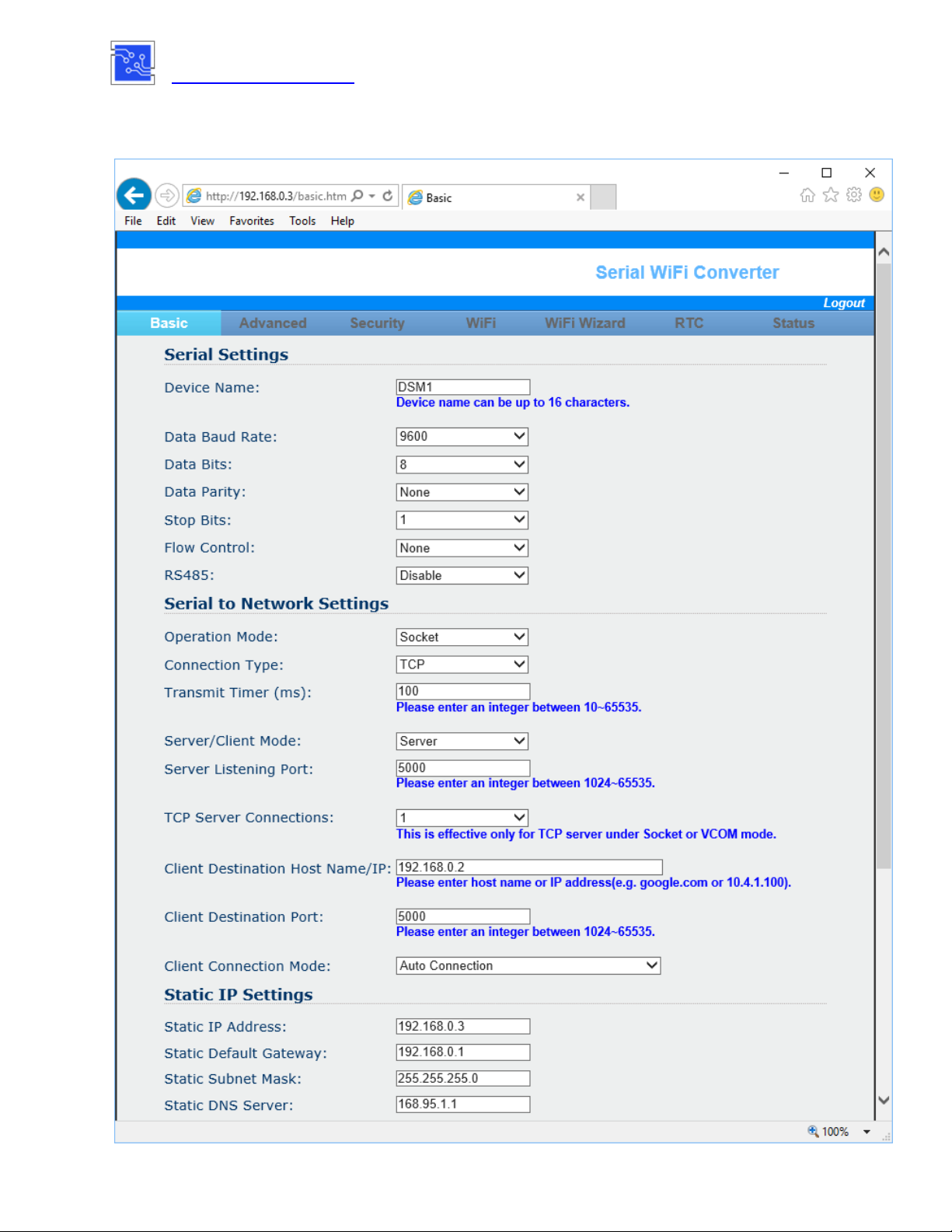

Below are screenshots of the default configuration pages (firmware v_0.7.4.0103):

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM

WA232E

Copyrights © U.S. Converters LLC.

WWW.USCONVERTERS.COM
