USX-MOUNT SMS007-1 Bedienungsanleitung

SMS007-1

INSTRUCTION MANUAL

For 26-42" TV

If you have any questions along the way, just give us

mail to [email protected].

We’re ready to help!

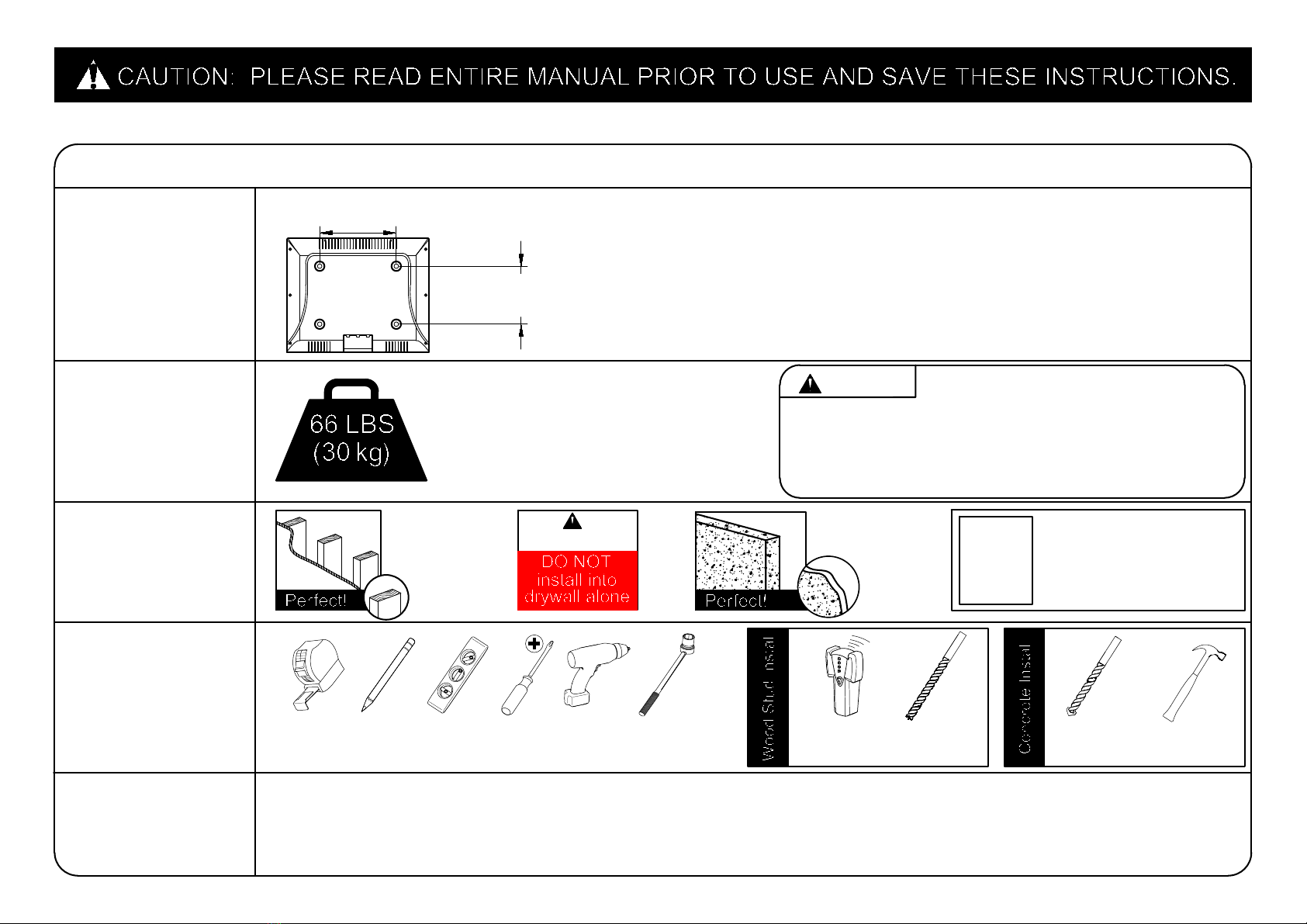

Before getting started, let’s check below lists to make sure it is just right for you!

Does your TV

(including accessories)

weigh MORE than

66 lbs. (30 kg)?

What is your

wall made of?

Do you have

all the tools

needed?

(NOT INCLUDE) Tape

Measure

CAUTION

Pencil Level Screw

driver

Electric

Drill

No? Perfect – you may continue.

Yes? This mount is NOT compatible.

Drywall with

wood studs? CAUTION:

CAUTION: DO NOT exceed the maximum weight

indicated. This mounting system is intended for use only

with the maximum weights indicated. Use with products

heavier than the maximum weights indicated may result

in collapse of the mount and its accessories, causing

possible injury.

Solid concrete ?

1/2 in.

(13 mm)

Socket

Wrench

Stud

Finder

1/8 in.

(3.18 mm)

Wood

Drill Bit

● This product is designed for use in wood stud, solid concrete walls - DO NOT install into drywall alone

● The wall must be capable of supporting five times the weight of the TV and mount itself

● Do not use this product for any purpose not explicitly specified by manufacturer

● Manufacturer is not responsible for damage or injury caused by incorrect assembly or use

3/8 in.

(10 mm)

Masonry

Drill Bit

Hammer

Check your TV

VESA is within

Min and Max size

No? This mount is NOT compatible.

Yes? Perfect !

MAX:200mm/7.87"

(MIN:100mm/3.94")

MAX:200mm/7.87"

(MIN:100mm/3.94")

Unsure?

Mail to

[email protected]

TV INTERFACE 3-D

WALL PLATE

FULLY ASSEMBLED MOUNT TOP VIEW - RETRACTED

SIDE VIEW - RETRACTED

+5°

-15°

TOP VIEW - EXTENDED

+15° -15°

MAX:200mm[7.87in]

MAX:200mm

[7.87n]

MIN: 100mm

[3.94in]

MIN:100mm[3.94in]

145mm

[5.71in]

Ø9mm

[Ø0.35in]

80mm

[3.15in]

200mm

[7.87in]

226mm

[8.90in]

226mm

[8.90in] 78mm

[3.07in]

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact

Customer Service.

Never use damaged parts!

NOTE: Not all hardware included will be used.

Hardware for STEP 1

Spacers

TV Screws

M4x12mm

M6x12mm

M8x25mm

M4x30mm

M6x35mm

M6x17mm

M4 M6

10mm 2.5mm

Washers

x4 x4

M5x12mm

M5x30mm

Wall Plate Unit

Lag Bolt

Parts and Hardware for STEP 2

Allen Key

Concrete Wall Anchor

2pcs

[email protected]. to have these

additional pieces shipped directly to you.

1-2 Choose Correct Configuration Per VESA Size on the Back of Your TV.

① 100X100

② 200X100

③ 200X200

1-1 Disassemble Wall Plate Unit into Two Pieces

Wall plate

TV plate

①

① ①

①①

② ②

②②

③ ③

③③

1-3 Select TV Screws

Tips: If you need to combine M6/M8(c/e/f) screws with

2.5mm spacers( i ), you have to remove the inner circle.

Yes, choose suitable screws, washers and spacers.

1-5 Attach the TV Plate

No!

No, choose suitable screws and washers.

1-4 Need Spacer?

CAUTION: Avoid potential personal injury or property damage!

● Drywall covering the wall, must not exceed 5/8 in. (16 mm)

● Minimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

● Stud center must be verified

1. Locate your studs. Verify and mark the center of the stud by finding the stud edges using a thin nail,

or an edge to edge stud finder.

2. Position the wall plate at your desired height and line up the holes with your stud center line. Level

the wall plate and mark the hole locations.

Centre line

Wall plate

Wall Wall

3. Drill pilot holes using a 1/8 in. (3.18 mm) diameter drill bit.

IMPORTANT: Pilot holes must be drilled to a depth of 2.16 in. (55 mm). Be sure to drill into the center

of the studs.

4. Install wall plate using lag bolts . Tighten the lag bolts only until they are pulled firmly against

the wall plate.

CAUTION: Improper use could reduce the holding power of the lag bolt.

DO NOT over-tighten the lag bolts.

Go to STEP 3 on PAGE 13

2.16"(55mm)

1/8"

(3.18mm)

No!

Wall plate

Wall Wall
