installation manual

for fr7-fr9

flange mounting kit

ac drives

vacon®nxs/p

2 • vacon Flange mounting kit FR7-FR9

Telephone +358-201-2121 • Fax +358-201-212 205

INDEX

General .............................................................................................................................. 3

Vacon Flange Mounting Kit contents.................................................................................. 4

Installation......................................................................................................................... 6

3.1 FR7 ............................................................................................................................................6

3.2 FR8 ............................................................................................................................................8

3.3 FR9 ............................................................................................................................................9

Mounting .......................................................................................................................... 10

Information sticker .......................................................................................................... 11

Document code: DPD01880A

Date: 5/12/2016

Flange mounting kit FR7-FR9 vacon • 3

24-hour service +358-40-8371 150 • Email [email protected]

GENERAL

Using the Vacon Flange Mounting Kit, you can mount your Vacon NX frequency converter through the

cabinet wall so that the control unit of the drive remains inside the cabinet.

The correct installation of the Flange Mounting Kit affects the IP protection class of the frequency

converter. After the installation, the control unit is protected according to IP21 and the power unit

according to IP54 (unless the frequency converter was originally IP21-protected). See figure below.

According to standard IEC 60529 (EN 60529), the IP54 frequency converter enclosure provides

protection against dust and water sprayed from all directions. Limited ingress of both is permitted.

Cabinet

IP54

IP21

4 • vacon Flange mounting kit FR7-FR9

Telephone +358-201-2121 • Fax +358-201-212 205

VACON FLANGE MOUNTING KIT CONTENTS

The contents of the Flange Mounting Kits for different frames are shown in the following pictures.

FR7:

1Flange, top

2Flange, bottom

3Flange, side

4Screws (5*10 TF)

5Screws (5*10 TX)

6Screws (5*8 TX)

7Sealing tape

Flange mounting kit FR7-FR9 vacon • 5

24-hour service +358-40-8371 150 • Email [email protected]

FR8:

1 Flange, top

2 Flange, bottom

3 Flange, side

4 Screws (4*8)

5 Sealing tape

FR9:

1 Flange, top

2 Flange, bottom

3 Flange, side

4 Screws (6*10)

5 Sealing tape

6 • vacon Flange mounting kit FR7-FR9

Telephone +358-201-2121 • Fax +358-201-212 205

INSTALLATION

These instructions guide you through the installation of the Flange Mounting Kit that you have

purchased for your FR7, FR8 or FR9 size frequency converter.

Note:

The sealant to be used in the flange mounting kit installation is flame retardant silicone

sealant (e.g. Sika Firesil -N)

3.1

FR7

1. Remove the three screws from

both sides of the frequency

converter.

2. Remove also three screws from the

top of the frequency converter

3. Attach the side flange to both sides

with 5x10 Torx screws

4. Attach the top flange with three

5x8 Torx screws.

5. Seal the two holes and the

sides in the bottom of the

frequency converter

6. Fix the cable entry flange to

its place. Attach first the screws

(5x10 TF) in the upper corners

7. Seal the bottom flange.

8. Attach the bottom flange. Fasten

first only the two screws (5x10 TF)

in the middle

9. Seal the sides of the cable entry

flange. Then attach the two

remaining screws (5x10 TF).

Flange mounting kit FR7-FR9 vacon • 7

24-hour service +358-40-8371 150 • Email [email protected]

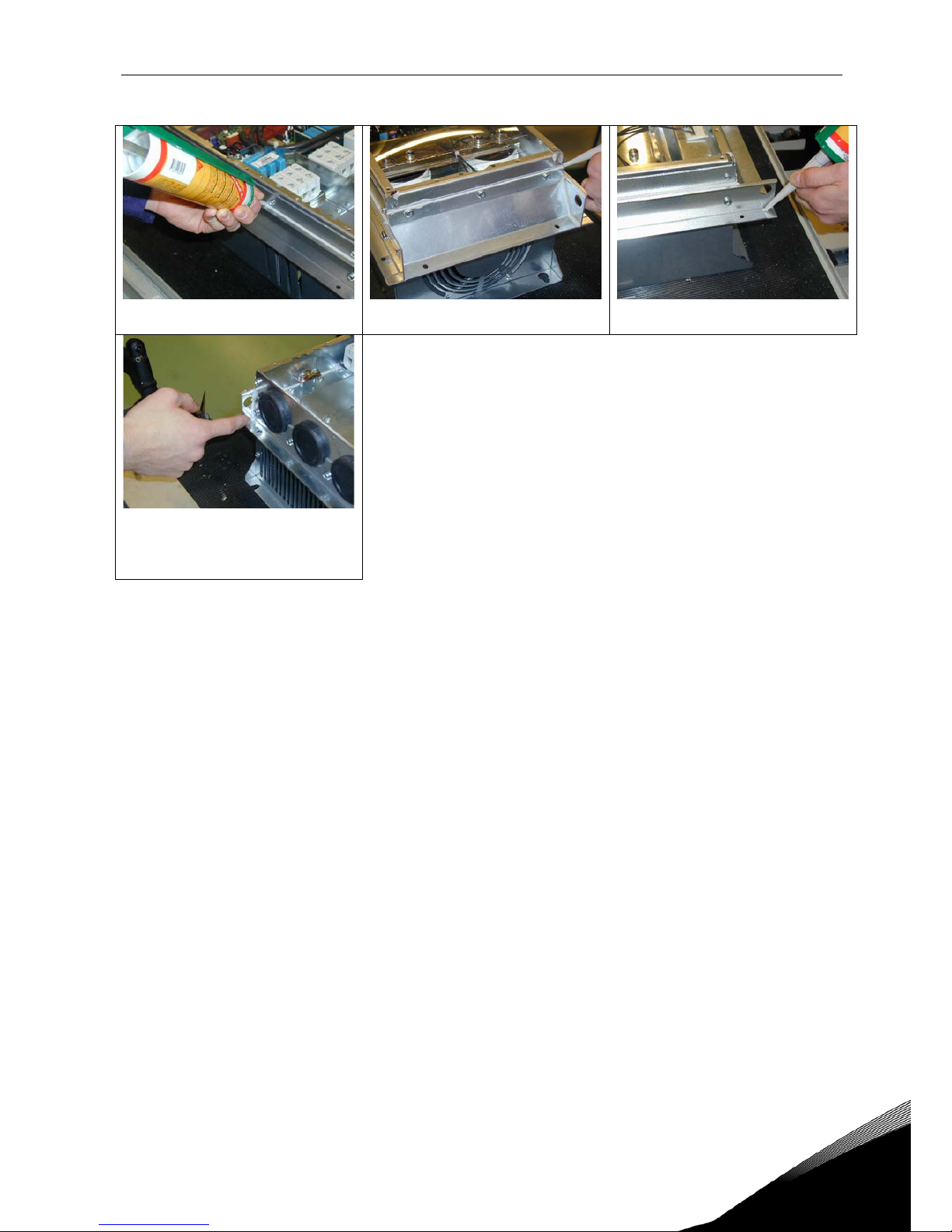

7. Seal the sides of the frequency

converter.

8. Seal the top flange.

9. Seal the small seams in each

corner.

10. Smoothen all sealed seams

with your finger. Tip your finger in

soap water before smoothening the

seams.

8 • vacon Flange mounting kit FR7-FR9

Telephone +358-201-2121 • Fax +358-201-212 205

3.2

FR8

1. Remove these five screws from

the right side of the frequency

converter.

2. Apply sealant to the right side flange.

3. Attach the right side flange with five

screws (4x8 TF).

4. Repeat the steps 1-3 with the left

side flange. Remove also the

middle screw from this side.

5. Seal the bottom flange with

sealing tape and attach it with four

screws (4x8 TF).

6. Seal the top flange with sealant.

7. Attach the top flange with five

screws (4x8 TF). See also the next

picture.

8. Seal all seams of the top and

bottom flanges with sealant.

Flange mounting kit FR7-FR9 vacon • 9

24-hour service +358-40-8371 150 • Email [email protected]

3.3

FR9

1. Before attaching the side

flanges check that they are in the

correct order. If the inner hole is

not showing the flange is on the

wrong side.

2. Seal the side flanges with

sealant and attach them with 7

(6x10 TF) screws each.

3. Seal the top flange with sealant and

fasten it with four screws (6x10 TF).

4. Fasten the sides of the top

flange with two screws/side (6x10

TF).

5. Carefully seal all the seams of

the top flange with sealant.

6. Seal the bottom flange with

sealant and attach it four screws

(6x10 TF).

7. Fasten the sides of the bottom

flange with two screws/side (6x10

TF). Seal all seams as shown in

step 5.

10 • vacon Flange mounting kit FR7-FR9

Telephone +358-201-2121 • Fax +358-201-212 205

MOUNTING

MOUNTING PROCEDURE

1. Make an opening in the cabinet door for the flange (collar) installation using the dimensions

given in Vacon NX User's manual, chapter 5.

2. Attach the sealing tape around the opening. See Figure 1 for how to bend the tape at the corners

of the opening (1) and place the tape so that it runs

inside

the screws (2).

The kit contains a greater amount of tape than what you might need. Only use such an amount of

tape required by the dimensions of the opening.

3. Fit the frequency converter in the opening.

NOTE: The frequency converter will not fit in the opening in a straight position. Tip the converter

positioning the lower end first in the opening. See Figures 4 and 5.

Fix the converter on the plane with the screws attached.

Figure 1

Figures 4 and 5.
