VALCOBABY Matrix Installations- und Betriebshandbuch

Thank you for purchasing a quality VALCO product. Please read and follow the instructions

outlined in this guide carefully. Familiarise yourself with the construction and safety features; be

sure that you understand all the warnings and safety guidelines before use.

Retain this guide in a safe place for future reference.

PRODUCT REFERENCE GUIDE

valco

baby since 1965

Due to our policy of continuous product

development, this product is constantly

evolving. It is possible that some features or

procedures outlined here have changed since

this document was written.

If you are unsure of any procedure shown

here, please contact us via the web at

info@valco.com.au to obtain the most up

to date information before use. Include the

batch number, which can be found on a

sticker on the frame.

All pictures and diagrams herein are provided

for illustration purposes only. Actual product,

colour or fabric may vary. VALCO reserves the



colour without notice or obligation to modify

any product previously purchased

FURTHER INFORMATION

In Australia/New Zealand

www.valco.com.au

www.valco.co.nz

In North America only

www.valcobaby.com

1800 610 7850

MATRIX

STROLLER

OPENING YOUR STROLLER

FIGURE A

1. If your frame is locked, lift the securing

strap off the rivet head on the stroller

frame.



frame by lifting the handle upward.

3. The stroller frame will unfold from

beneath. Press down on the locking

hinge with your hand or foot to lock

the chassis open.

INSTALLING THE FRONT

SECTION

FIGURE B

4. Standing in front of the stroller,

lift the stroller by the front tubes, tilting

the front leg section upward toward you.

5. Insert each tube of the front footrest

section into the corresponding tube

at the front of the stroller frame.

6. One leg at a time, depress each spring

loaded button and further insert the

footrest into the stroller frame.

7. Continue to insert these tubes until

the footrest is fully locked into place

on both sides.

INSTALLING REAR AxLE

(BRAkES)

FIGURE C

8. With the brake levers facing AWAY from

the stroller, match the plastic housings

on the rear brake section with the rear

stroller legs.

9. One leg at a time, depress each spring

loaded button and further insert the

brake section into the stroller frame,

continue until the brake is fully locked

into place on both sides.

CLICK

INSERT REAR WHEELS

FIGURE D

10. Depressing the button in the centre hub

in the rear wheel, insert each wheel axle

in turn, into the wheel hub. Push the

wheel as far as it will go before releasing

the button. IMPORTANT: Pull each wheel

slightly back towards you to ensure that

it has fully engaged in the axle.

INSTALLING THE FRONT

WHEEL

FIGURE E

11. Tip the stroller upward on its rear wheels

with the front fork facing to you.

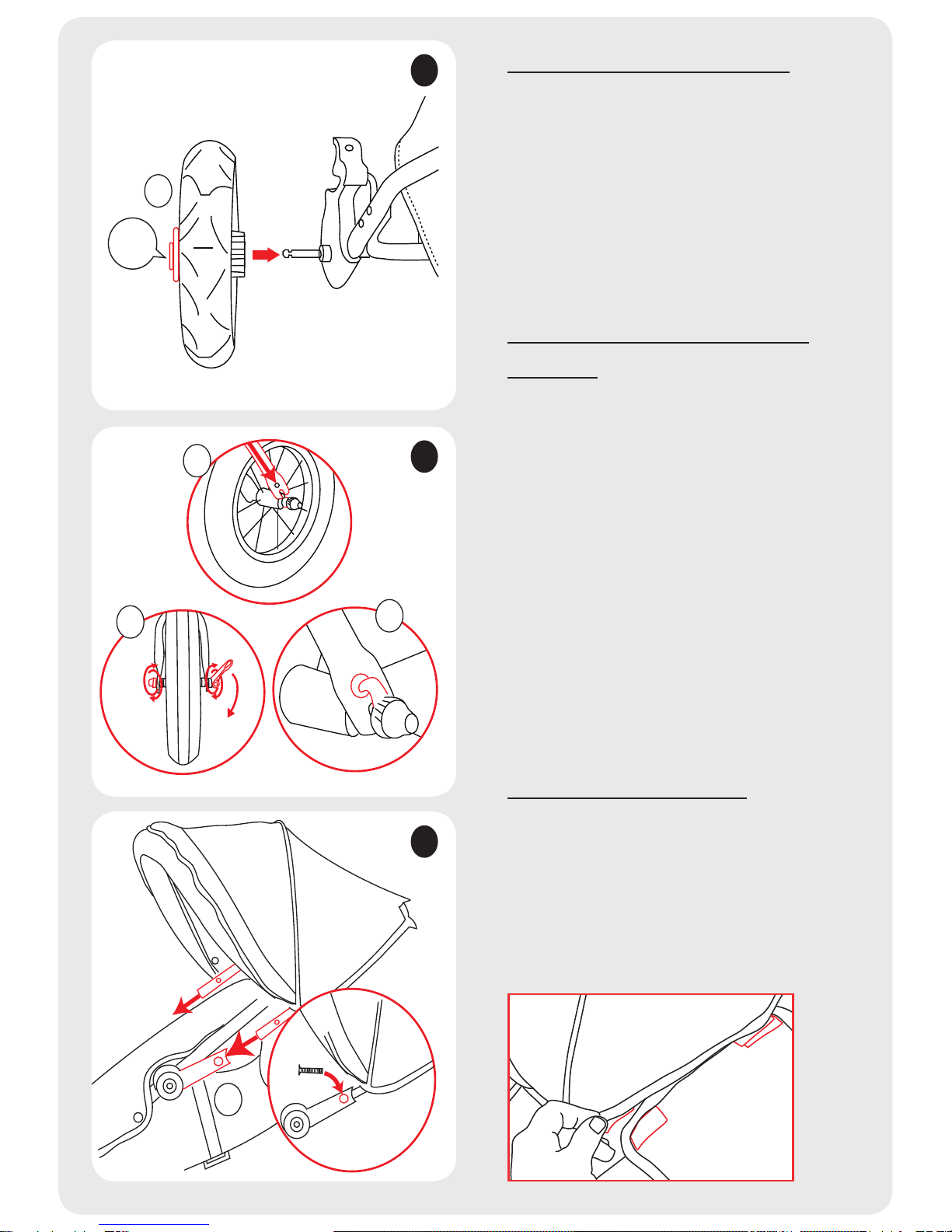

12. Line up the front wheel inside the front

fork making sure that each anchor

washer will be located on the outside of

either side of the fork.

13. Lift the wheel so that the axle engages

in each track at either side of the fork.

14. Gently turn each anchor washer so that

the tab rests inside the securing hole in

the fork.

15. Evenly tighten both sides of the axle so

that the wheel rests equally in the centre

of the fork.

INSTALL THE HOOd

FIGURE F

16. With a screwdriver, remove the screws

and protective covers from the tube.

17. Insert the hood tube end into each

corresponding holding tube and secure

each side with the screw.

PRESS

17 Fasten hood to

skirt with the

Velcro strips

found on the

hood and skirt

INSTALL THE BUMPER BAR

FIGURE G

18. Align the ends of the bumper bar with

the housing located on either side of

the seat.

19. Insert the ends into the housing. Keep

pushing until they lock into place.

IMPORTANT: Never lift your stroller

by the bumper bar.

AdjUSTING THE HANdLE

FIGURE H

20. To lower/raise the handle,

simultaneously press the release

buttons on either side of the handle

and move to the desired position.

USING THE SWIvEL WHEEL

FIGURE I

22. Your Swivel Wheel can be set in one

of three different positions.

23. The Full swivel mode allows 360º

swivel motion for maximum

maneuverability of your stroller.

24. The 45º Swivel mode allows for some

maneuverability of your stroller as the

wheel can operate in a restricted

radius and is recommended for use

with an optional toddler seat.



in position.

TURN

KNOB

SECURING YOUR BRAkES

FIGURE J

26. With your foot, press down on the centre

of the brake lever to simultaneously

engage the brake in both wheels.

27. To release, simply lift the lever with your

foot. IMPORTANT: Always test that the

brakes are fully engaged by pushing the

stroller forward and backward.

YOUR RECLINING SYSTEM

FIGURE K

28. TO RECLINE: While squeezing the centre

release mechanism in a pincer action,

ease the seat down to the desired

position.

29. TO INCLINE: Place your hand at the

centre of the rear of the seat. Pull the

incline strap while gently pushing on the

rear of the seat until the desired position

has been reached.

TO SECURE YOUR CHILd IN

THE HARNESS

FIGURE L

Your child must ALWAYS be harnessed while

in the stroller.



together to form one complete buckle.

31. Insert the completed buckle into the

Buckle Housing until it engages securely

in place.

32. Carefully adjust the harness straps to



Sliders located on all Shoulder Straps,

Waist Straps and the Crotch Strap.

IMPORTANT: The harness should be



enough so that the baby cannot wriggle

itself free of the straps but loose

enough so as not to cause the baby any

discomfort.

PRESS

DOWN HOLD

DOWN

PUSH

RELEASE

HOLD

CLICK

28 29

33b

33a 34

30 31

TO OPEN YOUR HARNESS

33. Press down on the Buckle Prongs (33a)

while simultaneously pushing

the release button (33b) in the centre

of the buckle.

34. Pull the buckles from the Buckle

Housing.

FOLdING YOUR STROLLER

FIGURE M

35. Fold the hood up against the handle.

36. Release the locking clamps at either side

of the stroller.

37. Simultaneously lift the secondary safety

catch and swing the handle forward.

FIGURE N

38. Holding the frame at the rear, press

down with your foot on the rear

basket tube. This will disengage the

side hinge locks.

39. Continue pushing the rear of the basket,

moving the rear wheels forward beneath

the frame.

40. You can lock the frame closed by

stretching the locking strap over the

frame, placing the metal catch over

the rivet on the chassis.

36 37

In Australia/New Zealand

www.valco.com.au

In North America only

www.valcobaby.com

1 800 610 7850

valco

baby since 1965

WARNING

• FOLLOW THE MANUFACTURER’S INSTRUCTIONS.

• PUT ON ALL THE BRAKES WHENEVER YOU PARK THE PRAM/STROLLER.

• DO NOT LEAVE CHILDREN UNATTENDED.

• DO NOT CARRY EXTRA CHILDREN OR BAGS ON THIS PRAM/STROLLER.

• MAKE SURE CHILDREN ARE CLEAR OF ANY MOVING PARTS IF YOU ADJUST THE PRAM/STROLLER. OTHERWISE THEY MAY

BE INJURED.



NEVER USE ON StAIRS OR ESCALAtORS.

• AlwAys use the tether strAp when the stroller is in use.

• the CorreCt use AnD MAintenAnCe oF this VehiCle Are essentiAl.

• Be sure thAt All ClAMps AnD BuCkles Are seCurely FixeD AnD in plACe BeFore use

• when in the stroller, your ChilD Must AlwAys weAr the sAFety hArness, CorreCtly FitteD AnD ADjusteD, At All

tiMes.

• the MAxiMuM weight oF the ChilD For whiCh this stroller wAs intenDeD is 20 kgs.

• CAn Be useD FroM A newBorn BABy onwArDs. A CoCoon, speCiAlly DesigneD to Be useD with A stroller, is

reCoMMenDeD when Any Fully reClining stroller is useD with A newBorn.

• neVer run with A newBorn BABy in Any prAM or stroller until the ChilD CAn sit up unAssisteD (ApproxiMAtely

6 Months).

• CheCk All pArts BeFore use For BreAkAge or FAtigue. DisContinue use iMMeDiAtely iF Any pArt is FounD to Be

DAMAgeD or Broken.

• MAxiMuM loAD oF BAskets: 3.5kgs.

• Do not CArry ADDitionAl ChilDren. this stroller is MAnuFACtureD For the use with one ChilD only

• AlwAys Be AwAre oF the risks proViDeD By Fire AnD other signiFiCAnt sourCes oF heAt suCh As rADiAtors, etC.

whiCh MAy Be in the iMMeDiAte ViCinity oF your stroller.

• it MAy Be unsAFe to use Any ACCessories other thAn VAlCo BABy ApproVeD ones.

• this proDuCt is intenDeD For DoMestiC use only. it is not intenDeD For CoMMerCiAl use.

Should the chassis become wet, dry off promptly before storing. If this pram is used near the ocean or salted

roads, spray the chassis and seat frame with water and dry. We recommend a rust inhibiting product should be

used to prevent rust and fatigue on metal parts.

We recommend that you wipe down axles and lubricate the wheels every 3 months. Sand and dirt can grind

down axles, if you live near the beach or in a dusty environment you must wipe down the axles and wheels then

lubricate them monthly.

AXLES ARE BEST LUBRICATED WITH GREASE OR PETROLEUM JELLY. MOVING PARTS ARE BEST LUBRICATED

WITH SILICONE BASED PRODUCTS. DO NOT USE OIL BASED PRODUCTS.
