VALCOBABY VEEBEE CO-RIDER Bedienungsanleitung

Assembly Instructions

CO-RIDER

by valcobaby

F. Mud Guard

E. Back wheel

C. Connector

B. Seat 1

A. Chassis

(with M6 screw & nut)

D. Steering wheel

(with M6 screw & nut)

VISUAL PARTS Q’TY VISUAL PARTS Q’TY

G. M4 Screw

H. M6 Screw

I. M6 Nut

J. Multi tool

K. Open ended

wrench

IMPORTANT NOTES

- Please read the instruction sheet carefully before you start assembly

and keep for future reference.

- Remove all components from the carton and check that they are complete as per

the parts list. Please contact your dealer in case of any missing parts.

- The Rider is built for children aged 15 months and above, with a body weight

of up to 25kg

- The Rider is developed for use with prams, strollers and buggies. It may not be

suitable for baby carriages without an appropriate spot on the handle

for attaching the Rider. Please condult your specialist dealer before purchase.

STEP 1

STEP 2

UNFOLDING THE CO-RIDER

MUD GUARD INSTALLATION

Attach the Mud Guard (F) on to the wheel housing in a way that it aligns with square hole (S1)

with the flat side facing inward.

Insert one M4 screw (G) into the hole (G1) and secure it. Repeat this procedure for the second

Mud Guard on the other side.Test that both Mud Guards are securely fastened.

Attaching the Mud Guard Installed Mud Guard

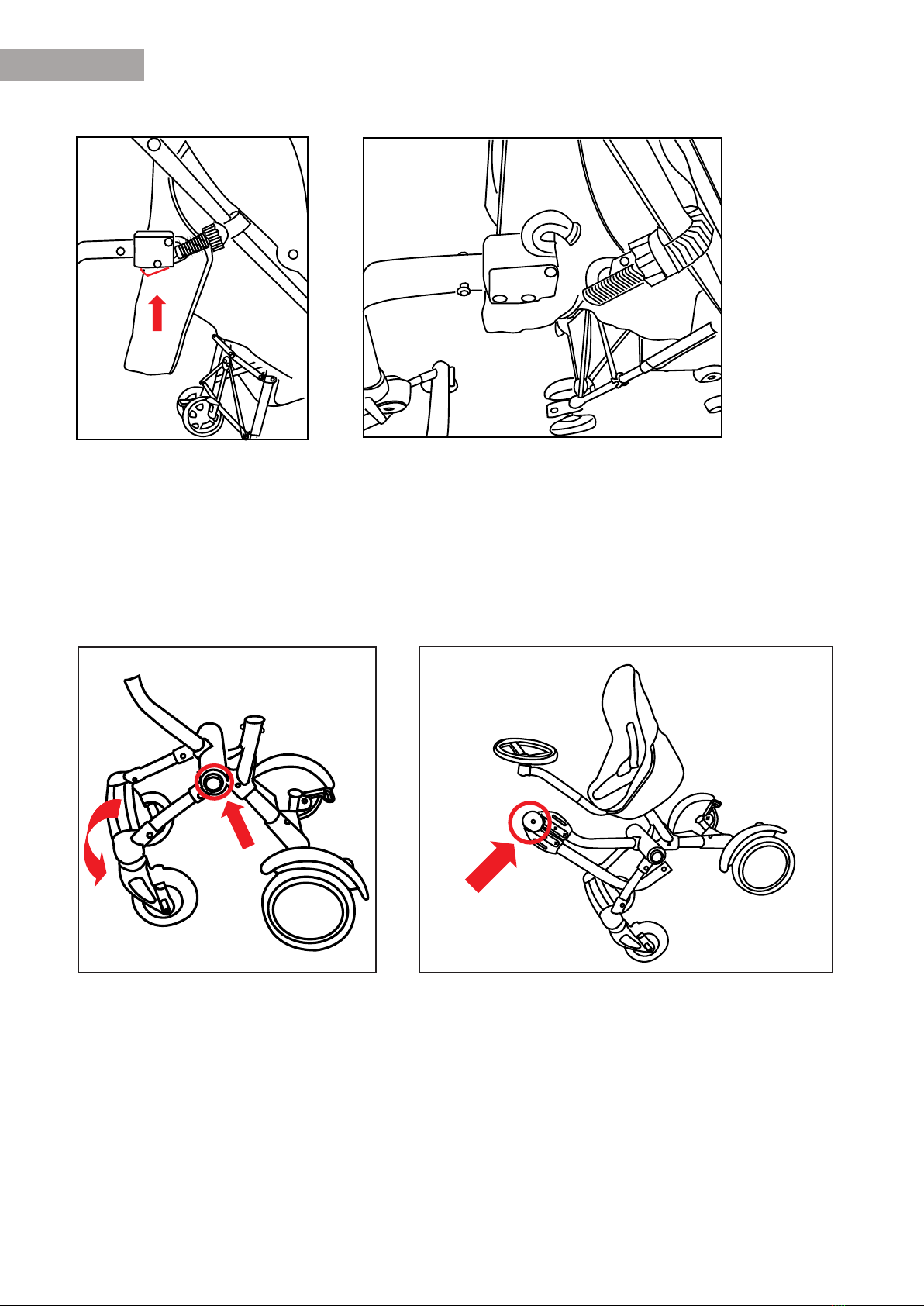

1.1 Press button (1) and lift the handle up

till it is fully extended.

1.2 Pull the two sections in opposite directions

until you hear the centre shaft click into the

locked position.

STEP 4 SEAT ASSEMBLY

Insert the seat into

the seat post.

Fasten it with the M6 Screw(H)

and M6 Nut(I).

Test to make sure it is

fully engaged.

STEP 5 STEERING WHEEL ASSEMBLY

Insert the steering wheel tube

into the handle post.

Fasten it with the M6 Screw

and M6 Nut.

Check if the attachment is

secure, before use.

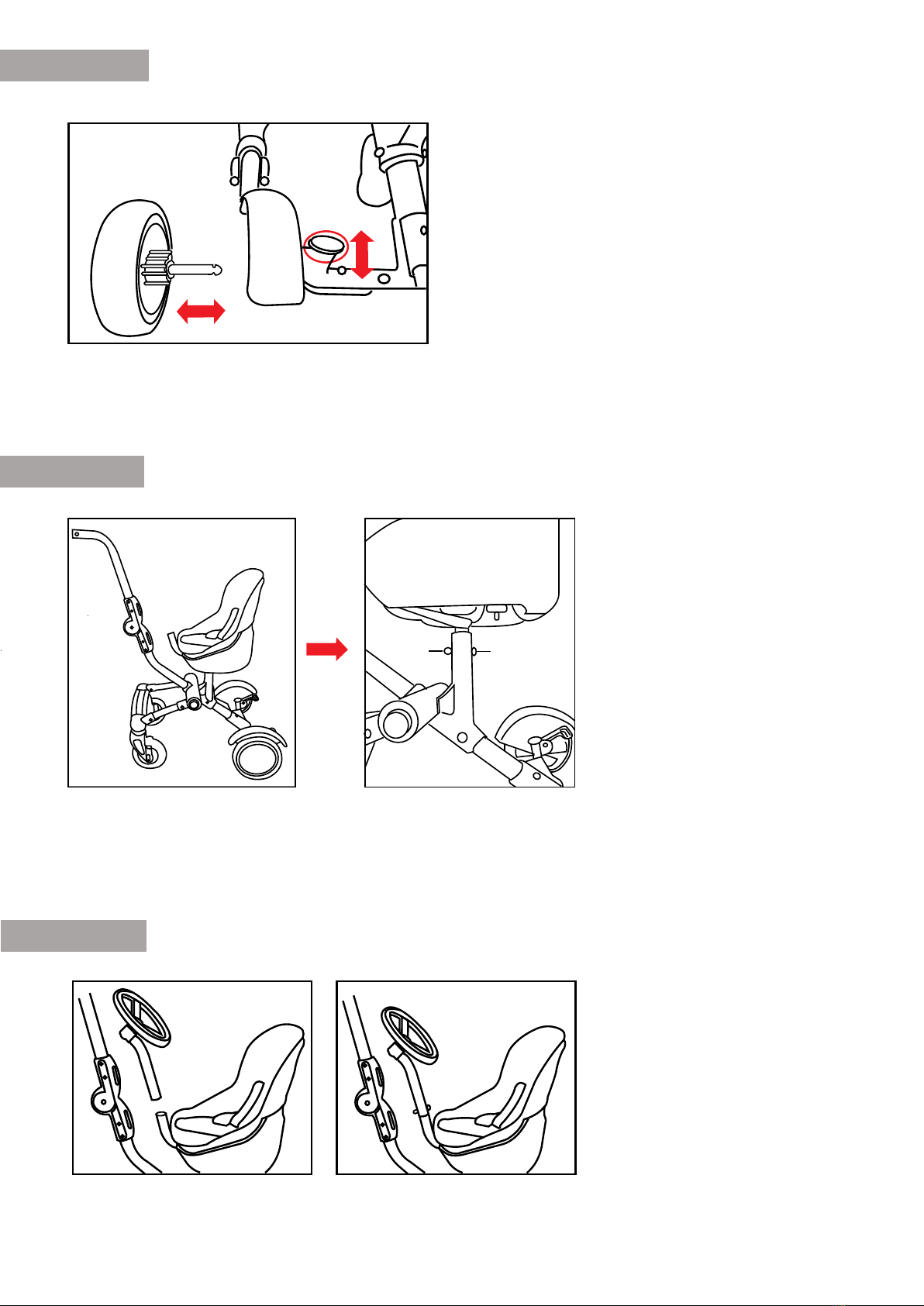

STEP 3 REAR WHEEL : INSTALLATION/REMOVAL

For easy installation/removal,

- lift Pin (P)

- push wheel inside/pull wheel outside

- release Pin (P)

STEP 6 CONNECTING CO-RIDER TO THE BABY CARRIAGE

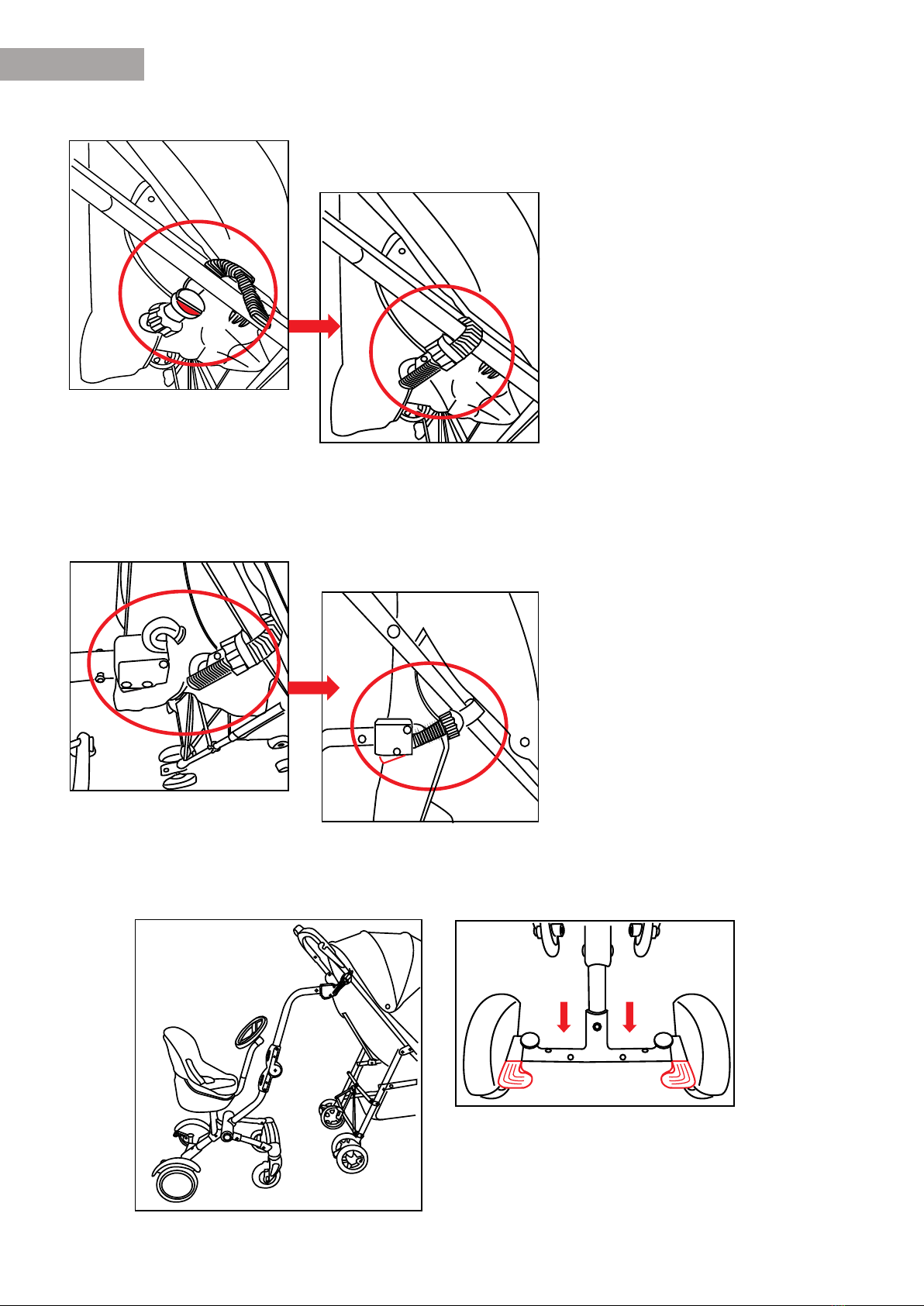

6.1 Wrap the Flexible strap of the

Connector (C) around the stroller

frame tubing (1).

Insert it through the plastic slot (2).

6.2 Turn the knob (3) till it is secure.

6.3 Press the button (5) to release

hook (4). Insert the hook through the

connector ring (6) and lock back by

pressing button (5).

Follow Step 6.2 to tighten.

6.4 To apply brakes, press down

on each of the pedal levers (7).

Lift each gently to release.

Press button (5) and pull hook to release.

Disengage the hook from the ring to separate your Co-Rider from the frame.

(Leave the connector attached to the frame for future easy connection and access)

Press the lower button (1) and push the front wheel downwards.

Press the main upper button (2) and push the handle down.

DISCONNECTING THE CO-RIDER

SAFETY INSTRUCTIONS

WARNING

• Do not use the Co-rider until your child can sit independently and without assistance.

Children must only be allowed to use this product in a seated position.

The Co-rider connector is meant to be connected on the frame at the rear side

of the pram.

•

Let your child alight before reaching pavement edges, stairs, steep paths,tight corners

and whilst manoeuvring backwards.

•

Make sure the Co-rider is correctly connected to the pram before use.•

Ensure all screws and mountings of the product are sitting firmly and all parts are

connected appropriately, from time to time.

•

Do not make any alterations to the Co-rider to avoid compromising its safety.•

The Co-rider is not suitable for use on snow or soft surfaces.•

Clean all the parts and wheels from time to time with warm soapy water.•

Please keep the Co-rider packaging materials away from children.•

Keep the instruction manual carefully for any possible subsequent users.•

In the event of any possible damage to the Co-rider, only original replacement parts

from the manufacturer must be used for repair.

•

The Co-rider is not a toy. Never leave your child unattended.•

The Co-rider must not be used if you go jogging or skating with the pram.•

The Co-rider is designed for children over 15 months of age with a maximum weight

of 25kg.

•

In order to guarantee the safety and functionality of the device, avoid any overloading.

Under any circumstances, do not use it for transporting other items.

•

The use of this product is admissable only if there is one child sitting in the pram or

buggy with a second child on the Co-rider. The push-car handles of the pram must be

held tightly with both hands by an adult.

•

The co-rider may not be suitable for all prams. Please consult your dealer

before purchase.

•

by valcobaby

For more accessories and further information

visit www.veebee.com.au
