Valor Fires 347 Bedienungsanleitung

5112105/03

Model 347

RADIANT / CONVECTOR GAS FIRE

Fitted with one of the following fascia

Firelite 4 Oxysafe or

Regency 4 Oxysafe

(GC No. 32-032-62)

INSTALLER: Please leave this guide with the owner

INSTALLATION AND OWNER GUIDE

We trust that this guide gives

sufficient details to enable this

appliance to be installed and

maintained satisfactorily. However, if

further information is required, our

Valor Fires Technical Helpline will

be pleased to help.

Telephone 0844 8711 565 (National

call rates apply in the United

Kingdom).

In the Republic of Ireland

Telephone 0044 844 8711 565.

Baxi Heating U.K. Limited 2008.

(including photocopying), stored in any medium by electronic means (including in any

retrieval system or database) or transmitted, in any form or by any means, whether

electronic, mechanical, recording or otherwise, without the prior written permission of

the copyright owner.

Applications for the copyright owner's permission to reproduce any part of this

publication should be made, giving details of the proposed use, to the following

address: The Company Secretary, Baxi Heating UK Limited, The Wyvern Business

Park, Stanier Way, Derby, DE21 6BF.

Warning: Any person who does any unauthorised act in relation to a copyright work

may be liable to criminal prosecution and civil claims for damages.

Valor Fires, Erdington, Birmingham B24 9QP

www.firesandstoves.co.uk

Because our policy is one of constant development and improvement, details may vary slightly from

those given in this publication

THIS APPLIANCE IS FOR USE WITH NATURAL GAS (G20).

WHEN CONVERTED USING CONVERSION KIT NUMBER 05347F1 THIS

APPLIANCE IS FOR USE WITH PROPANE GAS (G31).

THIS APPLIANCE IS SUITABLE ONLY FOR INSTALLATION IN THE UNITED

KINGDOM (GB) AND THE REPUBLIC OF IRELAND (IE).

Safety First.

Valor Fires fires are CE Approved and designed to meet the appropriate British

Standards and Safety Marks.

Quality and Excellence.

All Valor Fires fires are manufactured to the highest standards of quality and

excellence and are manufactured under a BS EN ISO 9001 quality system accepted

by the British Standards Institute.

The Highest Standards

Valor Fires is a member of SBGI and HHIC (Heating and Hot water Industry Council)

that work to ensure high standards of safety, quality and performance.

Careful Installation

Valor Fires is a CORGI registered company. All our gas fires must be installed by a

competent CORGI Registered Installer in accordance with our Installer Guide and

should not be fitted directly on to a carpet or floor of combustible material.

Page 4

INSTALLER GUIDE

FOR OWNER GUIDE SEE PAGES 27 TO 39

CONTENTS

Section Heading Page

INSTALLER GUIDE 4 - 26

OWNER GUIDE 27 - 39

1 SAFETY 6

2 LIST OF ACCESSORIES 6

3 APPLIANCE DATA 7

4 GENERAL INSTALLATION REQUIREMENTS 8

5 PRE-INSTALLATION PREPARATION 14

5.1 Unpacking. 14

5.2 Fireplace flue pull. 15

5.3 Appliance preparation. 15

5.4 Fitting the battery to electronic ignition models. 15

5.5 Checking the ignition. 15

5.5.1 Manual ignition. 15

5.5.2 Electronic ignition. 16

5.6 Fitting the closure plate. 16

6 APPLIANCE INSTALLATION 18

6.1 Installing to a hearth. 18

6.2 Wall mounting. 18

6.3 Gas supply connection. 18

6.4 Radiants installation. 18

6.5 Flue restrictor adjustment. 19

7 CONTROL AND PRESSURE CHECKS 20

7.1 Check control settings. 20

7.2 Flame supervision and spillage monitoring system. 20

7.3 Check reference pressure. 21

8 FASCIA FITTING 21

9 SPILLAGE CHECK 22

10 FINAL REVIEW 23

11 SERVICING AND PARTS REPLACEMENT 24

11.1 To remove the fascia. 24

11.2 To replace radiant(s). 24

11.3 To replace the pilot unit. 24

11.4 To remove the piezo generator (Manual ignition models). 25

11.5 Note for electronic ignition. 25

11.6 To remove the complete burner module, pipes and pilot. 25

11.7 To grease the gas tap. 26

INSTALLER GUIDE

Page 5

1. SAFETY

Installer

Before continuing any further with the installation of this appliance please read

the following guide to manual handling.

The lifting weight (kg) of this appliance is as below:

Heat Engine Fascia

9.35 5.05

One person should be sufficient to lift the fire. If for any reason this weight is

considered too heavy then obtain assistance.

When lifting always keep your back straight. Bend your legs and not your back.

Avoid twisting at the waist. It is better to reposition your feet.

Avoid upper body/top heavy bending. Do not lean forward or sideways whilst

handling the fire.

Always grip with the palm of the hand. Do not use the tips of fingers for support.

Always keep the fire as close to the body as possible. This will minimise the

cantilever action.

Use gloves to provide additional grip.

Always use assistance if required.

2. LIST OF ACCESSORIES

Description Part number

Flue Spigot extension 0595191

LPG Conversion kit 05347F1

INSTALLER GUIDE

3. APPLIANCE DATA

*When converted using kit 05347F1.

The appliance information label is on the inner face of the back panel at the lower left

hand side. It is visible when the fascia is removed.

This appliance does not contain any component manufactured from asbestos or

asbestos related products.

The efficiency of this appliance has been measured as specified in BS 7977 - 1 and

the result is as below:

Model Efficiency % (Gross)

347 Firelite and Regency 71

The gross calorific value of the fuel has been used for this efficiency calculation. The

test data from which it has been calculated has been certified by Advantica

Certification services (0087). The efficiency value may be used in the UK

Government's Standard Assessment Procedure (SAP) for energy rating of dwellings.

INSTALLER GUIDE

Gas Natural (G20) Propane (G31) *

Inlet Pressure 20mbar 37mbar

Input - Max. (Gross) 5.6kW (19,100 Btu/h) 5.3kW (18,084 Btu/h)

Input - Min. (Gross) 1.57W (5,357 Btu/h) 2.35kW (8,018 Btu/h)

Burner Test Pressure (Cold) 17.95 + 0.75mbar

(7.2 + 0.3in w.g.)

36.4 ± 0.75 mbar

(14.85 ± 0.3in w.g.)

Gas Connection 8mm pipe 8mm pipe

Burner Injector - Upper

(Centre Radiants) Cat 28 - 185 Size 80

Burner Injector - Lower

(Outer Radiants) Cat 28 - 185 Size 80

Pilot & Atmosphere Sensing

Device OPNG9093 OPLPG9222

Ignition Integral twin spark piezo

(Mounted on gas valve)

Integral twin spark piezo

(Mounted on gas valve)

Aeration Non-adjustable Non-adjustable

The conversion of net efficiency to gross was achieved by multiplying the net

efficiency by the following conversion factor from Table E3 of SAP 2005, rounding

down to the nearest whole number.

4. GENERAL INSTALLATION REQUIREMENTS

4.1 The installation must be in accordance with these instructions.

For the user’s protection, in the United Kingdom it is the law that all gas appliances

are installed by competent persons in accordance with the current edition of the Gas

Safety (Installation and Use) Regulations. Failure to install the appliance correctly

could lead to prosecution. CORGI requires its members to work to recognised

standards.

In the United Kingdom the installation must also be in accordance with:

 All the relevant parts of local regulations.

 All relevant codes of practice.

 The relevant parts of the current editions of the following British Standards:-

BS 715

BS EN 1806 which replaces BS 1289 Part 2

BS 5440 Part 1

BS 5440 Part 2

BS 6891

BS 1251

BS EN 1856 Part 1 which replaces BS 4543 Part 2

BS 5871 Part 1

BS EN 1858 which replaces BS 1289 Part 1

BS 6461 Part 1

 In England and Wales, the current edition of the Building Regulations issued by

the Department of the Environment and the Welsh Office.

 In Scotland, the current edition of the Building Standards (Scotland) Regulations

issued by the Scottish Executive.

 In Northern Ireland, the current edition of the Building regulations (Northern

Ireland) issued by the Department of the Environment for Northern Ireland.

 In the Republic of Ireland the installation must be carried out by a competent

person and installed in accordance with:

a) The current edition of IS 813 “Domestic gas installations”.

b) All relevant national and local rules in force.

c) The current building regulations

INSTALLER GUIDE

Gas Conversion factor from net to gross efficiency

Natural Gas 0.901

LPG 0.921

Where no specific instructions are given, reference should be made to the relevant

British Standard Code of Practice.

4.2 If the appliance is intended to be installed to a chimney that was previously

used for solid fuel, the flue must be swept clean prior to installation. All flues should

be inspected for soundness and freedom from blockages.

4.3 Any chimney dampers or restrictors should be removed. If removal is not

possible they must be fixed in the open position.

4.4 Normal adventitious ventilation is usually sufficient to satisfy the ventilation

requirements of this appliance. In GB reference should be made to BS 5871 Part 2

and in IE reference should be made to the current edition of IS 813 “Domestic gas

Installations” which makes clear the conditions that must be met to demonstrate that

sufficient ventilation is available

4.5 Note that soft wall coverings (e.g. embossed vinyl, etc.) are easily affected by

heat. They may scorch or become discoloured when close to a heating appliance.

Please bear this in mind when installing.

4.6 The minimum allowable distance from the outside of the appliance fascia to a

corner wall having combustible material or any other combustible surface which

projects beyond the front of the appliance is 50mm at either side (See figure 1). No

side clearance is necessary to non-combustible surfaces.

INSTALLER GUIDE

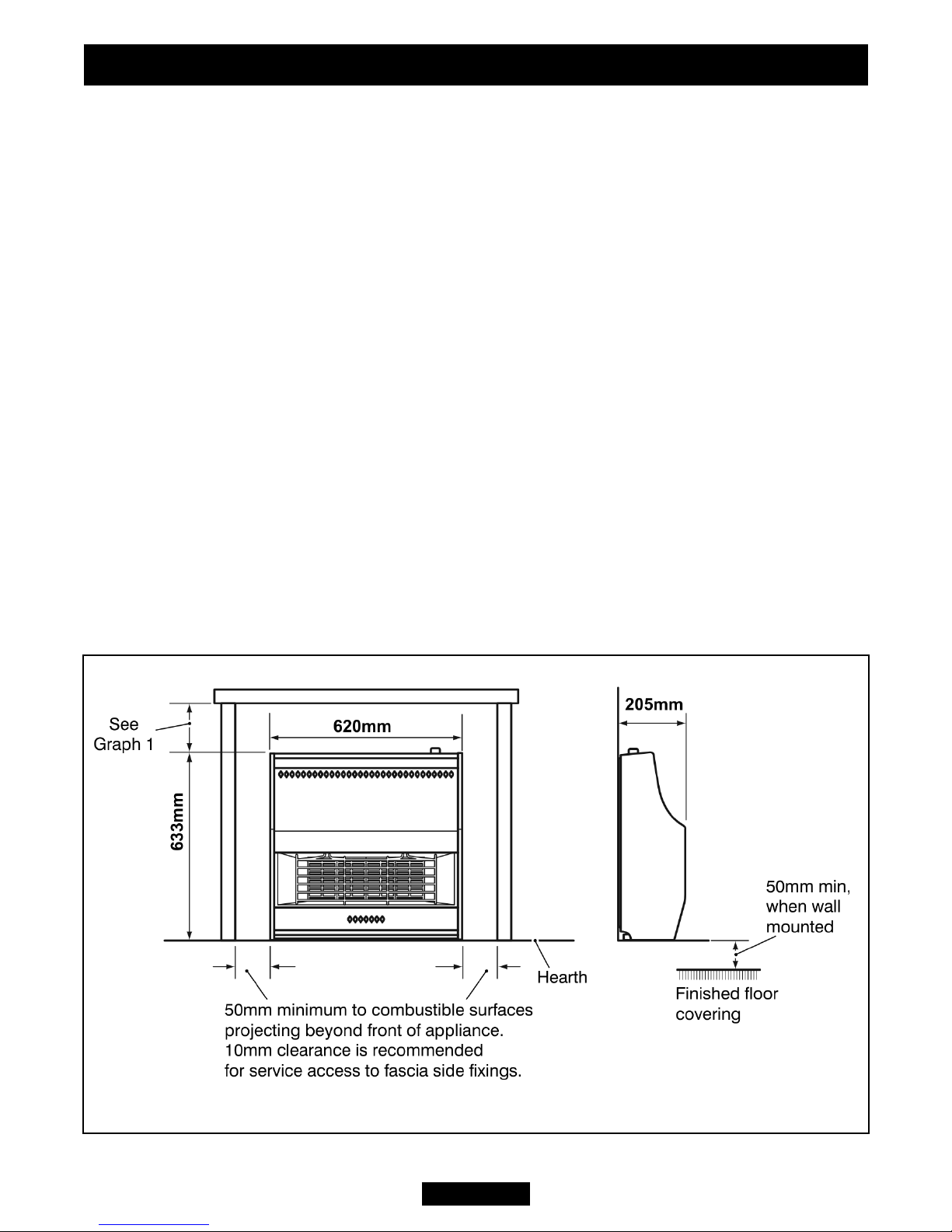

Figure 1. Dimensions and clearances

4.7 The appliance must not be installed in any room, which contains a bath, or

shower or where steam is regularly present.

4.8 An extractor fan may only be used in the same room as this appliance, or in any

area from which ventilation for the appliance is taken, if it does not affect the safe

performance of the appliance. Note the spillage test requirements detailed further on

in this manual. If the fan is likely to affect the appliance, the appliance must not be

installed unless the fan is permanently disconnected.

4.9 The appliance is fitted with an A.S.D (Atmosphere sensing device). If the

appliance closes down after a period of operation for no apparent reason, the

consumer should be informed to stop using the appliance until the installation and

appliance have been thoroughly checked. The A.S.D will shut the appliance down if

an unacceptable amount of harmful products of combustion accumulate. Under no

circumstances should the A.S.D be altered or bypassed in any way. Only genuine

manufacturers’ replacement parts should be fitted.

4.10 Allow a minimum clearance of 90mm from the top surface of the appliance

fascia to the underside of any shelf whether it is made from combustible or non-

combustible materials. This clearance is necessary to allow the fascia to be lifted off

for servicing and also allows the owner sufficient access to operate the control knob.

For a shelf made from wood or other combustible materials deeper than 150mm,

add 12.5mm to the clearance for every 25mm of additional shelf depth (See graph 1).

Graph 1. Shelf clearances

INSTALLER GUIDE

Inhaltsverzeichnis

Andere Valor Fires Kamin im Innenbereich Handbücher

Valor Fires

Valor Fires Artura 958 Bedienungsanleitung

Valor Fires

Valor Fires 339 Heartbeat Oxysafe 2 Gebrauchsanweisung

Valor Fires

Valor Fires 762 Gebrauchsanweisung

Valor Fires

Valor Fires 942 Gebrauchsanweisung

Valor Fires

Valor Fires 341 black beauty slimline Bedienungsanleitung

Valor Fires

Valor Fires 964 Gebrauchsanweisung

Valor Fires

Valor Fires 347 Brava 4 Oxysafe Bedienungsanleitung

Valor Fires

Valor Fires 761 Bedienungsanleitung

Valor Fires

Valor Fires 541 Chic Gebrauchsanweisung

Valor Fires

Valor Fires 752 Gebrauchsanweisung

Valor Fires

Valor Fires 349 Bedienungsanleitung

Valor Fires

Valor Fires Artura 958 Bedienungsanleitung

Valor Fires

Valor Fires 824 Blenheim Longlite Gebrauchsanweisung

Valor Fires

Valor Fires Artura 958 Gebrauchsanweisung

Valor Fires

Valor Fires 954 Gebrauchsanweisung

Valor Fires

Valor Fires 541 Gebrauchsanweisung

Valor Fires

Valor Fires 349 Bedienungsanleitung

Valor Fires

Valor Fires 844 Gebrauchsanweisung

Valor Fires

Valor Fires Artura 958 Gebrauchsanweisung

Valor Fires

Valor Fires 754 Gebrauchsanweisung

Valor Fires

Valor Fires 348 Brava Bedienungsanleitung

Valor Fires

Valor Fires 752 Gebrauchsanweisung

Valor Fires

Valor Fires Carlton Bedienungsanleitung

Valor Fires

Valor Fires 963 Gebrauchsanweisung

Beliebte Kamin im Innenbereich Handbücher anderer Marken

Brigantia

Brigantia 35-DVRS31N-2 Betriebsanleitung

Nordpeis

Nordpeis Bergen Bedienungsanleitung

Superior

Superior BCT2536TMN Bedienungsanleitung

Quadra-Fire

Quadra-Fire 5100I-GD-B Bedienungsanleitung

Renaissance

Renaissance RUMFORD 1000 Bedienungsanleitung

Lacunza

Lacunza IV-800 Bedienungsanleitung

Baxi

Baxi 940 Gebrauchsanweisung

Dru

Dru Maestro 60/2 Tall RCH Bedienungsanleitung

Diamond Fireglass

Diamond Fireglass SS-O22 Bedienungsanleitung

HearthStone

HearthStone Windsor Bay 8830 Programmierhandbuch

Napoleon

Napoleon ASCENT B42 Bedienungsanleitung

Enviro

Enviro E33GI Bedienungsanleitung

Smeg

Smeg L30 FABE Montageanleitung

KEDDY

KEDDY K700 Bedienungsanleitung

Godin

Godin 3451 Bedienungsanleitung

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Bedienungsanleitung

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Bedienungsanleitung

Desa

Desa CCFPDFT Bedienungsanleitung
