U S E R M A N U A L

4x2 HDMI™ Matrix Switcher

Part No: 281442

INTRODUCTION

Thank you for purchasing the 4 x 2 HDMI Matrix Switcher. For optimum performance and

safety, please read these instructions carefully before connecting, operating or adjusting this

product. Please keep this manual for future reference.

Our HDMI Matrix Switcher is designed to make your A/V device use more convenient,

comfortable, productive and more cost-efficient.

The 4x2 HDMI matrix access to four HDMI sinks, using four HDMI sources. The matrix

allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or

projectors. The Matrix can also be placed at the end of a long HDMI cable to regenerate the

HDMI signal.

The switcher offers solutions for noise, space and security concerns, data center control,

information distribution, conference room presentation, school and corporate training

environments.

FEATURES

 Four HDMI 1.3 input signals switched or split to two HDMI 1.3 sink devices

 HDCP compliant

 Supports CEC

 Supports deep color 30 bit, 36 bit

 Supports Blue-Ray 24/50/60fs/HD-DVD/xvYCC

 Digital audio format, as DTS-HD/Dolby-TrueHD/LPCM7.1/DTS/Dolby-AC3/DSD

 Supports signal retiming

 Support input up to 15 meters, HDMI 1.3 26 AWG standard cable length,

output up to 25 meters 26 AWG cable length

 Inputs can be switched with the IR remote control or controlled by two buttons

 It can smartly jump over those input sources that are not connected

 With the smart function of memory, it can come back to the latest status when restarted

or reconnected

 No loss of quality

 Installs in minutes

 Requires DC 5V/2A power supply

CONNECTING AND OPERATING

1. Connect one cable from each HDMI source devices into HDMI Matrix inputs.

2. Connect one cable from each display (monitor or projector) into the HDMI Matrix

outputs.

3. Connect 5V power supply to the HDMI 4x2 Matrix.

SPECIFICATIONS:

HDMI version: HDMI 1.3

HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support video color format: 24 bit/deep color 30 bit,36 bit

Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Max transmission bandwidth: 10.2 Gbps

Input/Output TMDS signal: 0.5~1.5 Volts p-p

Input/Output DDC signal: 5 Volts p-p (TTL)

Input cable distance: ≤15m HDMI 26 AWG

Output cable distance: ≤25 m HDMI 1.3 26 AWG standard cable

Max working current: 1.2 A

Power adapter format: Input: AC (50 HZ, 60 HZ) 100V-240V; Output: DC 5V/2A

Operating Temperature range: (-15 to +55℃)

Operating Humidity range: 5 to 90% RH (No Condensation)

Dimension (L x W x H): 10.24” x 4.53” x 1.77”

Weight: 2.29 pds

Manufactured in China for

Vanco International

Batavia, IL USA

www.vanco1.com

Inhaltsverzeichnis

Andere Vanco Matrix-Umschalter Handbücher

Vanco

Vanco 4x3 HDBaseT Montageanleitung

Vanco

Vanco HDBaseT Lite Bedienungsanleitung

Vanco

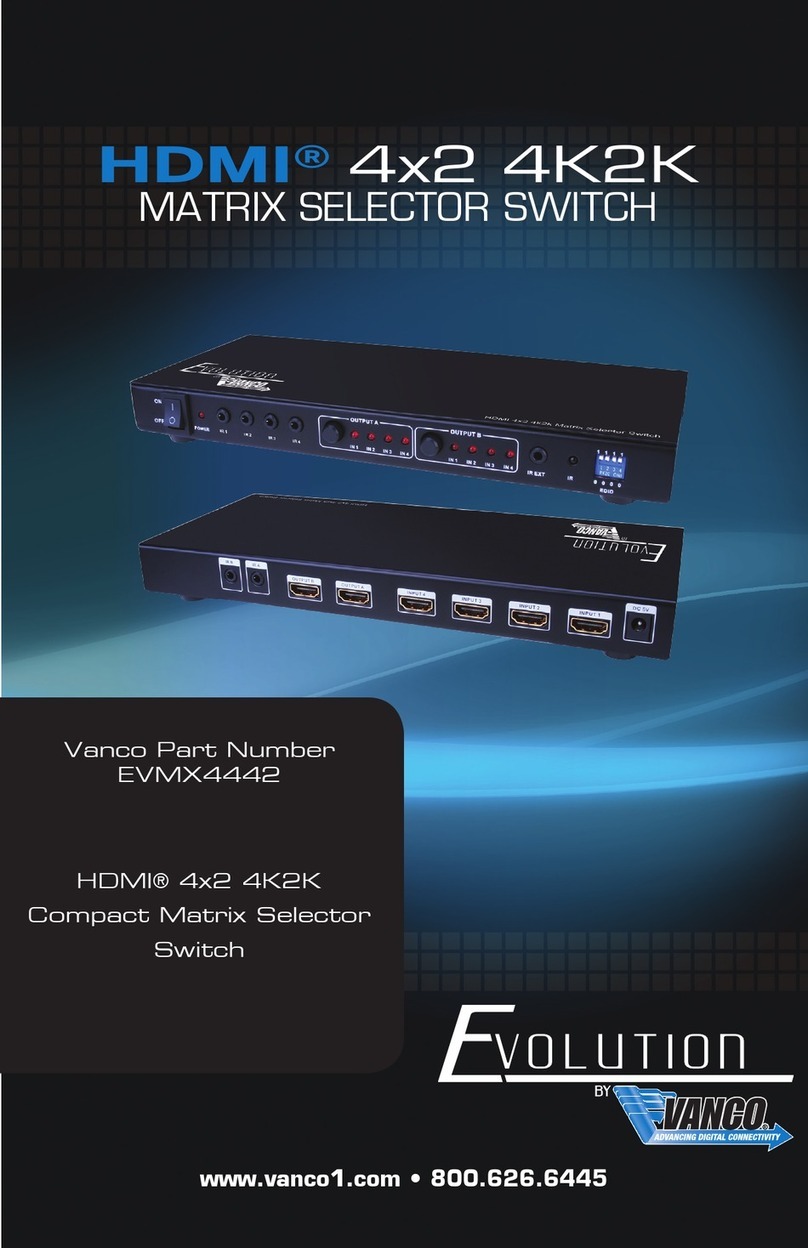

Vanco Evolution EVMX4442 Bedienungsanleitung
