1Introduction

TheDiver-Link is a durableandeasy to installtelemetry unitforremote monitoringofground and

surfacewater levels. TheDiver-Linkfeatures a compactdesign with the latest 4G/LTEwireless

technology and can beused in a variety ofbore hole locations such as flushmount and stick-up wells.

TheDiver-Link ispartofacompletetelemetrysolution. A remotemonitoringsystem thatintegrates

fieldinstrumentation withwireless communication and datamanagement to effectively manage

(ground)water resources. The Diver-Link is suitableforcontinuous longandshort-term monitoring

projects.

TheDiver-Link transmitsdata froma singleDiver datalogger over a cellularormobilenetwork,

whereastheDiver-LinkTriple sends data fromupto 3 Divers. Both versions of theDiver-Linkare

available with aninternal or external antenna. Anexternal can providebetter signal strength and

coverage, especially inareas with poor receptionor incasetheDiver-Linkis placedinsidea metal well

casing.

Configuration and managementofthe Diver-Link is donethrough theDiver-HUB webportal, a web

portal forreal-time management of sitedata, monitoring equipment andwater levels.

Deployment of the Diver-Link is simple;insert thebattery and connectthe unit toa Diver. In the field,

theDiver-Linkcan beoperated using the magneticfunctionkeystoactivatethe unit.Future firmware

-the-

1.1 AboutthisManual

This manualcontains information about Van EssenInstruments Diver-Link withpart numberDN4xx

and theDiver-Link Triple with part number DN4xx-3. These devices can read thedata from one or up

to threeconnected Diver groundwater data loggers, respectively. The Diver-Link also contains an

integrated barometric datalogger measuring the atmospheric pressure and temperature. The

collected data fromthe Diver andthe barometric datalogger is transmitted toDiver-HUBserver

through acellular network (2G,3Gand/or 4G/LTE). The Diver-Link configuration, such as data upload

interval is managed through Diver-HUB.

This chaptercontains abriefintroduction to theDiver-Link. Chapter 2covers the preparationand

deploymentof the Diver-Link. Therearefourappendices containingthe technical specifications,

overview of the installation steps, a fulldescription of the LED indicators/function keys and an

appendix with a list ofDiver-Link accessories.

1.2 OperatingPrinciple

A Divergroundwater datalogger is suspended ona DXT Cable which is connected to aDiver-Link at the

topofthewell. TheDiver-Link connectstoa 2G, 3G or 4G/LTEcellular networkand transmits theDiver

data andthe data fromitsinternal barometricdatalogger to theDiver-HUB server.

©April2023VanEssenInstruments.Allrightsreserved. www.vanessen.com

1.3 Description

TheDiver-Link consistsofelectronicsand abatteryinapolycarbonate enclosure. Theelectronics

consistofamodem andradio device,barometric datalogger,Diverinterfaceand userinterface. Views

fromthefour mainsidesare showninthefigurebelow. Eachsidewill bedescribed below.

©April2023VanEssenInstruments.Allrightsreserved. www.vanessen.com

Inthetopview the pressurecompensationelement and theSMAantennaconnector (available on

modelsDN4x2, DN4x2-3,DN4x2andDN4x2-3 only)arevisible. Thepressure compensationelement

transfers the outsidepressure to theinside ofthe unit for thebarometric datalogger.

Onthebottom of the Diver-Link(DN4xx) istheconnector forconnectingtheDXT Cable. FortheDiver-

Link Triple(DN4xx-3) there arethree cables coming out of thebottom oftheenclosure for connecting

a DXT Cable.The connection cables vary inlength. For reference, the shortest cable is referredto as

port 1 andthe longest cable as port 3.

1.3.1 LEDIndicators

Onthefrontside therearefour LED indicators, whicharefor indicating the status, from top to bottom,

of:

•Diver

•SIM card

•Cellular network

•Server

Themeaning of eachLED indicator is explained insection 2.6.1 Activatingthe Diver-Link andinmore

detailinAppendix II LEDIndicators &Function Keys.

1.3.2 FunctionKeys

On theside of theDiver-Link there are four magnetic keys markedby agreen dot.The functionofeach

key is fromtop to bottom:

•Activate theDiver-Linkdownloads thedatafrom the connected Diver and transmitsthis

datatogether with thedatafrom theintegrated barometric datalogger to theDiver-HUB.

•F2 not assigned

•F3 not assigned

•Status showsthelast knownstatus, i.e. after activatingthe Diver-Linkorthelastscheduled

communication session with Diver-HUB.

Thefunction keysaredescribed inmore detailin Appendix II LEDIndicators&FunctionKeys.

1.3.3 IntegratedBarometricDatalogger

The Diver-Link containsa barometric datalogger. Its data canbe used to calculate water levelsfrom

the Diver data. TheDiver-Link adds a barometricvaluewith the same time stamp to the outputfile for

eachsample takenbytheconnected Diver

TheDiver-Link starts recording barometric pressureand temperatureafterthe batteries are inserted

intheDiver-Link andtheDiver-Link makesits firstconnection withthecellular network. The

barometric datalogger clock is synchronized with the time ofthe cellular network each time theDiver-

Linkconnects with the cellular network.

SeeAppendix I Technical Specifications section IntegratedBarometricDataloggerforthe

specifications oftheintegrated barometricdatalogger.

©April2023VanEssenInstruments.Allrightsreserved. www.vanessen.com

2PreparationandDeployment

2.1 Introduction

In practice, theDiver is suspended in a monitoring well and theDiver-Link isinstalled at the surface so

itcanreadand recordbarometric pressure and transmit data, as illustrated below. The atmospheric

pressuredata isused tocompensate thepressuremeasurements recorded bythe Divers forvariations

inatmospheric pressure toobtainwater leveldata.

Thefollowing sections describe howto configure andinstall theDiver-Link. The stepsare:

1. Preparethe Diver-Link

a. Open the Diver-Link

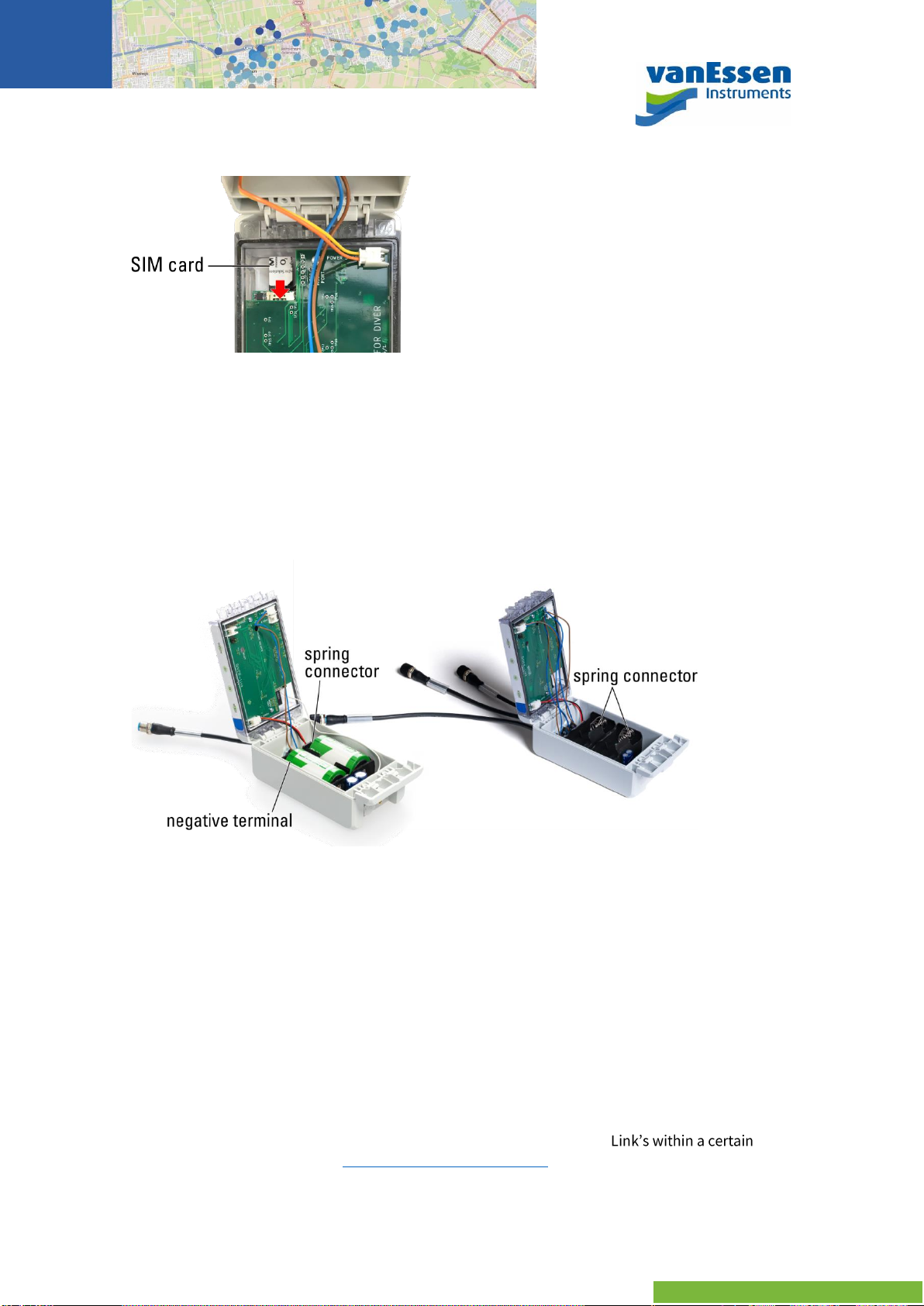

b. Insert theSIMcard (ifapplicable)

c. Insert the batteries with correct polarity

d. Insert thedesiccant

e. ClosetheDiver-Link

©April2023VanEssenInstruments.Allrightsreserved. www.vanessen.com

2. Configure the Diver-Link

3. Program the Diver(s)

4. Deployment

a. Activate the Diver-Link

b. Deploy ina well

Steps1and 2 must not bedone in thefield to avoidthe seal becoming dirtyand water and dust

entering the Diver-Link.

All thesteps in this chapter are summarized in thedocument Diver-LinkPreparation andInstallation.

2.2 PreparingtheDiver-Link

2.2.1 Openingthe Diver-Link

Open the Diver-Link by inserting ascrewdriver (size 3) inthe slot at thetop of the Diver-Link as shown

in thefigure below. Carefully push the screwdriver down; towards the Diver-Link as indicated by the

arrow until the Diver-Link clicks open.

2.2.2 InsertingaSIMCard

Oncethe Diver-Linkis open,the lidcan belifted. The Diver-Link requiresamicro SIMcard for

communication over the cellular network. If youare managing your dataplan through Van Essen

Instruments, a SIMcard is installedin theDiver-Link prior to shipment. Continue withthe following

stepInserting the Battery.

If youare managing adata plan throughathirdparty (local SIMcard), youmust obtaina microSIM

card from theirservice provider and install it yourself. Obtain the APN settings of the SIMcard and

ensurethattheSIM cardisunlocked (noPIN).

OnceaSIM card is obtained,installit in the Diver-Linkasshown below. TheSIMcard slot is located

near thehinge on thetop sideof the Diver-Link.

2.2.3 InsertingtheBattery

TheDiver-Link is powered by one or twolithium D-cellbatteries (typeER34615).

IMPORTANT

•Insert the battery withthe positive and negative pole in thecorrect direction. The negative

pole must beconnected to the spring connector of thebattery holder.

•In casetwo batteries areused: both batteries must facethe same direction.

•Theorientation of the battery holdermayvary: batteries lengthwise(left image)orcrosswise

(right image).

2.2.4 InsertingtheDesiccant

After thebattery andthe SIMcard are installed, thesupplied desiccant mustbe removed from its

plastic bag andplaced inside the Diver-Link. Place the desiccant next to the battery holder. Once the

desiccant is installed close theDiver-Link as soon as possible.

2.2.5 ClosingtheDiver-Link

Close the lid and press thehinge at thetop towards the bottom ofthe Diver-Link until it snapsback in

position. When closing thelid make sure nocables arepinched by thelid.

2.3 ConfiguringtheDiver-Link

Beforeconfiguring the Diver-Linkaproject mustbesetup inDiver-HUB. The projectstructure,

including monitoring point information, will be used to configure allDiver-

project. For more details see the Diver-HUBGettingStartedGuide.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere vanEssen Messgerät Handbücher

vanEssen

vanEssen TD-Diver DI8 Series Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung

vanEssen Diver-Link DN4 Series Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken
