Vantec NST-400MX-53 Bedienungsanleitung

USER’S MANUAL

NST-400MX-S3

NST-400MX-S3R

USB 3.0 Interface

USB 3.0&eSATA Interface

www.vantecusa.com

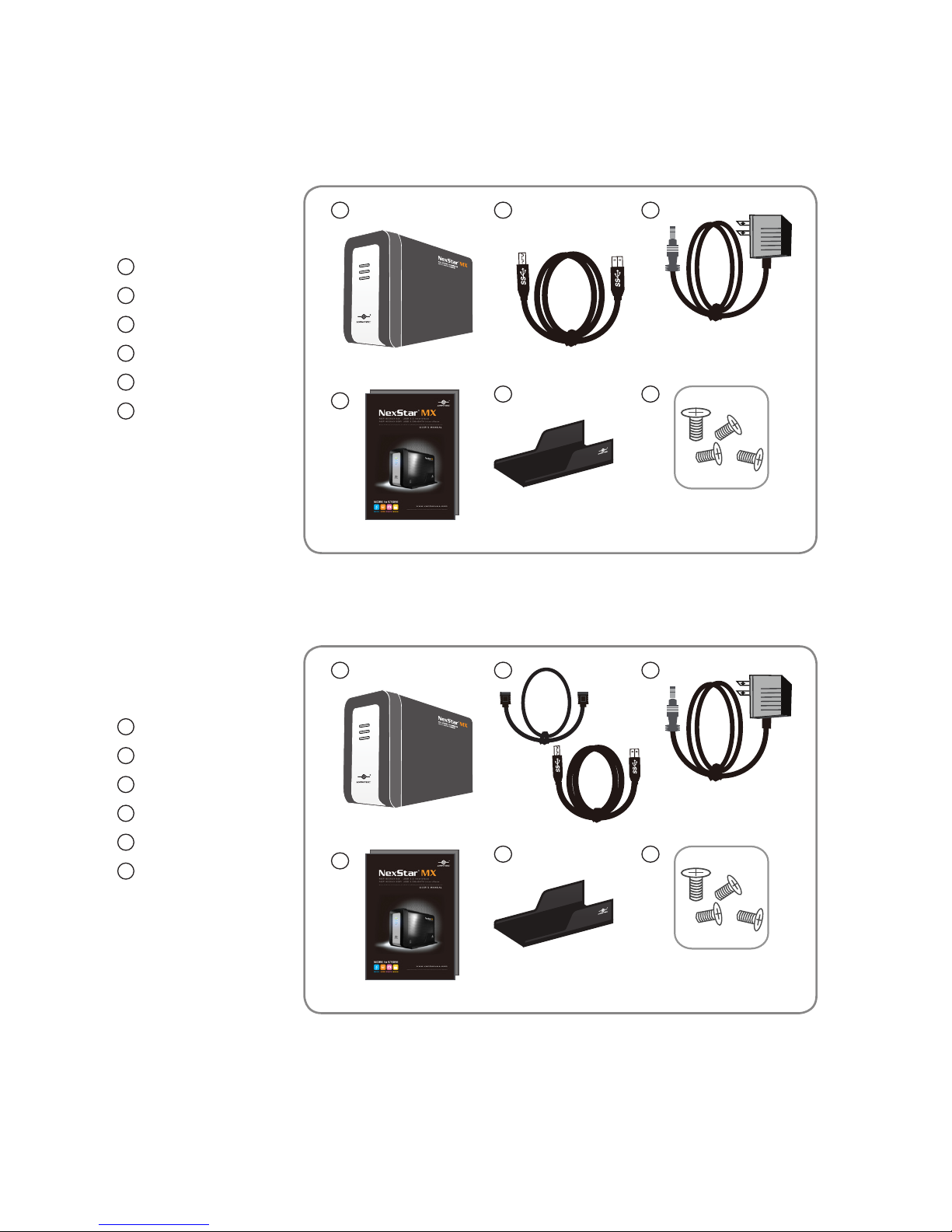

1 NexStar MX

2 USB 3.0 Cable

3 Power Adapter

4 User’s Manual

5 Enclosure Stand

6 Installation Screws

1 NexStar MX

2 USB 3.0 & eSATA Cable

3 Power Adapter

4 User’s Manual

5 Enclosure Stand

6 Installation Screws

Package Contents:

TRADEMARKS

MS-DOS, Microsoft, Windows NT/2000/XP/Vista/7/8 are trademarks of Microsoft Corporation.

Apple, Macintosh and Mac are trademarks of Apple Computer.

NexStar is a registered trademark of Vantec Thermal Technologies.

*All other third-party brands and names are the property of their respective owners.

NST-400MX-S3

Dual 3.5” SATA to USB 3.0 with JBOD

External Hard Drive Enclosure

NST-400MX-S3R

Dual 3.5” RAID Enclosure w/Fan

USB 3.0 & eSATA Interface

Table of Contents:

Table of Contents

10.

11.

Introduction

Specications/Features

System Requirements

Parts Layout

Installation

LED Indicator

Mode Conguration

Disconnecting the NexStar MX

Hardware Formatting Guide

Warranty

Contact

Introduction

1.Introduction:

Vantec NexStar® MX Dual Bay External HDD

Enclosure now in USB 3.0 only or USB 3.0 plus

eSATA interface is a quick and simple way to

expand storage capacity to your computer.

It comes without the hassle of diving inside

the PC and messing with all those wires,

cables and connections. It provides maximum

storage with the increased capacity of two

spanning hard drives for your precious family

photos, music, video, and games. For 400MX-

S3, it will support Individual and JBOD modes;

and for 400MX-S3R, it will support Individual,

JBOD, RAID 0 and RAID 1 modes for eective

storage management. The sturdy drive cage

protects your hard drive while the aluminum

case eectively draws away the heat; the

front vents and the rear fan keep your hard

drive(s) cool and improve performance. The

Vantec NexStar® MX is a high performance,

high capacity, and durable portable storage

solution and lets you store your personal data

in an enclosure with style!

Specications/Features

2.Specications/Features:

Dual 3/5” RAID Enclosure w/FAN USB 3.0 (S3) or USB3 & eSATA (S3R) interface

Features:

• Aluminum Casing Cools Down Your Hard Drive

• 40mm Rear Heat Exhaust Fan

• Easily Add Storage to Any System with USB 2.0, 3.0 or eSATA (for 400MX-S3R only)

• Hot-Swappable: Plug & Play Without Rebooting

• Attractive LED Indicates Power & HDD Activity

• Support Individual, JBOD (for 400MX-S3); Individual, JBOD, RAID 0, RAID 1 (for 400MX-S3R)

Specications:

• Model: NST-400MX-S3

• Device Support: SATA I/II/III Hard Drives

• Device Size: 3.5”

• Internal Interface: SATA

• External Interface: USB 3.0

• HDD Capacity: Up To 8TB*

• Power Supply: AC Adapter

• Fan: 40mm

• Material: Aluminum & Plastic

• Dimension: 197 x 123 x 72 mm

*Check our website www.vantecusa.com for any updates

Specications:

• Model: NST-400MX-S3R

• Device Support: SATA I/II/III Hard Drives

• Device Size: 3.5”

• Internal Interface: SATA

• External Interface: USB 3.0 & eSATA

• HDD Capacity: Up To 8TB*

• Power Supply: AC Adapter

• Fan: 40mm

• Material: Aluminum & Plastic

• Dimension: 197 x 123 x 72 mm

*Check our website www.vantecusa.com for any updates

eSATA Cable

USB 3.0 Cable

Power Adapter

Syetem Requirements

3.System Requirements:

Microsoft Windows XP/Vista/7/8

1. For USB 2.0 speeds, the system must

support USB 2.0 specications

2. For USB 3.0 speeds, the system must

support USB 3.0 specications

3. For eSATA Speeds, the System Must

Support eSATA Specications

4. Port Multiplier Is Required For eSATA

Mac OS 10.4 & greater

1. For USB 2.0 speeds, the system must

support USB 2.0 specications

2. For USB 3.0 speeds, the system must

support USB 3.0 specications

3. For eSATA Speeds, the System Must

Support eSATA Specications

4. Port Multiplier Is Required For eSATA

Parts Layout

4.Parts Layout:

Power ON/OFF Switch

eSATA Port

USB 3.0 Port

Power Jack

Power ON/OFF Switch

USB 3.0 Port

Power Jack

NST-400MX-S3

NST-400MX-S3R

Installation

5.Installation:

Dual 3/5” RAID Enclosure w/FAN USB 3.0 (S3) or USB3 & eSATA (S3R) interface

5.1.Hardware Installation:

Installing the hard drive:

(1) Release the four screws then

pull out the rear panel and tray

of the NexStar MX.

(3) Place the second HDD onto the

drive caddy then insert the HDD

into the SATA connector.

(2) Place the rst HDD onto the

drive caddy then insert the HDD

into the SATA connector.

( gure 5.1-A )

( gure 5.1-C )

( gure 5.1-B )

( gure 5.1-A )

( gure 5.1-C )

( gure 5.1-B )

Installation

(5) Choose the Mode Conguration

for the NexStar MX. Connect the

power adapter and power on the

unit. Press the reset button and

hold for 10-15 seconds.

*Please note, changing mode will

erase all data on the drives in this

400MX enclosure. Please backup

any important data before you

continue. For Mode Conguration

details, see page 10.

(4) Secure the hard drive onto

the drive caddy with the

provided screws.

(6) Insert the drive caddy back into

the aluminum housing. Be sure to

align and secure with the provided

screws.

( gure 5.1-E )

( gure 5.1-D )

( gure 5.1-F )

( gure 5.1-E)

( gure 5.1-D)

( gure 5.1-F)

NOTE:

For new hard drives, you will need to initialize and

partition your hard drive before it will appear in

Windows Explorer or on your Mac desktop. Please

refer to your hard drive manufacturer’s documentation

or read the”Creating a New Partition” section of this

manual.

NOTE:

If you can see the USB icon in the system tray, but there

is no any disk appear in your computer, please conrm

your hard disk is partitioned.

DC12V

POWER

eSATA

ONOFF

USB3.0

Installation

Connecting the NexStar to your computer:

USB 3.0(S3 and S3R)

eSATA (S3R)

Connect the type (B) USB connector to the

NexStar and the type (A) USB connector to an

available USB port on your system.

Connect the power cable to the NexStar and

plug the cable into an available outlet.

Turn on the NexStar via the power switch.

Your operating system should detect

the NexStar and automatically install the

necessary drivers. Once your operating system

nishes setting up the NexStar , it will mount

your hard drive. On Mac OS systems, the

new volume should appear on desktop. On

a Windows PC, the new volume will appear

under My Computer.

Your NexStar External Hard Drive is now ready

for use.

USB3.0 Cable

eSATA Cable

Connect the eSATA to the NexStar and to an

available eSATA port on your system.

Connect the power cable to the NexStar and

plug the cable into an available outlet.

Turn on the NexStar via the power switch.

Your operating system should detect

the NexStar and automatically install the

necessary drivers. Once your operating system

nishes setting up the NexStar, it will mount

your hard drive. On Mac OS systems, the

new volume should appear on desktop. On

a Windows PC, the new volume will appear

under My Computer.

Your NexStar External Hard Drive is now ready

for use.

(1)

(2)

(3)

(4)

(5)

(1)

(2)

(3)

(4)

(5)
