USER MANUAL

1. Introduction

To all residents of the European Union

Important environmental information about this product

This symbol on the device or the package indicates that

disposal of the device after its lifecycle could harm the

environment. Do not dispose of the unit (or batteries) as

unsorted municipal waste; it should be taken to a

specialized company for recycling. This device should be

returned to your distributor or to a local recycling service. Respect

the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly

before bringing this device into service. If the device was damaged in

transit, do not install or use it and contact your dealer.

2. Safety Instructions

Keep the device away from children and unauthorised

users.

Risk of electric shock when opening the cover.

DO NOT disassemble or open the cover. There are no user-

serviceable parts inside the device. Refer to an authorized

dealer for service and/or spare parts.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last

pages of this manual.

Familiarise yourself with the functions of the device before actually

using it.

All modifications of the device are forbidden for safety reasons.

Damage caused by user modifications to the device is not covered

by the warranty.

Only use the device for its intended purpose. Using the device in

an unauthorised way will void the warranty.

Damage caused by disregard of certain guidelines in this manual

is not covered by the warranty and the dealer will not accept

responsibility for any ensuing defects or problems.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 4 ©Velleman nv

Keep this device away from extreme heat.

Protect this device from shocks and abuse. Avoid brute force when

operating the device.

DO NOT use this product to violate privacy laws or perform other

illegal activities.

4. Features

weatherproof

with B/W night vision (IR LEDs)

super high resolution

vandal-proof housing

special functions via on-screen display (OSD) set-up menu

oshutter / AGC

owhite balance

5. Overview

Refer to the illustrations on page 2of this manual.

mounting plate

lens

fixation ring

light sensor

positioning ring

cable slot

lens enclosure (ball)

cable

IR night LEDs

6. Hardware installation

Refer to the illustrations on page 2of this manual.

1. Choose a location for the camera, keeping following guidelines in

mind:

odo not install the camera in locations where extremely high or

low temperatures or excessive vibrations may occur.

oavoid mounting the camera near high electro-magnetic fields.

odo not aim the camera at the sun or other extremely bright

objects or reflections (e.g. metal doors).

2. Hold the mounting plate [1] and unscrew the fixation ring [2] by

turning it counter-clockwise. Note that the lens enclosure [4] and

positioning ring [3] are also released.

3. Use the mounting plate [1] to determine the position of the

mounting holes. Drill the holes.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 5 ©Velleman nv

4. Guide the power and video cable [9] through one of the cable

slots [8] and fix the mounting plate [1] on the ceiling or wall

with four screws.

5. Insert the lens enclosure [4] in the positioning ring [3] and slide

the fixation ring [2] over both. Point the camera towards the

desired field of observation and screw the fixation ring [2] back

on the mounting plate [1].

6. Connect the video connector [A] to a monitor (not incl.) or a

sequential switcher/quad splitter (not incl.) when connecting

multiple domes.

7. Connect the power connector [B] to a 12VDC power supply (not

incl.)

7. OSD Settings

Control Buttons

There is a small joystick in the camera cable that allows you to

adjust the settings of the camera using an on-screen display (OSD).

Press and hold the button during

± 2 seconds to access the menu, or press

briefly to select an option.

Press the button upward and downward to

move up and down in the menu.

Press the button to the left and to the right

to modify the menu parameters.

In the OSD menu:

NEXT/BACK: select this option and press the button to go to the

next/previous page of options in the menu.

RETURN: select this option and press the button to return to the

previous level in the menu.

EXIT: select this option and press the button to leave the OSD

menu without saving the settings.

SAVE&EXIT: select this option and press the button to save all

settings.

LOAD DEFAULT: select this option and press the middle button to

reset the camera to the factory defaults.

SOFT VERSION: displays the version number of the camera

software.

The OSD menu settings are described in detail below.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 6 ©Velleman nv

Noise Reduction

Use this function to switch 3D noise reduction on or off.

Menu: IMAGE > 3D-NR

Select ON to activate 3D noise reduction; select OFF to deactivate.

WDR Function

The WDR function (Wide Dynamic Range) optimizes a picture with

extreme backlight. The camera combines two images, one with a fast

shutter speed and one with a slow shutter speed. This function is

useful for a camera oriented towards a strong light source.

Menu: IMAGE > WDR ON

Automatic Exposure

Use this function to set the exposure method.

Menu: IMAGE > AE MODE

GLOBAL: use the global image to define exposure.

CENTER: use the centre of the image to define exposure.

CENTER WEIGHT: use the global image, but assign more

importance to the centre of the image and less importance to

the edges.

BACK LIGHT: back light compensation. If there is a bright light

in the background, for example from a window, the image

around it may be too dim to see clearly. In that case, use the

backlight function to compensate. The camera automatically

brightens the dim parts of the image.

FRONT LIGHT: front light compensation. Use this setting when

there is a bright light illuminating the front of the image.

DISTINGUISH: for advanced automatic exposure.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 7 ©Velleman nv

Image Enhancement

These are common adjustments for video images: sharpness,

contrast, and saturation.

Menu: IMAGE > IMAGE ENHANCE

SHARPNESS

Use this option to adjust the sharpness of edges

and details in the image.

DETAIL: use this option to adjust the sharpness

of details in more uniform areas of the image.

AUTO: for automatic adjustment.

MANUAL: for manual adjustment (0–15).

EDGE: use this option to adjust the sharpness

of edges in the image.

AUTO: for automatic adjustment.

MANUAL: for manual adjustment (0–15).

CONTRAST

Use this option to enhance the image contrast.

AUTO: for automatic adjustment.

MANUAL: for manual adjustment (0–15).

GAIN MAP: advanced contrast adjustment.

SATURATION

Use this function to adjust the colour saturation.

AUTO: for automatic adjustment.

MANUAL: for manual adjustment (0–15).

Mirror and Flip

Use the MIRROR and FLIP functions to mirror the image or to flip it

upside down.

Menu: IMAGE > TURN > MIRROR

Select ON to mirror the image; select

OFF to keep the image as it is.

Menu: IMAGE > TURN > FLIP

Select ON to flip the image upside

down; select OFF to keep the image

as it is.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 8 ©Velleman nv

Brightness

Use this option to set the image brightness (0–250).

Menu: IMAGE > BRIGHTNESS

Day/Night

The camera automatically switches between colour images in day

conditions and black-and-white images in night conditions.

Use this function to control the day/night behaviour of the camera.

Menu: DAY&NIGHT

AUTO: use this setting for cameras without IR-cut filter, or if

you want to switch the IR-cut filter off during the day. In this

case, the IR light is not filtered during the day, and colours may

be distorted by the IR light.

EXTERNAL: standard setting. The camera uses the IR filter in

day conditions, and switches to a black and white image and

switches off the IR filter in night conditions.

COLOR: the camera always works in colour mode with the IR

filter.

B&W: the camera always works in black and white mode.

White Balance

Use this menu option to define the white balance adjustment. White

balance makes sure that white objects are always reproduced

correctly.

Menu: WB

The following white balance settings are available: AWB-PRO,

AWB-TEMPORAL, AWB-AI, AWB-SZ, AWB-GW, AWB-CCT.

Defining the optimal setting depends on the illumination conditions

of your particular environment. To find the optimal setting, try

each of the settings and select the one that gives the best results.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 9 ©Velleman nv

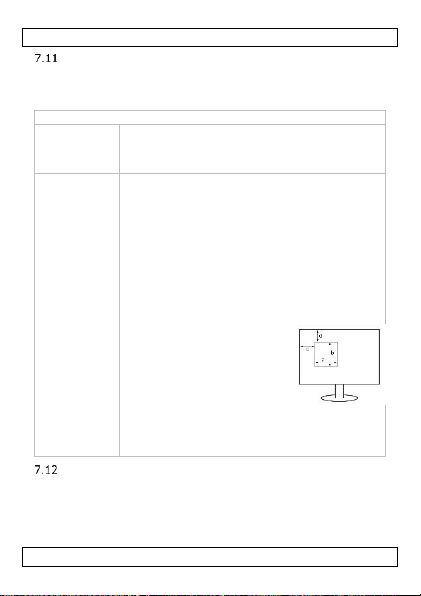

Zone Masking for Privacy

Use this function to block a part of the image where you do not want

to view activity. For example, if part of the image shows a public

area where recording may be illegal. You can define up to 8 areas.

Menu: ZONE MASKING

COLOR

Select black, white or a colour for the mask, or

select MOSAIC for a mosaic effect in the masked

area.

AREA NO 0–7

To define up to 8 areas. Select the desired area

and use the settings below.

STATUS: select ON to activate the selected

masked area; select OFF to deactivate the

selected masked area.

HORIZON SIZE:

set the width [a]

(in pixels) of the

masked area.

VERTICAL SIZE:

sets the height

[b] (in pixels) of

the masked area.

HORIZON MOVE:

sets the distance

(in pixels) from

the left side of the

screen [c] for the

masked area.

VERTICAL MOVE:

sets the distance

(in pixels) from

the top of the

screen [d] for the

masked area.

CAMCOLD25/CAMCOLD25W

V. 01 –13/01/2015 10 ©Velleman nv

Motion Detection

Use this function to see motion detection during live monitoring. You

can define up to 4 separate areas for motion detection. If the camera

detects motion in an area, the outer edge of that area will ‘flash’.

Menu: DIRECTION

SENSITIVITY

Set the motion detection sensitivity. With a higher

sensitivity, slighter movements will be detected.

Available options for sensitivity: WEAK (weak);

LOW (low); MIDDLE (medium), and HIGH (high).

AREA NO 0–3

To define up to 4 areas. Select the desired area

and use the settings below.

STATUS: select ON to activate the selected

detection area; select OFF to deactivate the

selected detection area.

COLOR: set the colour of the detection area.

The outer edge of the area will flash in this

colour when the camera detects motion.

HORIZON SIZE: set the

width [a] (in pixels) of the

detection area.

VERTICAL SIZE: sets the

height [b] (in pixels) of the

detection area.

HORIZON MOVE: sets the

distance (in pixels) from

the left side of the screen

[c] for the detection area.

VERTICAL MOVE: sets the

distance (in pixels) from

the top of the screen [d]

for the detection area.

Language

Use this function to set the language of the OSD menu.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Velleman Sicherheitskamera Handbücher

Velleman

Velleman CAMCOLBUL2 Bedienungsanleitung

Velleman

Velleman CAMSCB2 Bedienungsanleitung

Velleman

Velleman CAMTVI1 Bedienungsanleitung

Velleman

Velleman EAGLE EYES CAMIP12N Bedienungsanleitung

Velleman

Velleman CAMCOLD12 Bedienungsanleitung

Velleman

Velleman CAMTVI15 Bedienungsanleitung

Velleman

Velleman CAMIP11 Bedienungsanleitung

Velleman

Velleman CAMCOLD24 Bedienungsanleitung

Velleman

Velleman CAMCOLD18 Bedienungsanleitung

Velleman

Velleman CAMCOLD19 Bedienungsanleitung

Velleman

Velleman CAMTVI7N2 Bedienungsanleitung

Velleman

Velleman CAMIP22 Bedienungsanleitung

Velleman

Velleman CAMTVI7N1 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL5H4 Bedienungsanleitung

Velleman

Velleman CM2A005 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL5H3 Bedienungsanleitung

Velleman

Velleman CAMIP14 Bedienungsanleitung

Velleman

Velleman CAMTVI7N3 Bedienungsanleitung

Velleman

Velleman CAMCOLD23 Bedienungsanleitung

Velleman

Velleman CAMCOLBUL23 Bedienungsanleitung

Velleman

Velleman CAMIP15 Bedienungsanleitung

Velleman

Velleman CAMIP12 Bedienungsanleitung

Velleman

Velleman Camcolbul29 Bedienungsanleitung

Velleman

Velleman CAMZWIRP Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
