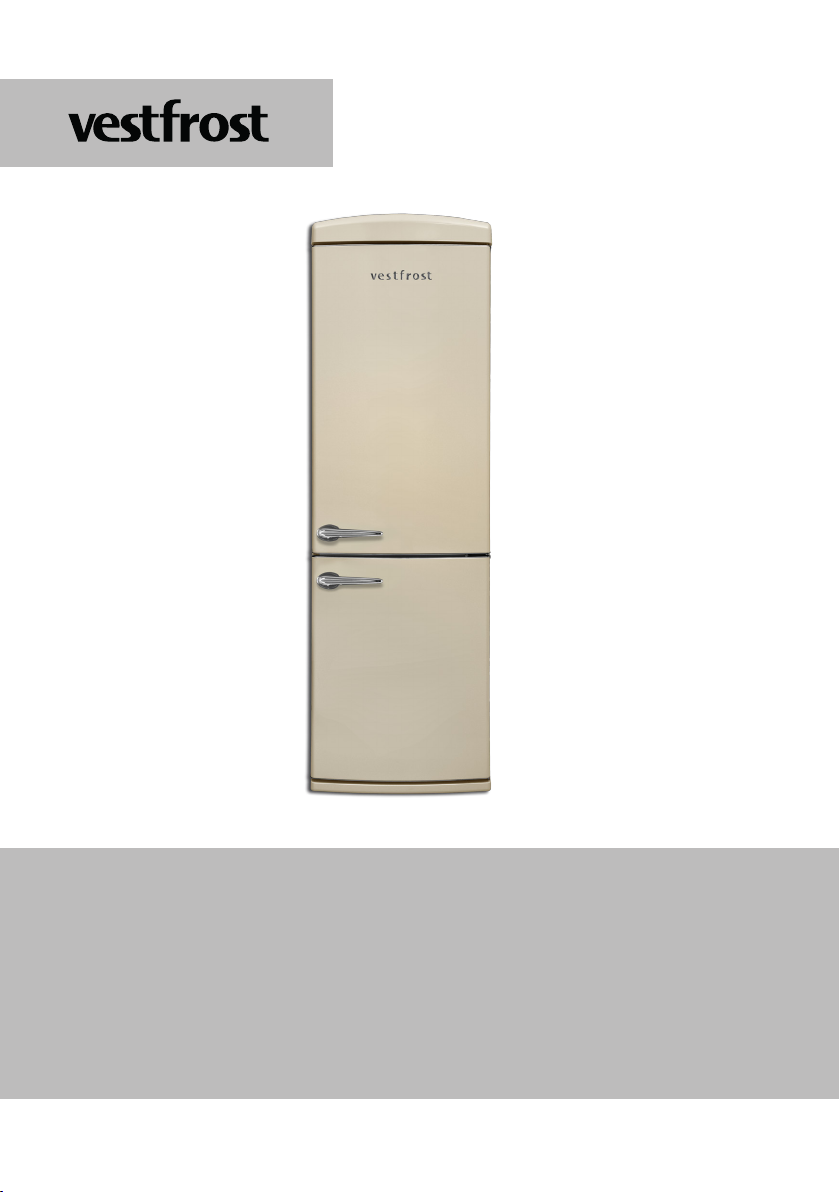

Vestfrost VR-FB373-2E1BG Bedienungsanleitung

No frost combi refrigerator

Operation manual

Chłodziarko-zamrażarka

Instrukcja obsługi

Elektronisks pretsarmas

kombinētais ledusskapis

Lietošanas instrukcija

Elektrooniline jäävaba

kombikümkapp

Kasutusjuhend

95)%(%*

95)%(%0

The operating instructions apply to several models. Differences may therefore occur.

FIRE

Warning; Risk of fire / flammable materials

EN -3-

INDEX

BEFORE USING THE APPLIANCE ...................................................... 4

General warnings ............................................................................................. 4

Old and out-of-order fridges or freezer............................................................. 7

Safety warnings................................................................................................ 7

Installing and operating your fridge freezer...................................................... 8

Before Using your Fridge ................................................................................. 9

THE VARIOUS FUNCTION AND POSSIBILITIES............................... 9

Information about New Generation Cooling Technology .................................. 9

Display and Control Panel.............................................................................. 10

Operating your Fridge Freezer....................................................................... 10

Freezer Temperature Settings.................................................................................10

Cooler Temperature Settings ..................................................................................10

Super Freeze Mode ................................................................................................10

Temperature Adjustment Warnings ................................................................ 11

Accessories.................................................................................................... 12

Ice Tray ...................................................................................................................12

The Freezer Box .....................................................................................................12

The Chiller Shelf......................................................................................................12

The Fresh Dial.........................................................................................................13

Adjustable Door Shelf .............................................................................................13

Adjustable Glass Shelf............................................................................................13

Natural Ion Tech ......................................................................................................14

Maxi-fresh preserver ...............................................................................................14

ARRANGING FOOD IN THE APPLIANCE ......................................... 15

Refrigerator compartment .............................................................................. 15

Freezer compartment..................................................................................... 16

CLEANING AND MAINTENANCE....................................................... 20

Defrosting................................................................................................................20

TRANSPORTATION AND CHANGING OF INSTALLATION

POSITION .............................................................................................. 21

Repositioning the Door................................................................................... 21

BEFORE CALLING YOUR AFTER SALES SERVICE ...................... 22

Tips for saving energy .................................................................................... 25

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ... 26

Dimensions..................................................................................................... 28

EN -4-

BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance

enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means

to accelerate the defrosting process, other than those

recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food

storage compartments of the appliance, unless they are of the

type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: When positioning the appliance, ensure the

supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or

portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards resulting from the

instability of the appliance, it must be fixed in accordance with

the following instructions:

If your appliance uses R600a as a refrigerant (this information

will be provided on the label of the cooler) you should take care

during transportation and installation to prevent the cooler

elements from being damaged. R600a is an environmentally

friendly and natural gas, but it is explosive. In the event of a leak

due to damage of the cooler elements, move your fridge away

from open flames or heat sources and ventilate the room where

the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the

cooler gas circuit.

• Do not store explosive substances such as aerosol cans with

a flammable propellant in this appliance.

PART - 1.

EN -5-

• This appliance is intended to be used in household and

domestic applications such as:

- staff kitchen areas in shops, offices and other working

environments.

- farm houses and by clients in hotels, motels and other

residential type environments.

- bed and breakfast type environments;

- catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be

replaced by the manufacturer, a service agent or similarly

qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power

cable of your refrigerator. This plug should be used with

a specially grounded socket of 16 amperes. If there is no

such socket in your house, please have one installed by an

authorised electrician.

• This appliance can be used by children aged from 8 years

and above and persons with reduced physical, sensory or

mental capabilities or lack of experience and knowledge if they

have been given supervision or instruction concerning use

of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning

and user maintenance shall not be made by children without

supervision.

• Children aged from 3 to 8 years are allowed to load and

unload refrigerating appliances. Children are not expected

to perform cleaning or user maintenance of the appliance,

very young children (0-3 years old) are not expected to use

appliances, young children (3-8 years old) are not expected to

use appliances safely unless continuous supervision is given,

older children (8-14 years old) and vulnerable people can

use appliances safely after they have been given appropriate

EN -6-

supervision or instruction concerning use of the appliance.

Very vulnerable people are not expected to use appliances

safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the

manufacturer, an authorised service agent or similar qualified

persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding

2000 m.

To avoid contamination of food, please respect the

following instructions:

• Opening the door for long periods can cause a significant

increase of the temperature in the compartments of the

appliance.

• Clean regularly surfaces that can come in contact with food

and accessible drainage systems

• Store raw meat and fish in suitable containers in the

refrigerator, so that it is not in contact with or drip onto other

food.

• Two-star frozen-food compartments are suitable for storing

pre-frozen food, storing or making ice cream and making ice

cubes.

• One-, two- and three-star compartments are not suitable for

the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods,

switch off, defrost, clean, dry, and leave the door open to

prevent mould developing within the appliance.

EN -7-

Old and out-of-order fridges or freezer

• If your old fridge or freezer has a lock, break or remove the lock before discarding it,

because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore,

take care not to harm environment when you are discarding your old fridges.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it shall be handed over to the applicable

collection point for the recycling of electrical and electronic equipment. By ensuring

this product is disposed of correctly, you will help prevent potential negative

consequences for the environment and human health, which could otherwise

be caused by inappropriate waste handling of this product. For more detailed

information about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

Notes:

• Please read the instruction manual carefully before installing and using your appliance.

We are not responsible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual

in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic

environments and for the specified purposes. It is not suitable for commercial or common

use. Such use will cause the guarantee of the appliance to be cancelled and our company

will not be responsible for the losses to be occurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing

foods. It is not suitable for commercial or common use and/or for storing substances

except for food. Our company is not responsible for the losses to be occurred in the

contrary case.

Safety warnings

• Do not connect your fridge freezer to the mains electricity supply using

an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is designed for use by adults. Do not allow children to

play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short

circuit or electric shock.

EN -8-

• Do not place glass bottles or cans in the ice-making compartment as

they will burst when the contents freeze.

• Do not place explosive or flammable material in your fridge. Place drinks

with high alcohol content vertically in the fridge compartment and make

sure their tops are tightly closed.

• When removing ice from the ice-making compartment, do not touch it. Ice may

cause frost burns and/or cuts.

• Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes

immediately after they are removed from the ice-making compartment.

• Do not re-freeze thawed frozen food. This may cause health issues such as food

poisoning.

Installing and operating your fridge freezer

Before using your fridge freezer for the first time, please pay attention to the following points:

• The operating voltage for your fridge freezer is 220-240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge freezer may have an odour when it is operated for the first time. This is normal

and the odour will fade when your fridge freezer starts to cool.

• Before connecting your fridge freezer, ensure that the information on the data plate

(voltage and connected load) matches that of the mains electricity supply. If in doubt,

consult a qualified electrician.

• Insert the plug into a socket with an efficient ground connection. If the socket has no

ground contact or the plug does not match, we recommend you consult a qualified

electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power

supply (AC) and voltage at the operating point must match with the details on the name

plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge freezer where it will not be exposed to direct sunlight.

• Your fridge freezer must never be used outdoors or exposed to rain.

• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores,

and at least 5 cm away from electrical ovens.

• If your fridge freezer is placed next to a deep freezer, there must be at least 2 cm between

them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge freezer with lace. This will affect the performance

of your fridge freezer.

• Clearance of at least 150 mm is required at the top of your appliance. Do

not place anything on top of your appliance.

• Do not place heavy items on the appliance.

• Use the adjustable front legs to make sure your appliance is level and stable.

You can adjust the legs by turning them in either direction. This must be

done before placing food in the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

EN -9-

• Before using your fridge freezer, wipe all parts with a solution of warm water and a

teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts

to the fridge freezer after cleaning.

• Install the two plastic distance guides (the parts on the black vanes

-condenser- at the rear) by turning it 90° (as shown in the figure) to

prevent the condenser from touching the wall.

• The distance between the appliance and back wall must be a maximum

of 75 mm.

Before Using your Fridge

• When using your fridge for the first time, or after transportation, keep it

in an upright position for at least 3 hours before plugging into the mains.

This allows efficient operation and prevents damage to the compressor.

• Your fridge may have a smell when it is operated for the first time. This

is normal and the smell will fade away when your fridge starts to cool.

THE VARIOUS FUNCTION AND POSSIBILITIES

Information about New Generation Cooling Technology

Fridges with new-generation cooling technology have a different operating

system to static fridges. Other (static) fridges may experience a build up

of ice in the freezer compartment due to door openings and humidity in

the food. In such fridges, regular defrosting is required; the fridge must

be switched off, the frozen food moved to a suitable container and the

ice which has formed in the freezer compartment removed.

In fridges with new-generation cooling technology, a fan blows dry cold

air evenly throughout the fridge and freezer compartments. The cold air

cools your food evenly and uniformly, preventing humidity and ice build-up.

In the refrigerator compartment, air blown by the fan, located at the top

of the refrigerator compartment, is cooled while passing through the gap

behind the air duct. At the same time, the air is blown out through the

holes in the air duct, evenly spreading cool air throughout the refrigerator

compartment.

There is no air passage between the freezer and refrigerator compartments,

therefore preventing the mixing of odours.

As a result, your fridge, with new-generation cooling technology, provides

you with ease of use as well as a huge volume and aesthetic appearance.

PART - 2.

EN -10-

Display and Control Panel

Using the Control Panel

1. Enables the setting of the freezer.

2. Enables the setting of the cooler.

3. Freezer set value screen.

4. Cooler set value screen.

5. Economy mode symbol.

6. Super freeze symbol.

7. Alarm symbol.

Lighting (If available)

When the product is plugged in for the first time,

the interior lights may turn on 1 minute late due to opening tests.

Operating your Fridge Freezer

Once you have plugged in the product, all symbols will be displayed for 2 seconds and the

initial values will be shown as -18 °C on the freezer adjustment indicator, and +4 °C on the

fridge adjustment indicator.

Freezer Temperature Settings

• The initial temperature value for the freezer setting indicator is -18 °C.

• Press the freezer set button once.

When you first press the button, the previous value will blink on the screen.

• Whenever you press this button, temperature will decrease respectively.

• If you continue to press the button, it will restart from -16 °C.

NOTE: Eco mode gets activated automatically when the temperature of the freezer

compartment is set to -18°C.

Cooler Temperature Settings

• The initial temperature value for the cooler setting indicator is +4 °C.

• Press the cooler button once.

• Whenever you press this button, temperature will decrease respectively.

• If you continue to press the button, it will restart from +8 °C.

Super Freeze Mode

Purpose

• To freeze a large quantity of food that cannot fit on the fast freeze shelf.

• To freeze prepared foods.

• To freeze fresh food quickly to retain freshness.

How to use

To enable the super freeze mode, press and hold the freezer temperature setting

button for 3 seconds. Once the super freeze mode has been set, the super freeze

symbol on the indicator will be lit and the machine will beep to confirm the mode has

been switched on.

During Super Freeze Mode:

• The temperature of the Cooler may be adjusted. In this case, Super Freeze mode will

3 5 6 7 4

1 2

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Vestfrost Kühlschrank Handbücher

Vestfrost

Vestfrost CI 3664-0 M NF RF Bedienungsanleitung

Vestfrost

Vestfrost VLS174A AC Bedienungsanleitung

Vestfrost

Vestfrost R 375 LX Bedienungsanleitung

Vestfrost

Vestfrost VCF 10180 NoFrost Bedienungsanleitung

Vestfrost

Vestfrost VLS 054 SDD Bedienungsanleitung

Vestfrost

Vestfrost AKG 337 Bedienungsanleitung

Vestfrost

Vestfrost VW18LFM00W Bedienungsanleitung

Vestfrost

Vestfrost VLS 204A Bedienungsanleitung

Vestfrost

Vestfrost VIC 10177 S Bedienungsanleitung

Vestfrost

Vestfrost CI 376-2 M Bedienungsanleitung

Vestfrost

Vestfrost VF566MSLV Bedienungsanleitung

Vestfrost

Vestfrost WV123KF Bedienungsanleitung

Vestfrost

Vestfrost VCF 10122 TF Bedienungsanleitung

Vestfrost

Vestfrost VR-BF27952H0S Bedienungsanleitung

Vestfrost

Vestfrost FZ 277R Bedienungsanleitung

Vestfrost

Vestfrost VR-FB373-2E0BG Bedienungsanleitung

Vestfrost

Vestfrost VICF 10177 DOD-R Bedienungsanleitung

Vestfrost

Vestfrost CX 232 W Bedienungsanleitung

Vestfrost

Vestfrost VR-FB492-2H0P Bedienungsanleitung

Vestfrost

Vestfrost CX 263 WB Bedienungsanleitung

Vestfrost

Vestfrost VR-BB27612H0S Bedienungsanleitung

Vestfrost

Vestfrost VW18NFE01B Bedienungsanleitung

Vestfrost

Vestfrost VCF 13200 NoFrost Bedienungsanleitung

Vestfrost

Vestfrost CW 397 R Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
