User Guide

Roughneck® AI V2000D-PTZ

Outdoor Vandal PTZ Dome Camera

XX320-01-02

Vicon Industries Inc. does not warrant that the functions contained in this equipment will

meet your requirements or that the operation will be entirely error free or perform precisely as

described in the documentation. This system has not been designed to be used in

life-critical situations and must not be used for this purpose.

Document Number: 8009-8320-01-02 Product specifications subject to change without notice.

Vicon Industries Inc.

Tel: 631-952-2288) Fax: 631-951-2288

Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON

(800-348-4266)

UK: 44/(0) 1489-566300

www.vicon-security.com

Table of Content

Connection..................................................................................................................................................................................................1

Live View.......................................................................................................................................................................................................3

Playback .......................................................................................................................................................................................................6

Configuration..............................................................................................................................................................................................8

1. Encode.................................................................................................................................................... 8

2. Image.................................................................................................................................................... 11

3. Video .................................................................................................................................................... 16

4. Network ............................................................................................................................................... 20

5. System.................................................................................................................................................. 31

6. Account ................................................................................................................................................ 37

7. Event Source ........................................................................................................................................ 40

8. Video Analytics: V2002D-PTZ Only....................................................................................................... 49

9. Video Analytics: V2005D-PTZ Only....................................................................................................... 62

10. Event Setting ........................................................................................................................................ 72

11. PTZ Settings.......................................................................................................................................... 80

Appendix 1: Continuous Recording to an SD Card............................................................................................................. 90

Vicon Standard Equipment Warranty........................................................................................................................................ 94

V2000D-PTZ User’s Manual

Connection

Accessing the Camera

The camera can be accessed directly from its web page or using Vicon’s PRONTO Device Manager,

which can be found on Vicon’s website. Note that when accessing the camera for the first time, a

message will display to reset the password.

Since this is a network-based camera, an IP address must be assigned. The camera’s default IP

address is obtained automatically through a DHCP server in your network; be sure to enable DHCP in

"Network Settings." If DHCP is not available, the camera will use APIPA (link-local address); IPv4 link-

local addresses are assigned from address block 169.254.0.0/16 (169.254.0.0 through 169.254.255.255).

Connecting from a Computer

Make sure the camera and your computer are in the same subnet.

Check whether the network available between the camera and the computer by executing ping the

default IP address. To do this, simply start a command prompt (Windows: from the “Start Menu”, select

“Program”. Then select “Accessories” and choose “Command Prompt”), and type “Ping and then type

your IP address. If the message “Reply from…” appears, it means the connection is available.

Start a browser, e.g., Chrome, and enter IP address. A login window as shown below should pop up. In

the window, enter the default user name: ADMIN; it is required to change the password when you login

for the first time for added security, which requires at least 8 characters including 1 uppercase letter, 1

special character, alphanumeric characters to log in.

Further administration on the unit can be found in "Configuration."

Figure: Login Window

V2000D-PTZ User’s Manual

PRONTO Device Manager

PRONTO is Vicon’s device manager (Discovery tool) that can be used to discover all Vicon cameras

on a system.

Figure: PRONTO Interface

•Upon startup of the PRONTO Device Manager, the tool’s auto-discovery function generates a

list of the discovered cameras on the network in a resource list.

•There are a variety of filtering options, including filter by All Devices/IP Device/ONVIF Device;

IP range or text.

•There are tabs for Device Properties, Network Settings and Firmware.

V2000D-PTZ User’s Manual

Live View

After accessing and logging in to the IP address of the camera, there are 3 main options on the upper

left side: “Live View,” “Playback” and “Configuration.” The upper right corner indicates the current user

level and has the “Logout” option, which allows user to log out by clicking it. In addition, the dropdown

menu beside the Configuration is used for changing the UI language. This chapter mainly focuses on

Live View; later chapters will detail Playback and Configuration.

Figure: Live View (without analytics)

Figure: Live View (with analytics)

V2000D-PTZ User’s Manual

In “Live View” page, user will have access to real-time Live View display.

The drop-down menu under “Media Player” title consists of 2 options for display: JPEG and H.264.

JPEG offers a broad range of browser options, including Chrome, Opera, etc., but has lower frame rate

display. Additionally, in JPEG mode a Snapshot button is provided for users to take a still picture and

save it in a predefined folder.

Video Analytics

Select a Video Analytics (VA) function from the dropdown menu. Make sure that the selected VA

function is enabled in “Video Analytics” section. When “Off” is selected, the camera is not performing

any VA function.

Draw Object Bounding: Check this box to allow camera to activate motion detection and draw an

area around the detected object. This function can be used only when a VA function is activated.

Display Picture: When an object enters the area, an easily identifiable icon of a person or vehicle

(rather than text) displays, showing its movement until it exits the area.

Figure: Video Analytics Panel

PTZ Control Panel

Whether in Live View or Configuration, user can always see the PTZ Control Panel on the lower-left side

of window. The PTZ Control Panel allows quick access for execution of Pan, Tilt, Zoom and Focus

movements, as well as Preset, Patrol and Pattern actions.

Note



Refer to “

11.4 Preset

”, “

11.5 Patrol

” and “

11.6 Pattern

" for details on Preset, Patrol

and

Pattern.

Figure: Pan/Tilt Control

Use the Pan/Tilt Control to pan and/or tilt camera in up/down/left/right/up right/up left/down

right/down left directions to adjust camera view. Click once to perform the movement once. Clicking

and holding allows continuous movement. Click the center part of Pan/Tilt Control to go to home view.

V2000D-PTZ User’s Manual

In addition, the user can adjust camera view using the options listed below.

Item

Option/Range

Description

Up - Down

0 ~ 105

Click and drag to tilt camera view.

Left - Right

1 ~ 360

Click and drag to pan camera view

Wide - Tele

1x ~ 120x (up to 240x

based on Digital Zoom

Limit)

Click and drag to zoom in/out camera view

Far - Near

1~ 100

Click and drag to adjust focus of camera view

Pan Value

1~ 360

Enter a value for pan angle

Tilt Value

0~ 105

Enter a value for tilt angle

Zoom Value

1x ~ 120x (up to 240x

based on Digital Zoom

Limit)

Enter a value for zoom depth

Focus Value

1~ 100

Enter a value for focus depth

Preset

1~ 128

Select a preset action

Patrol

1~ 4

Select patrol action

Pattern

1~ 4

Select pattern action

V2000D-PTZ User’s Manual

Playback

The camera provides a method to play video stored on micro SD card.

Due to compatibility issues related to video and audio formats; when playing video stored on micro SD

Card, it is highly recommended to use Chrome or Safari browser along with H.264 codec, since these

browsers support H.264 format. Remember that both camera and browser must support same format;

therefore, it is possible to use any other browser along with H.265 codec, as long as both camera and

browser support H.265 format.

After clicking on the playback function on the upper left side next to Live View, the page displays.

Figure: Playback

Storage device: SD Card

This camera supports a micro SD card storage device.

Event Type: Network Loss/Schedule/Tamper/Motion/Alarm/Audio

After selecting the edge storage, videos can be searched based on type of events that triggered video

recording, and date and time recording was stored. Check the boxes to select the type of events that

might trigger the video you are searching for.

Date & Time

User can select the exact date and time segment to search for recorded video, by clicking on a date on

the calendar and entering time, respectively. The selected date will turn into a blue background on the

calendar. The current date has a light brown background. Finally click the search button to start

searching for videos on timeline area, according to the parameters chosen.

Timeline: 0.5 ~ 6 (hours)

Interval is used for adjusting the time range of timeline area in terms of hours; each step from timeline

changes half hour in timeline area. Timeline helps user to get more details and a larger scale view of

timeline area for easier search. 6 hours allows search in larger scale while 0.5 hour allows more details.

V2000D-PTZ User’s Manual

Figure: Timeline Area

User can click, and then drag left or right to see other parts of the timeline area. Based on the search

configuration, if there is a video list on micro SD card, it will be shown on timeline area in different colors,

sizes and times based on type, duration and time recorded, respectively. Refer to the illustration below

timeline area to know the relation between type and color.

Selected types will be shown in timeline area according to their respective color bars, while types that

are not selected will be shown in dark blue bars represented as “SD File.”

Current or filtered date and time are shown at the upper center of timeline, where there is a vertical

yellow line that represents the center of timeline area.

Display/Playback Toolbar

Figure: Display and Playback Toolbar

To play a video, simply hover over a color bar on timeline area until a hover box displays; then click

on the color bar for the recorded video to automatically start playing on the display.

While the video is playing, user can hover over the displaying video to activate playback toolbar.

V2000D-PTZ User’s Manual

Configuration

After clicking “Configuration,” the screen will display as below, with several menu options on the left

side for users to configure. These will be explained one by one in the following chapters.

1. Encode

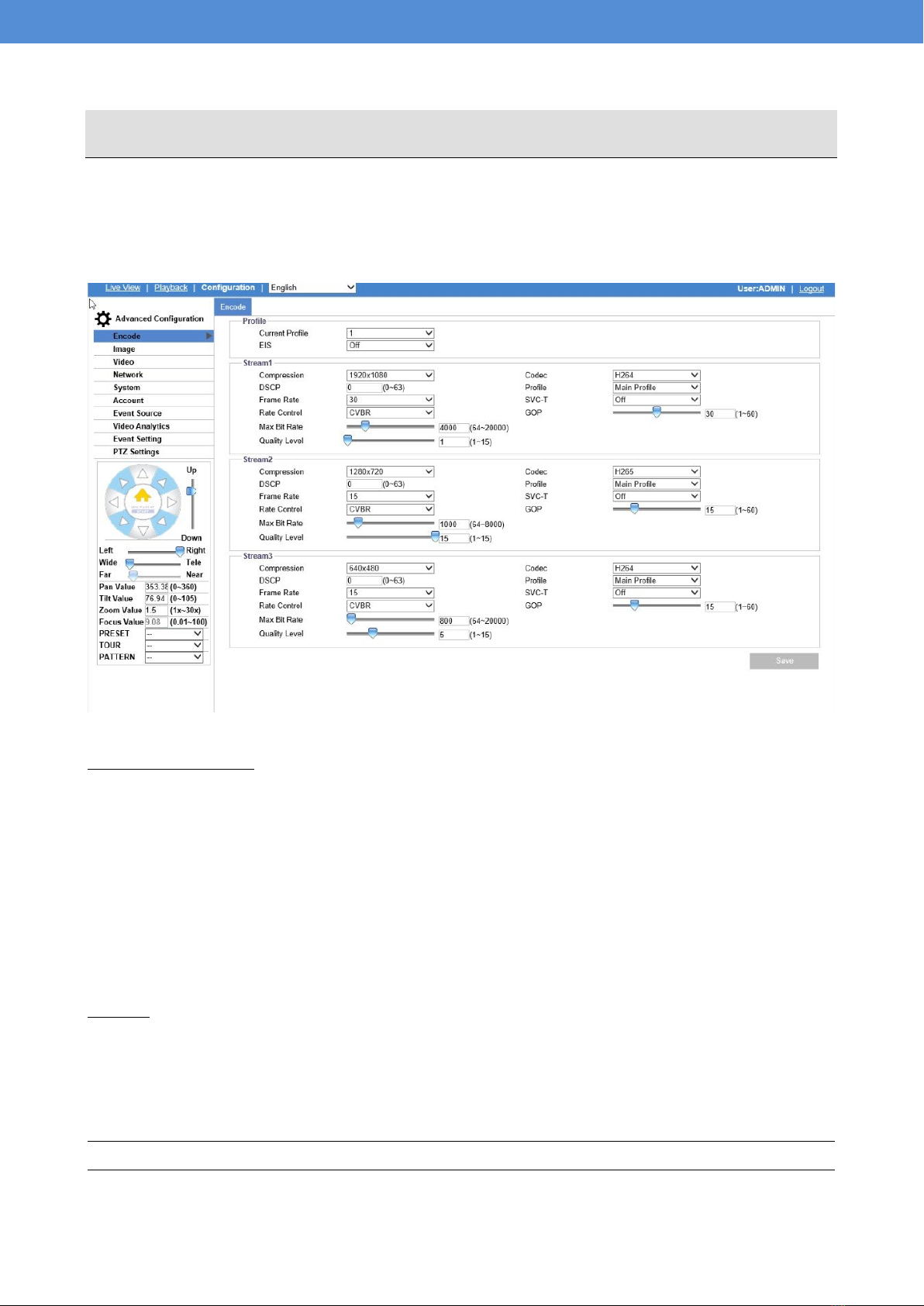

Figure: Encode Settings

Profile and Streams

Current Profile: 1/2/3

It is strongly recommended to define different settings under each stream to maintain better video

transmission for varied network environments and applications. By default, there are 3 profiles, and

each profile contains 3 streams for individual configuration. The detailed configurations for each stream

are described in detail below.

EIS: On/ Off

When EIS is turned on, if shaking of the camera is detected, the software can compensate by

adjusting the image from blurring, fine-tuning some functions, such as shutter time.

Stream

Compression

As an example, compression options for the 2 MP models are 1920x1080, 1280x960, 1280x720, 800x600,

640x480, 640x360, 320x240. Higher resolution values are model dependent and frame rates correspond

to the resolution, streams and codec selected.

Note



Refer to the datasheet for the camera model for details.
