Vicon V662V-Series Betriebsanleitung

www.vicon-security.com

Installation and Operation Guide

XX233-00-01

V662V-Series Vandal-Proof

WDR Analog Camera Dome

Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the

operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed

to be used in life-critical situations and must not be used for this purpose.

Vicon Industries Inc., 89 Arkay Drive, Hauppauge, New York 11788

Tel: 631-952-2288 Fax: 631-951-2288 Toll Free: 800-645-9116

24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: 44/(0) 1489-566300

Document Number: 8009-8233-00-01

Product specications subject to change without notice.

Issued: 0811

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated ''dangerous voltage'' within

the product's enclosure that may be of sufficient magnitude to constitute a risk of

electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to

the presence of important operating and maintenance (servicing) instructions in the

literature accompanying the product.

PRECAUTIONS

Safety ---------------------------------------------

Should any liquid or solid object fall into the cabinet,

unplug the unit and have it checked by qualified

personnel before operating it any further.

Unplug the unit from the wall outlet if it is not going to

be used for several days or more. To disconnect the

cord, pull it out by the plug. Never pull the cord itself.

llow adequate air circulation to prevent internal heat

build-up. Do not place the unit on soft surfaces (rugs,

carpets, sofas, etc.) or near materials (curtains,

draperies) that may block the ventilation holes.

Height and vertical linearity controls located on the rear

panel are for special adjustments by qualified personnel

only.

Cleaning ---------------------------------------------

Clean the unit with a slightly damp soft cloth.

Use a mild household detergent. Never use strong

solvents such as thinner or benzine as they might

damage the finish of the unit.

Retain the original carton and packing materials for safe

transport of this unit in the future.

FCC COMPLIANCE STATEMENT

CE COMPLIANCE STATEMENT

INFORMATION TO THE USER:THIS EQUIPMENT HAS BEEN TESTED

AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE,

PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED

TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL

INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL

ENVIRONMENT. THIS EQUIPMENT GENERATES, USES, AND CAN RADIATE

RADIO FREQUENCY ENERGY AND IF NOT INSTALLED AND USED IN

ACCORDANCE WITH THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL

INTERFERENCE TO RADIO COMMUNICATIONS.

OPERATION OF THIS EQUIPMENT IN A RESIDENTIAL AREA IS LIKELY TO

CAUSE HARMFUL INTERFERENCE IN WHICH CASE THE USER WILL BE

REQUIRED TO CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED

BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER'S

AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.

CET APPAREIL NUMÉRIQUE DE LA CLASSE A EST CONFORME À LA NORME

NMB-003 DU CANADA.

WARNING: This is a Class A product. In a domestic environment this product

may cause radio interference in which case the user may be required to take

adequate measures.

IMPORTANT SAFEGUARDS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or

other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

are provided for your safety. If the provided plug does not fit into your outlet, consult

an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a cart is used,

use caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for

long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been moisture, does not operate normally,

or has been dropped.

15. CAUTION – THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED

SERVICE PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT PERFORM ANY SERVICING OTHER THAN THAT CONTAINED IN THE

OPERATING INSTRUCTIONS UNLESS YOU QRE QUALIFIED TO DO SO.

16. Use Certified/Listed Class 2 power source only.

17. Apparatus shall not be exposed to dripping or splashing and no object filled with

liquids, such as vases, shall be placed on the apparatus.

CONTENTS OF PACKAGE

The package contains the following

1. Camera in Housing

2. Accessory Kit for Installing

3. Drilling guide label

TABLE OF CONTENTS

INTRODUCTION ---------------------------------------------------------------------------------------6

CAMERA CONNECTIONS --------------------------------------------------------------------------7

INSTALLATION-----------------------------------------------------------------------------------------8

THE DEFINITION OF TERMS----------------------------------------------------------------------9

CAMERA ADJUSTMENT ----------------------------------------------------------------------------11

LENS ADJUSTMENT ---------------------------------------------------------------------------------18

DC AUTO IRIS LENS ---------------------------------------------------------------------------------18

EXTERNAL DIMENSION ----------------------------------------------------------------------------19

SPECIFICATIONS -------------------------------------------------------------------------------------20

INTRODUCTION

The camera provides high-quality image using Sony®Wide Dynamic 1/3” Super-HAD™

II PS 960H CCD and DSP.

Features:

•1/3” Super-HAD™II PS 960H CCD

•Super high-resolution of 650TV lines

•0.4 lux(Color), 0.04 lux(B/W), 0.001 lux(Low-Shutter) @ F1.4 Sensitivity

•Auto Electronic Shutter [1/60(1/50) ~ 1/100,000] and manual electronic shutter

modes [1/60(1/50) ~ 1/10,000]

•On Screen Display (OSD)

•Auto and Manual white balance modes

•Support Line-Lock external synchronization

•Digital PTZ

•Digital Effect (H/V reverse, 180 degree rotate, inverse, freeze)

•2D-NR, 3D-NR (DNR Demo)

•Back Light Compensation

•Back Light Masking (MAX. 15 area)

•Excessive High-Light Compensation

•Wide Dynamic Range (~x512)

•Various Detection Method (zone detection, motion trace, face trace, mine area,

absent detection, cross object counting, entrance counting)

•Day & Night(Auto, Manual, External, Filter delay)

•Various Alarm Method (Period, Snooze, Polarity Select)

•Privacy Mask or Mosaic (MAX. 15 area/4-point polygonal/transparency)

•Scene Change Detection

•Sens-Up (~x32)

•White Pixel Remove

•Frame Control (Auto, 1~7 sec)

•System Lock (4-Digit password)

•RS-485 Remote camera control

•F1.4 D&N DC iris vari-focal lens

•Operates in 12VDC or 24VAC

•User Certified / Listed Class 2 power source only

CAMERA CONNECTIONS

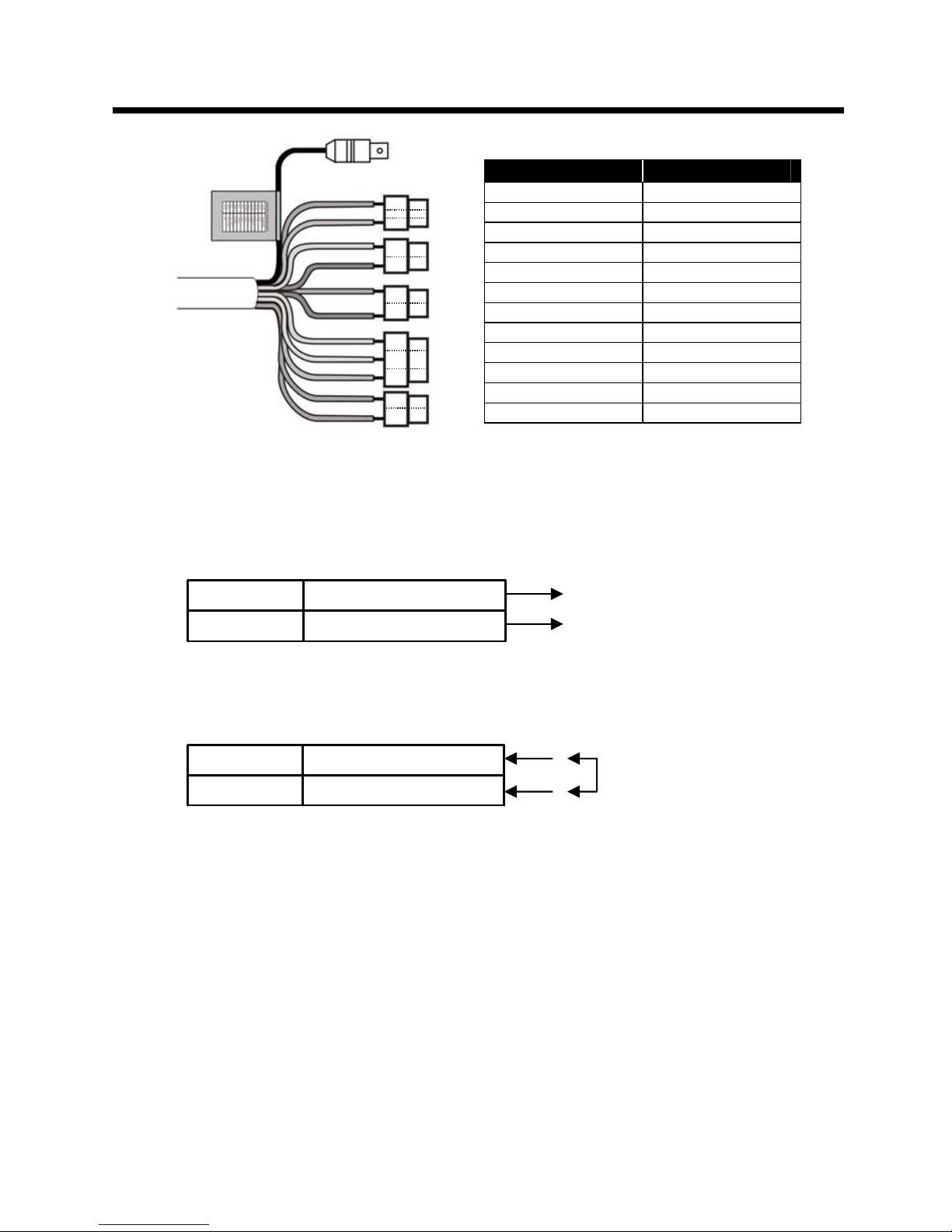

Connection Cable Description

COLOR Description

RED AC24V/DC12V

WHITE AC24V/DC12V

ORANGE NC

BROWN NC

BLUE RS485(-)

GREEN RS485(+)

YELLOW ALARM OUT

GRAY DN EXT-IN

BLACK&WHITE DN EXT-OUT

BLACK GND

SKY BLUE UTP+(optional)

PINK UTP- (optional)

1) External Day/Night Control : To select Day/Night mode using external equipment,

by connecting control lines to the appropriate terminals.

DAY&NIGHT OUTPUT (Black&White)

Used to connect an external IR LED for additional illumination when Day/Night

mode is set to AUTO. Controlled by AGC sensitivity.

DAY&NIGHT EXTERNAL INPUT (Gray)

Used to connect an external light sensor to the camera to provide an on/off

signal, when Day/Night mode is set to External.

DAY&NIGHT INPUTGray GNDBlack Close contact: NIGHT

Open contact: DAY

●

GNDBlack

DAY&NIG Black&White ●5V/10mA : IR LED ON (NIGHT)

●0V : IR LED OFF (DAY)

2) Alarm Out - TTL level

Motion detection signals are output through this port. (YELLOW AND GND)

Active state is configurable.

3) Power Input Terminal

RED & WHITE : DC Power is recommended to use the DC power supply that

can support inrush current over 0.75A

4) Camera Control

GREEN : RS 485+

BLUE : RS 485-

5) UTP (optional)

Video signal through out the UTP Cable (SKY BLUE(+) & PINK(-) )

INSTALLATION

1. Loosen the four Torx screws located midway up the front of the housing.

Leave the screws intact. (Fig. 1)

2. Drill the mounting location using the supplied drilling guide label. (Fig. 3)

3. Attach the housing to the ceiling using suitable fasteners, M6x35 tapping screws are

supplied. only use if they are suitable. (Fig. 3)

4. Reattach the housing and tighten the Torx screws. (Fig. 2)

Torx screws

M5x10 (4x)

Seal around the

housing base tightly

using the silicon

rubber Torx screws

ure 1

ure 2

ure 3

THE DEFINITION OF TERMS

White Balance

Compensates for deviations in the white color caused by changes in the color

temperature of the light source so that the colors are reproduced correctly.

Auto Exposure

Automatically adjusts the images to the optimum brightness.

SHT(Electronic Shutter)

Controls the integration time (exposure) of the photodiode array and reduces, blooming

overexposure, and smear when capturing moving objects.

Flicker(FLC)

Avoids image flicker when there is a discrepancy between current and frequency

AGC(Automatic Gain Control)

Automatically adjusts (boosts) the video signal to the required level to produce a quality

image in low light situations

Sens-Up(Slow Shutter)

Allows the video sensor of a camera to control sensitivity as it automatically detects the

light level in dark environments to maintain a clear picture.

Back Light Compensation (BLC)

Compensates for the brightness of the subjects with a large amount of background light

that would make it practically impossible to see any details of the subjects. Adjusts the

iris so that a distinctive subject and the background are delivered at the same time.

Wide Dynamic Range (WDR)

Extends the action of BLC. When both high-brightness subjects and low-brightness

subjects are in the same scene, overexposure in the high-brightness subjects or loss of

dark detail in the low-brightness subjects may occur. WDR combines the two images to

eliminate over exposure and loss of detail.

EHLC(Excessive High Light Compensation)

Brings excessively high-brightness subjects into focus.

Mask

Hides one or more areas that the user does not want to be displayed on screen. Masks

can be set with their own display area, color, darkness and mosaic processing.

Detection

Detects motion within the scene using one of the available methods. Some methods

trigger the Alarm output.

Sharpness

Reducing this parameter adjusts the noise level to smooth out the "noise" caused by the

compression.

Caution should be taken not to reduce it too much, which may result in a blurred

image.

Resolution

Controls the display fine details. The higher the resolution, the higher level of details can

be seen.

2D_ / 3D_NR (Digital Noise Reduction)

Adjusts the illuminance noise level in low light situations by reducing image noise in

order to improve the image. - 2D-NR is space-based and 3D-NR is time-based.

Frame Control

Specifies how many frames are generated/transmitted in a unit of time.

The more frames there are, the smoother the image will be, The television

system(NTSC/PAL) has adopted 30/25 frames per second(fps) to be regarded as

completely smooth image. However, when recording video data, video surveillance

systems often use lower fram rates to reduce the size of the recording data.

Nega

Reverses the color signals for the Chroma signal so the image looks like a “negative.”

d-PTZ(Digital Pan/Tilt/Zoom)

Adjusts the camera position and zooms in on a section of the overall full image. The

pixels in this area are then enlarged so the image is the same size as the original, giving

the appearance of being zoomed in. Widen the intervals between the pixels in the

original signal according to the magnification, and then filing these intervals with

interpolation signals.

Communication

Allows for the connection to external devices, such as keyboards, through the menu

interface.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Vicon Sicherheitskamera Handbücher

Vicon

Vicon Roughneck V910V3 Series Bedienungsanleitung

Vicon

Vicon XX075-10 Bedienungsanleitung

Vicon

Vicon SN118C Bedienungsanleitung

Vicon

Vicon V8360W Series Bedienungsanleitung

Vicon

Vicon I-Onyx MPD-955DN-O Bedienungsanleitung

Vicon

Vicon Series 234-00-02 Betriebsanleitung

Vicon

Vicon IX 2000 L Bedienungsanleitung

Vicon

Vicon Roughneck Pro V2000B Series Bedienungsanleitung

Vicon

Vicon Roughneck Pro V2000D Series Bedienungsanleitung

Vicon

Vicon SVFT-PRS22E Bedienungsanleitung

Vicon

Vicon Roughneck Pro V2000 Series Bedienungsanleitung

Vicon

Vicon ROUGHNECK V910 Bedienungsanleitung

Vicon

Vicon V1020-WIR-180 Bedienungsanleitung

Vicon

Vicon VC5050-DSP Bedienungsanleitung

Vicon

Vicon Surveyor MKII Series XX282-20-00 Bedienungsanleitung

Vicon

Vicon CE202D-N Bedienungsanleitung

Vicon

Vicon V1008-WIR-180 Bedienungsanleitung

Vicon

Vicon V980D Series Bedienungsanleitung

Vicon

Vicon Roughneck AI V2008B-W310LPR Bedienungsanleitung

Vicon

Vicon surveyor 2000 XX004 Betriebsanleitung

Vicon

Vicon CE202D-WN Bedienungsanleitung

Vicon

Vicon V672V-1 Betriebsanleitung

Vicon

Vicon Roughneck V926 Bedienungsanleitung

Vicon

Vicon Roughneck V920D Series Handbuch

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung

Lumens

Lumens VC-A50PNW Bedienungsanleitung
