Viessmann VITOLADENS 300-W Betriebsanleitung

Service instructions

for contractors

VIESMANN

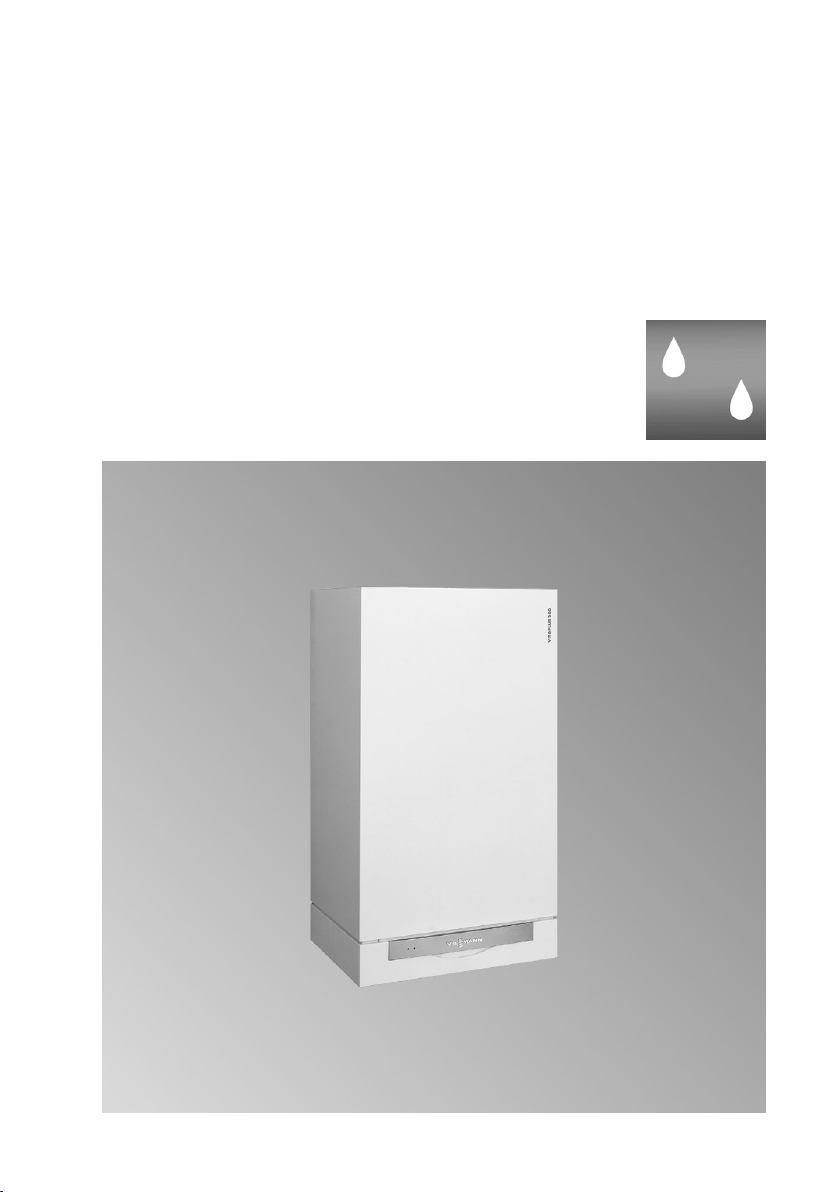

Vitoladens 300-W

Type VP3B, 12.9/19.3 kW, 16.1/23.5 kW

Wall mounted oil fired condensing boiler

for the combustion of low sulphur fuel oil DIN 51603-EL-1

with integral boiler control unit

For applicability, see the last page

VITOLADENS 300-W

5692 799 GB 2/2009 Please keep safe.

Please follow these safety instructions closely to prevent accidents and mate-

rial losses.

Safety instructions explained

Danger

This symbol warns against the

risk of injury.

!Please note

This symbol warns against the

risk of material losses and envi-

ronmental pollution.

Note

Details identified by the word "Note" con-

tain additional information.

Target group

These instructions are exclusively

designed for qualified personnel.

■ Work on gas equipment must only be

carried out by a qualified gas fitter.

■ Work on electrical equipment must

only be carried out by a qualified elec-

trician.

■ The system must be commissioned by

the system installer or a qualified per-

son authorised by the installer.

Regulations

Observe the following when working on

this system

■ all legal instructions regarding the pre-

vention of accidents,

■ all legal instructions regarding envi-

ronmental protection,

■ the Code of Practice of relevant trade

associations,

■ all current safety regulations as

defined by DIN, EN, DVGW, TRGI,

TRF, VDE and all locally applicable

standards,

■ Gas Safety (Installation & Use) Regu-

lations

– the appropriate Building Regulation

either the Building regulations, the

Building Regulation (Scotland),

Building Regulations (Northern Ire-

land),

– the Water Fittings Regulation or

Water Bylaws in Scotland,

– the current I.E.E. Wiring Regula-

tions.

If you smell gas

Danger

Escaping gas can lead to explo-

sions which may result in serious

injury.

■ Never smoke. Prevent naked

flames and sparks. Never

switch lights or electrical appli-

ances ON or OFF.

■ Close the gas shut-off valve.

■ Open windows and doors.

■ Remove all people from the

danger zone.

■ Notify your gas or electricity

supplier from outside the build-

ing.

■ Shut off the electricity supply to

the building from a safe place

(outside the building).

Safety instructions

5692 799 GB

If you smell flue gas

Danger

Flue gas can lead to life-threat-

ening poisoning.

■ Shut down the heating system.

■ Ventilate the boiler room.

■ Close all doors leading to the

living space.

Working on the system

■ When using gas as fuel, also close the

main gas shut-off valve and safeguard

against unauthorised reopening.

■ Isolate the system from the power sup-

ply and check that it is no longer 'live',

e.g. by removing a separate fuse or by

means of a main isolator.

■ Safeguard the system against unau-

thorised reconnection.

!Please note

Electronic modules can be dam-

aged by electro-static dis-

charges.

Touch earthed objects, such as

heating or water pipes, to dis-

charge static loads.

Repair work

!Please note

Repairing components which ful-

fil a safety function can compro-

mise the safe operation of your

heating system.

Replace faulty components only

with original Viessmann spare

parts.

Ancillary components, spare and

wearing parts

!Please note

Spare and wearing parts which

have not been tested together

with the heating system can com-

promise its function. Installing

non-authorised components and

non-approved modifications/con-

version can compromise safety

and may invalidate our warranty.

For replacements, use only orig-

inal spare parts from Viessmann

or those which are approved by

Viessmann.

Safety instructions

Safety instructions (cont.)

5692 799 GB

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance.......................................... 6

Further details regarding the individual steps....................................................... 8

Codes

Code 1.................................................................................................................. 36

Code 2.................................................................................................................. 39

Resetting codes to their delivered condition......................................................... 55

Service scans

Service level overview ......................................................................................... 56

Temperatures, boiler coding card and brief scans .............................................. 56

Checking outputs (relay test)................................................................................ 58

Scanning operating conditions and sensors ........................................................ 59

Troubleshooting

Fault display......................................................................................................... 61

Fault codes .......................................................................................................... 63

Repairs................................................................................................................. 69

Function description

Control unit........................................................................................................... 78

Extensions for external connections (accessories).............................................. 80

Control functions.................................................................................................. 82

Remote control DIP switches............................................................................... 88

Designs

Connection and wiring diagram – internal connections ....................................... 90

Connection and wiring diagram – external connections....................................... 91

Parts lists............................................................................................................ 93

Safety components

Replacing safety components.............................................................................. 99

Commissioning/service reports........................................................................ 100

Specification....................................................................................................... 101

Certificates

Declaration of conformity...................................................................................... 102

Manufacturer's certificate according to the 1st BImSchV [Germany]................... 102

Index

5692 799 GB

Keyword index.................................................................................................... 104

Index

Index (cont.)

5692 799 GB

For further information regarding the individual steps, see the page indicated

Commissioning steps

Inspection steps

Maintenance steps Page

•1. Filling the heating system.............................................. 8

•2. Venting the boiler........................................................... 9

•3. Venting the heating system........................................... 9

•4. Filling the siphon with water......................................... 10

•5. Checking power supply connection

• • 6. Setting the time and date (if required).......................... 11

•7. Changing the language at the control unit................... 12

••• 8. Function sequence and possible faults....................... 12

• • 9. Adjusting the standard burner settings....................... 14

• • 10. Adjusting the oil pressure and checking the vacuum 16

• • 11. Adjusting the air volume (static burner pressure)...... 17

•12. Cleaning the burner........................................................ 18

•13. Replacing the nozzle and checking or adjusting the

ignition electrodes.......................................................... 19

• • 14. Cleaning and replacing the oil pump filter, if

required .......................................................................... 21

• • 15. Checking the heat exchanger for contamination........ 22

• • 16. Cleaning the heat exchanger......................................... 23

• • 17. Checking the condensate drain and cleaning the

siphon.............................................................................. 24

• • 18. Checking the neutralising system (accessories)........ 24

• • 19. Checking the active charcoal filter (accessories)....... 25

••• 20. Checking the diaphragm expansion vessel and

system pressure

••• 21. Checking all connections on the heating water side

for leaks

Commissioning, inspection, maintenance

Steps - commissioning, inspection and maintenance

5692 799 GB

Commissioning steps

Inspection steps

Maintenance steps Page

••• 22. Checking the burner (recording values on page 100

of the commissioning/service report)

••• 23. Checking the function of safety valves

••• 24. Checking electrical connections for tightness

•25. Matching the control unit to the heating system ........ 25

•26. Adjusting the heating curves (only for weather-

compensated control units)........................................... 30

•27. Linking the control unit to the LON.............................. 32

•28. Instructing the system user........................................... 34

•29. Scanning and resetting the "Service" display............. 35

Commissioning, inspection, maintenance

Steps - commissioning, inspection and… (cont.)

5692 799 GB

Filling the heating system

!Please note

Unsuitable fill water increases the level of deposits and corrosion and may

lead to boiler damage.

■ Thoroughly flush the entire heating system prior to filling it with water.

■ Only use fill water of potable quality.

■Soften fill water with hardness exceeding 3.0 mol/m3, e.g. using a small

softening system for heating water (see Viessmann Vitoset price list).

■ An antifreeze additive suitable for heating systems can be mixed with the

fill water. The antifreeze manufacturer must verify its suitability.

1. Check the pre-charge pressure of the

diaphragm expansion vessel.

2. Fill the heating system via boiler fill &

drain valve A in the heating return

(at the connection set or on site).

(Minimum system pressure

0.8 bar).

Note

If the control unit has not been

switched ON prior to filling the sys-

tem, then the servomotor of the

diverter valve will still be in its central

position, and the system will be com-

pletely filled.

3. If the control unit had already been

switched ON before filling began:

Switch ON the control unit and acti-

vate the fill program via coding

address "2F:2".

Note

To call up code 1 and for setting the

coding address, see page 36.

4. Close boiler fill & drain valve A.

5. Close the shut-off valves on the heat-

ing water side.

Commissioning, inspection, maintenance

Further details regarding the individual steps

5692 799 GB

Venting the boiler

1. Close the shut-off valves on the heat-

ing water side.

2. Connect the drain hose between top

valve B and a drain outlet.

3. Open valves A and B and vent

using mains pressure until no more

air noise is audible.

4. Close valves A and B and open

the heating water shut-off valves.

Venting the heating system

1. Start the control unit.

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)

5692 799 GB

2. Activate the venting program via cod-

ing "2F:1".

Note

To call up code 1 and for setting the

coding address, see page 36.

For function and sequence of the

venting program, see page 83.

When the venting program is ena-

bled, the display shows "Entlüftung"

(Venting).

3. Check the system pressure.

Filling the siphon with water

1. Remove the retaining clip and siphon

2. Fill the siphon with water.

3. Fit siphon A and secure with the

retaining clip.

Commissioning, inspection, maintenance

Further details regarding the individual steps (cont.)

5692 799 GB

Andere Handbücher für VITOLADENS 300-W

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viessmann Kessel Handbücher

Viessmann

Viessmann VITOGAS 100 Betriebsanleitung

Viessmann

Viessmann Vitocrossal 200 CM2 246 Bedienungsanleitung

Viessmann

Viessmann Vitodens 300 Betriebsanleitung

Viessmann

Viessmann Vitocrossal 300 CA3 2.5 Kurzanleitung

Viessmann

Viessmann Vitodens 200-W System Kurzanleitung

Viessmann

Viessmann Vitodens 200-W System Gebrauchsanweisung

Viessmann

Viessmann VITOROND 200 Type VD2 Gebrauchsanweisung

Viessmann

Viessmann VITOCROSSAL 200 Betriebsanleitung

Viessmann

Viessmann VITOPLEX 300 Betriebsanleitung

Viessmann

Viessmann VITOFLEX 300-RF Gebrauchsanweisung

Viessmann

Viessmann Vitolig 200 Kurzanleitung

Viessmann

Viessmann VITOCROSSAL 200 Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Bedienungsanleitung

Viessmann

Viessmann Vitodens 100-W WB1B Series Kurzanleitung

Viessmann

Viessmann Vitodens 222-F Kurzanleitung

Viessmann

Viessmann VITOPLEX 100 Bedienungsanleitung

Viessmann

Viessmann VITOCELL 300-H Gebrauchsanweisung

Viessmann

Viessmann VITOFLEX 300-UF Bedienungsanleitung

Viessmann

Viessmann Vitomax LW Schulungshandbuch

Viessmann

Viessmann Vitorond 100 Kurzanleitung

Viessmann

Viessmann Vitodens 242-F Kurzanleitung

Viessmann

Viessmann Vitodens 050-W BP JD Kurzanleitung

Viessmann

Viessmann Vitodens 100-W WB1B Series Installations- und Benutzerhandbuch

Viessmann

Viessmann Vitodens 111-W Kurzanleitung

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung

Radiant

Radiant R2K 55 Handbuch
