Viking VUAR140T Bedienungsanleitung

OUTDOOR—REFRIGERATION

Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &

24”W. Ref. Beverage Center/Icemaker Combo

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

All models include

• Agency-certified for outdoor use

o A stainless steel exterior cabinet

surrounds the unit and forms a

water-resistant seal

o Insulated electrical terminals, sealed

electrical contacts, and a water-

resistant thermostat provide optimal

performance in all weather elements

• Normal operating range between

110°F (43.4°C) and 40°F (4.4°C)

(Viking recommends that units be shut

off in temperatures outside these limits)

• Heavy-duty commercial-type

construction, design, and styling

• Automatic cycle defrost

• Adjustable leveling legs

• Interior light turns on when door is

opened, or by switch

• Undercounter or freestanding

installation

o Can be installed as a single unit,

double stacked, or side-by-side in

standard-depth residential cabinets

VUAR153T model includes

• 3.0 cubic feet of storage

• Hidden touchpad electronic controls

with digital temperature readout

• Inside temperature can be adjusted

from 40 – 65°F

• Two full-depth adjustable wire shelves

pull out for easy access

• One full-depth, tempered-glass shelf

creates a distinct temperature zone for

wine storage

• Wine rack in bottom cradles four

bottles horizontally and pulls out for

easy access

VUAR143T model includes

• 6.1 cubic feet of storage

• Combined, shelves hold 128 12-oz.

cans

o Shelves can be removed to store

larger bottles

• Hidden touchpad electronic controls

with digital temperature readout

• Inside temperature can be adjusted

from 40 – 65°F

• Top wire shelf has 6-1/2" split flip-up

section to chill or store open wine

bottles or large containers

• Two full-depth, tempered-glass

shelves create distinct temperature

zone for wine storage

• Two wine shelves in bottom cradle 12

bottles horizontally, and pull out for

easy access

VURI140T model includes

• 6.1 cubic feet of storage

• Ice bin stores up to 5 lbs. of ice

• Inside temperature can be adjusted

from 33 – 45°F (0.6 – 7.2°C) in

beverage section, and 5 – 15°F (–15.0

to –9.4°C) in icemaker section

• Icemaker produces up to 2 lbs. of ice

per day

• One full-depth removable wire shelf

• Three door shelves

VUAR153T

15”W. Refrigerated

Beverage Center

FINISH DETAILS FOR ALL MODELS

•Stainless Steel (SS)

VUAR143T

24”W. Refrigerated

Beverage Center

VURI140T

24”W. Refrigerated

Beverage Center/Icemaker

Standard Features & Accessories

Model Options

* Black interior not available on outdoor model

ORDERING INSTRUCTIONS

First specify model number, followed by hinge preference (“R” for right or “L” for left)—(VUAR153TRSS).

R E L E A S E D 6 / 1 0 / 0 8

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

Please see

Installation Notes &

Accessories

for important

information.

Dimensions & Specifications

30-3/4”

(78.1cm)

22”

(55.9cm)

24-3/8”

(61.9cm)

26-7/8”

(63.3cm)

23-7/8”

(60.6cm)

34-1/4”

(87.0cm)

min.

35”

(88.9cm)

max.

VUAR153T VUAR143T VURI140T

Overall width 14-3/4” (37.5 cm) 23-7/8” (60.6 cm) 23-7/8” (60.6 cm)

Overall height (from bottom) 34-1/4” (87.0 cm) min. to

(w/leveling legs fully extended) 35” (88.9 cm) max.

Overall depth (from rear)

To front of handle 26-1/8” (66.4 cm) 26-7/8” (68.3 cm) 26-7/8” (68.3 cm)

With door fully open 37-3/16” (94.5 cm) 47-1/4” (120.0 cm) 47-1/4” (120.0 cm)

Approx. ship weight 110 lbs. (49.5 kg) 140 lbs. (63.0 kg) 140 lbs. (63.0 kg)

PRODUCT DIMENSIONS

30-3/4”

(78.1cm)

21-3/16”

(53.8cm)

23-5/8”

(60.0cm)

34-1/4”

(87.0cm)

min.

35”

(88.9cm)

max.

26-1/8”

(66.4cm)

14-3/4”

(37.5cm)

14-3/4”

(37.5 cm)

14-3/4”

(37.5 cm)

VUAR153T VUAR143T/VURI140T

OUTDOOR—REFRIGERATION

Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &

24”W. Ref. Beverage Center/Icemaker Combo

R E L E A S E D 6 / 1 0 / 0 8

VUAR153T

15”W. Beverage Center

VUAR143T

24”W. Beverage Center

VURI140T

24”W. Beverage

Center/Icemaker

14-3/4”

(37.5 cm)

21-3/16”

(53.8 cm)

90.0°

37-3/16”

(94.5 cm)

2-1/2”

(6.4 cm)

VUAR153T

15”W. Beverage Center

VUAR143T

24”W. Beverage Center

OUTDOOR—REFRIGERATION

Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &

24”W. Ref. Beverage Center/Icemaker Combo

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

23-7/8”

(60.6 cm)

22”

(55.9 cm)

90.0°

47-1/4”

(120.0 cm)

2-1/2”

(6.4 cm)

Dimensions & Specifications

DOOR SWING

VUAR153T

VUAR143T/VURI140T

R E L E A S E D 6 / 1 0 / 0 8

VURI140T

24”W. Beverage Center/Icemaker

VUAR153T

15”W. Beverage Center

VUAR143T

24”W. Beverage Center

VURI140T

24”W. Beverage

Center/Icemaker

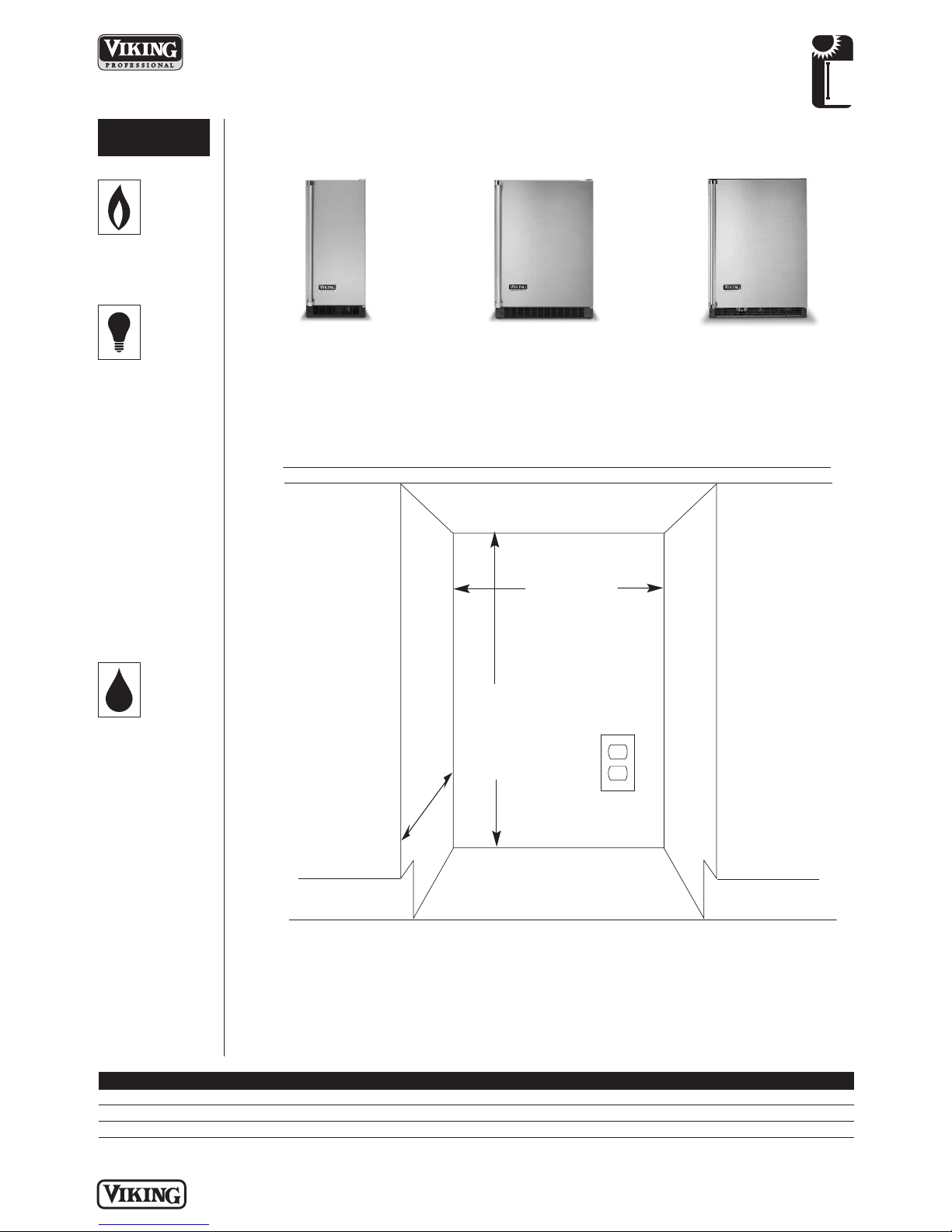

Installation Requirements

OUTDOOR—REFRIGERATION

Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &

24”W. Ref. Beverage Center/Icemaker Combo

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

UTILITY

REQUIREMENTS

GAS

Not applicable

ELECTRICAL

• 2-wire cord with

grounded,

3-prong plug

attached to

product

o VUAR models—

6-1/2’ cord

o VUIM model—

7’ (2.1 m) cord

• 115 VAC/60 Hz;

15-amp

dedicated circuit

• Max. amp usage

o VUAR150T—3.0

o VUAR/

VURI140T—3.3

PLUMBING

•Not applicable to

VUAR models

• VURI model

• Inlet waterline

requirements—

1/8” (0.6 cm)

copper tubing

• 20 psi min.; 100

psi max.

34-1/2”

(87.6 cm) min.

35-1/8”

(89.2 cm) max.

24”

(61.0 cm)

min.

15” VUAR153T

(38.1 cm)*

24” VUAR143T/

VURI140T (61.0 cm)**

ACCESS REQUIREMENTS

VUAR153T VUAR143T VURI140T

Cutout width 15” (38.1 cm)* 24” (61.0 cm)** 24” (61.0 cm)**

Cutout height 34-1/2” (87.6 cm) min. to 35-1/8” (89.2 cm) max.

Cutout depth 24” (61.0 cm) min.

*15” (38.1 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 15-1/4” (38.7 cm).

**24” (61.0 cm) width for cabinet only; If door is recessed between cabinets, cutout must be 24-1/4” (61.6 cm).

R E L E A S E D 6 / 1 0 / 0 8

OUTDOOR—REFRIGERATION

Undercounter/Freestanding 15”W./24”W. Ref. Beverage Center &

24”W. Ref. Beverage Center/Icemaker Combo

PLANNING AND DESIGN GUIDE

VIKINGRANGE.COM • 1-888-VIKING1

Stainless Steel Cabinetry-Bases

• Stainless Steel (SS)

• For use with 15”W. & 24”W. Viking outdoor refrigeration products

•See individual product pages (storage section) for more information and additional specifications

Stainless Steel Cabinetry-Oven Towers

• Stainless Steel (SS)

• For installation of 24” beverage center with oven

• See individual product pages (storage section) for more information and additional specifications

Compliance Information

WARRANTY SUMMARY*

• One-year full warranty—complete unit

• Five-year limited warranty—sealed refrigeration system (includes compressor, condenser,

dryer/strainer, evaporator, and connecting tubing)

• Ninety-day limited warranty—cosmetic parts such as glass, painted items, and decorative items

*For complete warranty see Use & Care Guide. Warranty valid on Viking products shipped within the United States and Canada.

!Installation Notes & Accessories

Model Description Approx. ship wt. lbs. (kg)

VURO2400 Base for 15”W outdoor refrigerator 115 (52.2)

VURO3200 Base for 24”W outdoor refrigerator 125 (56.7)

Model Description Approx. ship wt. lbs. (kg)

VERO3200 32”W. tower (for 24”W. beverage center+ smoker oven) 271 (122.9)

VGRO3200 32”W. tower (for 24”W. beverage center+ gas oven) 271 (122.9)

R E L E A S E D 6 / 1 0 / 0 8

Brass Handle Kits

•

For use with Professional 15”W. & 24”W. Viking outdoor refrigeration products

Model Description Approx. ship wt. lb. (kg)

PURHK30-BR Professional brass handle kit and logo for VUAR 6 (2.7)
