Installation

GUIDE

5 SERIES

Side-by-Side Refrigerator/Freezer

VCSB5423 / VCSB5483 / FDSB5423 / FDSB5483

CVCSB5423 / CVCSB5483 / FDSB5423 / CFDSB5483

Table of Contents

Warnings and Important Information _________________________________ 3

Dimensions & Specications (Professional 42”& 48”)_____________________ 6

Dimensions & Specications (Professional 42”& 48” with

ush mount trim)_____________________________________________ 8

Cutout Dimensions (42”) __________________________________________ 10

Anti-Tip Dimensions (42”) _________________________________________ 11

Cutout Dimensions (48”) __________________________________________ 12

Anti-Tip Dimensions (48”) _________________________________________ 13

Cabinet Information______________________________________________ 14

Cabinet Information (with ush mount trim) __________________________ 15

Custom Side Panel Dimensions _____________________________________ 16

Custom Side Panel Dimensions (with ush mount trim) _________________ 17

Custom Door Panel Dimensions ____________________________________ 18

Custom Door Panel Installation _____________________________________ 19

General Information______________________________________________ 21

Unpacking & Moving _____________________________________________ 23

Flush Mount Side Trim Installation __________________________________ 24

Installation _____________________________________________________ 25

Hinge Adjustment ____________________________________________ 25

Kickplate Installation __________________________________________ 27

Door Stop Adjustment _________________________________________ 28

Final Installation ______________________________________________ 29

Performance Checklist ____________________________________________ 30

Control Panels___________________________________________________ 31

Service & Registration ____________________________________________ 32

IMPORTANT – Please Read and Follow!

• Make sure that incoming voltage is the

same as unit rating. An electric rating

plate specifying voltage, frequency,

wattage, amperage, and phase is attached

to the product.

• To reduce the risk of re, electrical shock,

or injury to persons, installation work and

electrical wiring must be done by a

qualied technician in accordance with all

applicable codes and standards, including

re-rated construction.

• The installer should leave these

instructions with the consumer who should

retain them for local inspector’s use and

for future reference.

DANGER

WARNING

You will be killed or seriously injured if

you don't follow instructions.

You can be killed or seriously injured if

you don't follow instructions.

All safety messages will identify the

hazard, tell you how to reduce the chance

of injury, and tell you what can happen if

the instructions are not followed.

Your safety and the safety of others is

very important.

We have provided many important safety

messages in this manual and on your

appliance. ALWAYS read and obey all

safety messages.

This is the safety alert symbol. This

symbol alerts you to hazards that

can kill or hurt you and others.

All safety messages will be preceded

by the safety alert symbol and the word

“DANGER” or “WARNING.” These

words mean:

IMPORTANT – Please Read and Follow!

A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local

ordinances.

• The required use of a GFI is normally related to the location of a receptacle with respect to

any signicant sources of water or moisture.

• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not

installed properly or do not meet the requirements below.

If the use of a GFI is required, it should be:

• Of the receptacle type (breaker type or portable type NOT recommended)

• Used with permanent wiring only (temporary or portable wiring NOT recommended)

• On a dedicated circuit (no other receptacles, switches or loads in the circuit)

• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT

recommended)

• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)

• In good condition and free from any loose-tting gaskets (if applicable in outdoor situations)

• Protected from moisture (water, steam, high humidity) as much as reasonably possible

WARNING

TIP OVER HAZARD

Appliance is top heavy

and tips easily when not

completely installed. Keep

doors closed until appliance

is completely installed and secured per

installation instructions.

Use two or more people to move and

install appliance. Failure to do so can

result in death or serious injury.

WARNING

ELECTRICAL SHOCK

HAZARD

Disconnect power or turn

power disconnect switch to

OFF position before removing top grille.

Failure to do so can result in death or

electrical shock.

IMPORTANT – Please Read and Follow!

Most of the unit’s weight is at the top. Extra care is needed when moving the unit to prevent

tipping. Use cardboard shipping material or plywood under unit until it is installed in the

operating position to protect ﬂoor surface.

It is your responsibility to:

• comply with installation specications and dimensions.

• properly install unit.

• remove any moldings or decorative panels that prevent the unit from being serviced.

• make sure that you have these materials (not provided with your unit), which are necessary

for proper installation:

• 1/4” (6 mm) copper tubing with shuto valve

• 6– #8 x 3” (7.6 cm) wood screws (longer screws may be required)

• 1– Saddle valve (do not use self-piercing feature of the valve)

• assure that oor will support unit, door panels and contents (approximately

1200 pounds [540 kg]).

• provide a properly grounded electrical outlet.

• assure that location will permit appliance doors to open 90º minimum.

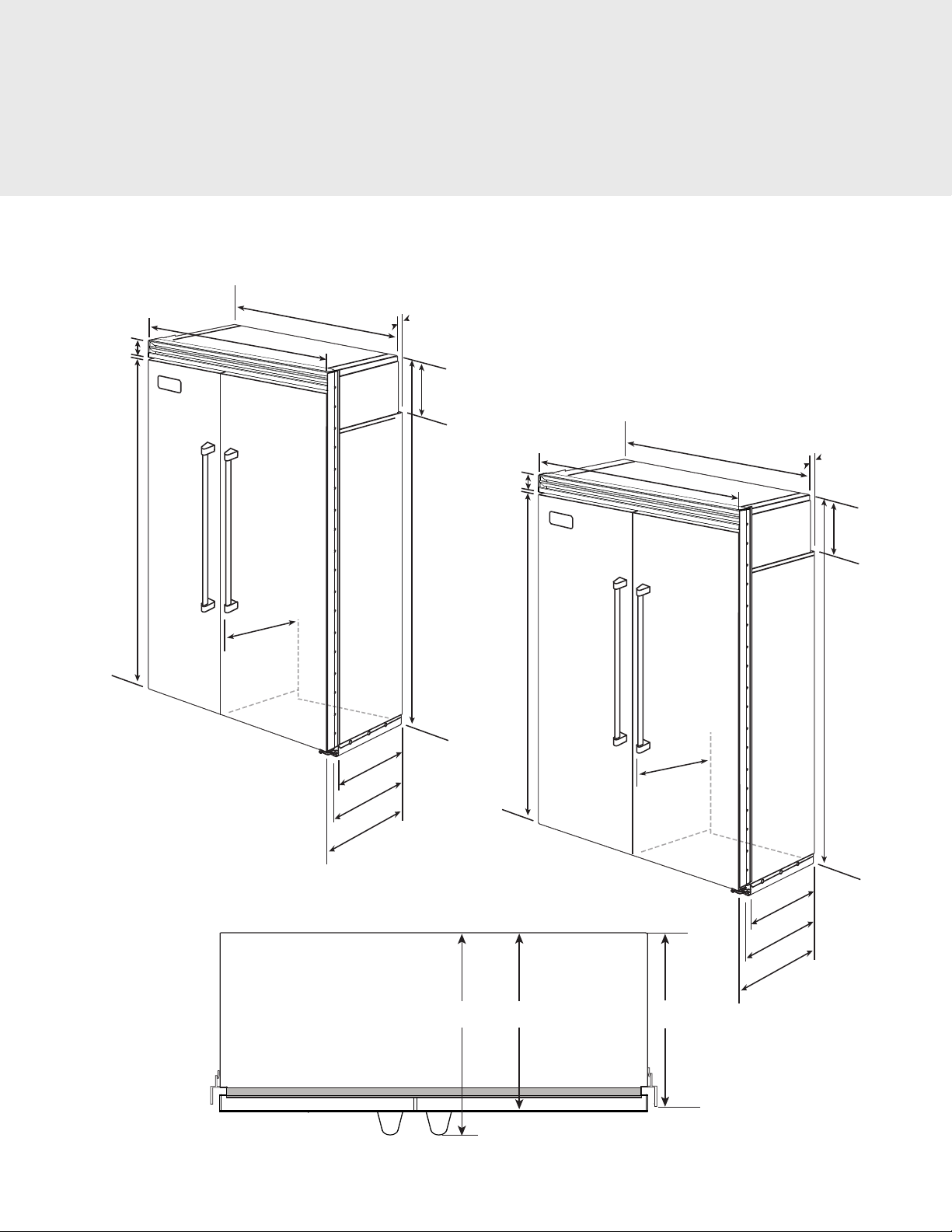

Dimensions (Side-By-Side)

26-1/4”

(66.7 cm)

41”

(104.1 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

42”

(106.7 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23–7/8”

(60.6 cm)

24-5/8”

(62.6 cm)

26-1/4”

(66.7 cm)

47”

(119.4 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

48”

(121.9 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23–7/8”

(60.6 cm)

1–1/2”

(3.8 cm)

24-5/8”

(62.6 cm)

29-3/16”

(74.1 cm)

1–1/2”

(3.8 cm)

29-3/16”

(74.1 cm)

42” Side-By Side

48” Side-By Side

Top View

23-7/8”

(60.6 cm)

26-1/4”

(66.7 cm)

29-3/16”

(74.1 cm)

Specications (Side-By-Side)

48” Side-By-Side

Description VCSB/CVCSB

Overall width 48” (121.9 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 23-3/4 (60.3 cm)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 47-5/8” (121.0 cm) min. to 47-3/4”(121.3 cm) max.

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16”(213.5 cm) max.

Standard Cutout depth 24” (61.0 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

19.49 cu. ft. (552 liters)

9.56 cu. ft. (271 liters)

29.05 cu. ft. (823 liters)

Approximate shipping weight 580 lbs. (263 kg)

42” Side-By-Side

Description VCSB/CVCSB

Overall width 42” (106.7 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 23-3/4 (60.3 cm)

To front of top grille: 26-1/4”(66.7cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 41-5/8” (105.7 cm) min. to 41-3/4”(106 cm) max.

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16”(213.5 cm) max.

Standard Cutout depth 24” (61.0 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

15.76 cu. ft. (446 liters)

9.56 cu. ft. (271 liters)

25.32 cu. ft. (717 liters)

Approximate shipping weight 525 lbs. (238 kg)

Dimensions

(Flush Mount Trim and Custom Door Overlay)

42” Side-By Side

with Flush Mount Trim

26-1/4”

(66.7 cm)

41”

(104.1 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

42”

(106.7 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23-7/8”

(60.6 cm)

24–5/8”

(62.6 cm)

26-1/4”

(66.7 cm)

47”

(119.4 cm)

75–15/16”

(192.9 cm

)

3–19/32”

(9.1 cm)

48”

(121.9 cm)

9–5/32”

(23.3 cm)

82–3/4”

(210.2 cm)

min.

84–1/16”

(213.5 cm)

max.

23-7/8”

(60.6 cm)

1–1/2”

(3.8 cm)

24–5/8”

(62.6 cm)

29-3/16”

(74.1 cm)

1–1/2”

(3.8 cm)

29-3/16”

(74.1 cm)

48” Side-By Side

with Flush Mount Trim

Top View

25-1/2”

(64.8 cm)

26-1/4”

(66.6 cm)

29-3/16”

(74.1 cm)

Specications

(Flush Mount Trim and Custom Door Overlay)

48” Side-By-Side Flush Mount Trim and Custom Door Overlay

Description VCSB/CVCSB Flush Mount FDSB/CFDSB

Overall width 48” (121.9 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 25-1/5" (64.8 cm)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 48” (121.9 cm)

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16”(213.5 cm) max.

Flush Mount Cutout depth 26-1/2” (67.3 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

19.49 cu. ft. (552 liters)

9.56 cu. ft. (271 liters)

29.05 cu. ft. (823 liters)

Maximum Panel WT

Freezer

Refrigerator

N/A

30 lbs (13.6 kg)

48 lbs (21.8 kg)

Approximate shipping weight 580 lbs. (263 kg)

42” Side-By-Side Flush Mount Trim and Custom Door Overlay

Description VCSB/CVCSB Flush Mount FDSB/CFDSB

Overall width 42” (106.7 cm)

Overall height (from bottom) 82-3/4” (210.2 cm) min. to 84-1/16” (213.5 cm) max.

Overall depth from rear To front edge of side trim: 25-1/2" (64.8)

To front of top grille: 26-1/4”(66.7 cm)

To front of handle endcap: 29-3/16” (74.1 cm)

Cutout width 42” (106.7 cm)

Cutout height 82-7/8” (210.5 cm) min. to 84-1/16”(213.5 cm) max.

Flush Mount Cutout depth 26-1/2” (67.3 cm) min.

Electrical requirements 115 volt, 60 Hz, 15 amp dedicated circuit; 3-wire cord with

grounded 3-prong plug attached to product

Maximum amp usage 9.9 amps

Inlet water requirements 1/4” copper tubing inlet waterline; minimum 20 psi; maximum 120 psi

Overall interior dimensions

Refrigerator

Freezer

Total capacity

15.76 cu. ft. (446 liters)

9.56 cu. ft. (271 liters)

25.32 cu. ft. (717 liters)

Maximum Panel WT

Freezer

Refrigerator N/A

N/A

30 lbs (13.6 kg)

38 lbs (17.2 kg)

Approximate shipping weight 525 lbs. (238 kg)

Cutout Dimensions

9”

(22.9 cm)

73-3/8”

(186.4 cm)

82–7/8”

(210.5 cm) min.

anti-tip board &

opening height

84–1/16”

(213.5 cm) max.

anti-tip board &

opening height

41–5/8”

(105.7 cm) min.

41–3/4”

(106.0 cm) max.

42”

(106.7 cm)

Flush Mount only

Standard Mount

24”

(61.0 cm)

Flush Mount

26-3/8”

(67.0 cm)

Electric Outlet Location

Water Line Entry Area

6–3/4”

(17.1 cm)

7–5/8”

(19.4 cm)

3”

(7.6 cm)

5/8”

(1.6 cm)

5/8”

(1.6 cm)

10–1/2”

(26.7 cm)

5/8”

(1.6 cm)

10–3/4”

(27.3 cm)

1”

(2.5 cm)

3–5/8”

(9.2 cm)

Optional floor

water line entry

42”

(106.7 cm)

Flush Mount only

41–5/8”

(105.7 cm)

See Anti-Tip board installation

6”

(15.2 cm)

9”

(22.9 cm)

42” Side-By-Side

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Viking Kühlschrank Handbücher

Viking

Viking Designer DDSF136DSS Bedienungsanleitung

Viking

Viking FDRB5361R Bedienungsanleitung

Viking

Viking Designer DDFF136SS Bedienungsanleitung

Viking

Viking Designer DDFF136SS Bedienungsanleitung

Viking

Viking FDFB5361R Bedienungsanleitung

Viking

Viking DFSB483D Benutzerhandbuch

Viking

Viking Designer DDSB423 Bedienungsanleitung

Viking

Viking Designer DFRD144D Bedienungsanleitung

Viking

Viking 5 Series Bedienungsanleitung

Viking

Viking Designer DDSF136DSS Montageanleitung

Viking

Viking Professional VIRB304 Bedienungsanleitung

Viking

Viking built-in bottom mountrefrigerator-freezer Bedienungsanleitung

Viking

Viking Designer DDRB536R Bedienungsanleitung

Viking

Viking Designer DDBB363 Bedienungsanleitung

Viking

Viking Quiet Cool FDBB5361R Montageanleitung

Viking

Viking VCBF136RSS Leitfaden

Viking

Viking VCSB423 Bedienungsanleitung

Viking

Viking VUAR143TRSS Bedienungsanleitung

Viking

Viking VRDO1240DSS Bedienungsanleitung

Viking

Viking Professional VCFF136DSS Bedienungsanleitung

Viking

Viking Storage Drawer Bedienungsanleitung

Viking

Viking Designer DDFF136SS Bedienungsanleitung

Viking

Viking FDSB5421D Series Bedienungsanleitung

Viking

Viking VUAR140T Technisches Handbuch

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
