VIRTUFIT CTR 1.1 Bedienungsanleitung

User manual

CTR 1.1 Crosstrainer

VirtuFit CTR 1.1 Crosstrainer 2

INDEX

SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS

ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS

MAINTENANCEMAINTENANCE

TROUBLE SHOOTINGTROUBLE SHOOTING

CONTROL PANELCONTROL PANEL

APP INSTRUCTIONSAPP INSTRUCTIONS

EXPLODED DRAWINGEXPLODED DRAWING

PARTS LISTPARTS LIST

TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS

3 - 4

5 - 10

13 - 21

23 - 24

25 - 26

EN VirtuFit CTR 1.1 Crosstrainer

– It is important to read this entire manual before assembling and using the device. Safe and

effective use can only be achieved if the device is assembled, maintained and used properly.

It is your responsibility to ensure that all users of the device are informed of all warnings and

precautions.

– Before starting any exercise program, you should consult your doctor to determine if you have

any medical or physical conditions that could put your health and safety at risk, or prevent you

from using the device properly. Your doctor’s advice is essential if you are taking medication

that affects your heart rate, blood pressure or cholesterol level.

– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop

exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular

heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do

experience any of these conditions you should consult your doctor before continuing with your

exercise program.

– Keep children and pets away from the device. The device is designed for adult use only.

– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To

ensure safety, the device should have at least 0.5 metres of free space all around it.

– Before using the device, check that the nuts and bolts are securely tightened.

– The safety of the device can only be maintained if it is regularly examined for damage and/or

wear and tear.

ATTENTION

WARNING

Before beginning any exercise program consult your physician. This is especially

important for people who are over 35 years old or who have pre-existing health

problems. Read all instructions before using any fitness equipment. Do not operate this

device without properly fitted guards, as the moving parts can present a risk of serious

injury if exposed.

SAFETY INSTRUCTIONS

VirtuFit CTR 1.1 Crosstrainer 4

– Always use the device as indicated. If you find any defective components while assembling or

checking the device, or if you hear any unusual noises coming from the device during use,

stop immediately. Do not use the device until the problem has been rectified.

– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught

in the device or that may restrict or prevent movement.

– The max user weight is 115 KGS. Braking ability is independent of speed.

– The device is not suitable for therapeutic use.

– Care must be taken when lifting or moving the device so as not to injure your back. Always use

proper lifting techniques and/or seek assistance if necessary.

– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!

– Place the device on a clean and flat surface. Do not place the device on a thick carpet.

– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location

dry, clean and flat. It is forbidden to use the device for purposes other than training.

– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.

Only store the device at an ambient temperature between 5 °C and 45 °C.

Warranty claim is excluded if the cause of the defect is the result of:

– Maintenance assembly and repair work not carried out by an official dealer.

– In the event of improper use, neglect and / or poor maintenance.

– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed

manual).

SAFETY INSTRUCTIONS

EN VirtuFit CTR 1.1 Crosstrainer



 





03&6

G53&6

03&6

6







STEP 1

Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and

the device. Some parts (bolts, screws, etc.) are already attached to/in the device.

Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and

must remain straight. Do you receive an error message after mounting your device? Then you have to

straighten these aluminum legs again, this may cause the error message to disappear.

Socket screws: The device contains socket screws, make sure that the allen key is firmly in the

bolt before you apply force to the key. In this way you prevent the head of the socket head screw from

being rotated.

Transport wheels: Make sure that the transport wheels are attached to the front of the appliance.

• Attach the Front Stabilizer (35) and the Rear Stabilizer (36) to the Main Frame (40) with Carriage Bolt

(33), Domed Nut (23) and Arc Washer (22).

ASSEMBLY INSTRUCTIONS

VirtuFit CTR 1.1 Crosstrainer 6

STEP 2

• Connect the Sensor 16 and 38, x the Upright Post (15) with the Main Frame (40) with Nut (27) Arc

Washer (22). Note: Tighten the Screw (27) and the Arc Washer (22) very tight.













03&6

G53&6

ASSEMBLY INSTRUCTIONS

EN VirtuFit CTR 1.1 Crosstrainer

STEP 3

ASSEMBLY INSTRUCTIONS

• Fix the Lower Handle Bar ( 25 L / R ) to the Upright Post (15) with Bolt (18), Washer (9), D Washer (19).

• Fix the Pedal Tubel ( 42 L / R ) with the Pedal Crank by Pedal Hinge Bolt (46 L / R) Curved Washer (50),

and Nylon Nut ( 51 L / R ). Install the Pedal (44) on the Pedal Tube (42 L / R) with Hex Head Bolt (43),

Knob (27).











/





/

/  /  /









5

5 5



5

5

03&6

03&6 G3&6

G3&6

/53&6

G3&6

3&6 /53&6

6

6

6

03&6



VirtuFit CTR 1.1 Crosstrainer 8

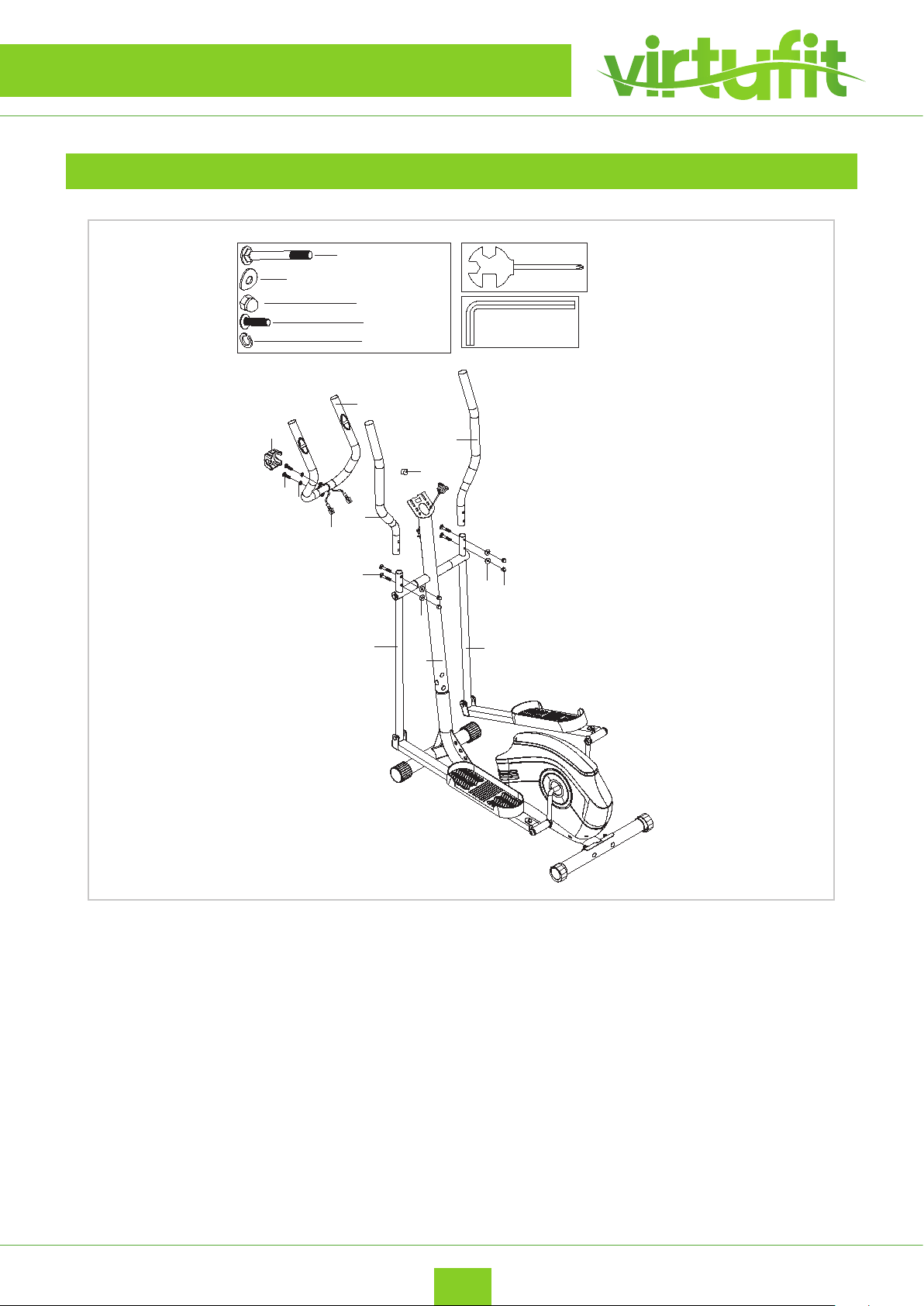

STEP 4

5

 







/







D

03&6

G53&6

03&6

G3&6

6

6

/5



03&6

• Install the Middle handlebar (4) on the Upright Post (15) with bolt (8) Arc Waser (9).

• Fix the Handlebar ( 11 L / R ) to the Lower Handle Bar ( 25 L / R ) with Bolt (21), Arc Washer (85) and

Domed Nut (23).

ASSEMBLY INSTRUCTIONS

EN VirtuFit CTR 1.1 Crosstrainer

STEP 5

ASSEMBLY INSTRUCTIONS

• Connect Handle Pulse Wire (4a) and (4b), then connect Sensor wire (16) to the Computer (1b); x the

Computer (1) onto the Upright Post (15) with Screw (2) and Washer (103).

• Attach the Bottle Holder (100) to the Support Tube (15) with Crosshead (101).

• Then, put the Bottle (102) in the Bottle Holder (100).

• Place the end cap (17) and (28) on the bolts as pictured above.

NOTE! Make sure that all nuts and bolts are tight before you start training. The end cap of the front

stabilizer tube is movable, making it easier for you to move the crosstrainer.



D











/

5

63&6

63&6

63&6









D

E





03&6

VirtuFit CTR 1.1 Crosstrainer 10

ADAPTER

• The adapter connection is located on the back of the device (see illustration). Attach the adapter to

the adapter connection and connect to the power supply. You can now use the elliptical trainer.

ASSEMBLY INSTRUCTIONS
