Vivo MOUNT-ASVZ01 Bedienungsanleitung

VESA Adapter for Compatible Asus Monitors

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-asvz01

SKU: MOUNT-ASVZ01

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

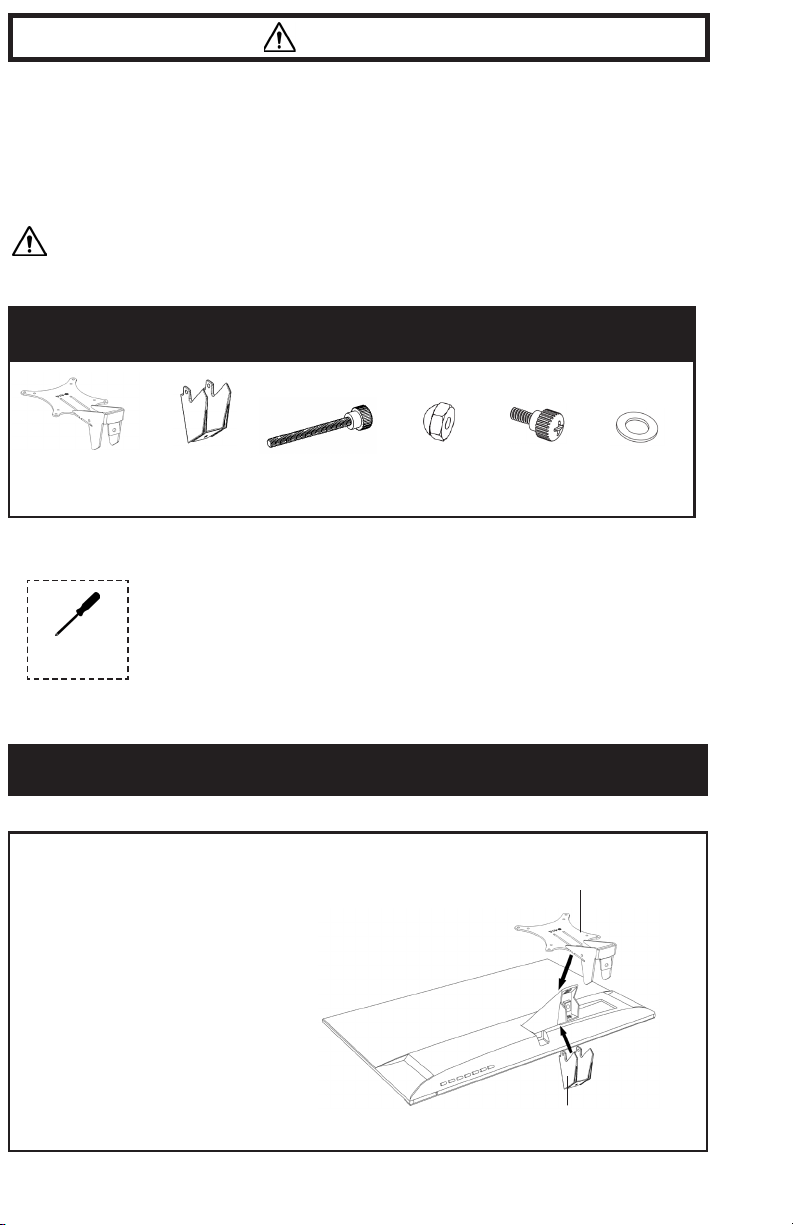

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A (x1)

VESA Adapter

B(x1)

Plastic Spacer

C (x1)

M4x45

Thumbscrew

D(x1)

M4 Cap Nut

E(x4)

M4x12

Thumbscrew

ASSEMBLY STEPS

STEP 1

Place the plastic spacer (B) onto

the front of the monitor’s post, and

then place the VESA adapter (A)

onto the back of the post and over

the plastic spacer, making sure the

holes on the sides of the adapter

align with the holes in the spacer.

F(x3)

M6 Washer

STEP 3

Mount the monitor with adapter to your VESA

mount using the M4x12 thumbscrews (E).

STEP 2

OPTION A: For VZ Series Monitors (VZ229HE, VZ229N,

VZ239H-W, VZ249H, VZ279H, VZ27AQ, VZ279HE)

Insert the M4x45 thumbscrew (C) through the sides of the

adapter and spacer and secure with the M4 cap nut (D). Use

the screw from the monitor’s original base to secure the

adapter to the post.

Note: Do not use the three M6 washers (F) in this step if you

have a VZ series monitor.

OPTION B: For VX Series Monitors

Insert the M4x45 thumbscrew (C) through the sides of the

adapter and spacer and secure with the M4 cap nut (D). Use

the screw from the monitor’s original base along with the

three M6 washers (F) to secure the adapter to the post.

LAST UPDATED: 06/24/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
