Vivo MOUNT-VW01A Bedienungsanleitung

Single Monitor Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-vw01a

SKU: MOUNT-VW01A

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

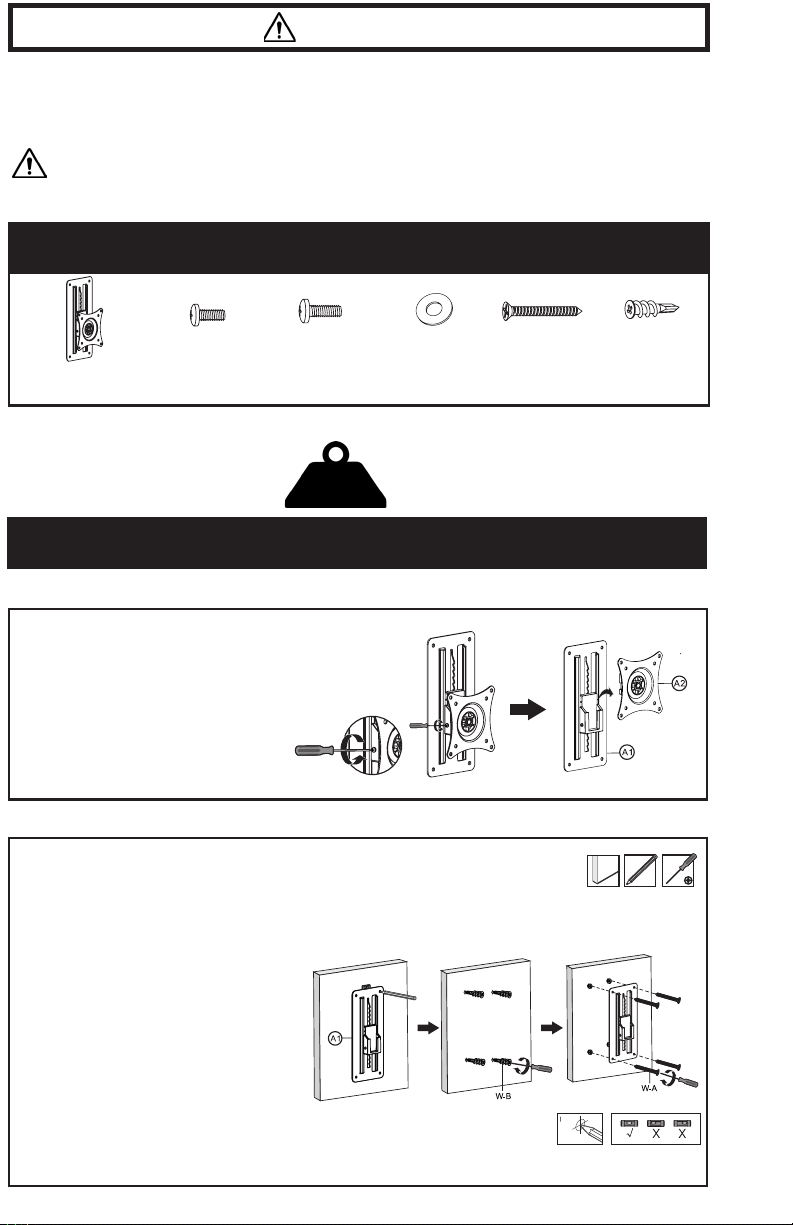

PACKAGE CONTENTS

17.6lbs

(8kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

A (x1)

Wall Bracket

M-A (x4)

M4x12

M-B (x4)

M5x12

If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may

cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. Do

not exceed weight capacity. We cannot be liable for damage or injury caused by improper mounting, incorrect assembly

or inappropriate use.

M-C (x4)

D5 Washer

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

STEP 1

Loosen the screw from the adjustable

support bracket attached to (A1) and

slide o the VESA plate (A2).

W-A (x4)

ST4x30

Screw

W-B (x4)

Drywall

Anchor

Place the wall bracket (A) against the wall

at the desired location and mark drilling

locations with a pencil. Use of a level is

recommended.

If mounting to wood, drill 1.75” (45mm)

deep holes using a 3/32” (2.5mm) drill

bit. For drywall, drill holes using a 5/16”

- 25/64” (8 - 10mm) drill bit, then squeeze

and insert the drywall anchors (W-B) into

the holes.

Mount the wall bracket using the ST4x30

screws (W-A), making sure the opening in

the adjustable support is facing up.

STEP 2

TOOLS NEEDED: Phillips Screwdriver

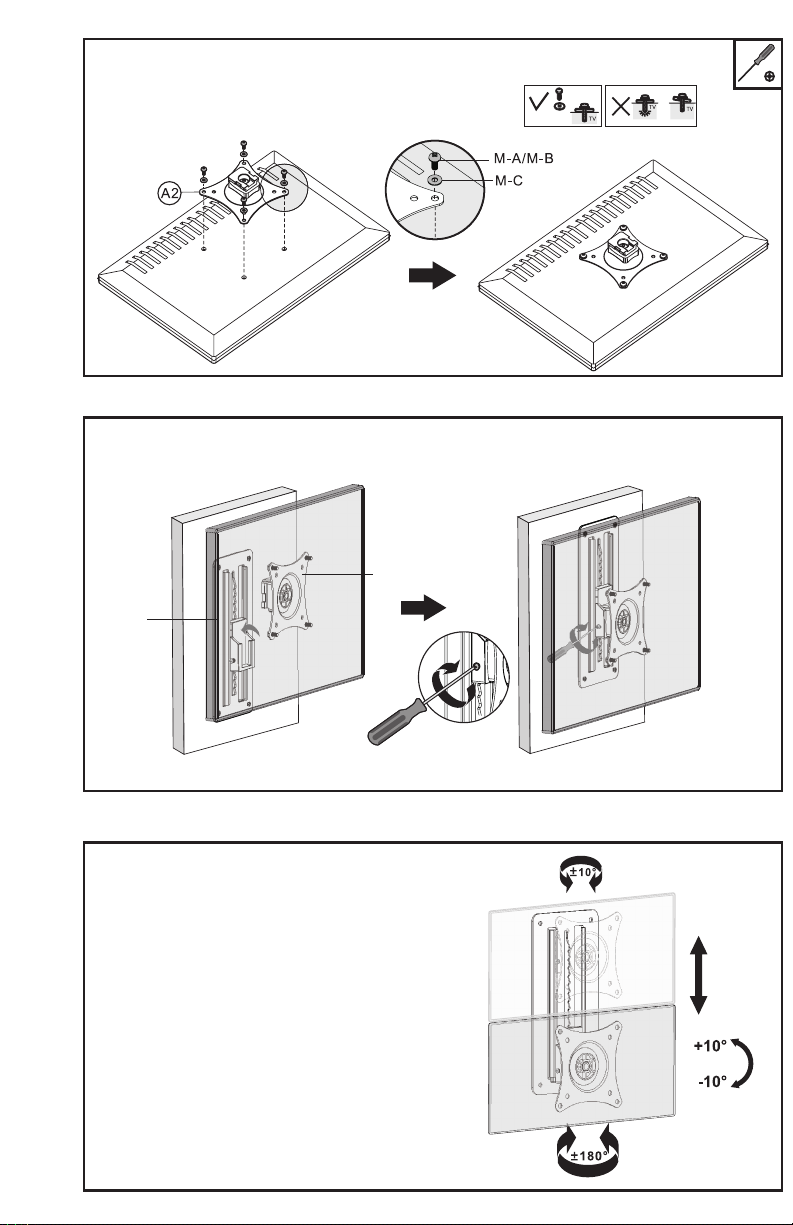

STEP 3

STEP 5

Mount the VESA plate (A2) to the back of the monitor using bolts (M-A, M-B) with washers (M-C).

STEP 4

Place the VESA plate (A2) with monitor into the adjustable support of the wall bracket (A1), then

tighten the screw on the side to secure the monitor.

To raise the monitor, slowly move the monitor up

until the latch engages at the desired height. To

lower the monitor, first raise all the way up, and

then slowly set back down to the bottom position.

LAST UPDATED: 09/09/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
