Vivo MOUNT-KB03B Bedienungsanleitung

Black Under Desk Keyboard Tray

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-kb03b

SKU: MOUNT-KB03B

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

ASSEMBLY STEPS

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

A (x1)

Mount

B(x1)

Wrist Pad

C (x1)

Tray

S-A (x6)

M5x15

S-E (x2)

Bumper

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

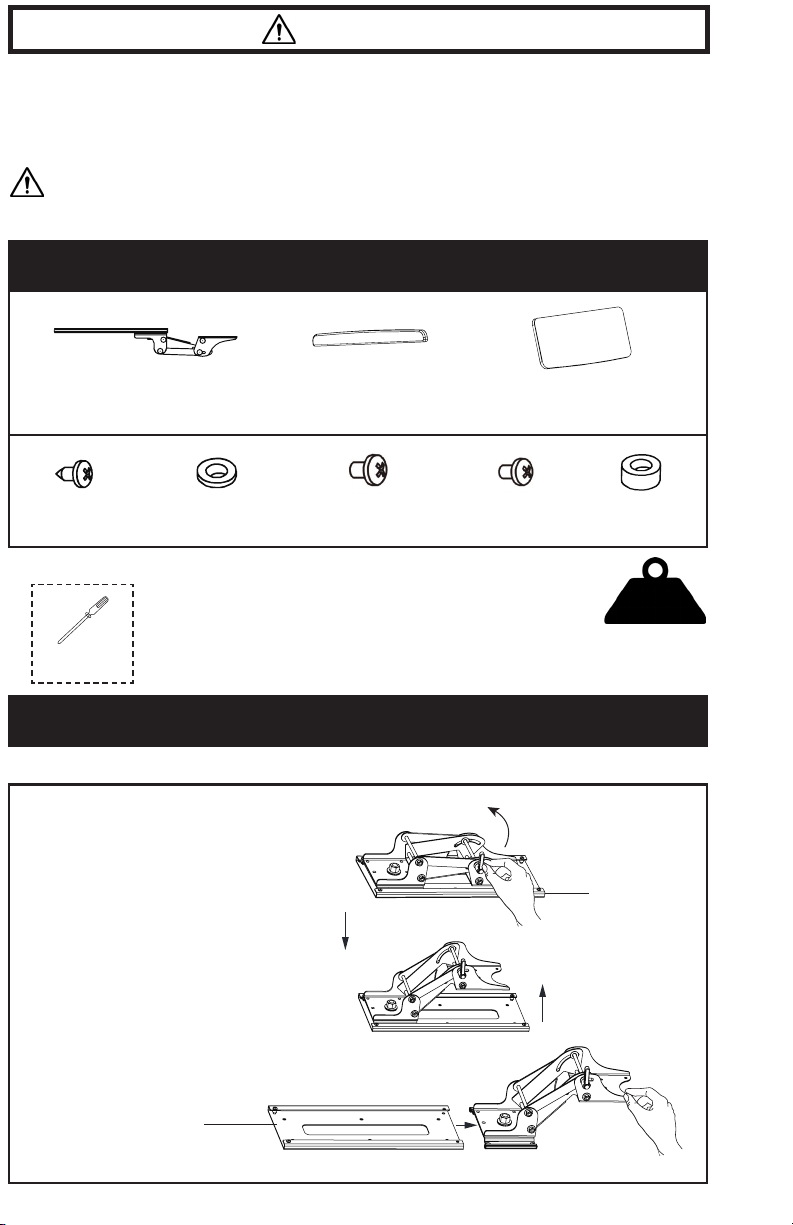

STEP 1

Place the Mount (A) upside down and

loosen the Lever on the side. Raise and

slide the Arm out from the Track.

4.4 lbs

(2 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

S-D (x2)

M4x12

S-B (x6)

Washer

S-C (x4)

M5x12

Track

STEP 2

Hold the Track against the underside of the

desk at the desired location and mark drilling

locations with a pencil. Drill 3/8” (10mm)

deep pilot holes using a 1/8” (or 3mm) drill bit,

then mount the Track to the desk using M5x15

screws (S-A) and Washers (S-B) with a Phillips

screwdriver.

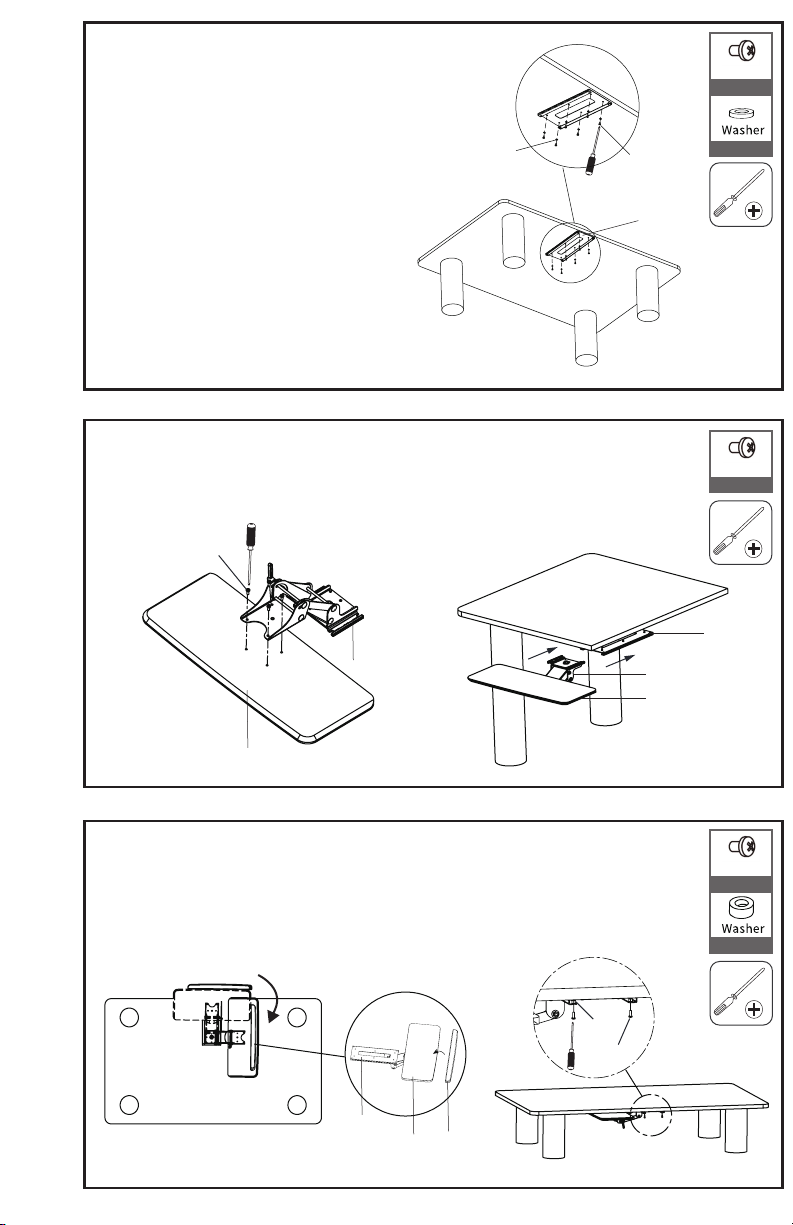

STEP 3

Install the Tray (C) to the Mount Arm (A) using M5x12 Screws (S-C) and a Phillips

screwdriver. Slide the Arm (A) into the Track.

STEP 4

Swivel the Mount Arm (A) sideways, then install M4x12 Screws (S-D) and Bumpers (S-E)

into the front corners of the Track using a Phillips screwdriver. Swivel the Arm (A) forward,

remove paper backing from the Wrist Pad (B), then place the Wrist Pad (B) on top of the

Tray (C) near the front edge.

M5x12

M4x12

M5x15

S-A

S-B

S-C

S-D

S-E

S-D

S-E

Track

LAST UPDATED: 04/29/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
