Vivo STAND-V155C Bedienungsanleitung

  

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-  

 

phillips screwdriver

 

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

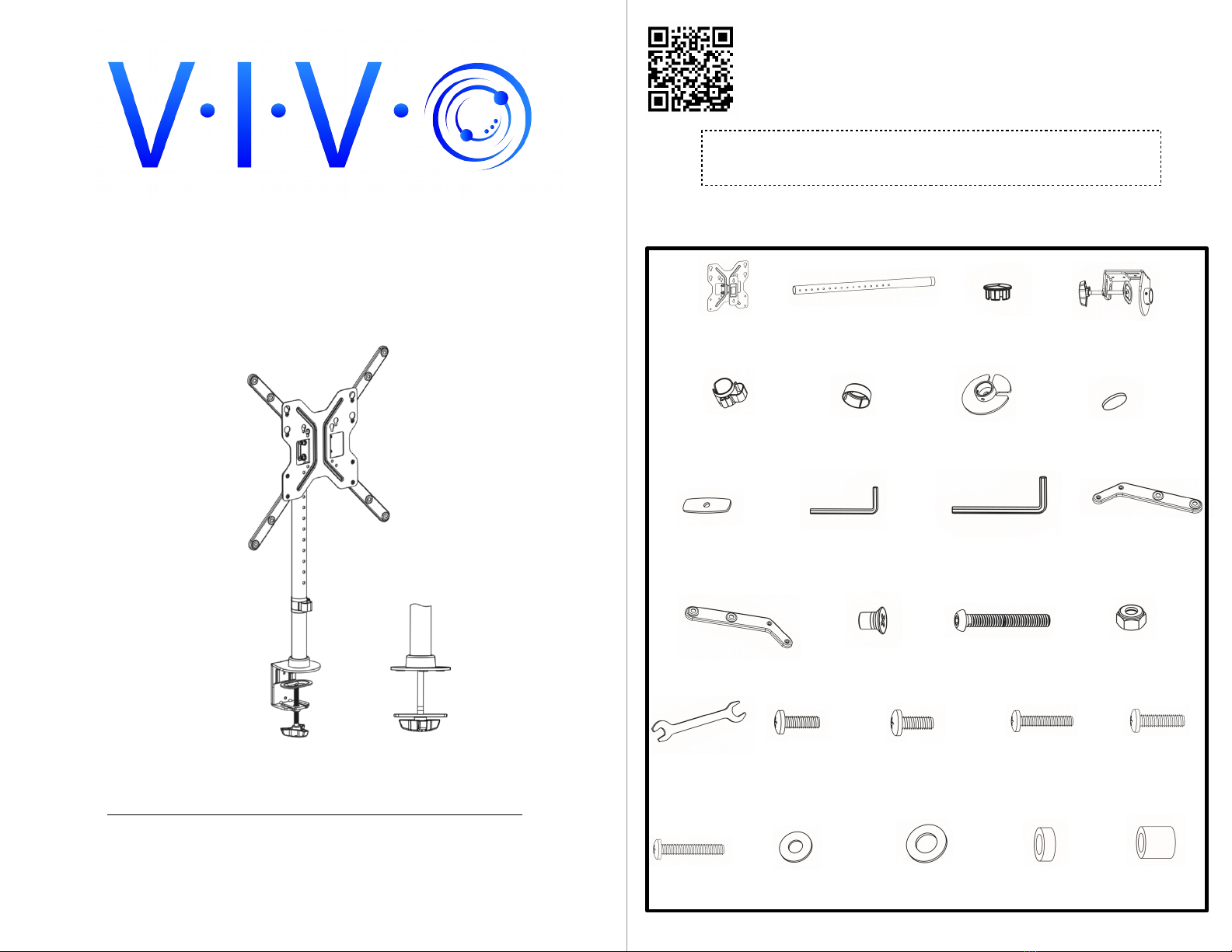

 (x1)

VES Plate

 (x1)

Pole

 (x1)

Pole Cap

 (x1)

Clamp

 (x1)

Cable Clip

 (x1)

Decorative Cover

(x1)

Grommet Base

Plate

! (x5)

Rubber Pad

" (x1)

Grommet Plate

# (x1)

3mm lle Wre ch

$ (x1)

4mm lle Wre ch

% (x2)

rm

 (x2)

rm

& (x2)

Bolt

 (x2)

Nut

 (x8)

Screw

' (x1)

Wre ch

-  (x4)

M6x30

-   (x4)

M8x30

-  (x4)

M5x14

-   (x4)

M6x14

- (x4)

-  ! (x8)

Spacer

-  (x4)

M8x50

-   (x4)

- -()**++ ,-*)* +

-  " (x8)

Spacer

-./ )

) 

) 0

&)  12 -) "

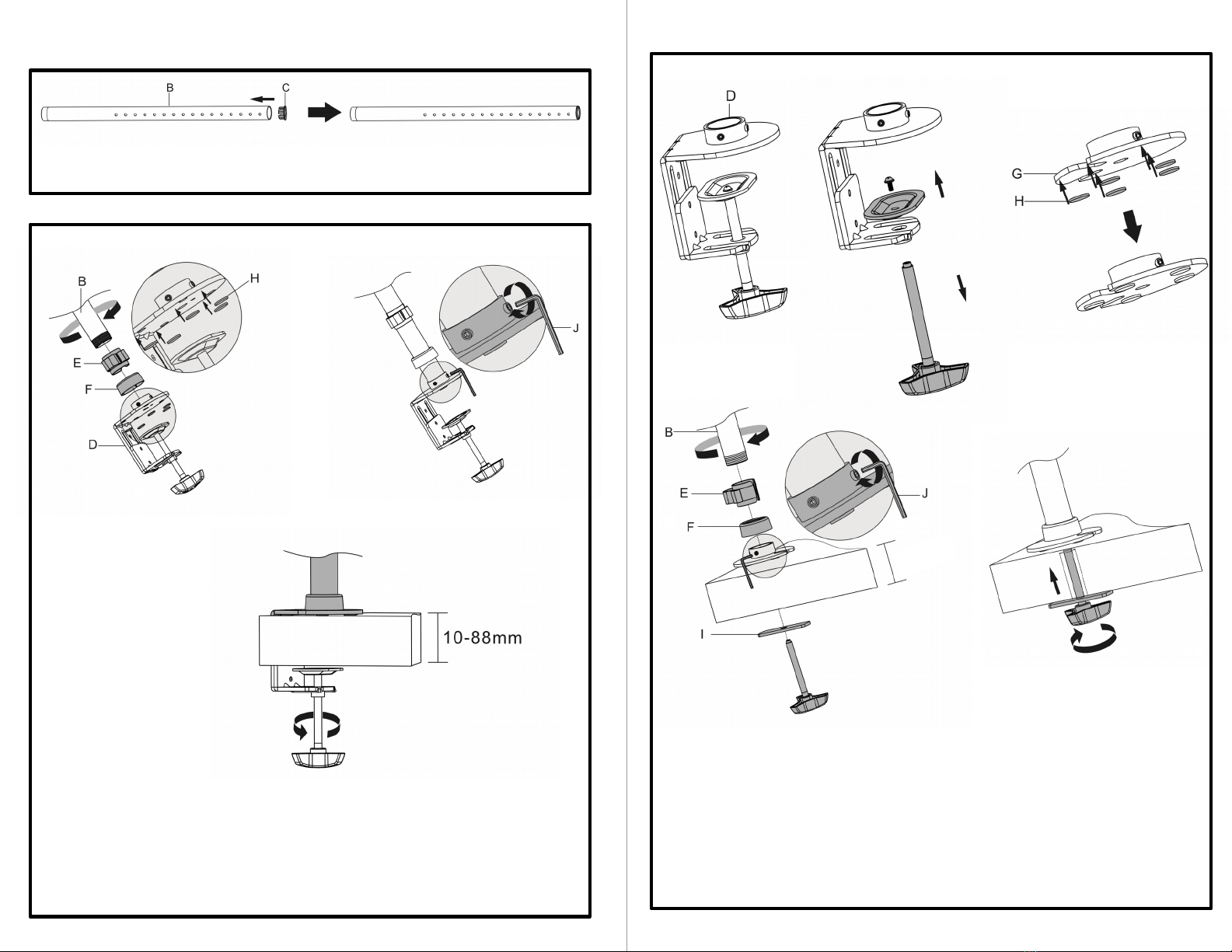

Slide cable management clip (E) and decorative cover (F) onto pole

(B). Then thread pole (B) into base of clamp (D). Tighten grub screws

with allen wrench (J) as shown in diagram. Slide decorative cover (F)

down. Apply rubber pads (H) as shown in diagram. Secure clamp (D)

to desk.

Place pole cap (C) onto pole (B).

) 0 34

&)  --  "

Remove screw and plate from clamp (D) as shown in diagram. Apply

rubber pads (H) to the bottom of grommet base (G) as shown in

diagram. Slide cable management clip (E) and decorative cover (F)

onto pole (B). Then thread pole (B) into grommet base (G). Tighten

grub screws with allen wrench (J) as shown in diagram. Slide

decorative cover (F) down. Slide grommet plate (I) onto hand crank.

Insert hand crank through grommet hole from bottom and into

grommet base (G).

10 - 80mm

) 5 34

&)  +  

) 

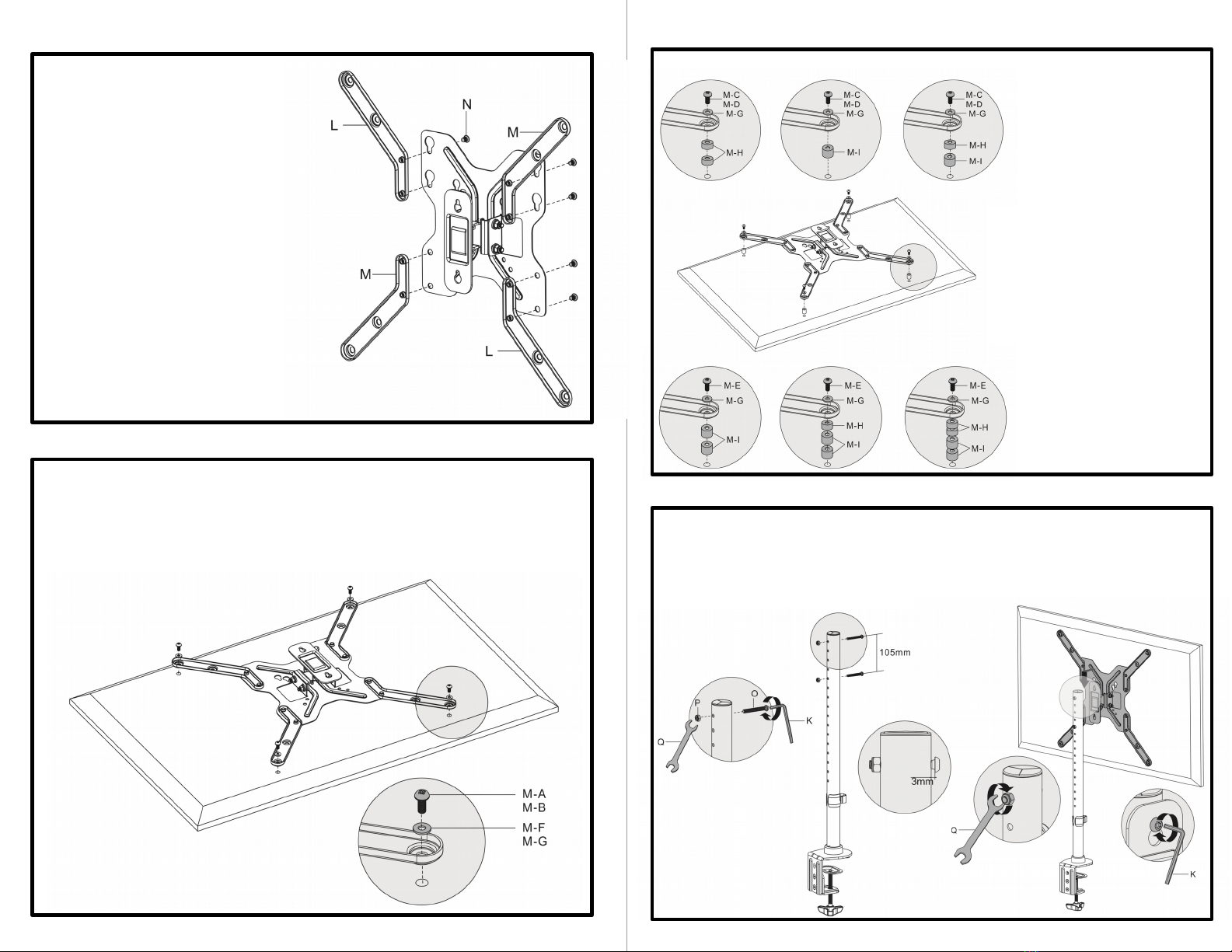

Attach VESA plate

(A) to back of TV

using screws (M-C,

M-D, M-E), washers

(M-G), and spacers

(M-H, M-I)

depending on your

TV's requirements

as shown in

diagrams. Make

sure the two

keyholes on back

have the small end

facing up.

Insert bolts (O) into pole (B) at desired height, making sure there are

3 holes unused between bolts. Thread nuts (P) onto bolts leaving

3mm of thread exposed behind bolt heads. Hang VESA plate (A) with

TV onto bolts, and tighten with 4mm Allen wrench (K) and wrench

(Q).

) 6

) 5

&)    

If installing a TV with a VESA

300x300mm or 400x400mm

pattern, attach arm (L, M) to

VESA plate (A) with screws (N)

as shown in diagram.

Attach VESA plate (A) to back of TV with screws (M-A, M-B) and

washers (M-F, M-G). Make sure the two keyholes on back have the

small end facing up.

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

7/ 8

  

Last updated: 06/13/18

) 9

) :

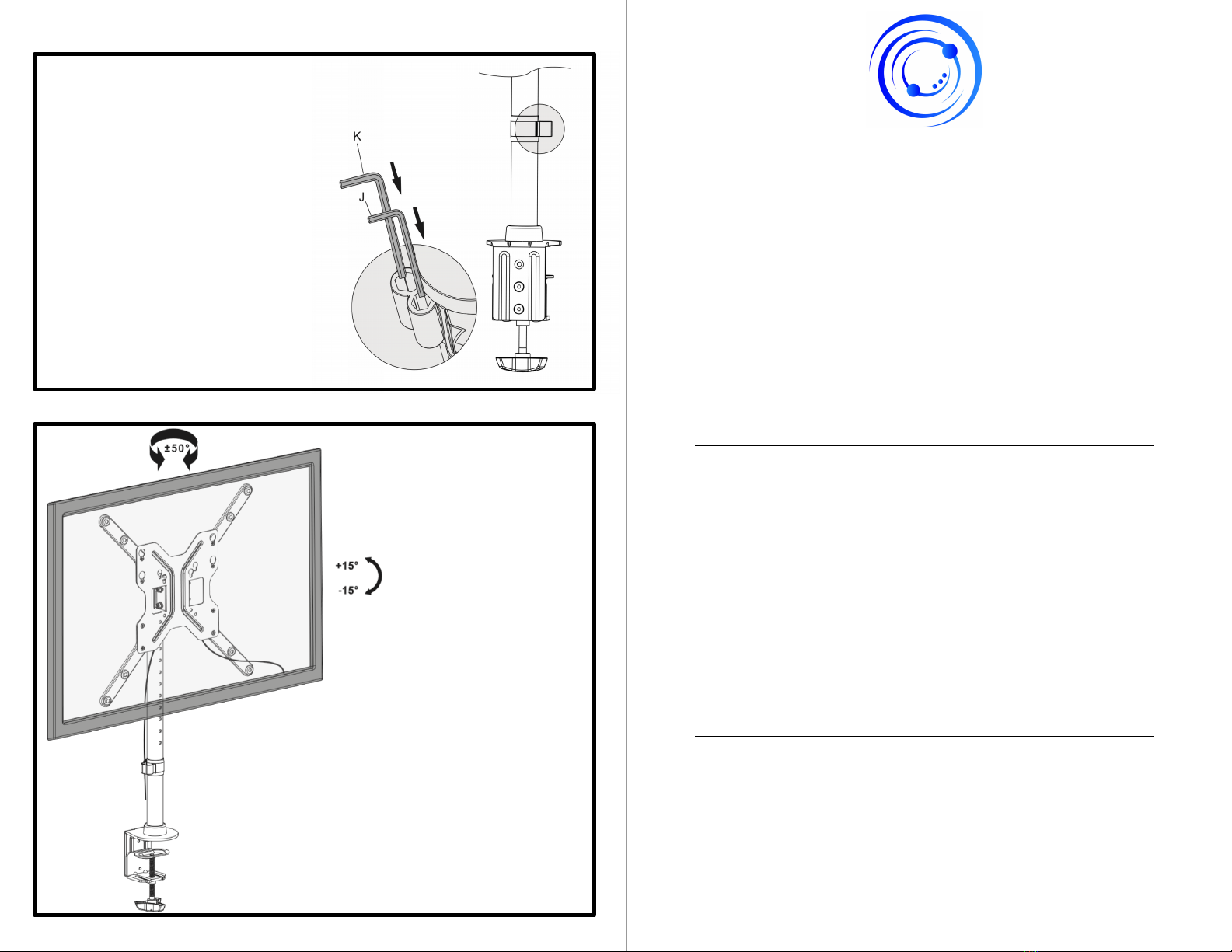

Store allen wrenches (J, K) in cable clip (E) as

shown in diagram.

Manage cables using cable clip (E). Adjust tilt

and swivel of TV.
