Vivo MOUNT-KB04C Bedienungsanleitung

Black Deluxe Under Desk Keyboard Tray

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-kb04c

SKU: MOUNT-KB04C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

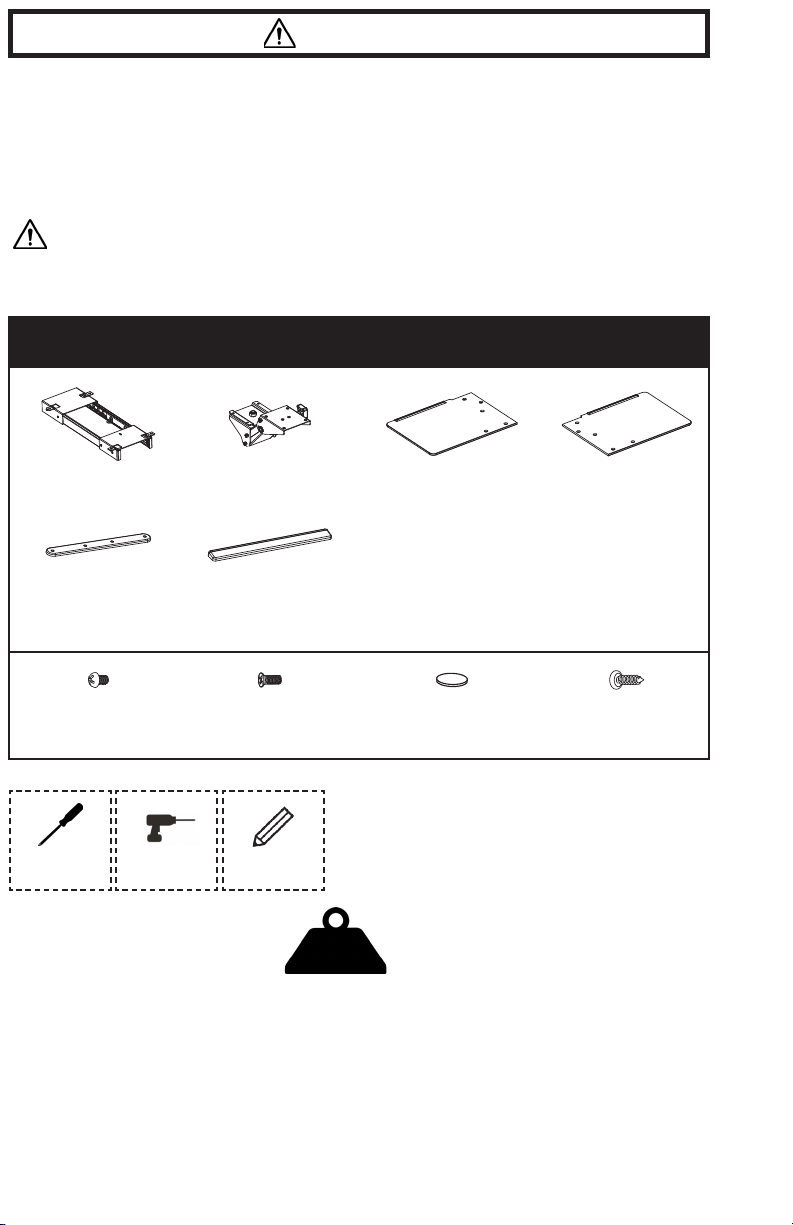

PACKAGE CONTENTS

TOOLS NEEDED

WARNING!

Phillips

Screwdriver

A (x1)

Track

B(x1)

Mounting Bracket

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

4.4lbs

(2kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

C(x1)

Le Tray

D(x1)

Right Tray

E (x1)

Connecting Bracket

S-A (x4)

M5x8mm Screw

F(x2)

Wrist Rest

W-A (x4)

ST5.5x19mm Screw

S-B (x10)

M5x12mm Screws

S-C (x6)

Screw Cover

Pencil

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

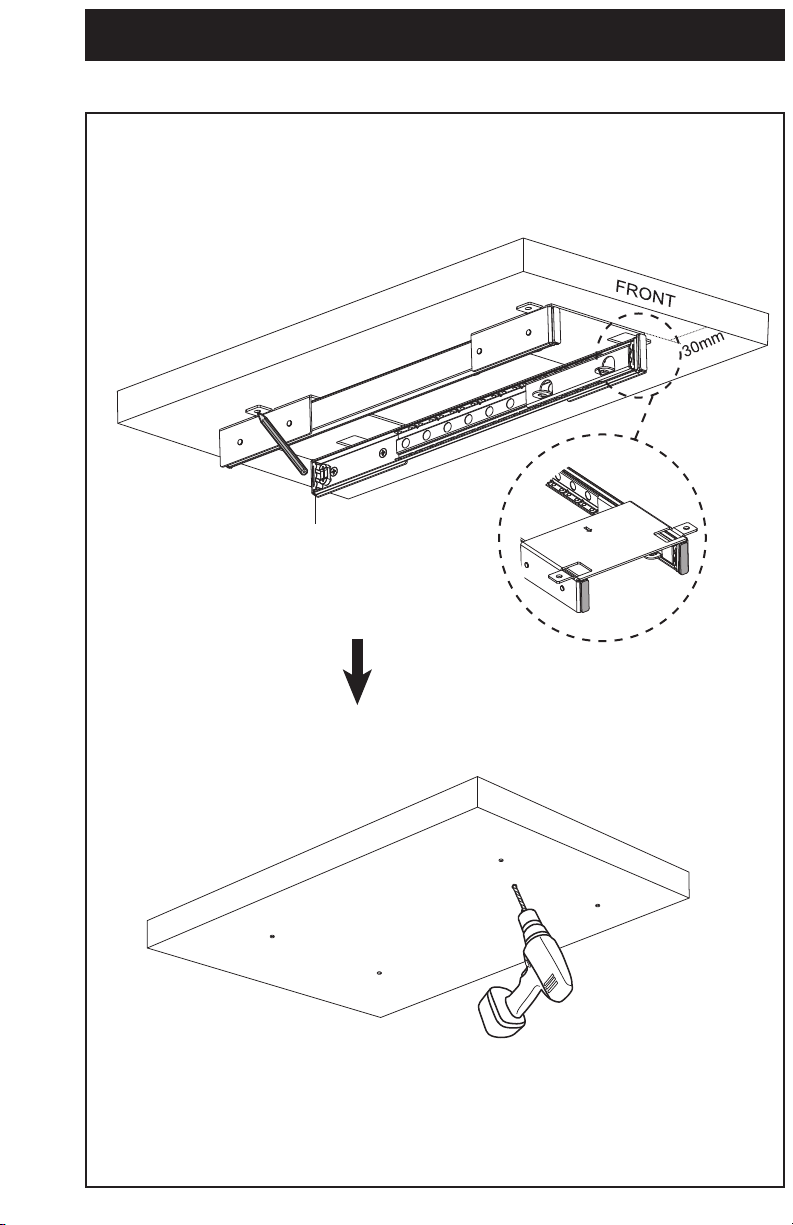

Position Track (A) 30mm from the front edge of the desk and mark hole locations with a pencil. Set

Track (A) aside and drill 15mm (0.6") holes using a 4mm (3/20") drill bit.

ASSEMBLY STEPS

STEP 1

Assemble Mounting Bracket (B) to Track (A) using M5X8mm Screws (S-A) and a Phillips screwdriver.

Mount assembly to underside of desk using ST5.5x19mm Screws (W-A) and a Phillips screwdriver.

STEP 2

STEP 3

S-A

W-A

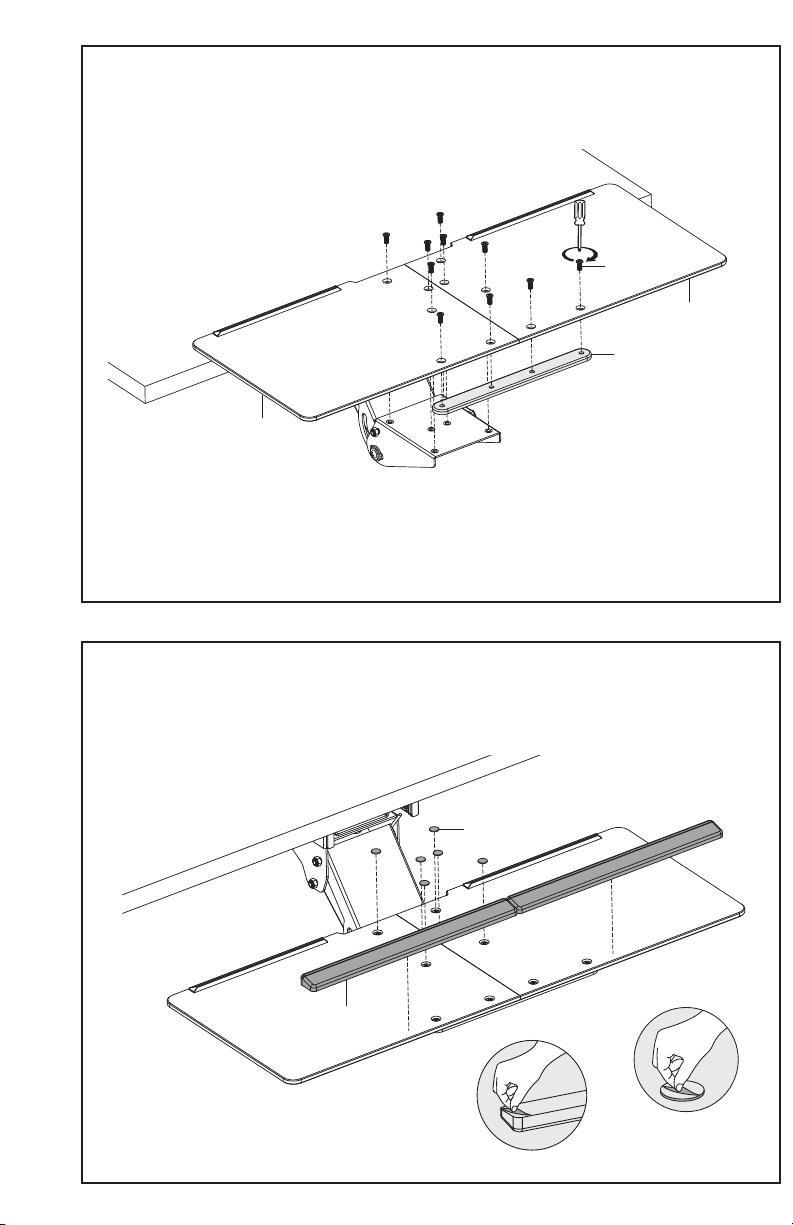

Assemble Right and Le Tray (C, D) to mount assembly using Connecting Bracket (E), M5x12mm

Screws (S-B) and a Phillips screwdriver.

Remove adhesive backing from Screw Covers (S-C) and apply over previously installed screws.

Remove adhesive backing from Wrist Rests (F) and apply to assembled keyboard tray.

STEP 4

STEP 5

S-B

S-C

Adjustments

Loosen the knob to adjust tilt and height, and tighten in the desired position.

[ THIS PAGE INTENTIONALLY LEFT BLANK ]

LAST UPDATED: 01/09/2023

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]om AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
