Vivo MOUNT-KB15EB Bedienungsanleitung

Clamp-on Extra Long Keyboard Tray

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-kb15eb

SKU: MOUNT-KB15EB/EW

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

ASSEMBLY STEPS

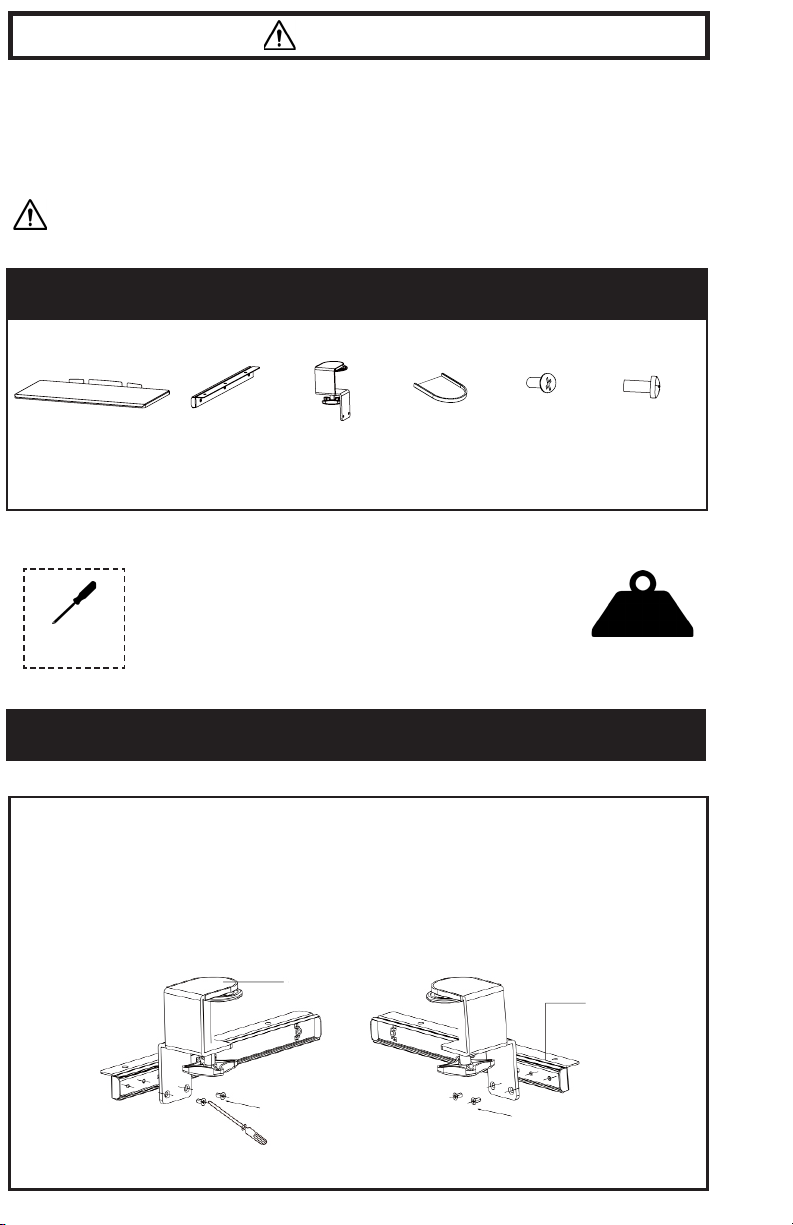

PACKAGE CONTENTS

TOOLS NEEDED

11lbs

(4.99kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A(x1)

Keyboard Tray

B(x2)

Slider Bracket

D (x2)

Pad

C(x2)

Clamp

S-A (x6)

M4x7mm

Screws

S-B (x8)

M5x12mm

Screws

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

STEP 1

Assemble Slider Brackets (B) to Clamps (C) using M4x7MM Screws (S-A). Tighten with a Phillips

screwdriver.

NOTE: Clamp can be oset using the extra holes in Slider Brackets (B) to allow the tray to be pulled

out an extra 1.2” (30mm) when in use. If mounted this way the tray will sit further out from desk edge.

S-A S-A

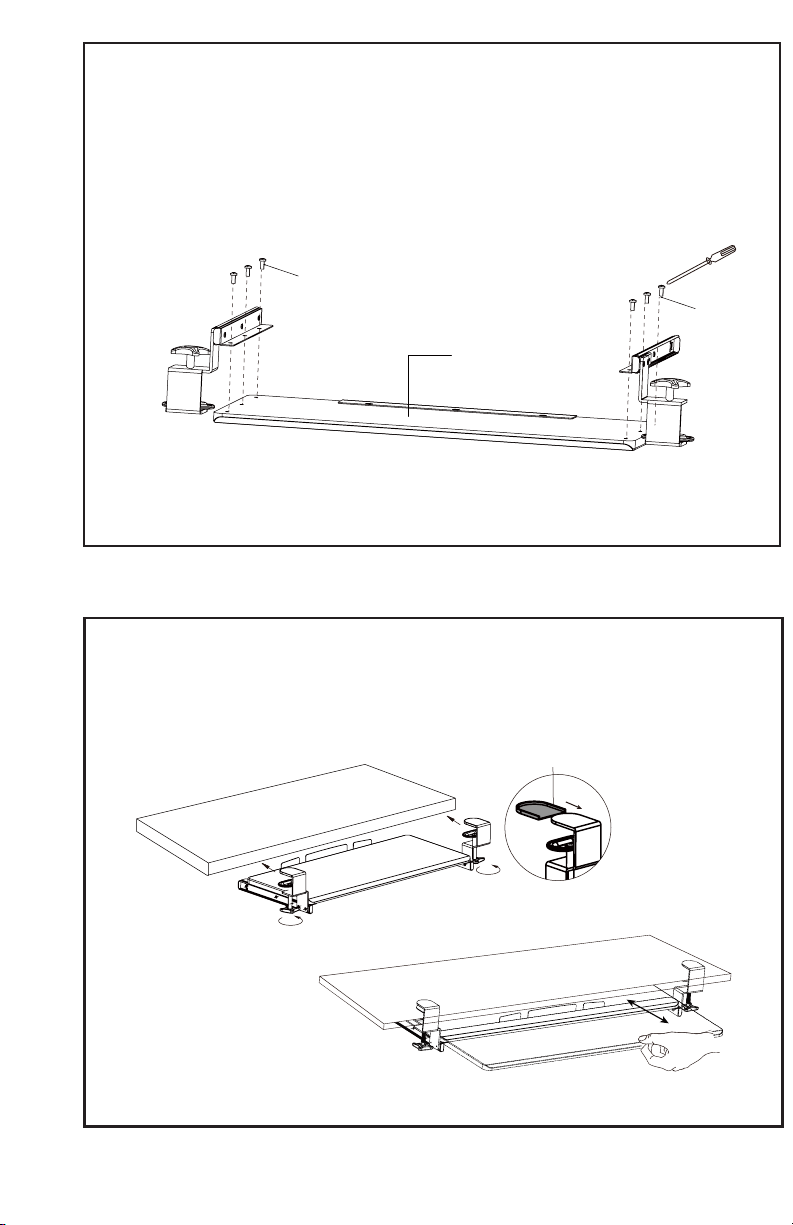

STEP 2

Assemble slider bracket assembly to Keyboard Tray (A) using M5x12mm screws (S-B), and tighten

with a Phillips screwdriver. The clamps must be on the opposite end from the center cable guide.

STEP 3

Place Pads (D) on the underside of each clamp. Place assembled keyboard mount on edge of desk

and tighten clamps. NOTE: To ensure keyboard tray is level, do not over-tighten clamps.

Slide keyboard tray forward/back to desired position.

S-B

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

LAST UPDATED: 01/13/2023

REV1

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
