Vivo MOUNT-V001A Bedienungsanleitung

Pneumatic Arm Single Monitor Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-v001a

SKU: MOUNT-V001A

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

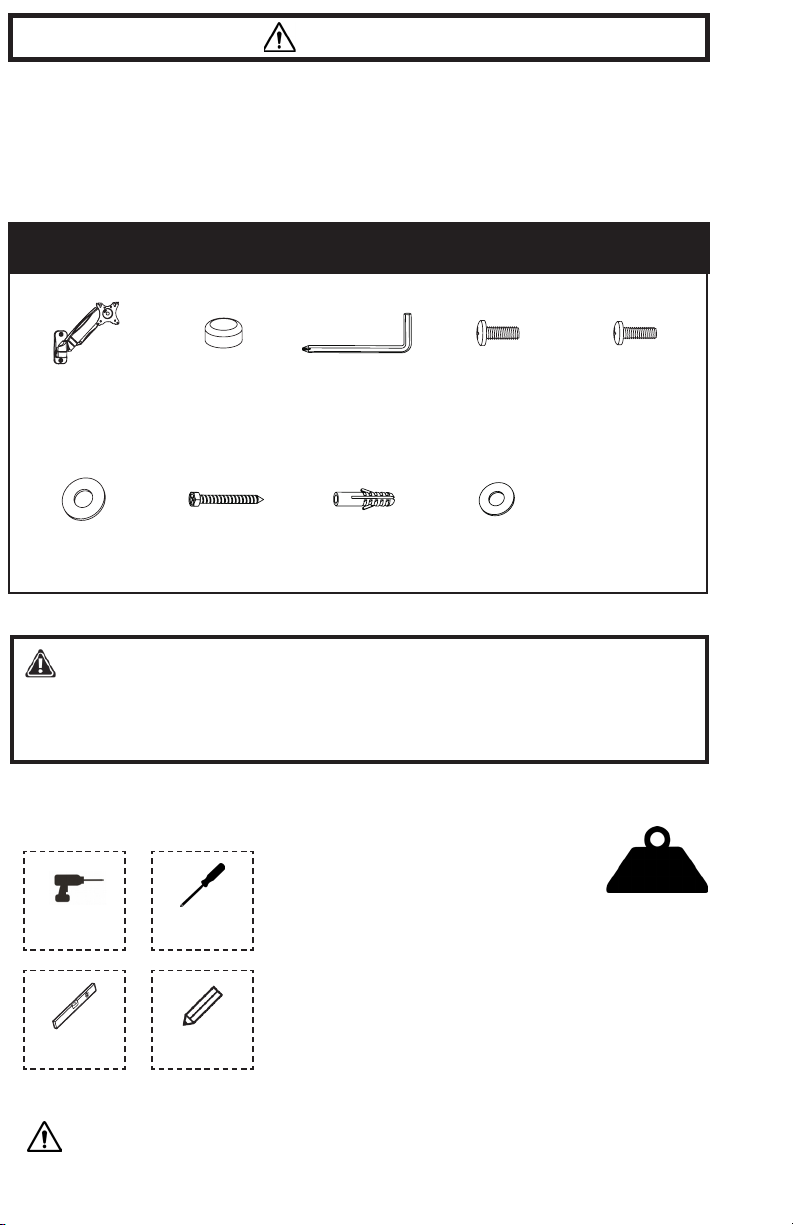

PACKAGE CONTENTS

TOOLS NEEDED

4.4-19.8lbs

(2-9kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Monitor Arm

B(x2)

Cover

C(x1)

5mm Allen

Wrench

W-A (x2)

Screw

M-A (x4)

M4x12

M-B (x4)

M5x12

M-C (x4)

D5 Washer

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

W-C (x2)

Washer

W-B (x2)

Anchor

Drill

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

Level Pencil

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

ASSEMBLY STEPS

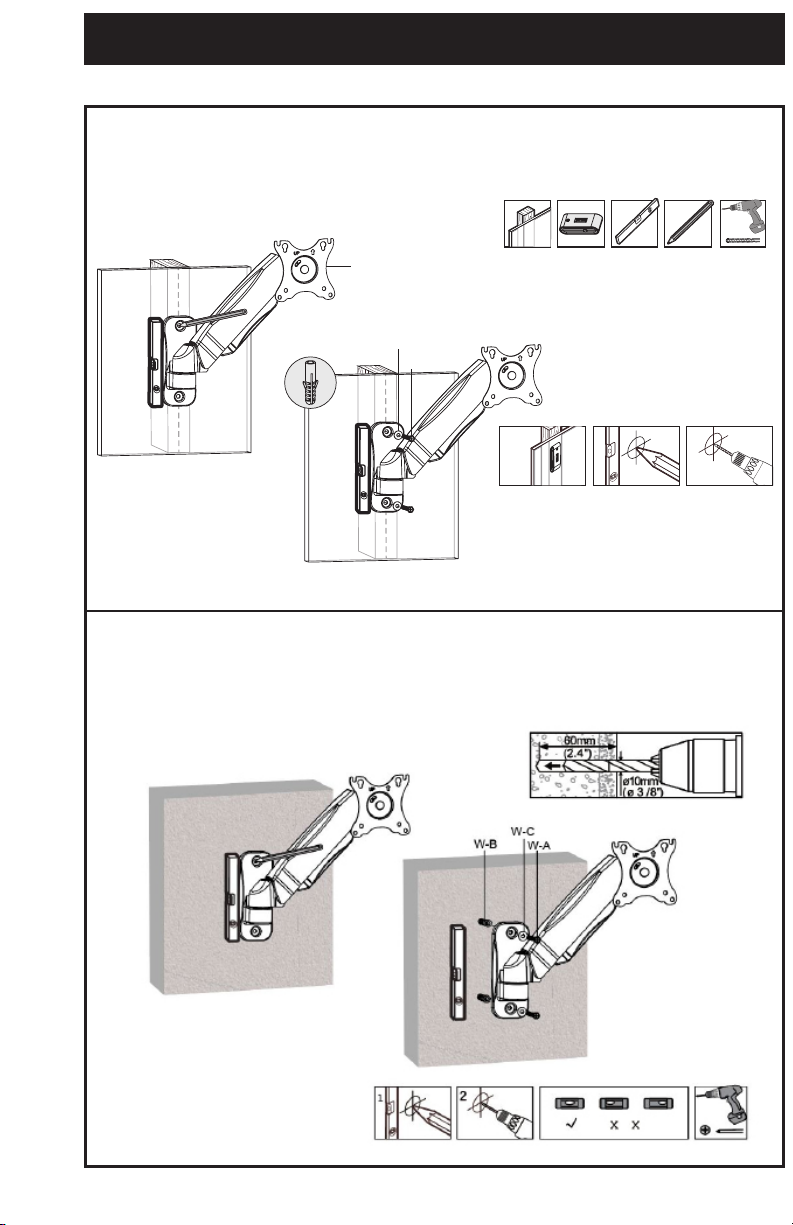

STEP 1

OPTION A: Wood Wall

Use a pencil to mark drilling location for wood beam and drill 2.2” deep holes using 3/16” bit. Use of a

studfinder is recommended. Mount arm (A) to wall using screws (W-A) and washers (W-C). Do NOT use

anchors (W-B) for wood beam installation.

OPTION B: Concrete/Brick

Use a pencil to mark drilling location for wood beam and drill 2.4” deep holes using 3/8” bit. Use of a

studfinder is recommended. Mount arm (A) to wall using screws (W-A), washers (W-C), and anchors

(W-B) for concrete or brick wall installation.

W- A

W- C

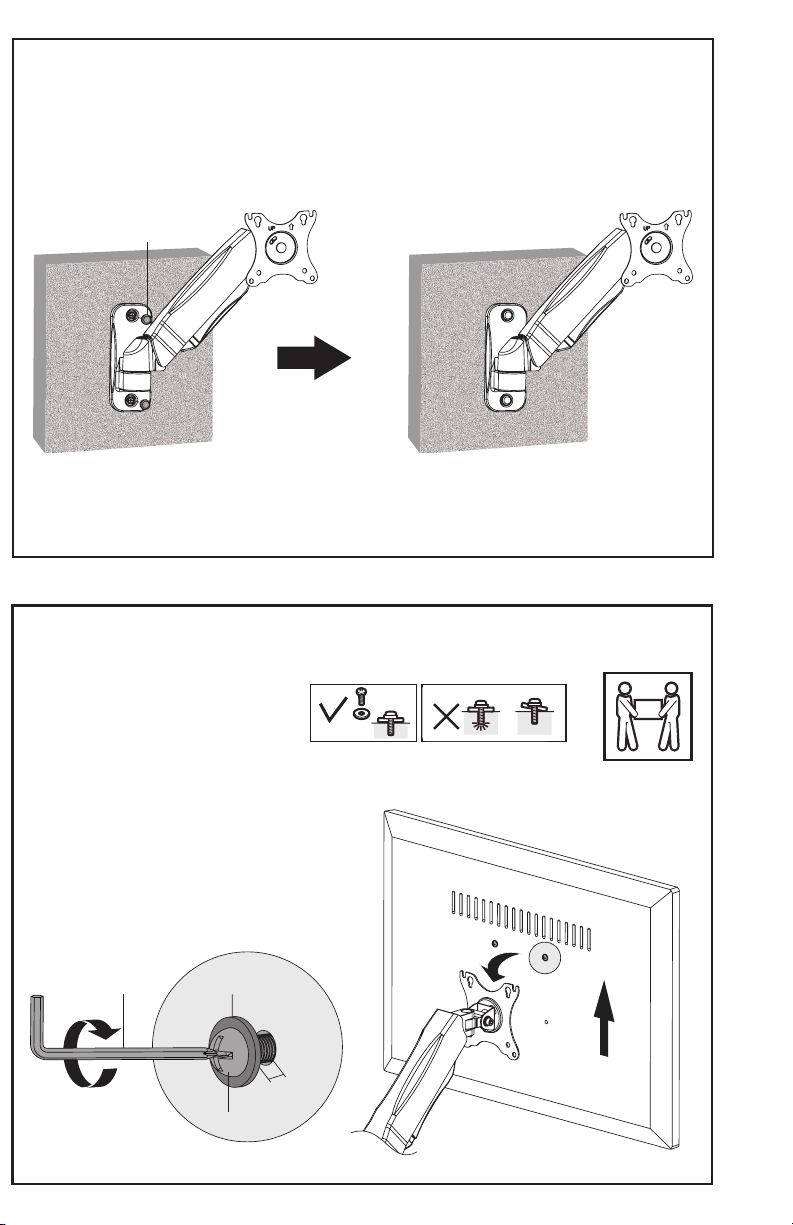

STEP 2

Press covers (B) into screw holes.

STEP 3

Install screws (M-A or M-B) with washers (M-C) in top two holes of the monitor, leaving 3mm of space

between the screw heads and the monitor. Tighten using 5mm Allen Wrench (C). Hang monitor over

top two slots of VESA plate, install two bottom screws, and then tighten top screws using the 5mm

Allen Wrench (C).

M- C

3mm

M-A

M-B

STEP 4

Tighten the socket screw if the joints are making a popping sound. Adjust arm tension by turning the

screw with the Allen Wrench (C). Clockwise reduces tension, counterclockwise increases tension. The

tension should be just enough to hold your monitor in place without liing itself up. If needed, adjust

bolts on the sides of the hinge behind the VESA plate to tighten or loosen the tilt angle.

STEP 5

Remove cable cover by removing the screw underneath.

STEP 6

Insert cables and replace cover while making sure the cables have enough slack to allow enough free

movement of the arm.

Adjust as Desired

180 °

+90°

-45 °

360 °

180 °

LAST UPDATED: 08/06/2020

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
