Vivo MOUNT-MACM1 Bedienungsanleitung

VESA Adapter

Designed for M1 iMac

Instruction Manual

SKU: MOUNT-MACM1

Assembly Video & Product Info

www.vivo-us.com/products/mount-macm1

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please contact our product support team at 309-278-5303 or [email protected]om for further assistance.

Check carefully to make sure there are no missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this

manual. Do not exceed weight capacity. We cannot be liable for damage or injury caused by improper

mounting, incorrect assembly or inappropriate use.

CAUTION!

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

We’re Here for You

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

Chat Us:

www.vivo-us.com

Give us a Call:

309-278-5303

Email Us:

[email protected]om AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

A (x1)

Part Name

B (x1)

Part Name

S-A (x4)

M4x12

Thumbscrew

S-B (x4)

M4x8

Thumbscrew

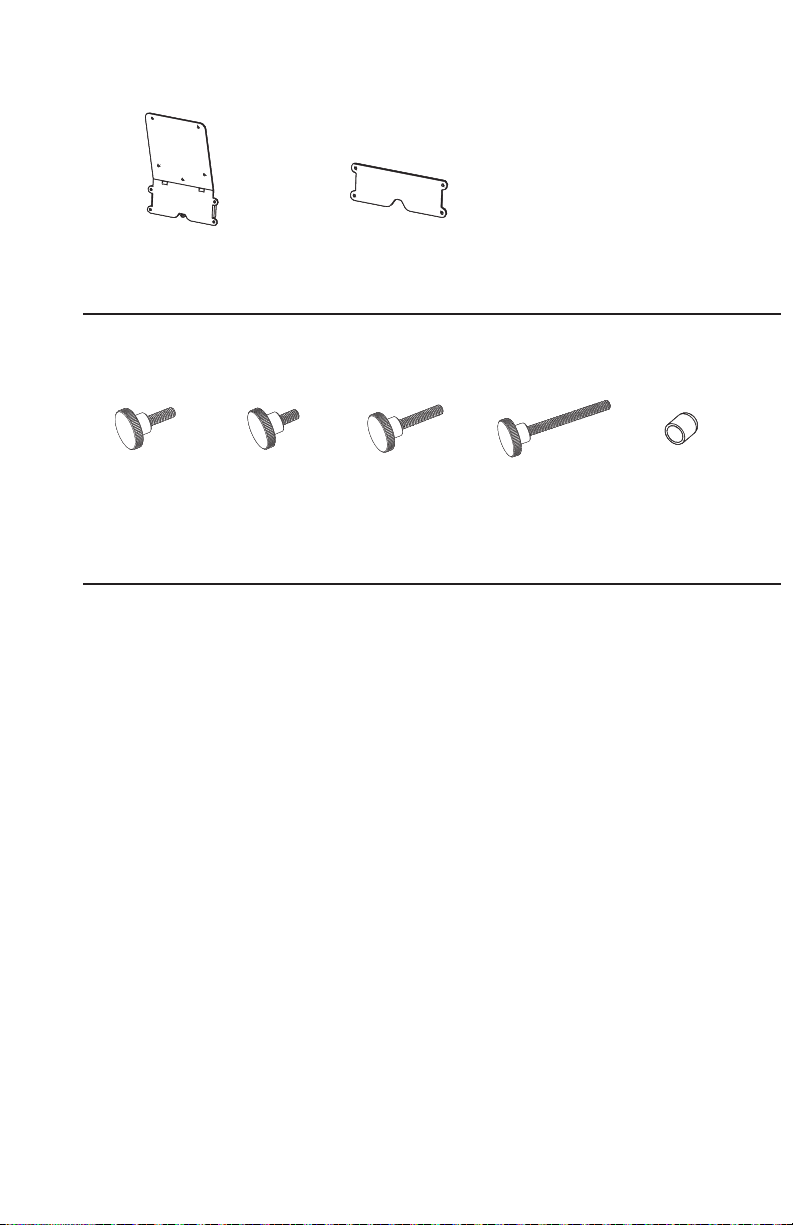

Package Contents

Included Hardware & Tools

S-C (x1)

M4x22

Thumbscrew

S-D (x1)

M4x37

Thumbscrew

S-E (x2)

Screw Pad

ASSEMBLY STEPS

STEP 1

S-C (x1)

Partially insert M4x22mm Thumbscrew (S-C) into the center hole of VESA Adapter Plate (A), and M4x37mm

Thumbscrew (S-D) into the lower hole of VESA Adapter Plate (A). Press Screw Pads (S-E) onto the ends of

the Thumbscrews.

S-D (x1)

S-E (x1)

S-C

S-D

S-E

STEP 2

Assemble VESA Adapter Plate (A) and Clamp Plate (B) to the base of the iMac using M4x12mm

Thumbscrews (S-A).

NOTE: The Clamp Plate should be pushed all the way up underneath the iMac base, and the curved

tabs of the VESA Adapter Plate should be resting over the curved top of the base.

S-A (x4)

S-A

STEP 3

Install VESA Adapter (A) with iMac to the VESA mount using M4x8mm Thumbscrews (S-B).

S-B (x4)

S-B

STEP 4

Use M4x22mm and M4x37mm Thumbscrews (S-C and S-D) to adjust the angle of the iMac screen.

They may be le partially loose to work as a limiter while allowing the screen to tilt freely, or

tightened to hold a specific tilt angle.

S-C

S-D

LAST UPDATED: 11/14/23

REV2

v1.0

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

Monday-Friday from 7:00am-7:00pm CST

Need Help? Get In Touch

FOR MORE GREAT VIVO PRODUCTS,

CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM

VIVO-us @vivo_us
