Vivo STAND-E-102A Bedienungsanleitung
Electric Height Adjustable Dual Monitor Stand
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
Instruction Manual
https://vivo-us.com/products/stand-e-102a
SKU: STAND-E-102A
Chat live with an agent!
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
2
PACKAGE CONTENTS
22lbs
(10kg)per arm
DO NOT EXCEED WEIGHT CAPACITY.
Failure to do so may result in serious injury.
WARNING!
If you do not understand these directions, or if you have any doubts about the safety of the
installation, please call a qualified technician. Check carefully to make sure there are no missing or
defective parts. Improper installation may cause damage or serious injury. Do not use this product
for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.
We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or
inappropriate use.
WARNING: CHOKING HAZARD
SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.
TOOLS NEEDED
Phillips
Screwdriver
Pencil
SUPPORTED MONITOR RANGES :
Most 20” - 32” screens
Scissors
N(x1)
Large Pad
O(x2)
Small Pad
P(x3)
Cable Clip
3
ASSEMBLY STEPS

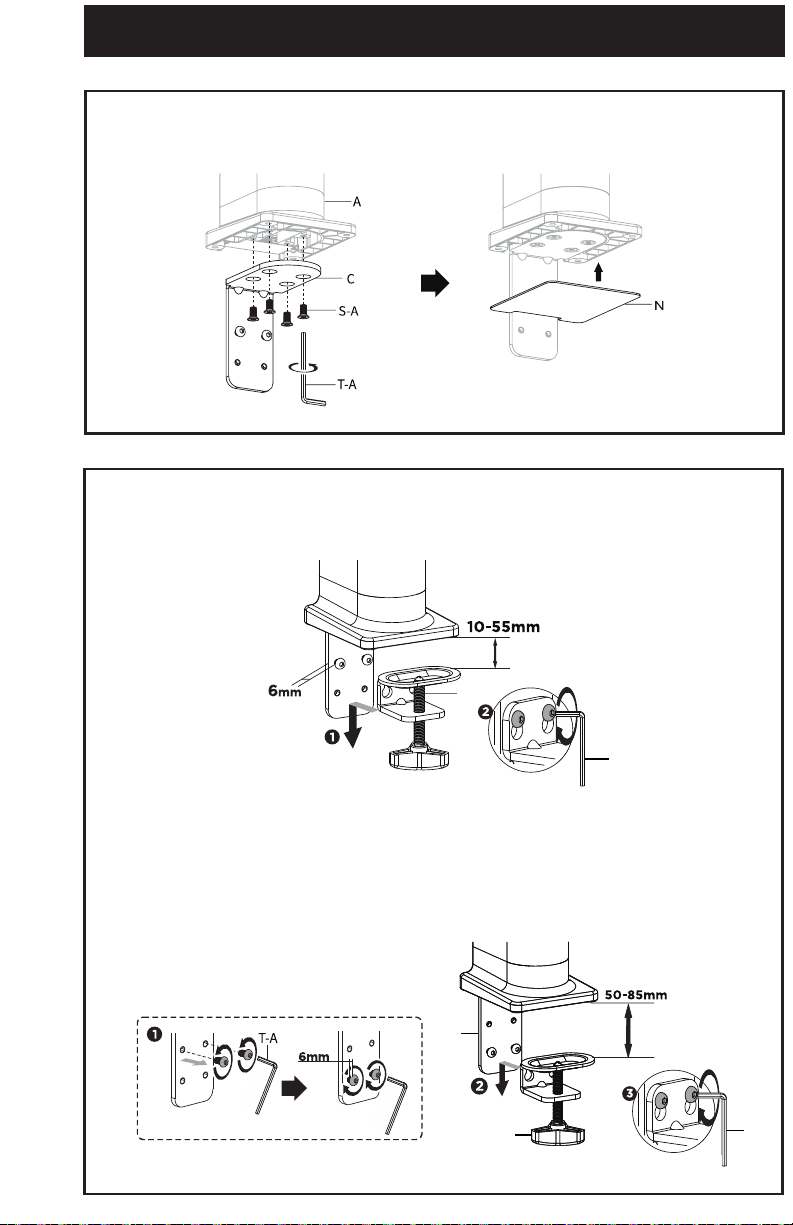

STEP 1
Attach Upper Clamp Bracket (C) to the bottom of the Electric Stand (A) using M6x12mm
Screws (S-A) and a 4mm Allen Wrench (T-A). Remove protective film from Large Pad (N)
then attach it to the bottom of the stand.
STEP 2
For desktops between 10-55mm (0.40”-2.15”), align the key slots on Lower Clamp
Bracket (B) with the screws on Upper Clamp Bracket (C). Pull Lower Clamp Bracket (B)
down and lock the screws on Upper Clamp Bracket (C) in place with the 4mm Allen Wrench
(T-A).
For desktops between 50-85mm (2”-3.35”), remove the screws on Upper Clamp Bracket
(C) and reassemble them to the lower set of holes using 4mm Allen Wrench (T-A). Align the
key slots on Lower Clamp Bracket (B) with the screws on Upper Clamp Bracket (C). Pull
Lower Clamp Bracket (B) down and lock the screws on Upper Clamp Bracket (C) in place
with the 4mm Allen Wrench (T-A).
B
T-A
T-A
T-A
C
B
4

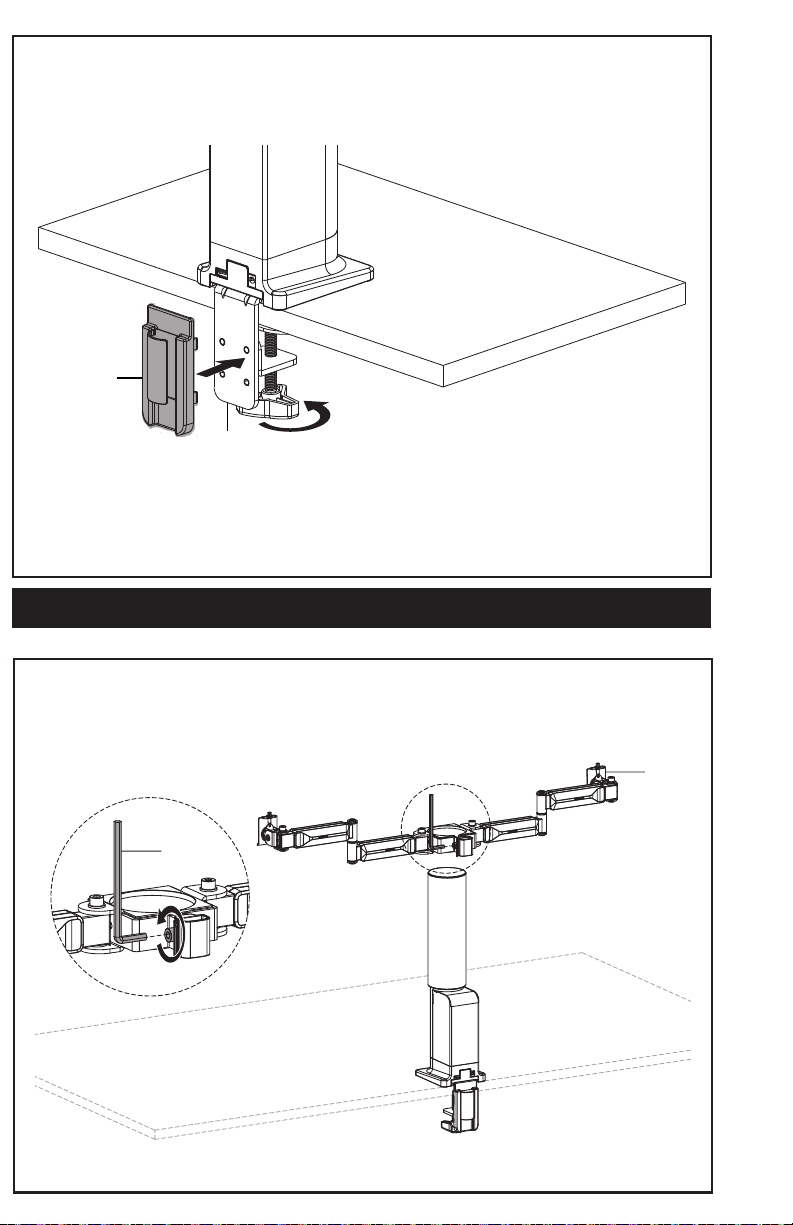

STEP 3
First, clamp the stand assembly onto desk. Press the Clamp Cable Clip (D) onto Upper
Clamp Bracket (C).
Option A: Dual Monitor Setup
STEP 4
Partially loosen screw on Dual Arm (E) with 6mm Allen Wrench (T-B) and slide Dual Arm (E)
onto the post of Electric Stand (A).
D
C
E
T-B
5
STEP 5
Re-tighten screw on Dual Arm (E) with arm assembly at the top of the post using the 6mm
Allen Wrench (T-B). Attach an Arm Cable Clip (G) onto each arm segment.
Note: The final arm position will be determined in step 13.
STEP 6
Remove a single arm segment and the cable clip from Dual Arm (E) using the 6mm Allen
Wrench (T-B).
Single Arm
Segment
E
G
T-B
Cable Clip
Option B: Single Monitor Setup
T-B
T-B
6
STEP 8
Attach the single arm segment to Single Arm Bracket (F) using the 6mm Allen Wrench (T-B).
Note: This screw adjusts the joint tension. The tighter the screw the more resistance there
will be when pivoting the arm.
STEP 7
Loosely assemble the cable clip on Single Arm Bracket (F) using the 6mm Allen Wrench
(T-B).
Cable Clip
F
Single Arm Segment
Washer
Arm Screw
F
Clip Screw
T-B
T-B
7
STEP 10
Attach VESA Bracket (H) to monitors using either M4x12mm or M5x12mm bolts (M-A,M-B)
and Washers (M-C) along with a Phillips Screwdriver.
Monitor Installation
A
T-B
G
STEP 9
Re-tighten screw on Single Arm Bracket (F) with arm assembly at the top of the post using
the 6mm Allen Wrench (T-B). Attach an Arm Cable Clip (G) onto each arm segment.
Note: The final arm position will be determined in Step 13.
F
H
8
STEP 11
Slide monitors onto tilt joint located on the arm assembly. Lock VESA plate (H) in place
with Screw Cap (S-B), M3x8mm Screw (S-C) and a Phillips Screwdriver. Adjust monitor
height alignment by turning Screw Cap (S-B) by hand or using 6mm Allen Wrench (T-B).
Note: If you are having an issue with a monitor tilting down once installed on the arm,
refer to Step 17 to tighten down the tilt joint.
STEP 12
Attach the Control Panel (L) to the underside of the desktop using ST3.5x18mm Screws
(S-D) as shown. Remove protective film from Cable Clip (P) and secure the unused cable
to the desktop.
S-D
L
L
P
2
If desired, attach AC Adatper (J) to desktop using Small Pad (O), making sure the
protective film is removed.
O
J
9
STEP 13
Connect cables between Electric Stand (A), Control Panel (L), Splitter Cable (M), AC Adapter
(J), and Power Cable (K) as shown below.
STEP 14
Initial Setup Procedure:
Referring to the control panel instruction manual, ensure the panel display is set to adjust
stand height (see the “Shi Device Display” section). If you are using a height-adjustable
desk, move your desk frame to a comfortable level for your normal sitting position.
It is recommended to follow general ergonomic guidelines for working posture while
considering your desk frame height.
Next, with the electric stand at its lowest height setting, loosen the arm bracket screw
using the 6mm Allen Wrench (T-B) and manually adjust the arm assembly along the
electric stand post until the top of the monitor screen is at eye level while in your normal
sitting position. If this is not possible, position the arm assembly at the very top or the
very bottom of the electric stand post respectively. Re-tighten the arm bracket screw to
secure the arm assembly in this position.
Note: You do not have to use the monitor at this height, but doing so reduces the amount
of manual adjustment later on.
L
AMJK
10

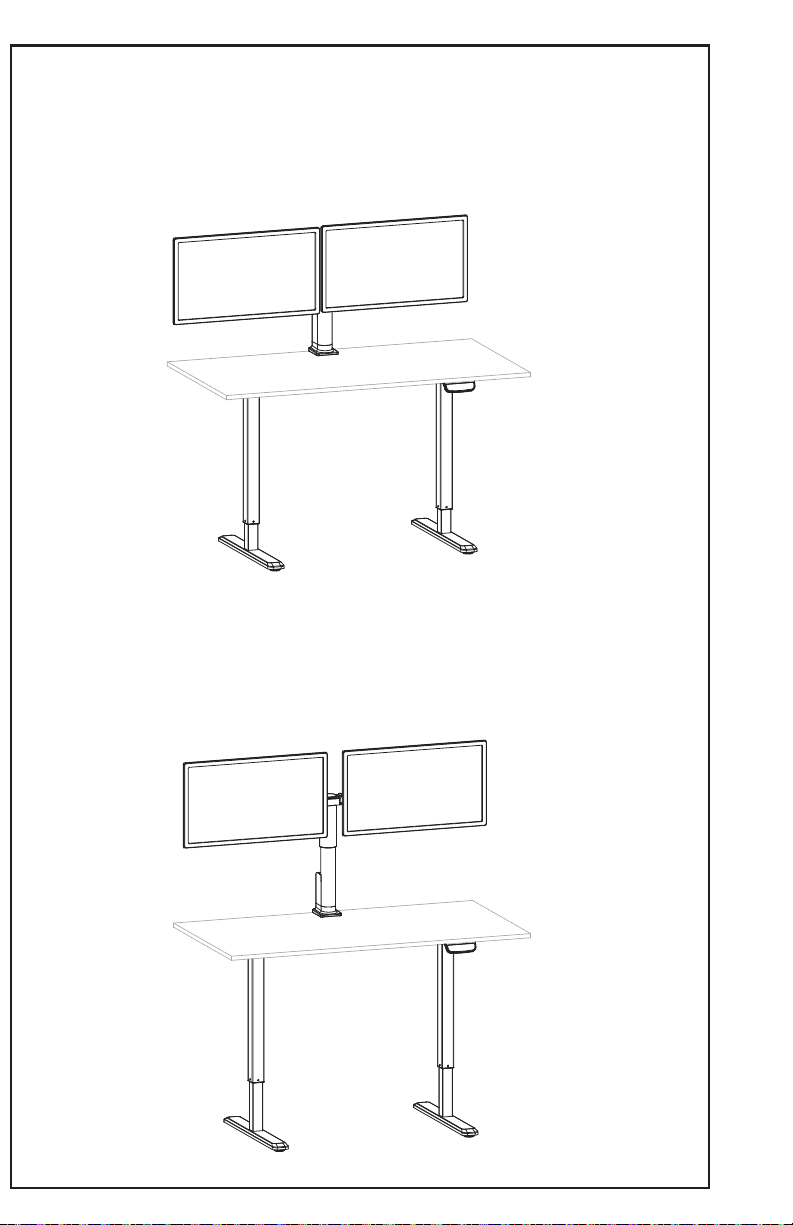

STEP 15
Setting Memory Positions:
Referring to the control panel instruction manual, ensure the panel display is set to adjust
stand height. In your normal sitting position, move the stand until the monitors are at a
comfortable level. It is recommended to follow general ergonomic guidelines for work
posture while considering the optimal height of your monitors. Store this position in
memory setting 1. Your monitor height should now be synced to memory setting 1.
Referring to the control panel instruction manual, move the stand to a comfortable
secondary position. Store this height location to memory setting 2. Repeat this procedure
for storing a third working posture in memory setting 3 if desired.
