Vivo MOUNT-PC05C Bedienungsanleitung

Multifunctional Thin Client PC Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pc05c

SKU: MOUNT-PC05C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

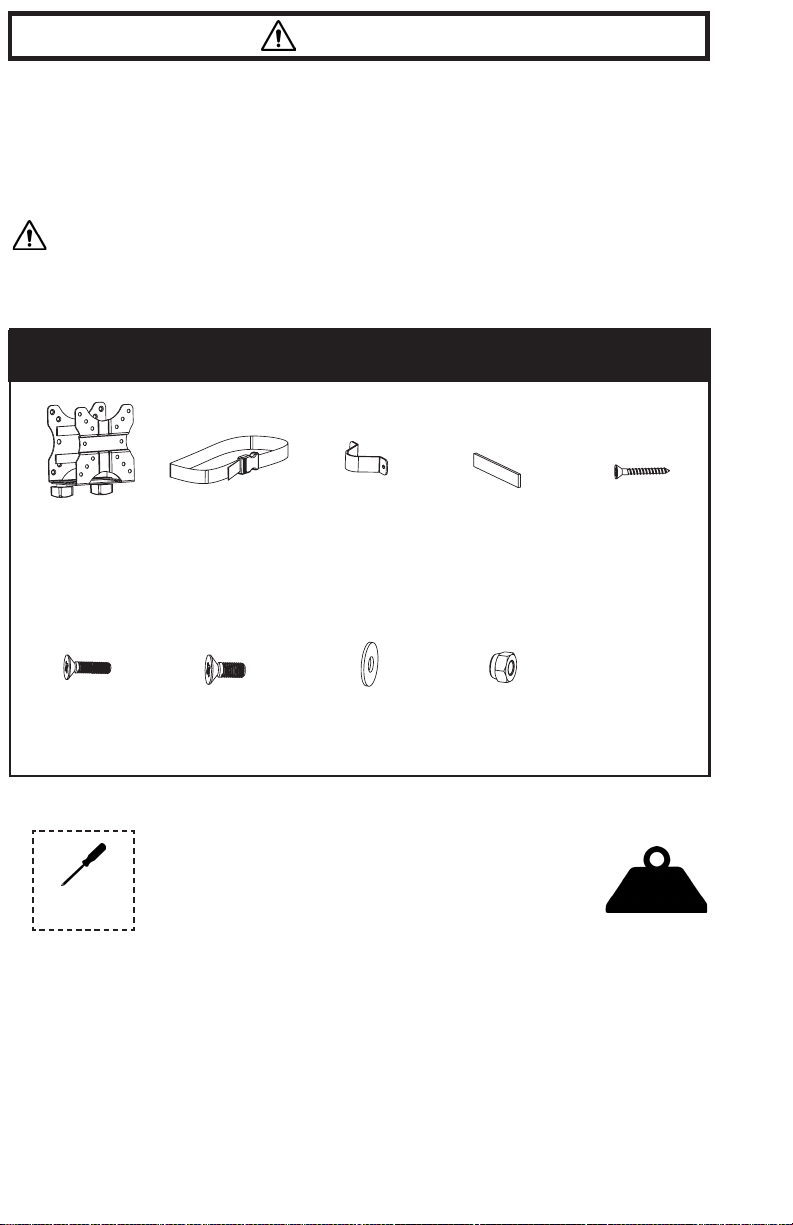

PACKAGE CONTENTS

TOOLS NEEDED

Phillips

Screwdriver

A (x1)

Mount

B(x1)

Strap

C(x1)

Pole Mount

Bracket

D(x3)

Adhesive Pad

E(x4)

ST4.8x16 Screw

F (x2)

M5x25

G (x8)

M4x12

H (x4)

Washer

I(x4)

Nut

11lbs

(5kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

NOTE: SOME HARDWARE MAY NOT BE USED

ASSEMBLY STEPS

STEP 1

Remove knobs from mount (A) and separate the mount.

STEP 2

OPTION A: POLE MOUNT

Attach larger half of mount to pole using the pole mount bracket (C) and

M5x25 screws (F). Apply one adhesive pad (D) to the assembled mount and

two pads to the inner face of the other half. Reattach halves using previously

removed knobs. Place PC into mount, adjust to fit, and tighten knobs. Secure

PC using the strap (B). Pole diameter must be 30mm to 40mm in diameter for

mount to fit.

STEP 2 (Continued)

OPTION B: UNDER DESK MOUNT

Apply one adhesive pad (D) to the larger half of mount and two pads to the inner face of

the other half. Use outer four holes on mount to mark drilling locations on the underside

of the desk. Drill holes no deeper than 5/8” (16mm) using a 3/16” (2.4mm) bit. With the

strap (B) fit into the slot, attach larger half of mount to the desk using ST4.8x16 screws

(E). Reattach halves using previously removed knobs.

Place PC into mount, adjust to fit, and tighten knobs. Secure PC using the strap.

STEP 2 (Continued)

OPTION C: VESA MOUNT

Attach smaller half of mount to VESA mount using four M4x12 screws (G),

washers (H) and nuts (I). Apply two adhesive pads (D) to the assembled mount

and one pad to the inner face of the other half.

STEP 2 (Continued)

If also installing a monitor, with the strap (B) fit into the slot, attach larger half of mount to

monitor using four M4x12 screws (G). Reattach halves using previously removed knobs.

Place PC into mount, adjust to fit, and tighten knobs. Secure PC using the strap.

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S
