Vivo MOUNT-CR70C Bedienungsanleitung

Corner TV Wall Mount

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-cr70c

SKU: MOUNT-CR70C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

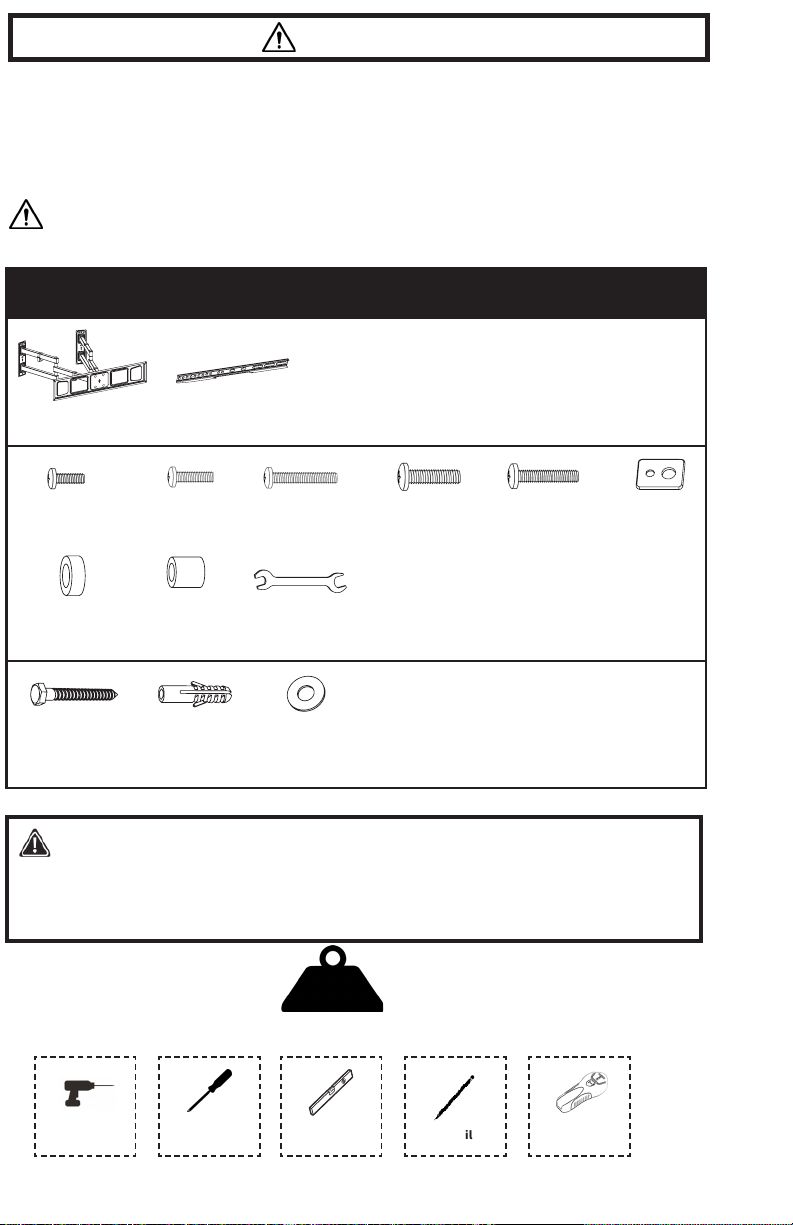

PACKAGE CONTENTS

TOOLS NEEDED

99lbs

(45kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

M-F (x4)

Washer

M-E (x4)

M8x50

M-A (x4)

M5x14

M-B (x4)

M6x14

M-C (x4)

M6x30

M-D (x4)

M8x30

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

Drill

M-G (x8)

5mm Spacer

W-B (x8)

Concrete

Anchor

W-C (x8)

Washer

W-A (x8)

ST6.3x55 Screw

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

M-H (x8)

15mm Spacer

A (x1)

Mount

B(x2)

VESA Bracket

T-A (x1)

Wrench

Level Pencil Stud Finder

ASSEMBLY STEPS

STEP 1

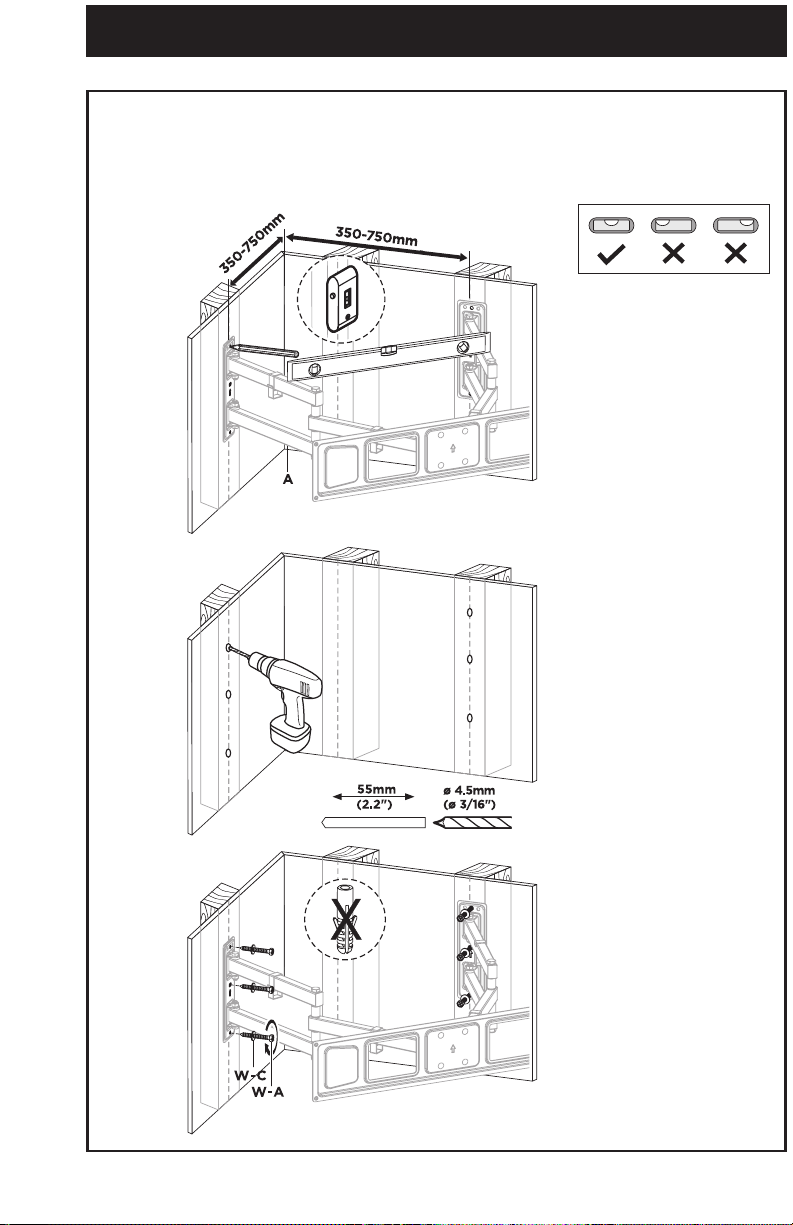

OPTION A: Wood Stud Wall Installation

Use Mount (A) to mark mounting holes on the wall where studs are located. Use of a stud finder and a

level is highly recommended. Using a 3/16” (4.5mm) drill bit, drill holes at least 2.2” (55mm) deep into

marked locations. Attach mount to wall using ST6.3x55 Screws (W-A) with Washers (W-C).

STEP 1 (Continued)

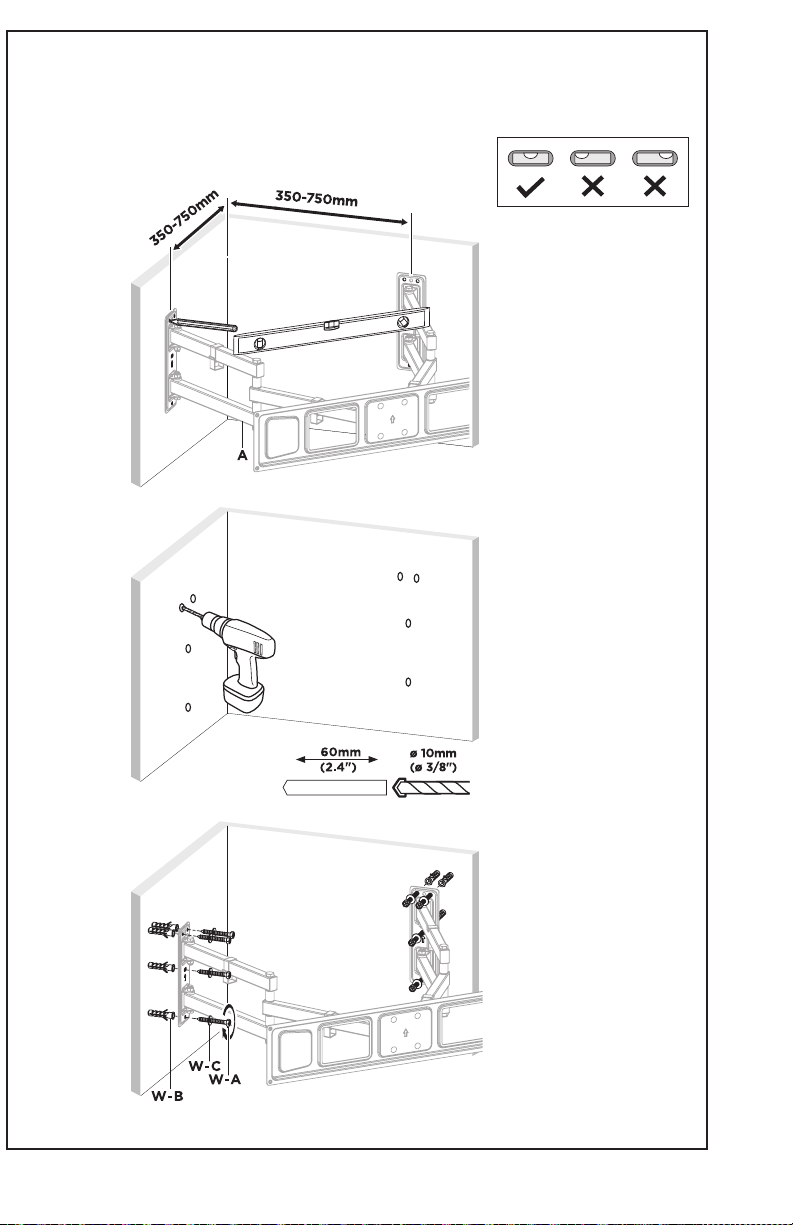

OPTION B: Concrete/Brick Wall Installation

Use Mount (A) to mark mounting holes on the wall. Using a 3/8” (10mm) drill bit, drill holes at least

2.4” (60mm) deep into marked locations. Press Concrete Anchors (W-B) into holes, then attach Mount

(A) to wall using ST6.3x55 Screws (W-A) with Washers (W-C).

STEP 2

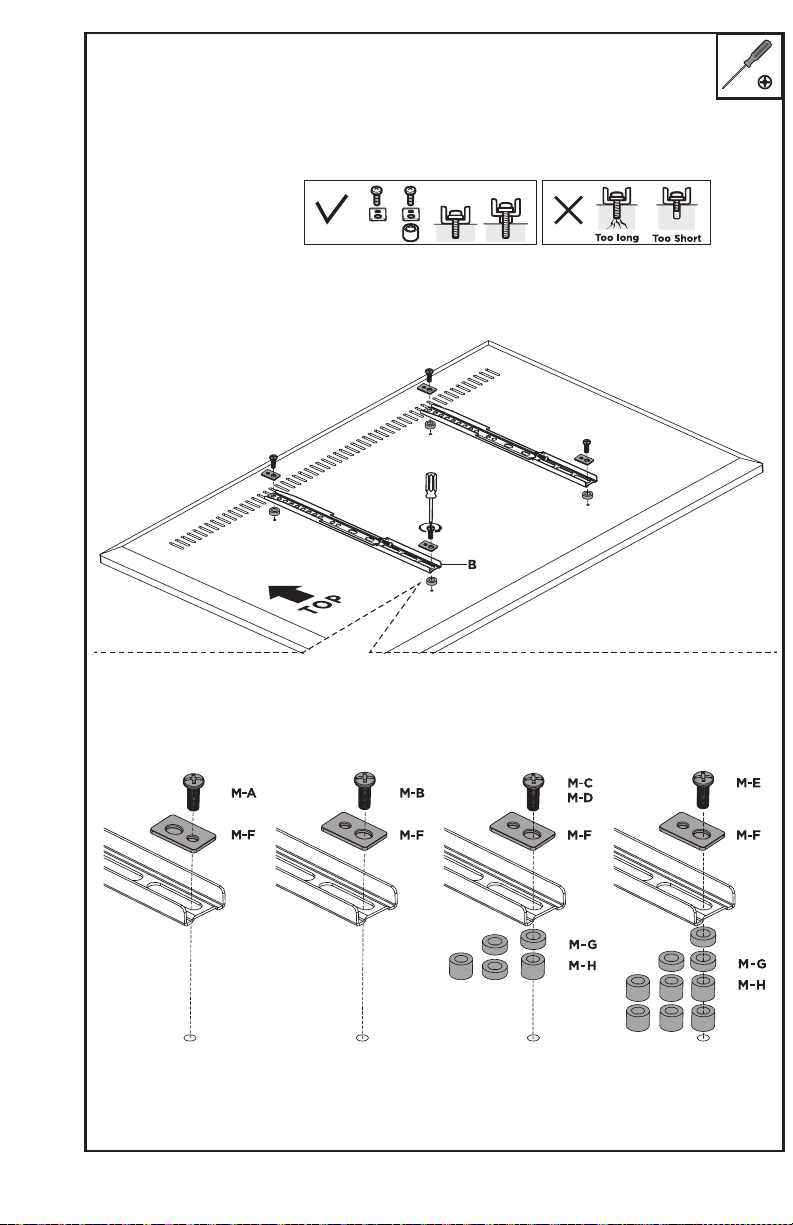

With the TV face down on a flat surface, secure VESA Brackets (B) to the TV using Screws

(M-A through M-E), Washers (M-F) and Spacers (M-G, M-H).

STEP 3

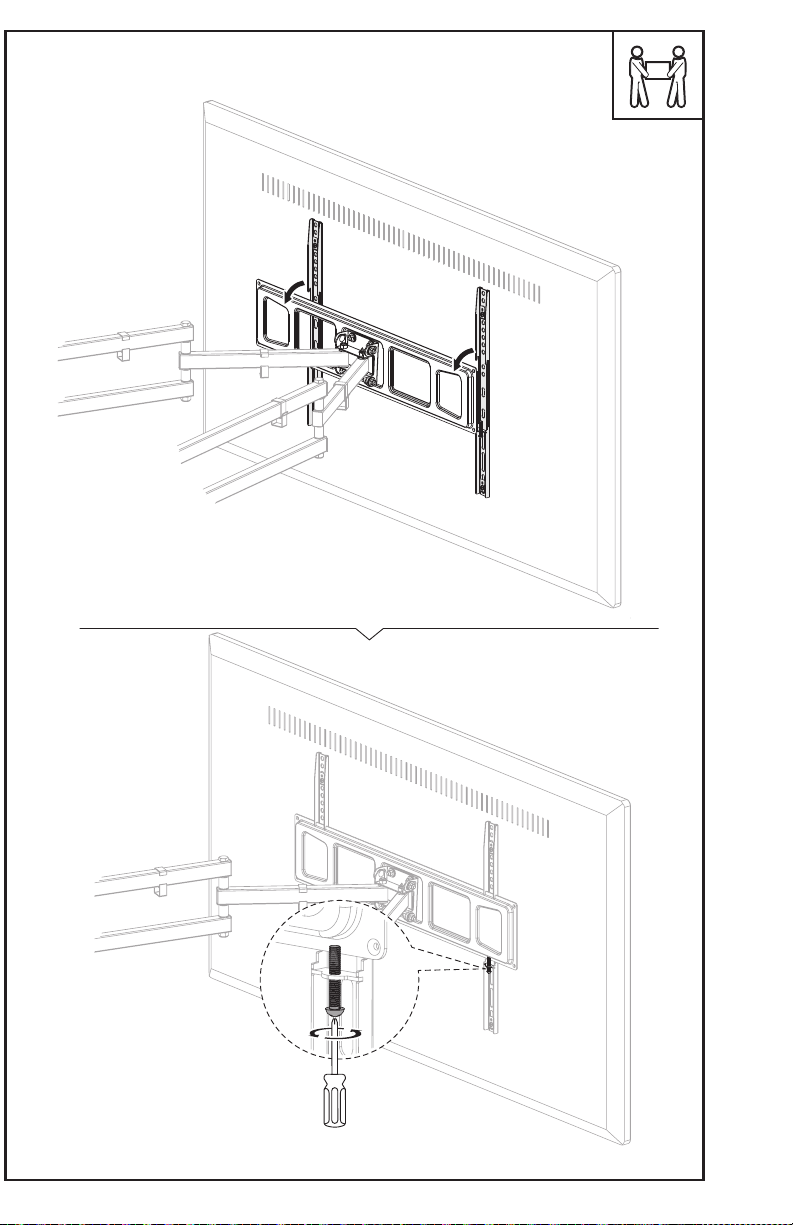

Hang Vesa Brackets (B) onto Mount (A), and secure by tightening security screws on the

underside of VESA Brackets (B) using a phillips screwdriver.

STEP 4

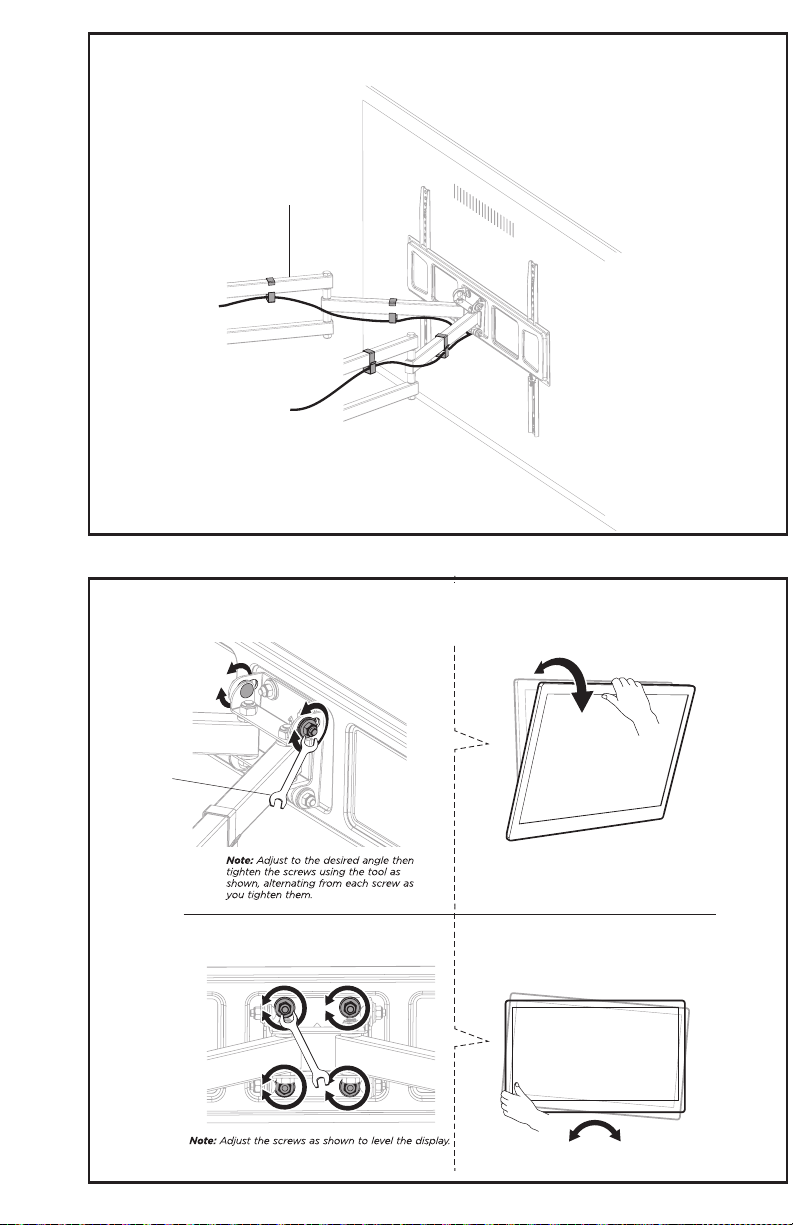

Manage cables using cable clips located on Mount (A).

STEP 5

Use Wrench (T-A) to adjust the tilt and rotation to the desired positions.

T-A

LAST UPDATED: 06/16/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
