Vivo MOUNT-POLE05O Bedienungsanleitung

Pole Mount Pneumatic Monitor Arm for VESA

75x75mm and 100x100mm

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-pole05o

SKU: MOUNT-POLE05O

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the installation,

please call a qualified technician. Check carefully to make sure there are no missing or defective parts.

Improper installation may cause damage or serious injury. Do not use this product for any purpose that is

not explicitly specified in this manual. Do not exceed weight capacity. We cannot be liable for damage or

injury caused by improper mounting, incorrect assembly or inappropriate use.

NOTE: NOT ALL HARDWARE INCLUDED WILL BE USED

A(x1)

Arm

S-A (x2)

M8x50mm Screw

T-B (x1)

5mm Allen Wrench

T-A (x1)

4mm Allen Wrench

S-B (x2)

M8x65mm Screw

B(x1)

Pole Clamp

S-C (x2)

M8 Nut

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 4.4-17.6lbs

(2-8kg)

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

M-C (x4)

M5 Washer

M-A (x4)

M4x12mm Screw

M-B (x4)

M5x12mm Screw

ASSEMBLY STEPS

STEP 1

While holding Arm (A) closed, cut the shipping tie and gently release Arm (A).

STEP 2

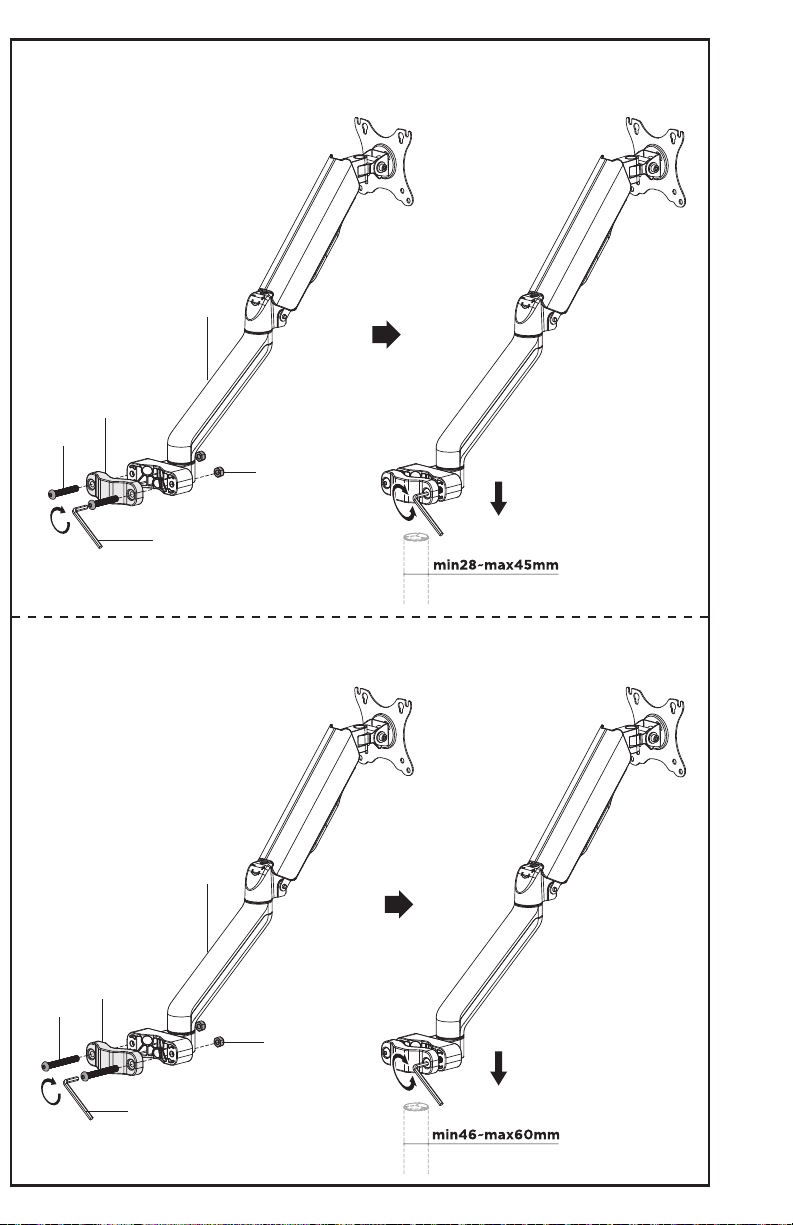

Poles 28-45mm in Diameter: Assemble Arm (A) with Pole Clamp (B) to the pole using M8x50mm

Screws (S-A),M8 Nuts (S-C) and 5mm Allen Wrench (T-B).

Poles 46-60mm in Diameter: Assemble Arm (A) with Pole Clamp (B) to the pole using M8x65mm

Screws (S-B),M8 Nuts (S-C) and 5mm Allen Wrench (T-B).

S-A

S-C

T-B

S-C

T-B

S-B

STEP 3

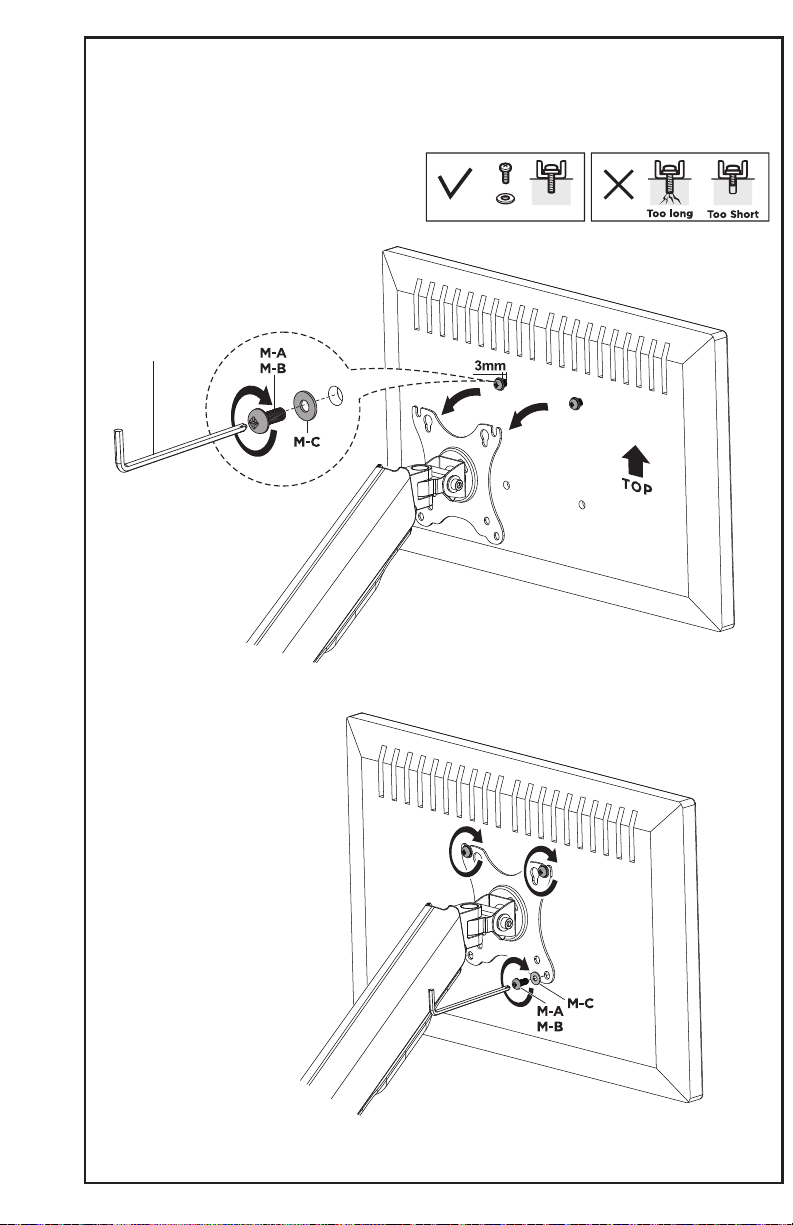

Install Screws (M-A or M-B) and M5 Washers (M-C) to the top mounting holes of your monitor, making

sure to leave 3mm of threads exposed. Align Screws (M-A or M-B) in the VESA plate. Secure using two

more Screws (M-A or M-B) and M5 Washers (M-C) in the bottom two holes. Tighten all four screws

using the Phillips end of 4mm Allen Wrench (T-A).

T-A

STEP 4

Adjust gas spring support in Arm (A) using 5mm Allen Wrench (T-B). Turning counter-clockwise

increases support, and clockwise decreases.

STEP 5

Remove the cable management covers

from Arm (A) using the Phillips end of

4mm Allen Wrench (T-A). Run cables from

monitors through bottom Arm (A), then

reattach cable management covers.

T-B

T-A

STEP 6

Adjust the monitor tilt using 5mm Allen Wrench (T-B).

T-B

LAST UPDATED: 07/26/2022

REV1.1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
