Wall Mount Designed for Sonos Arc Soundbar

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/mount-sonos3w

SKU: MOUNT-SONOS3W

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x2)

Mounting

Bracket

B(x1)

Center Bracket

C(x4)

M6x8

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

Knob

E (x1)

4mm Allen

Wrench

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

W-A (x4)

ST4.8x50

W-B (x4)

Ø8x40 Concrete

Anchor

TOOLS NEEDED

Phillips

Screwdriver

Drill Level Pencil

ASSEMBLY STEPS

STEP 1

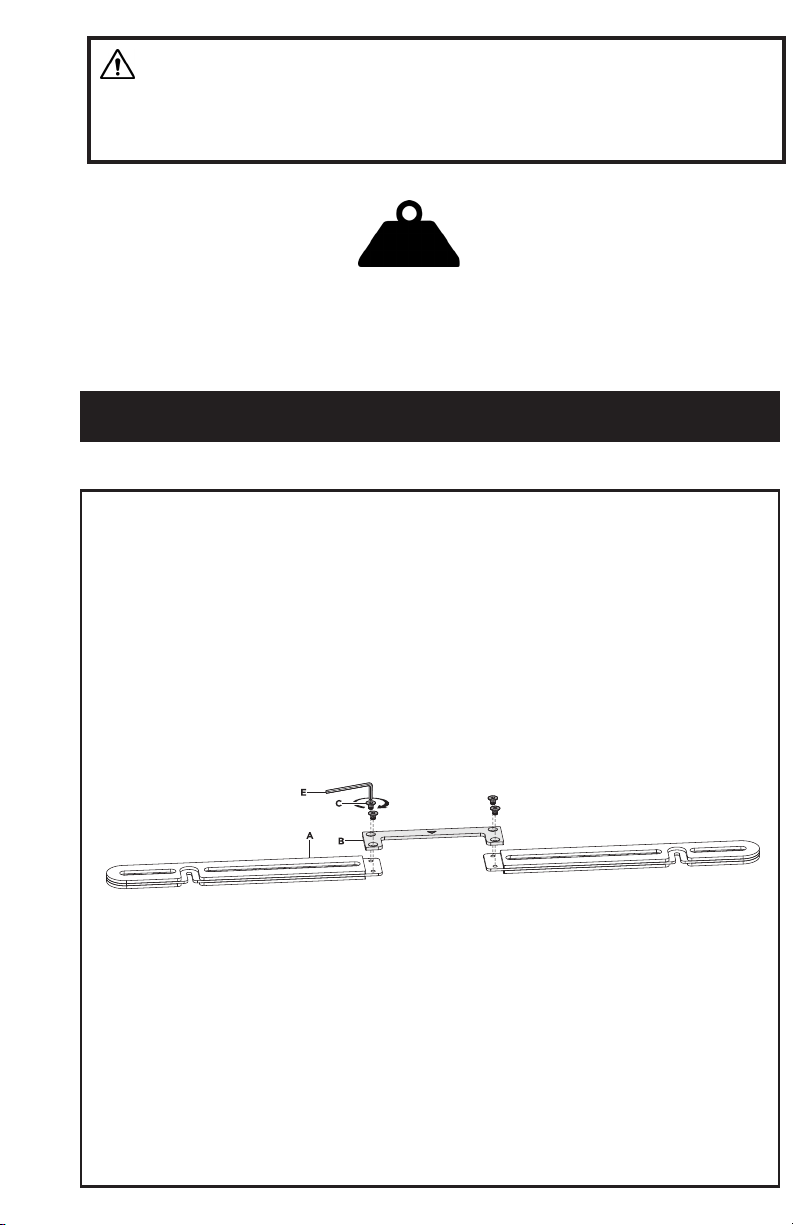

Assemble the mounting brackets (A) to the center bracket (B) using M6x8 bolts (C), and tighten with

the Allen wrench (E). The open slots and square cutout must all be facing up.

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR WALL CONSTRUCTION. USE WOOD STUDS TO

MOUNT. We include mounting for brick and concrete walls. If unsure, please contact us at vivo-us.

com, email at [email protected], or call us at 309-278-5303.

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 22lbs

(10kg)

STEP 2

OPTION A: Wood Wall

Place the assembled mount against the wall, no less than 5.5” (140mm) below the TV, and mark drilling

locations with a pencil. Use of a level is recommended. Mark four drilling locations for a wood panel

wall, or two locations for a wood stud wall (use of a stud nder is recommended). Drill 2.2” (55mm)

deep holes using a 1/8” (3mm) drill bit, then install the mount using ST4.8x50 screws (W-A) using a

Phillips screwdriver.

1/8”

STEP 2 (Continued)

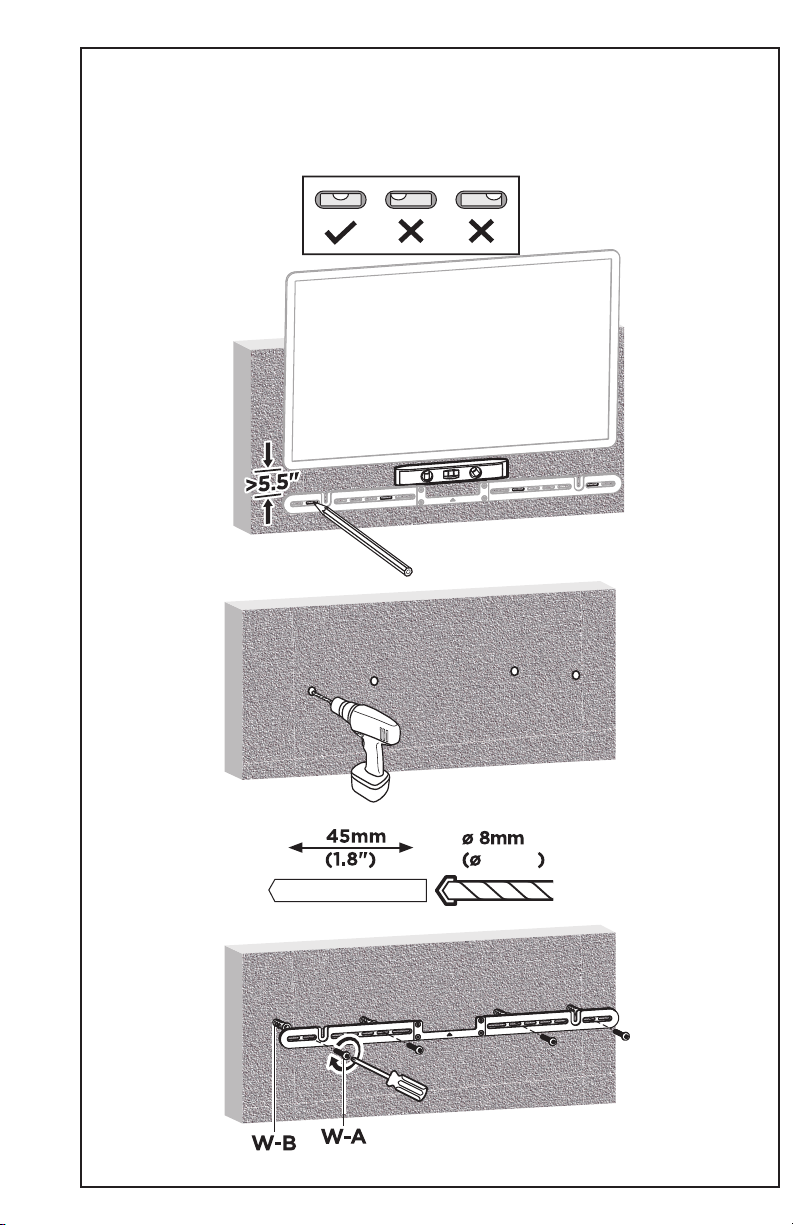

OPTION B: Concrete/Brick Wall

Place the assembled mount against the wall, no less than 5.5” (140mm) below the TV, and mark four

drilling locations with a pencil. Drill 1.8” (45mm) deep holes using a 5/16” (8mm) drill bit, press ST8x40

concrete anchors (W-B) into the holes, then install the mount using ST4.8x50 screws (W-A) using a

Phillips screwdriver.

5/16”

STEP 3

Screw the knobs (D) into the back of the Sonos Arc soundbar.

STEP 4

Hang the Sonos Arc soundbar over the top of the mount, making sure the knobs (D) are inserted

into the slots.

LAST UPDATED: 08/31/2021

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oce hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oce hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oce hrs): 5M 4S

309-278-5303
