Vivo MOUNT-VP01B Bedienungsanleitung

Projector Ceiling Mount

Follow along step-by-step with our video walk through by scanning

the QR code with your mobile device or by following the product

link: vivo-us.com/products/mount-vp01b

Instruction Manual

SKU: MOUNT-VP01B/W

ASSEMBLY VIDEO AVAILABLE:

[email protected]om www.vivo-us.com

309-278-5303

PERSONABLE CUSTOMER SUPPORT

Our friendly product support team is here to help!

DO NOT RETURN ITEM

We’re Here for You!

Missing a Part?

Our customer-minded support team is here for YOU,

Monday-Friday 7am-7pm CST.

We oer immediate assistance with rapid response times

from customer service agents and product techncians to

help you every step of the way!

Monday-Friday

Chat Us:

www.vivo-us.com

Give us a Call:

309-278-5303

Email Us:

[email protected]om

If any parts are received damaged / defective OR you are

missing a part, please reach out to us within 30 days of

product delivery to have it replaced at no cost.

We are happy to replace parts to ensure you have a fully

functioning product

7AM - 7PM

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a qualied

technician. Check carefully to make sure there are no missing

or defective parts. Improper installation may cause damage or

serious injury. Do not use this product for any purpose that is

not explicitly specied in this manual. Do not exceed weight capacity. We

cannot be liable for damage or injury caused by improper mounting, incorrect

assembly or inappropriate use.

PRE-ASSEMBLY | BEFORE YOU BEGIN

Product Warranty

Returns | Product Didn’t Work Out?

For the most up to date details on your product’s warranty, please visit

the product’s listing on our website or reach out to customer support.

vivo-us.com/products/mount-vp01b

We oer a hassle-free 30 day return on all products. Contact customer

support at 309-278-5303 or [email protected]om. Please note: For items

ordered in error or no longer needed, the return shipping charges will

be at the buyer’s expense.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS

REQUIRED.

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP

PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART

OF TV OR TV CART.

• USE TIPOVER RESTRAINT OR ANCHOR STAND TO WALL

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK

OF TIPOVER.

TIPOVER WARNING

WEIGHT CAPACITY

DO NOT EXCEED WEIGHT CAPACITY. Failure to do so may result in serious injury.

30lbs

(13.61kg)

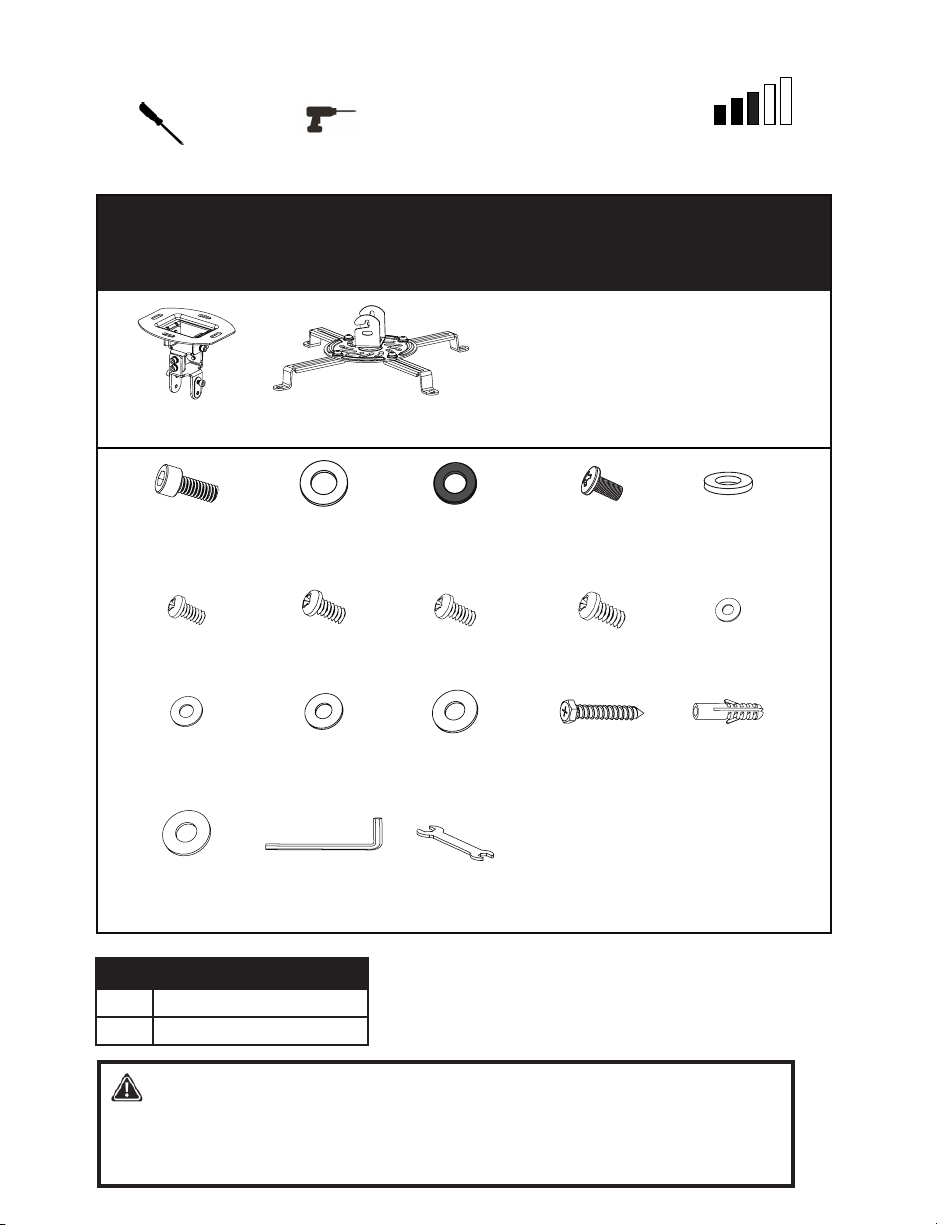

PACKAGE CONTENTS

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

Please consult the parts list below and ensure you have everything you need to assemble

your product. If parts are missing or damaged, please contact us.

Phillips Screwdriver

TOOLS NEEDED:

DIFFICULTY LEVEL

A (x1)

Ceiling Mount

B (x1)

Mounting Bracket

S-A (x2)

M5x12mm

Screw

S-C (x2)

M5 OD-10 Plastic

Washer

S-E (x1)

M6.5 Washer

W-A (x4)

ST6x56mm

Screw

S-D (x1)

1/4-20 x 3/8”

Screw

S-B (x2)

M5 OD-10

Washer

W-B (x4)

Concrete

Anchor

W-C (x4)

M6 OD-16

Washer

M-E (x4)

M3 OD-10

Washer

M-A (x4)

M3x8mm Screw

M-B (x4)

M4x10mm Screw

M-C (x4)

M5x10mm Screw

M-D (x4)

M6x10mm Screw

M-F (x4)

M4 OD-10

Washer

M-G (x4)

M5 OD-12

Washer

M-H (x4)

M6 OD-12

Washer

T-A (x1)

4mm Allen

Wrench

T-B (x1)

Wrench

WASHER SPECIFICATION KEY

MCompatible Screw Size

Outside DiameterOD

CAUTION!

DO NOT INSTALL INTO DRYWALL ALONE. VERIFY YOUR CEILING CONSTRUCTION. USE WOOD STUDS

TO MOUNT. We include mounting for brick and concrete If unsure, please contact us at vivo-us.com,

email at [email protected]om, or call us at 309-278-5303.

Drill

STEP 1:

ASSEMBLY STEPS

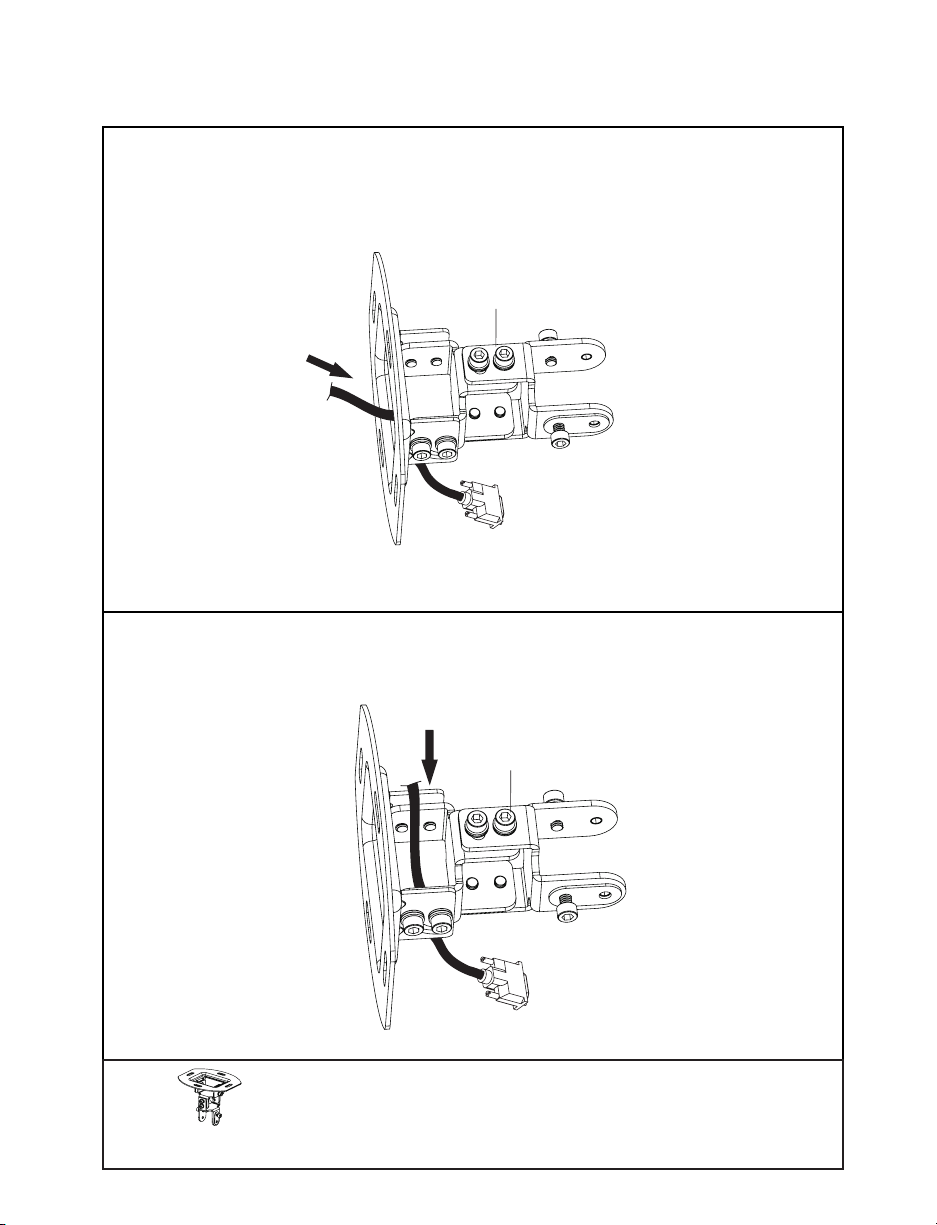

OPTION A: Above Ceiling Cable Management

If cables will be hidden above the ceiling, route cables through large opening in Ceiling Mount (A).

OPTION B: Below Ceiling Cable Management

If cables are located below ceiling, route cables through the side of Ceiling Mount (A).

Ceiling Mount

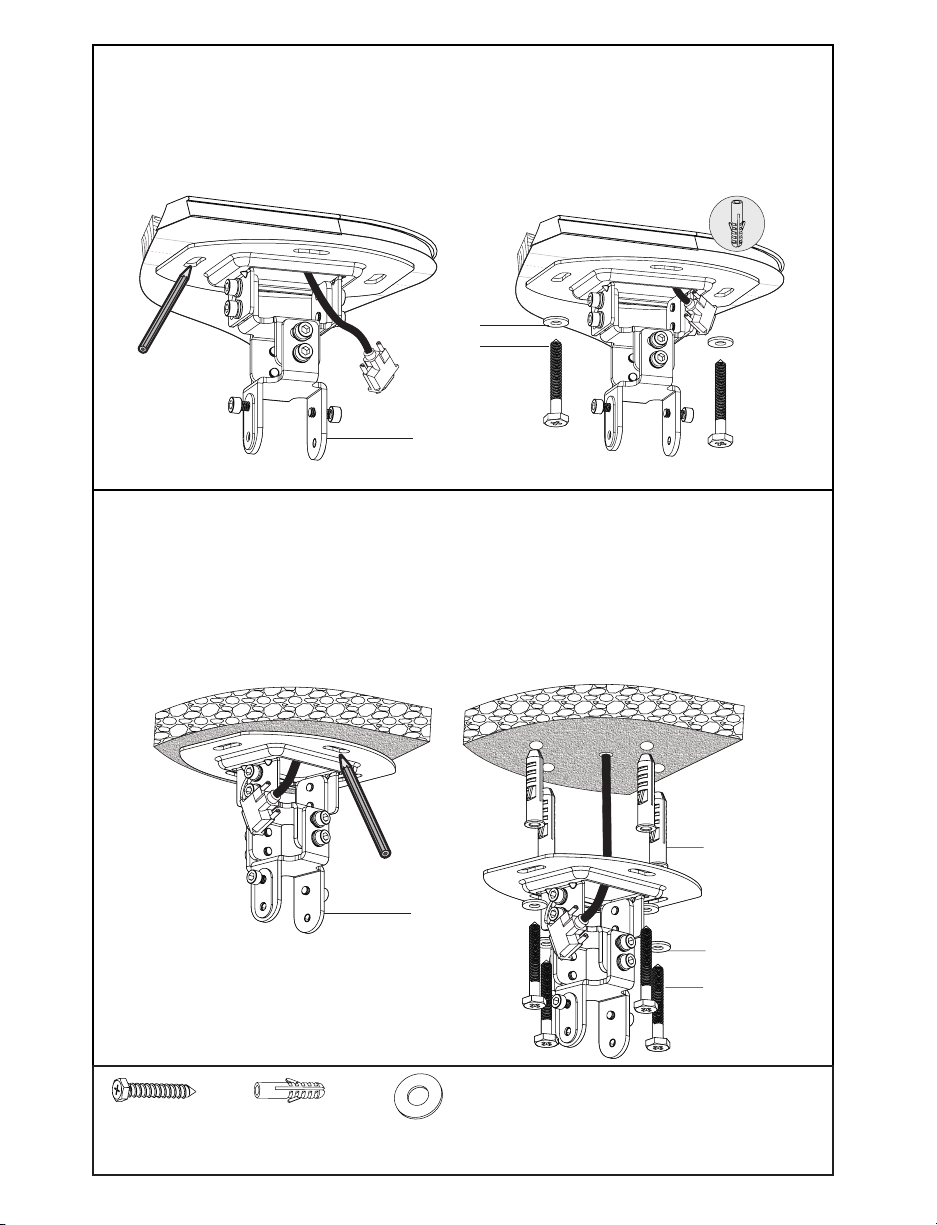

STEP 2: Installing the Ceiling Mount

OPTION A: Wood Ceiling Joist Installation

Align holes in Ceiling Mount (A) with wood ceiling joist and mark drilling locations. Use of a stud

nder is recommended for nished ceilings. Drill 55mm (2.2”) deep holes using 4.5mm or 3/16”

drill bit. Secure Ceiling Mount (A) to stud using ST6x56mm Screws (W-A) with M6 OD-16 Washers

(W-C). Do not use Concrete Anchors (W-B).

OPTION B: Concrete Ceiling Installation

Mark drilling locations in ceiling. Drill 60mm (2.4”) deep holes using 10mm or 3/8” drill bit.

Press Concrete Anchors (W-B) into drilled holes, and secure Ceiling Mount (A) to ceiling using

ST6x56mm Screws (W-A) and M6 OD-16 Washers (W-C).

W-C

W-A

W-C

W-A

W-B

W-A

ST6x56mm Screw

W-B

Concrete Anchor

W-C

M6 OD-16 Washer

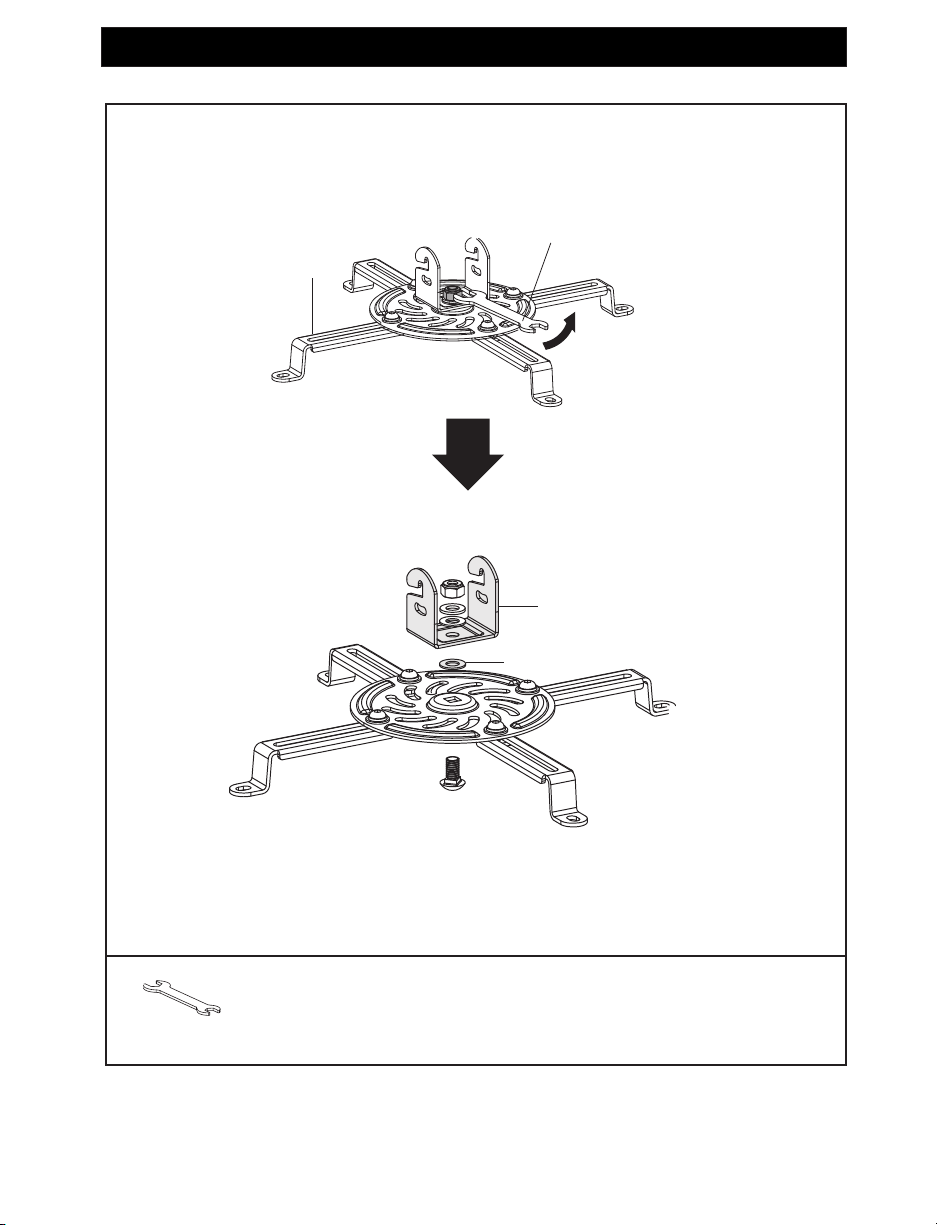

STEP 3a: Disassemble Mounting Bracket

T-B

MINI PROJECTORS

Use Wrench (T-B) to loosen nut on Mounting Bracket (B). Separate Mounting Bracket (B), setting

aside Mounting Hook (B1) and Small Washer (B2) for use in next step.

T-B

Wrench

Proceed to Step 4 on Page 10

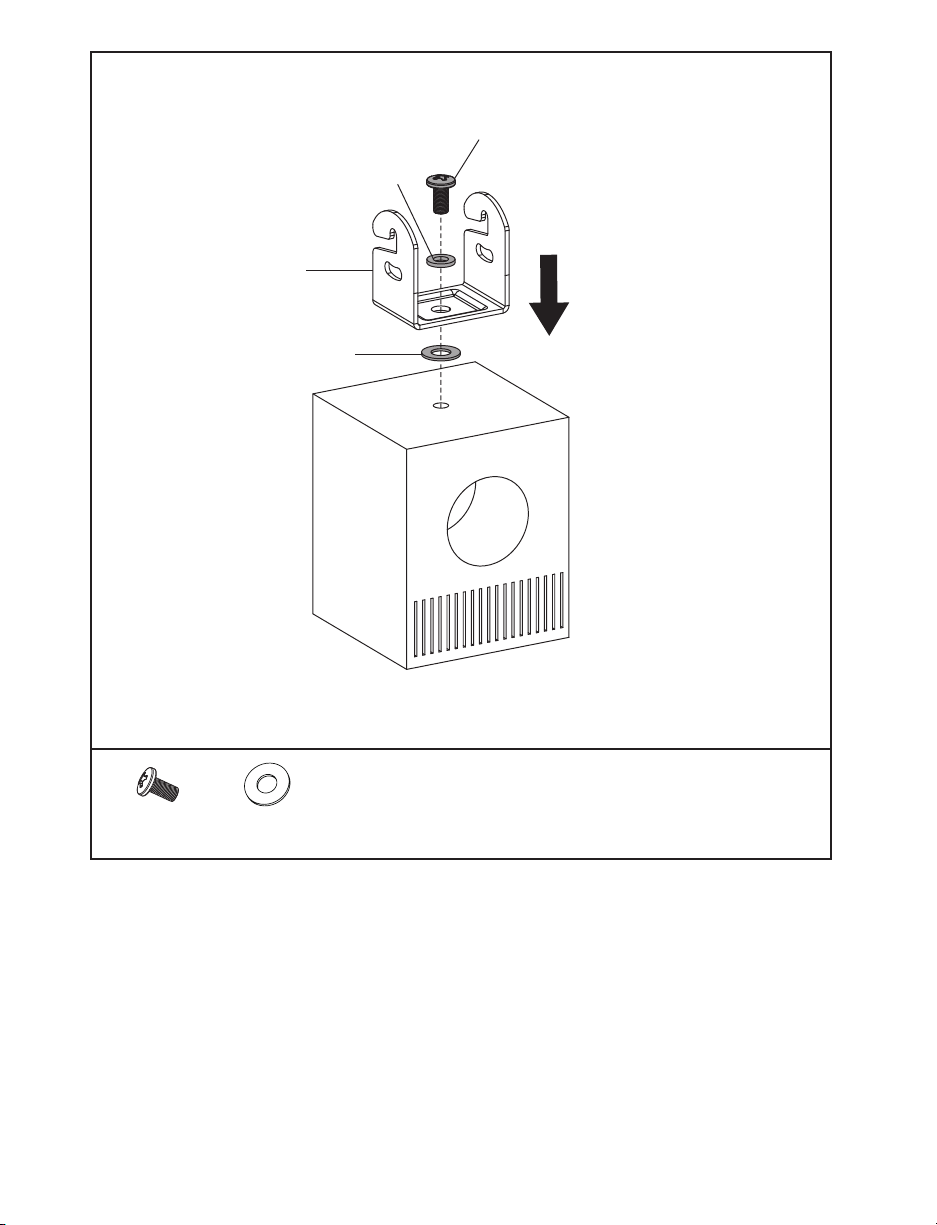

STEP 3b: Securing the Projector

S-E

S-D

Connect Mounting Hook (B1) to mini projector using 1/4-20 x 3/8” Screw (S-D),

M6.5 Washer (S-E), Small Washer (B2) from previous step, and a Phillips screwdriver.

S-E

M6.5 Washer

S-D

1/4-20 x 3/8”

Screw

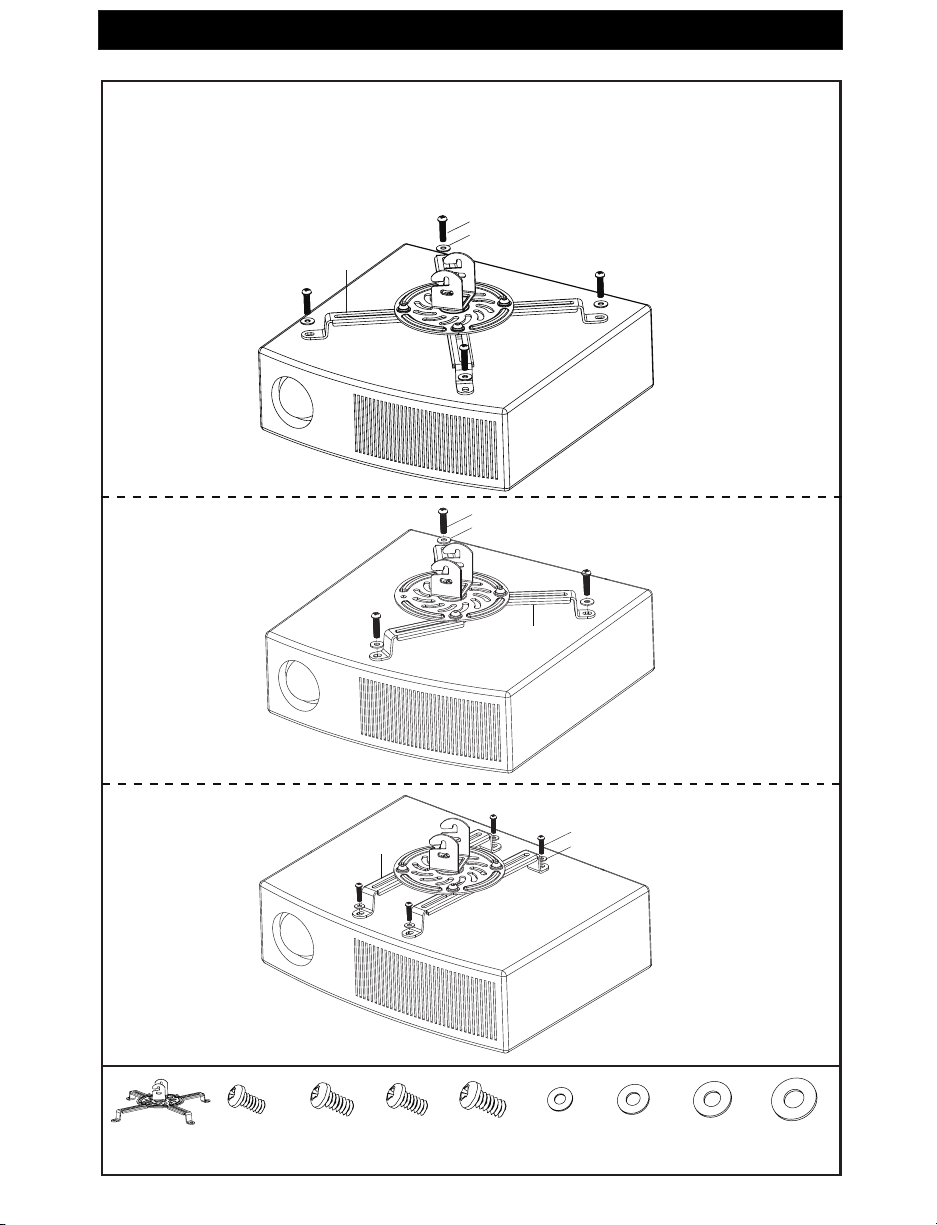

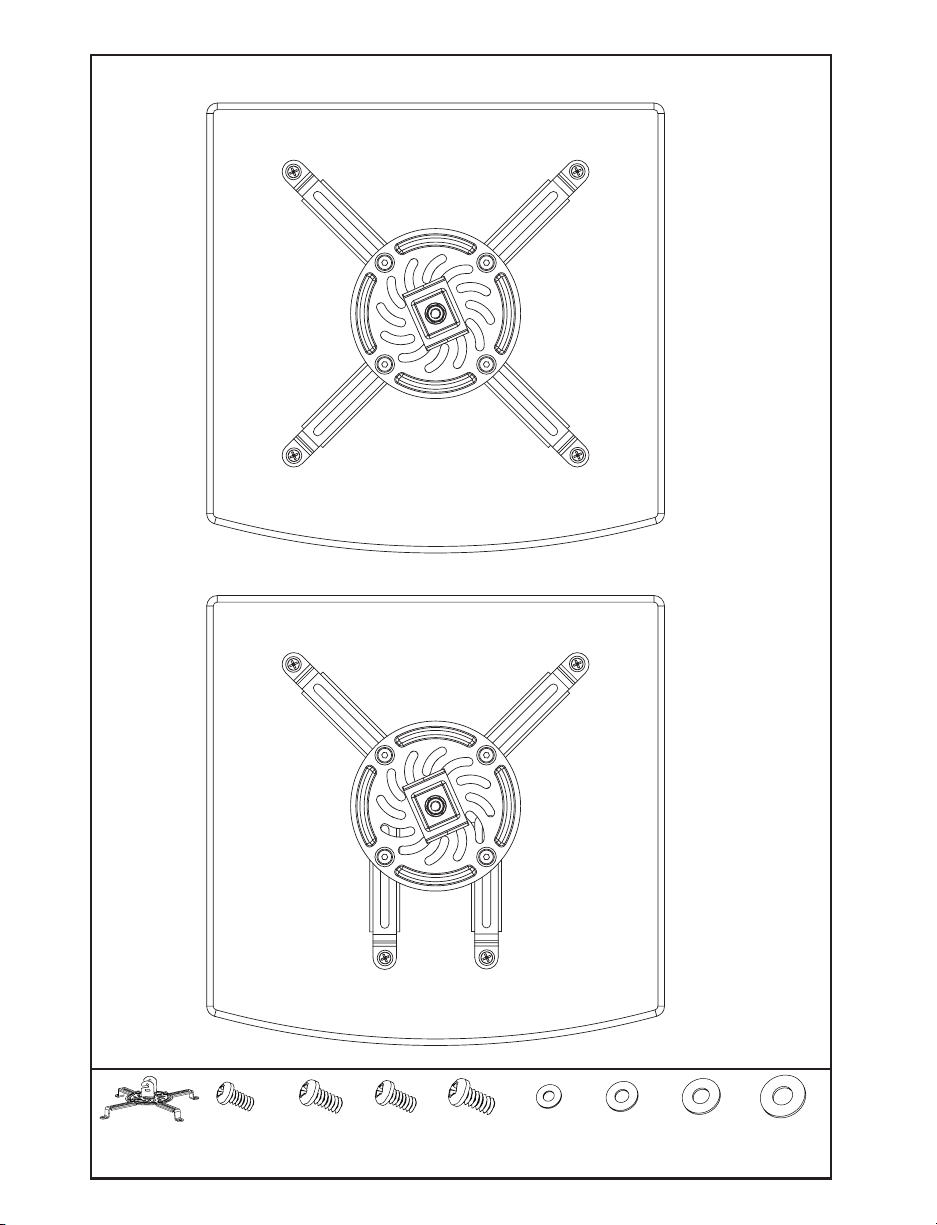

Align arms on Mounting Bracket (B) with mounting holes in projector, and secure to projector

using Screws (M-A through M-D) and Washers (M-E through M-H) most appropriate for your

projector. If your projector has 3 mounting holes, simply remove one of the arms.

STEP 3: Securing the Projector

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

M-E

M3 OD-10

Washer

M-A

M3x8mm

Screw

M-B

M4x10mm

Screw

M-C

M5x10mm

Screw

M-D

M6x10mm

Screw

M-F

M4 OD-10

Washer

M-G

M5 OD-12

Washer

M-H

M6 OD-12

Washer

STANDARD PROJECTORS

Mounting

Bracket

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

M-A, M-B, M-C, M-D

M-E, M-F, M-G, M-H

STEP 3 Cont.

M-E

M3 OD-10

Washer

M-A

M3x8mm

Screw

M-B

M4x10mm

Screw

M-C

M5x10mm

Screw

M-D

M6x10mm

Screw

M-F

M4 OD-10

Washer

M-G

M5 OD-12

Washer

M-H

M6 OD-12

Washer

Mounting

Bracket
