Vivo STAND-EV01C Bedienungsanleitung

Black EV Charging Stand

Scan the QR code with your mobile device or follow the link

for helpful videos and specications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-ev01c

SKU: STAND-EV01C

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

PACKAGE CONTENTS

WARNING!

A (x1)

Stand

B(x1)

Mounting Plate

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualied technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specied in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

C (x1)

Bale

E (x1)

Cable Holder

D (x1)

Cover

F (x1)

Plug Mount

S-A (x4)

M6x8mm Screw

M-D (x6)

M5 Nut

T-A (x1)

4mm Allen Wrench

M-E (x6)

M6 Nut

W-A (x4)

ST6.3x55mm Screw

W-B (x4)

Concrete Anchor

W-C (x4)

M6 Washer

T-B (x1)

Wrench

S-B (x5)

M5x8mm Screw

S-C (x4)

M5x25mm Screw

M-A (x6)

M4x16mm Screw

M-B (x6)

M5x16mm Screw

M-C (x6)

M6x16mm Screws

TIPOVER WARNING

SERIOUS OR FATAL CRUSHING INJURIES CAN OCCUR FROM TIPOVER. TO HELP PREVENT TIPOVER:

• NEVER ALLOW CHILDREN TO CLIMB, STAND, HANG, OR PLAY ON ANY PART OF CHARGING STAND.

USE OF TIPOVER RESTRAINTS MAY ONLY REDUCE, BUT NOT ELIMINATE RISK OF TIPOVER.

ASSEMBLY STEPS

33lbs

(15kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

TOOLS NEEDED

Phillips

Screwdriver

STEP 1

Pencil Drill

Assemble Mounting Plate (B) to Stand (A) using M6x8mm Screws (S-A) and 4mm Allen Wrench (T-A).

S-A

T-A

STEP 3

Assemble Plug Mount (F) with Cable Holder (E) to Stand (A) using M5x25mm Screws (S-C) and a

Phillips screwdriver.

S-C

STEP 2

Partially install two M5x8mm Screws (S-B) into the sides of Mounting Plate (B) using a Phillips

screwdriver, leaving 2mm remaining.

Attach Bale (C) over Mounting Plate (B) using remaining M5x8mm Screws (S-B) and a Phillips

screwdriver. Fully tighten the previously installed screws with a Phillips screwdriver.

S-B

STEP 4

Place Stand (A) in the desired location and mark mounting holes with a pencil. Predrill four 60mm (2.4”)

deep holes into concrete using a drill with a 10mm (3/8”) bit. Secure Insert Concrete Anchors (W-B)into

predrilled holes and secure Stand (A) to concrete using ST6.3x55 Screws (W-A) with M6 Washers (W-C).

Tighten using a Phillips screwdriver.

W-BW-B

W-CW-C

W-AW-A

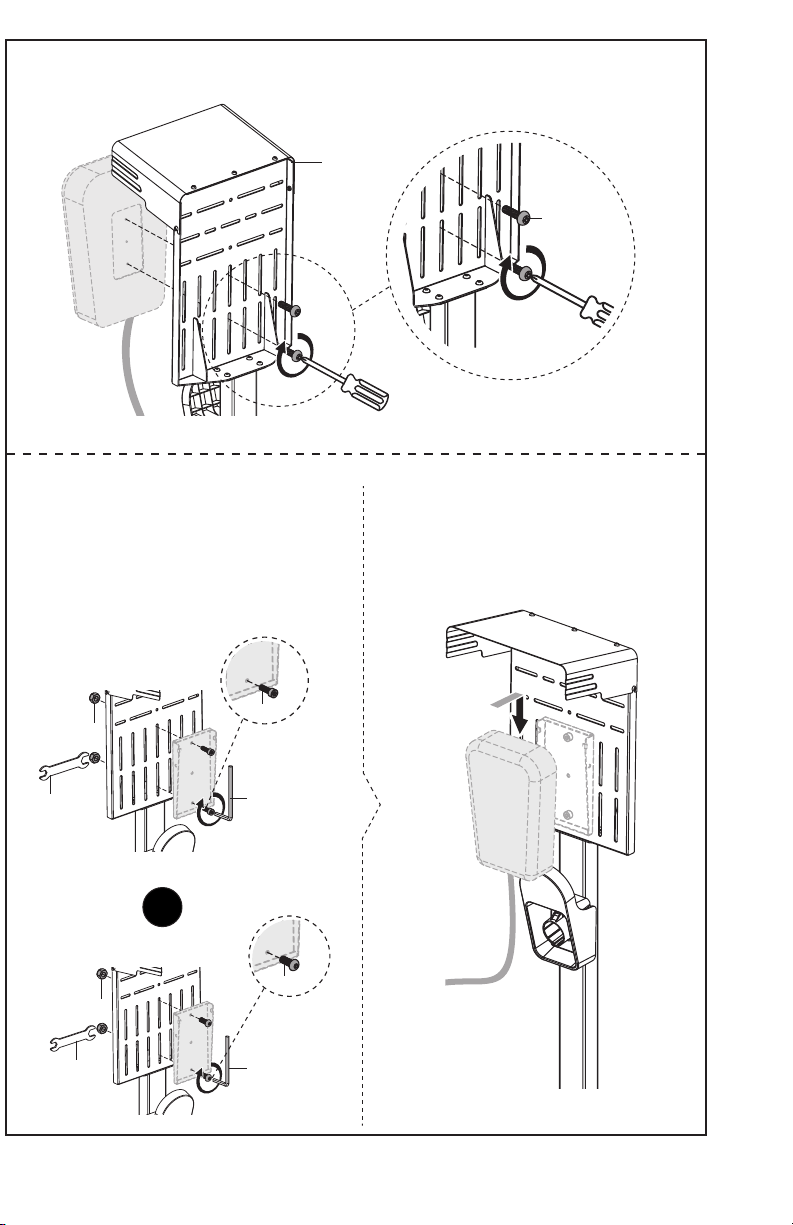

STEP 5

Option A - Direct Mounting:

Secure charging base to Mounting Plate (B) using M4x16mm Screws (M-A) and a Phillips screwdriver.

M-A

T-B

M-D

M-E

T-B

M-B

M-C

T-A

Option B - Adapter Mounting:

If your charging station came with a wall

bracket or adapter, you may attach that

bracket/adapter directly to the stand for an

alternative mounting option. Attach the bracket

to Mounting Plate (B) using appropriate Screws

(M-B or M-C), Nuts (M-D or M-E), Wrench (T-B),

and 4mm Allen Wrench (T-A).

Secure charging base to mounted adapter

bracket.

STEP 6

Place Cover (D) over the top of assembled stand. Cover can slide over charger to protect against

rain when activitely charging. Outer ring is magnetic and can easily attach to side of car to create a

protective barrier.

LAST UPDATED: 10/17/2022

REV1

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
