Vivo STAND-GM2BB Bedienungsanleitung

Dual Gaming Pneumatic Monitor - Blue LED Lights

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-gm2bb

SKU: STAND-GM2BB

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST

2 3

ASSEMBLY STEPS

OPTION A: Clamp Installation

Loosen the hand bolts on the clamp (C) to fit the desk thickness. Place the clamp on

the desk edge and tighten, then press the base cover (B) over the top of the clamp.

PACKAGE CONTENTS

TOOLS NEEDED

0 - 17.6lbs

(0-8kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x2)

Arm

B(x1)

Base Cover

C(x1)

Clamp

M-A (x8)

M4x12

M-B (x8)

M4x30

M-C (x8)

Spacer

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

D(x2)

VESA Plate

E(x1)

LED Power

Cable

F (x2)

M4x10 Bolt

G(x1)

3mm Allen

Wrench

I (x1)

5mm Allen

Wrench

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

NOTE: SOME HARDWARE MAY NOT BE USED

PER SCREEN

Do not overtighten screw!

STEP 1

STEP 2

Place the arms (A) on top of the base (C).

J(x1)

Carriage Bolt

K (x1)

Wingnut

L (x1)

Support Plate

S=3mm

Desk

OPTION B: Grommet Installation

Remove the clamps from the base (C) using the 4mm Allen wrench (H). Drop the carriage

bolt (J) down through the square hole in the base and position over the desk grommet

hole (if needed, drill a 3/8” [10mm] hole through desk), and secure using the support

plate (L) and wingnut (K). Press the base cover (B) over the top of the base.

S=4mm

Loosen

Desk

H(x1)

4mm Allen

Wrench

4 5

STEP 3

OPTION A: Flat Back Monitors

Attach the VESA plates (D) to the monitors using M4x12 bolts (M-A), making sure the

opening on each is facing towards the bottom of the monitor, and tighten with a Phillips

screwdriver.

OPTION B: Curved or Recessed Back Monitors

Attach the VESA plates (D) to the monitors using M4x30 bolts (M-B) and spacers (M-C),

making sure the opening on each is facing towards the bottom of the monitor, and tighten

with a Phillips screwdriver.

STEP 5

Slide the monitors with VESA plates (D) onto the heads of the arms (A), and secure using

M4x10 bolts (F) with a Phillips screwdriver. If needed, adjust the gas spring in each arm

to support the monitors using the 5mm Allen wrench (I). While holding the arm in the

straight forward position, turn the screw in back clockwise to decrease support, and

counter-clockwise to increase.

FLAT SCREEN MONITORS CURVED SCREEN MONITORS

STEP 4

Desk

STEP 6

Adjust the tilt support by turning the bolt immediately behind each tilt joint, and the

swivel by turning the bolt on the back of the bracket.

Slide the monitors with VESA plates (D) onto the heads of the arms (A), and secure using

M4x10 bolts (F) with a Phillips screwdriver.

S=5mm

Swivel

Tilt

Desk

6 7

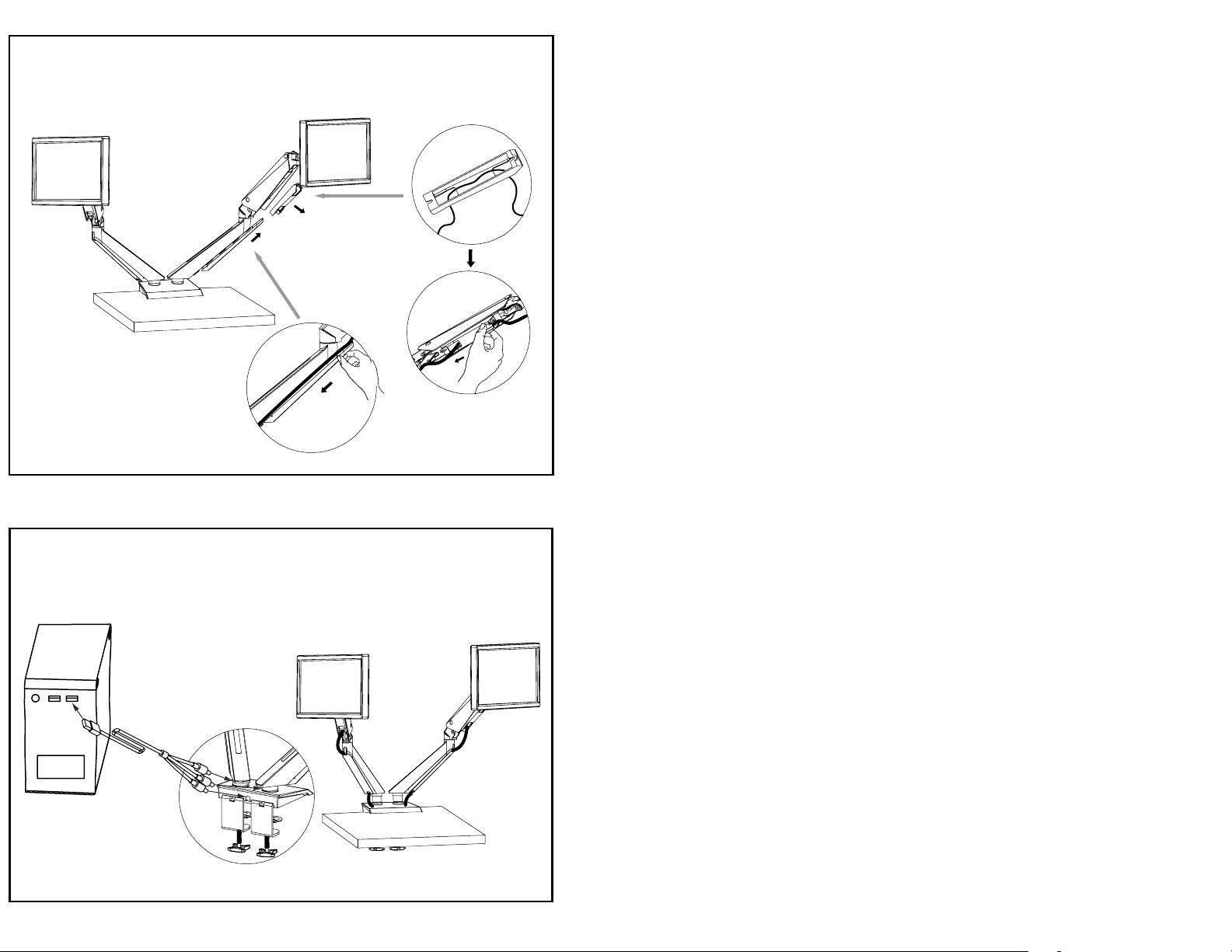

Plug the LED power cable (E) into the connectors on the back of the arms (A) and base

cover (B), then connect to a USB port on the computer to power on.

STEP 8

STEP 7

Remove the cable covers from the arms (A) by sliding each one forward and o (loosen

screws for upper covers if needed). Run cables through the upper covers and lower arms,

then reinstall the covers.

Desk

LAST UPDATED: 03/05/2020

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

[email protected] AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

AVG. RESOLUTION TIME (within oice hrs): < 15 M

www.vivo-us.com

Chat live with an agent!

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

309-278-5303
