Vivo STAND-LAP4 Bedienungsanleitung

VESA Compatible Laptop Holder

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-lap4

SKU: STAND-LAP4

[email protected]om www.vivo-us.com 309-278-5303

2 3

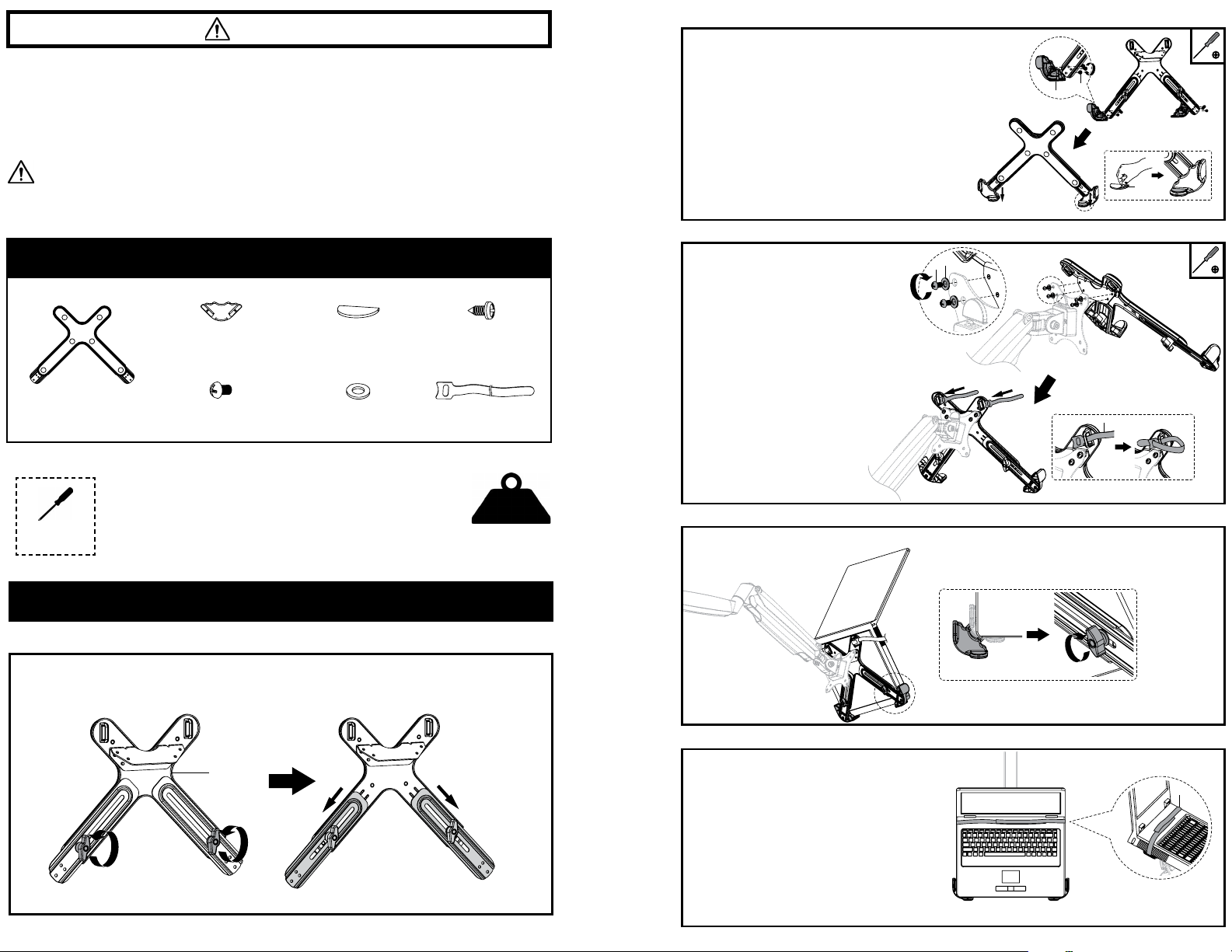

ASSEMBLY STEPS

STEP 1

Loosen knobs on laptop holder (A) to extend arms.

STEP 3

Attach assembled laptop holder to

75mm and 100mm holes on VESA

mount using M4x6 bolts (E) with

washers (F). Insert fastening straps

(G) through loops underneath the

laptop holder, then pull straight end

of each strap through the loop on the

other end of the strap. Ensure both

straps have the so side facing up.

STEP 4

Place laptop on laptop holder and evenly adjust

both arms to fit to laptop. Tighten the knobs to

lock arm length.

PACKAGE CONTENTS

TOOLS NEEDED

8.8lbs

(4kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury.

WARNING!

Phillips

Screwdriver

A (x1)

Laptop

Holder

B(x2)

Corner Support

C(x2)

Pad

D (x6)

M4x9.5 Screw

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3

YEARS. ADULT SUPERVISION IS REQUIRED.

STEP 2

Mount corner supports (B) to ends of arms on laptop

holder (A) using M4x9.5 screws (D). Apply one pad

E(x4)

M4x6

F(x4)

Washer

G (x2)

Fastening Strap

STEP 5

Secure laptop using fastening straps.

LAST UPDATED: 09/17/2019

Open Monday-Friday from 7:00am-7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times.

If any parts are received damaged or defective, please contact us.

We are happy to replace parts to ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]

www.vivo-us.com

309-278-5303

AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

AVG. RESOLUTION TIME (within oice hrs): < 15 M
