Vivo STAND-V012M Bedienungsanleitung

   

 

Instruction Manual

Email: [email protected]

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

-  

 

phillips screwdriver

 

Scan the QR code with your mobile device or follow the link

to helpful videos and specifications related to this product.

 (x1)

Arms

(x1)

Lower Pole

 (x1)

Upper Pole

 (x1)

“ C Clamp

 (x1)

Gromme Base

! (x1)

Pole Connecor

" (x1)

Cable Clip

# (x1)

Plasic Cover

$ (x5)

Rubber Pa

% (x1)

Suppor Plae

& (x1)

3mm Allen

Wrench

' (x1)

5mm Allen

Wrench

 (x1)

6mm Allen

Wrench

- -()**++ ,-*)* +-

-  (x8)

M8x20

-  (x8)

M5x14

-  (x8)

M6x14

) 

) .

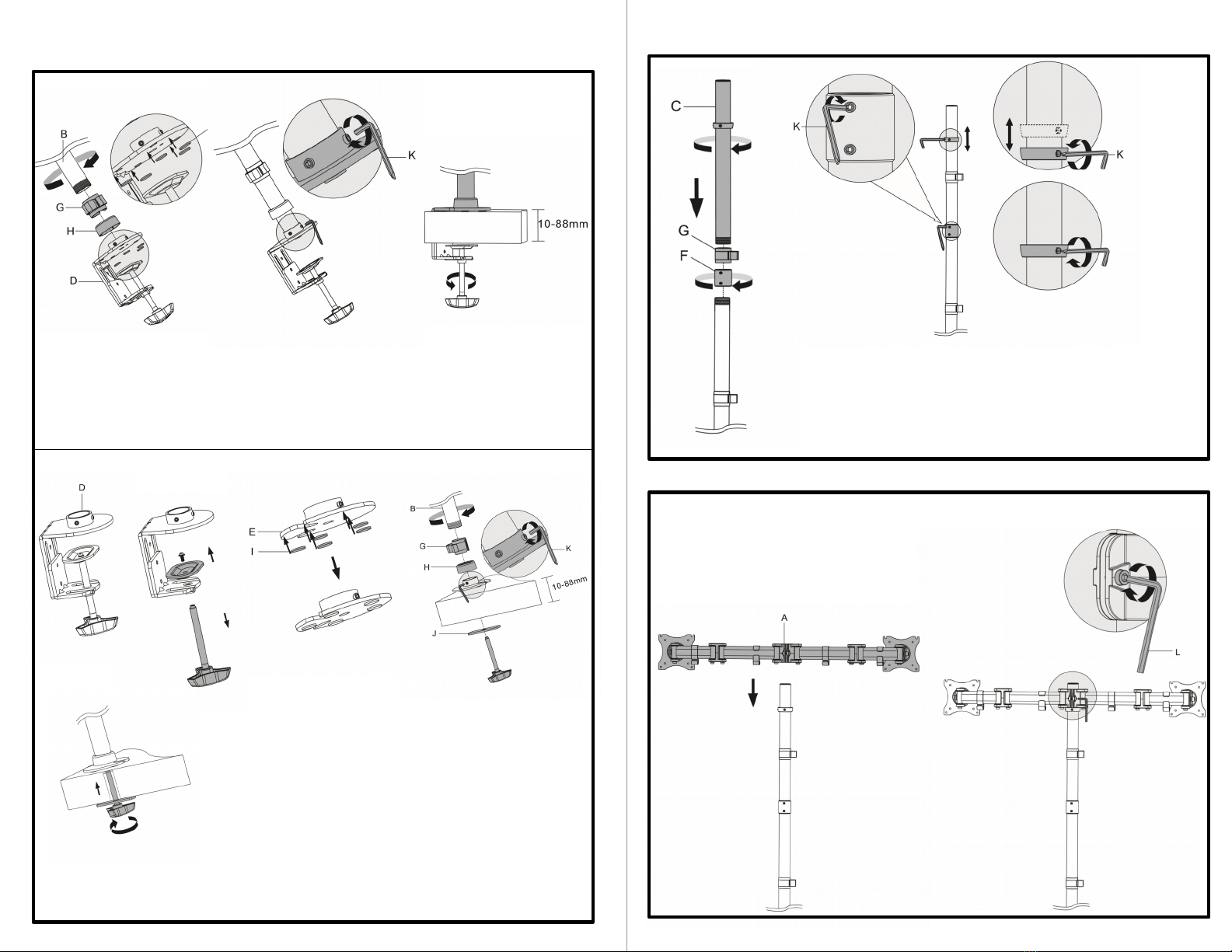

Screw pole adapter (F) onto pole (B). Slide one cable

management clip (G) onto pole (C). Screw pole (C) into

pole adapter (F). Use 3mm allen wrench (K) to tighten. Use

3mm allen wrench (K) to adjust height of stopper as

desired.

Place arm (A) onto pole (C). Tighten with mm allen wrench (L).

-/0 )

) 

1)  23 -) $

1)  2"--  $

Screw lower pole (B) into clamp base (D), and tighten the two set

screws with 3mm Allen Wrench (K). Apply pads (I) to bottom of clamp

base. Attach cover (H) and cable clip (G) to base and pole assembly.

Secure clamp to desk using hand bolt.

Remove Hand bolt from clamp (D) by first

removing Phillips Screw from the top of the

bolt, then remove the plate and unscrew the

bolt. Apply pads (I) to bottom of grommet base

(E). Screw lower pole (B) into base, and tighten

the two set screws with 3mm Allen wrench (K).

Attach cover (H) and cable clip (G) to base and

pole assembly. Mount grommet base to desk

using support plate (J) and previously removed

hand bolt.

) 4

) 5

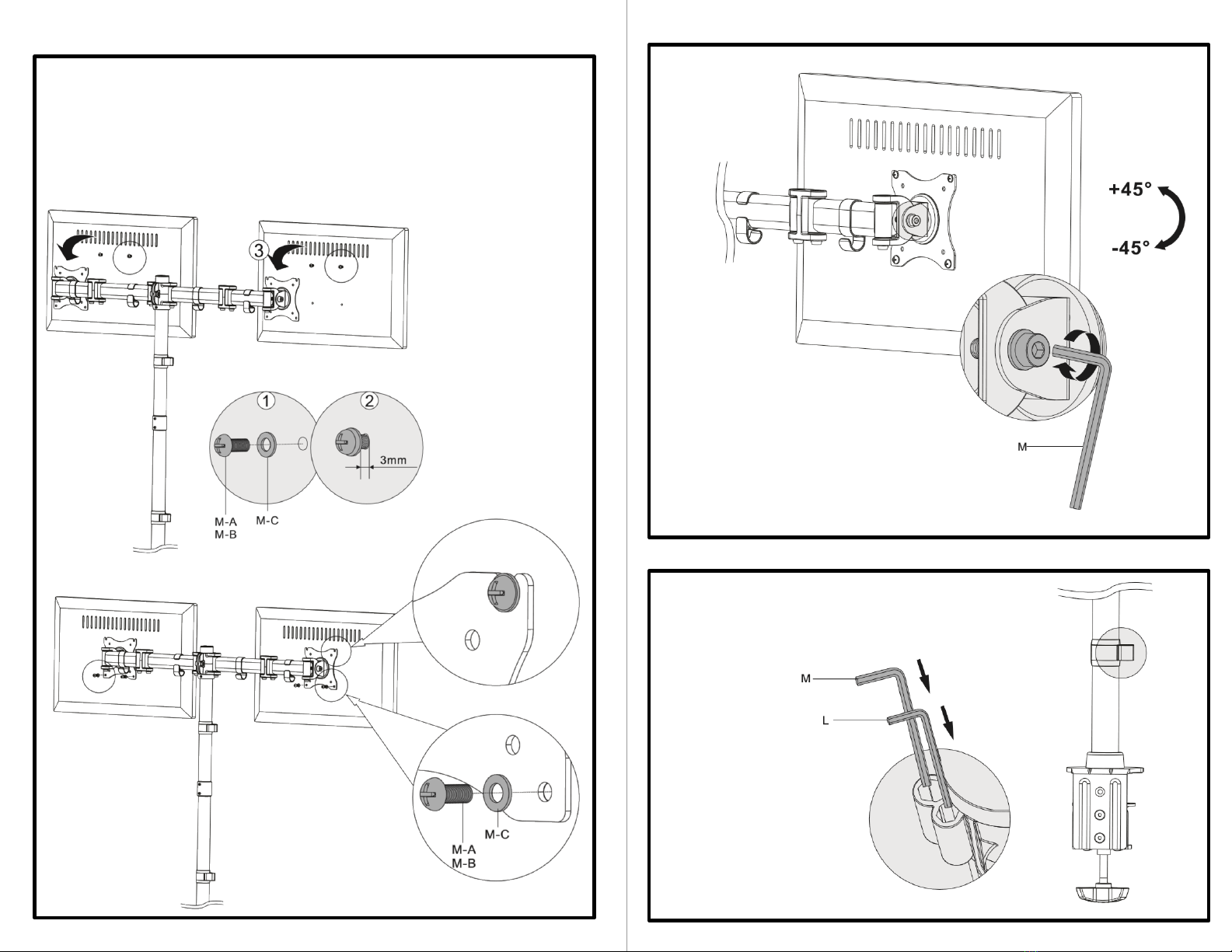

Adjust monitor tilt angle using 6mm allen

wrench (M) as shown in diagram.

Store allen wrenches (M, L) as shown in

diagram.

) 6

Insert screw (M-A or M-B) and washer (M-C) into top two holes on

each monitor. Leave screw slightly loosened. Slide monitors onto

VESA plates as shown in diagram. Insert screw (M-A or M-B) and

washer (M-C) into bottom two holes on each monitor. Tighten all

screws.

If you do not understand these directions, or if you have any

doubts about the safety of the installation, please call a

qualified technician. Check carefully to make sure there are no

missing or defective parts. Improper installation may cause

damage or serious injury. Do not use this product for any

purpose that is not explicitly specified in this manual. We

cannot be liable for damage or injury caused by incorrect

assembly or inappropriate use.

Email: help@vivo-us.com

Live chat: www.vivo-us.com

Call: 1-800-371- 6 4

For more VIVO products, check out our

website at

www.vivo-us.com.

If any parts are received damaged or defective, please contact

us. We are happy to replace parts to ensure you have a fully

functioning product.

70 8

  

Last updated: 0 /30/18

9  
