Vivo STAND-SIT2D Bedienungsanleitung

Sit to Stand Dual Monitor Desk Mount Workstation

Scan the QR code with your mobile device or follow the link

for helpful videos and specifications related to this product.

Instruction Manual

https://vivo-us.com/products/stand-sit2d

SKU: STAND-SIT2D

[email protected]om www.vivo-us.com 309-278-5303

PACKAGE CONTENTS

WARNING!

If you do not understand these directions, or if you have any doubts about the safety of the

installation, please call a qualified technician. Check carefully to make sure there are no missing or

defective parts. Improper installation may cause damage or serious injury. Do not use this product

for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity.

We cannot be liable for damage or injury caused by improper mounting, incorrect assembly or

inappropriate use.

NOTE: SOME HARDWARE INCLUDED MAY NOT BE USED

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

A (x1)

Arm

B(x1)

Crossarm

C(x1)

Pole

J (x2)

Screw

D(x1)

Tray Pole

E(x1)

Upper Tray

F (x1)

Lower Tray

G(x1)

Bumper

H (x2)

VESA Plate

I (x2)

Thumbscrew

M-B (x8)

M4x16

M-D (x8)

M5x16

M-C (x8)

M5x12

O (x1)

Grommet

Base

K (x1)

Support Plate

L(x1)

Decorative

Cover

M (x1)

“C” Clamp

N (x1)

Protective Pad

P (x1)

Holder

Q (x1)

Top Cable Clip

R (x2)

Bracket

U (x3)

Flat Head Bolt

S (x1)

Lower Cable

Clip

T (x15)

Bolt

V (x2)

Nut

W (x2)

Steel Washer

X (x2)

Plastic Washer

A1 (x1)

Wrench

Y (x2)

Washer

Z (x2)

Rubber Pad

B1 (x1)

4mm Allen

Wrench

C1 (x1)

6mm Allen

Wrench

M-A (x8)

M4x12

M-E (x8)

D5 Washer

M-F (x8)

Spacer

OPTION A: Clamp Installation

Loosen clamp bolts in clamp (M) using 6mm Allen wrench (C1). Slide decorative cover (L) onto pole

(C). Attach pole to clamp using flat head bolts (U) and tighten with 4mm Allen wrench (B1), then slide

decorative cover down onto clamp. Apply protective pad (N) to bottom of clamp base. Place support

plate (K) onto clamp bolts, place clamp with pole onto desk, and tighten clamp bolts evenly using

6mm Allen wrench. Attach cable management clip (S) to pole.

OPTION B: Grommet Installation

Attach grommet base (O) to pole (C) using flat head bolts (U) and tighten with 4mm Allen wrench

(B1). Cut end from protective pad (N), and apply remaining circular pad to bottom of grommet base.

Remove one bolt from the clamp (M), then use bolt with support plate (K) to secure base with pole to

desktop and tighten with 6mm Allen wrench (C1). Attach cable management clip (S) to pole.

TOOLS NEEDED

Phillips

Screwdriver

13.2 lbs

(6 kg)

DO NOT EXCEED WEIGHT CAPACITY.

Failure to do so may result in serious injury. 4.4 lbs

(2 kg)

PER ARM TRAY

ASSEMBLY STEPS

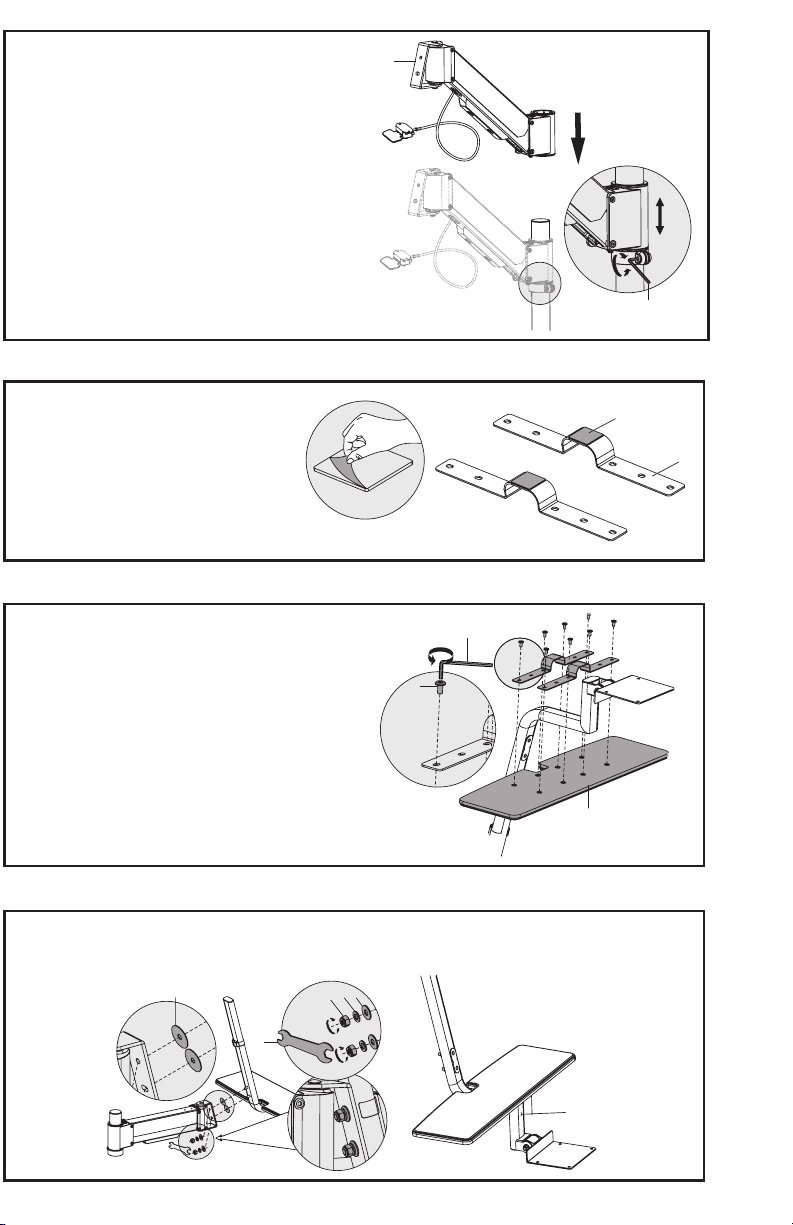

STEP 1

0mm-55mm

23-27mm

STEP 2

Attach upper tray (E) and brackets (R) to tray pole

(D) using bolts (T) and tighten with 4mm Allen

wrench (B1).

STEP 4

Slide arm (A) onto pole (C). Adjust stopper height

with 4mm allen wrench (B1).

STEP 5

STEP 3

Apply rubber pads (Z) to brackets (R)

as shown.

10mm

Place large washers (Y) over screws on back of tray pole (D). Attach tray pole to mount on arm (A) using

nuts (V) with steel washers (W) and plastic washers (X) as shown in diagram, and tighten with wrench

(A1).

Attach lower tray (F) to plate on tray pole (D) using bolts (T) and 4mm Allen wrench (B1). Mount

release handle and cable management clip (Q) to preferred side of tray using bolts (T) and 4mm Allen

wrench, then use the clip to secure the black tube.

STEP 6

Attach cross-arm (B) to pole (D) using 4mm allen

wrench (B1). Clip on holder (P) to pole (D) as

shown.

STEP 7

OPTION A: Right Hand

Apply bumper (G) on le side if you use mouse

with your right hand.

STEP 8

OPTION B: Le Hand

Apply bumper (G) on right side if you use mouse

with your le hand.

TB1

STEP 9

OPTION A: Flat Back Monitor

Attach VESA plate (H) to monitor. For flat back

monitors use screws (M-A or M-C) and washers

(M-E).

STEP 10

Slide monitors onto mounts of cross-arm (B). Secure with thumbs (I) and screws (J). Adjust tightness

of mounts using 6mm allen wrench (C1). Allen wrenches (B1,C1) can be stored in cable management

clip on pole (D).

STEP 11

Adjust gas spring tension using the 6mm Allen wrench (C1).

Turn counter-clockwise to increase li, and clockwise to

decrease. To adjust height of mount, li release handle, then

raise or lower mount to desired height.

OPTION B: Curved Back Monitor

Attach VESA plate (H) to monitor. For curved

back monitors use screws (M-B or M-D),

washers (M-E), and spacers (M-F).

M- E M- A

M- C

HM- B

M- D

M- E

M- F

B1 C1

OFF

NOTE: use a large flat-blade

screwdriver to tighten the socket

set screw if the joint makes a

popping noise.

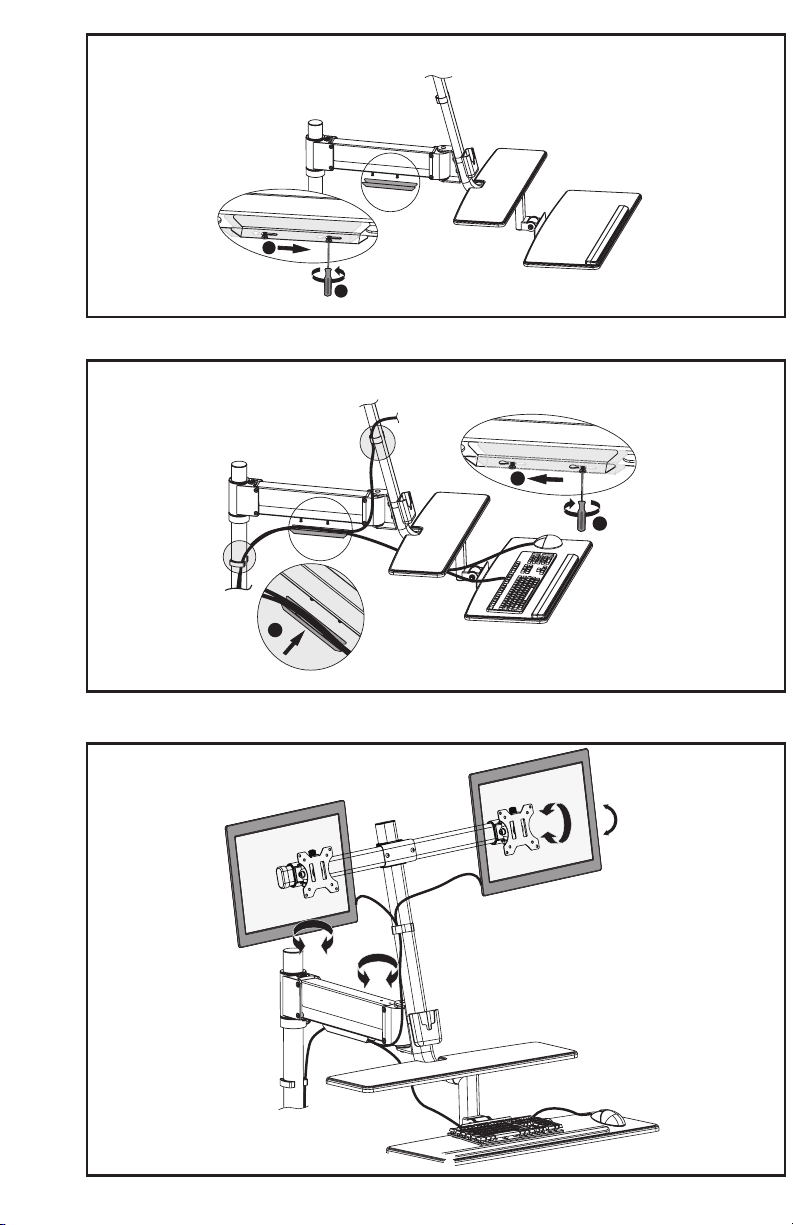

STEP 12

Loosen two screws holding cable cover to arm, then slide cover forward to remove.

STEP 13

Insert cables into cover and reattach cover to arm.

Adjust as Desired

±90 °

+45°

-45°

360 °

±90 °

LAST UPDATED: 09/17/2019

Open Monday-Friday from 7:00am-7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times.

If any parts are received damaged or defective, please contact us.

We are happy to replace parts to ensure you have a fully functioning product.

FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com

Love your new VIVO setup and want to share?

Tag us in your photo! @vivo_us

[email protected]

www.vivo-us.com

309-278-5303

AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

AVG. RESOLUTION TIME (within oice hrs): < 15 M
