Vivo STAND-V038F Bedienungsanleitung

Dual Ultrawide Monitor

Desk Stand

Instruction Manual

SKU: STAND-V038F

Assembly Video & Product Info

www.vivo-us.com/products/stand-v038f

If you do not understand these directions, or if you have any doubts about the safety of the installation, please

contact our product support team at 309-278-5303 or [email protected]om for further assistance. Check carefully to

make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not

use this product for any purpose that is not explicitly specified in this manual. Do not exceed weight capacity. We

cannot be liable for damage or injury caused by improper mounting, incorrect assembly or inappropriate use.

LBS

CAUTION!

WARNING: CHOKING HAZARD

SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. ADULT SUPERVISION IS REQUIRED.

DO NOT EXCEED WEIGHT CAPACITY

FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.

We’re Here for You

Open Monday - Friday 7:00am - 7:00pm CST,

our dedicated support team can oer immediate assistance with rapid response times. If any

parts are received damaged or defective, please contact us. We are happy to replace parts to

ensure you have a fully functioning product.

Chat Us:

www.vivo-us.com

Give us a Call:

309-278-5303

Email Us:

[email protected]om AVG. RESPONSE TIME (within oice hrs): 1HR 8M

- 23% within < 15m

- 38% within < 30m

- 61% within < 1hr

- 83% within < 2hr

- 92% within < 3hr

AVG. RESOLUTION TIME (within oice hrs): < 15 M

AVG. RESOLUTION TIME (within oice hrs): 5M 4S

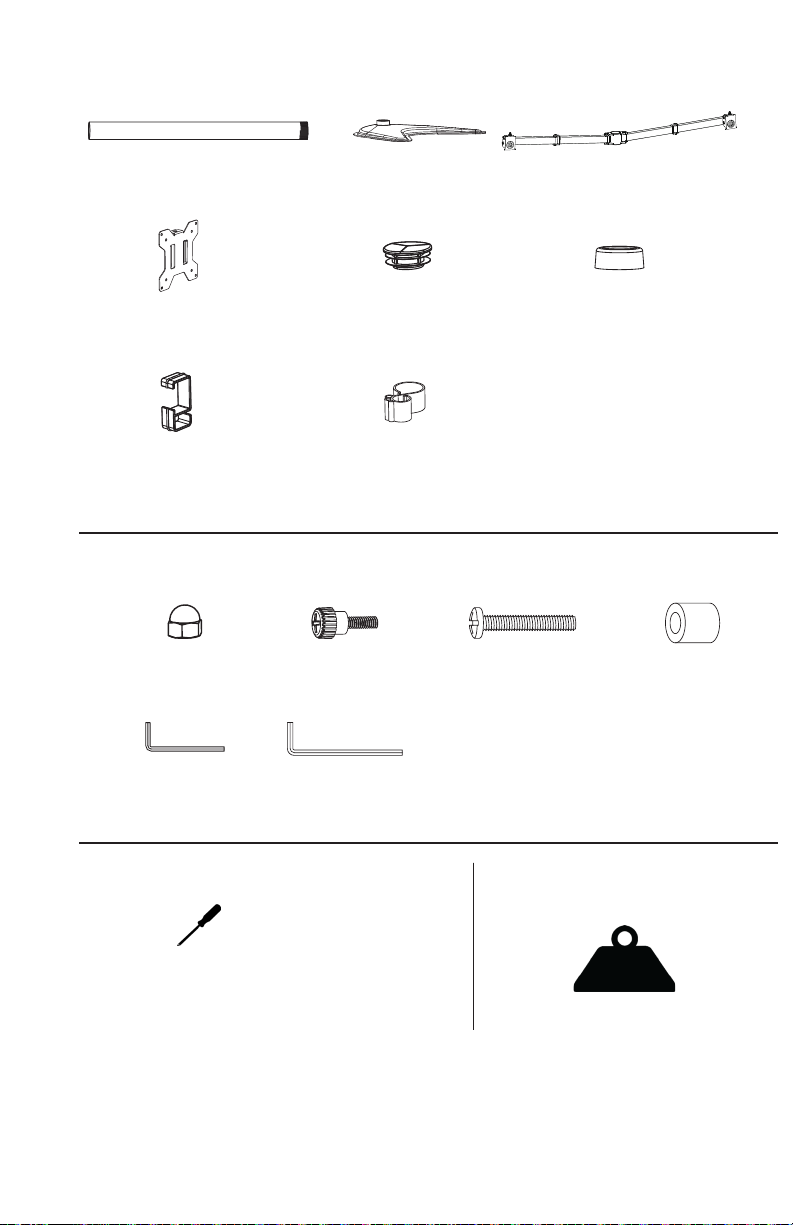

A (x1)

Pole

B(x1)

Base

S-A (x2)

M6 Cap Nut

M-A (x8)

M4x12mm

Thumbscrew

M-B (x8)

M4x30mm

Screw

M-C (x8)

Spacer

T-A (x1)

3mm Allen Wrench

T-B (x1)

6mm Allen Wrench

F (x1)

Cover

D (x2)

VESA Plate

G (x4)

Arm Cable

Clips

H (x1)

Pole Cable

Clip

E (x1)

Pole Cap

Phillips

Screwdriver Per Arm

C (x1)

Arm

Package Contents

Included Hardware & Tools

Tools Needed: Weight Capacity:

22lbs

(10kg)

ASSEMBLY STEPS

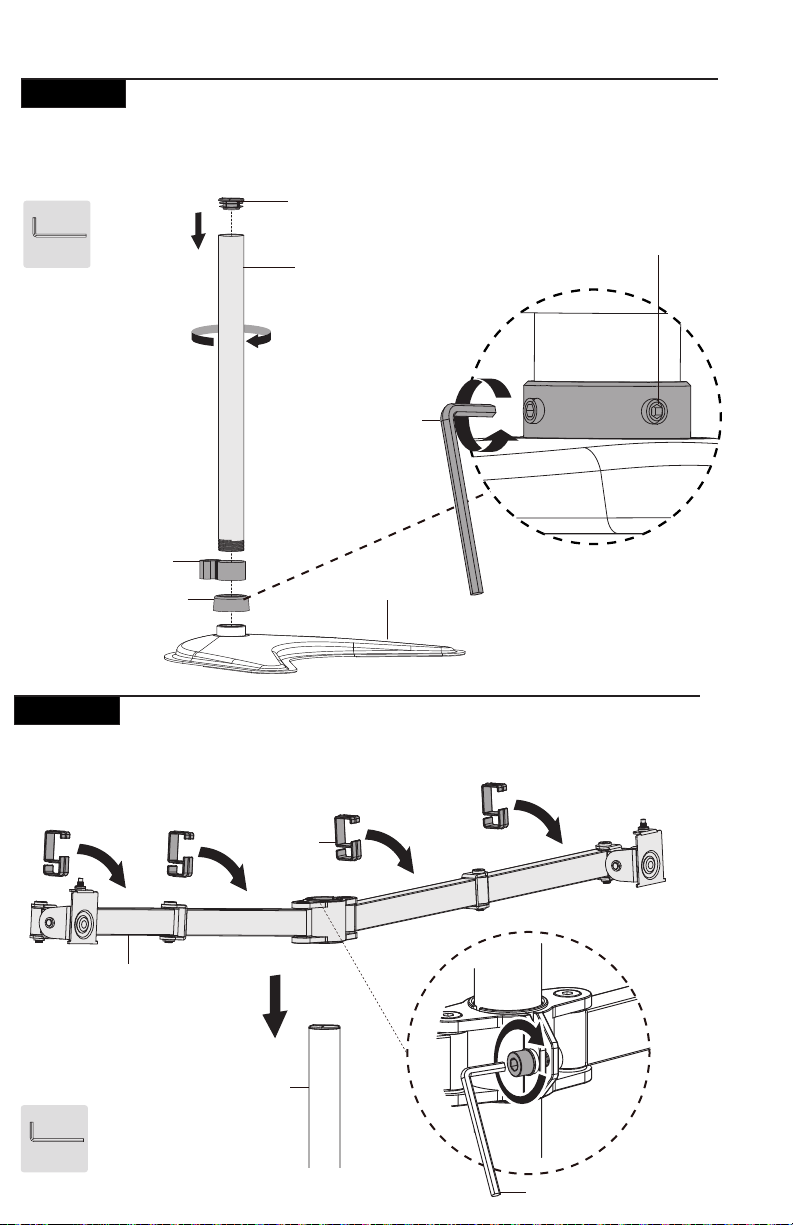

STEP 1

STEP 2

Slide Cover (F) and Pole Cable Clips (H) over Pole (A), then thread Pole into Base (B). Press

Pole Cap (E) into the top of Pole. Lock Cover into place by tightening Set Screws using

3mm Allen Wrench (T-A).

Slide Arm (C) onto Pole (A) and secure at desired height using 6mm Allen Wrench (T-B).

Attach Arm Cable Clips (G) onto each arm segment on Arm (C).

Set Screws

T-A

T-B

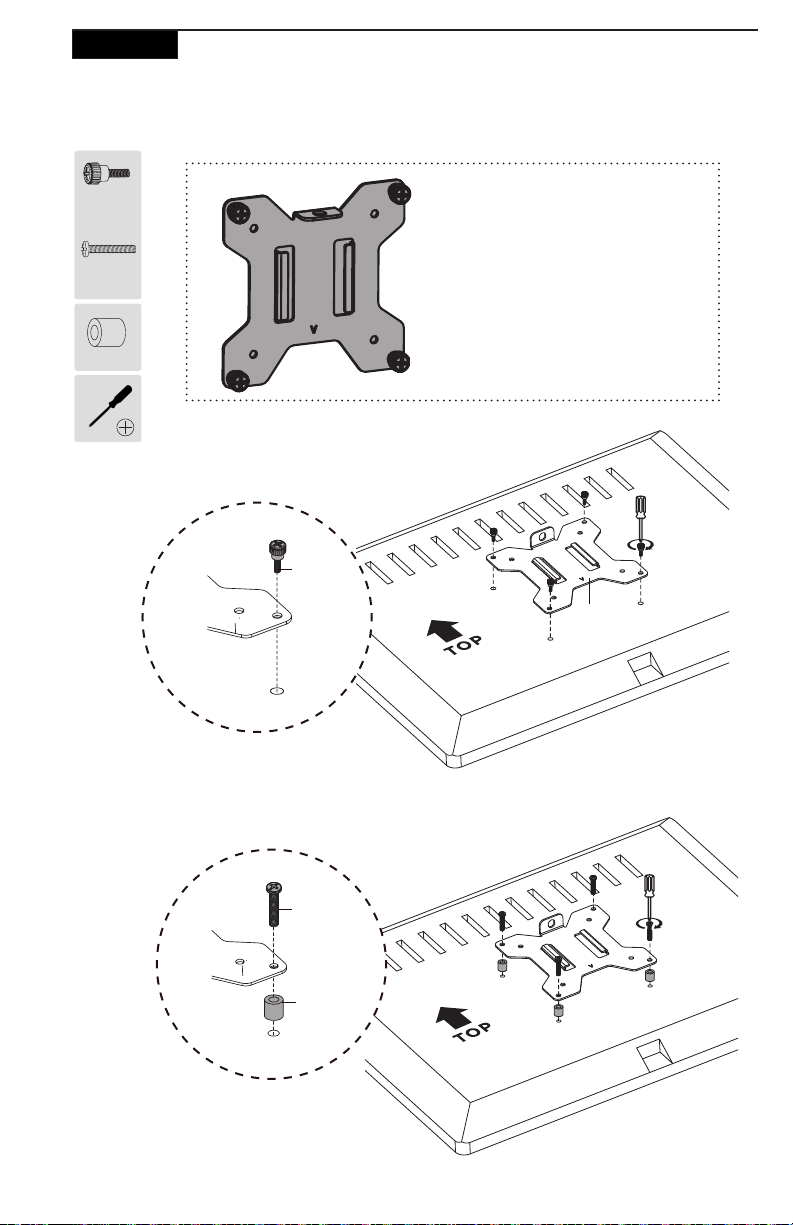

STEP 3

Install VESA Plates (D) onto your monitors using M4x12mm Thumbscrews (M-A) or

M4x30mm Screws (M-B) and Spacers (M-C) if needed. Lightly tighten with a Phillips

screwdriver.

Installation Tip:

The “V” on VESA Plate should

be pointing down towards

bottom edge of monitor.

M-A

M-B

M-C

M-A (x4)

M-B (x4)

M-C (x4)

- OR -

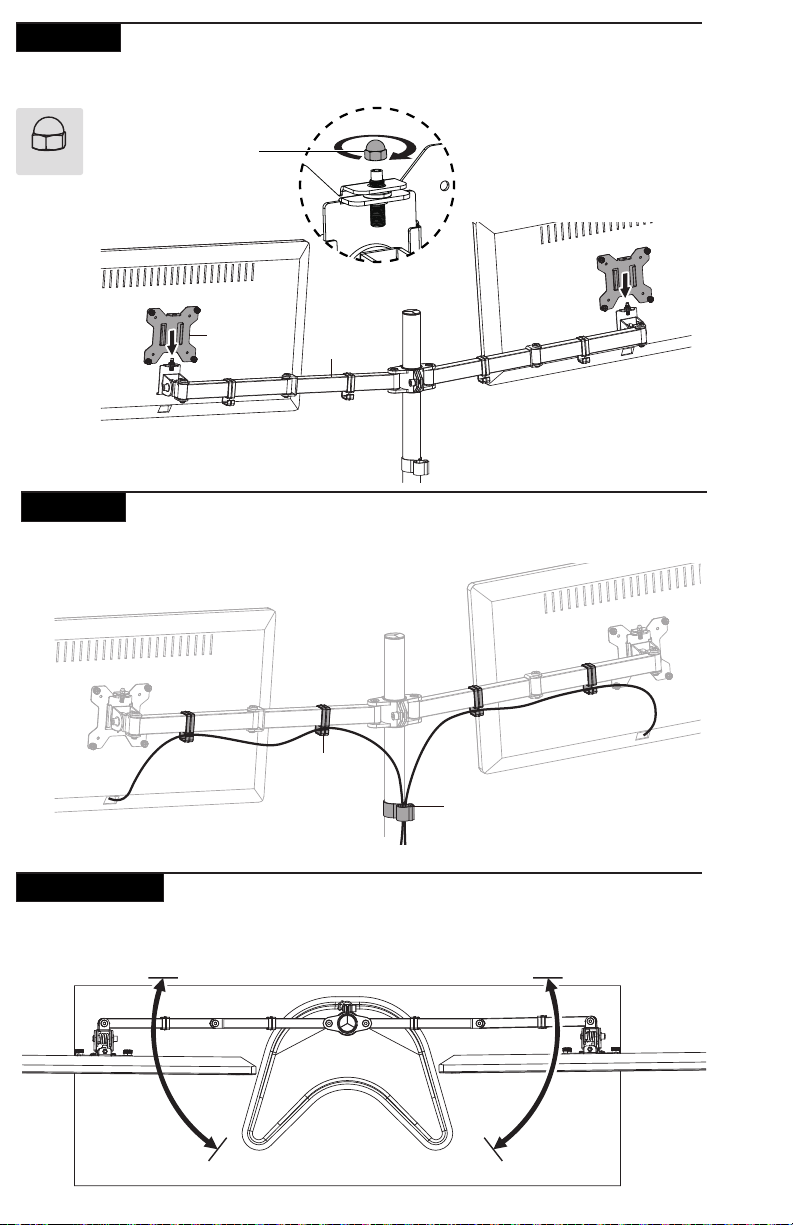

STEP 4

STEP 5

Slide your monitors with VESA Plate (D) onto Arm (C). Secure the VESA Plates (D) to the

Arm using M6 Cap Nuts (S-A).

Route cables through Arm and Pole Cable Clips (G,H).

WARNING

Do not extend the arms past the base shown below

S-A (x2) S-A

Height

Adjustment

Screw

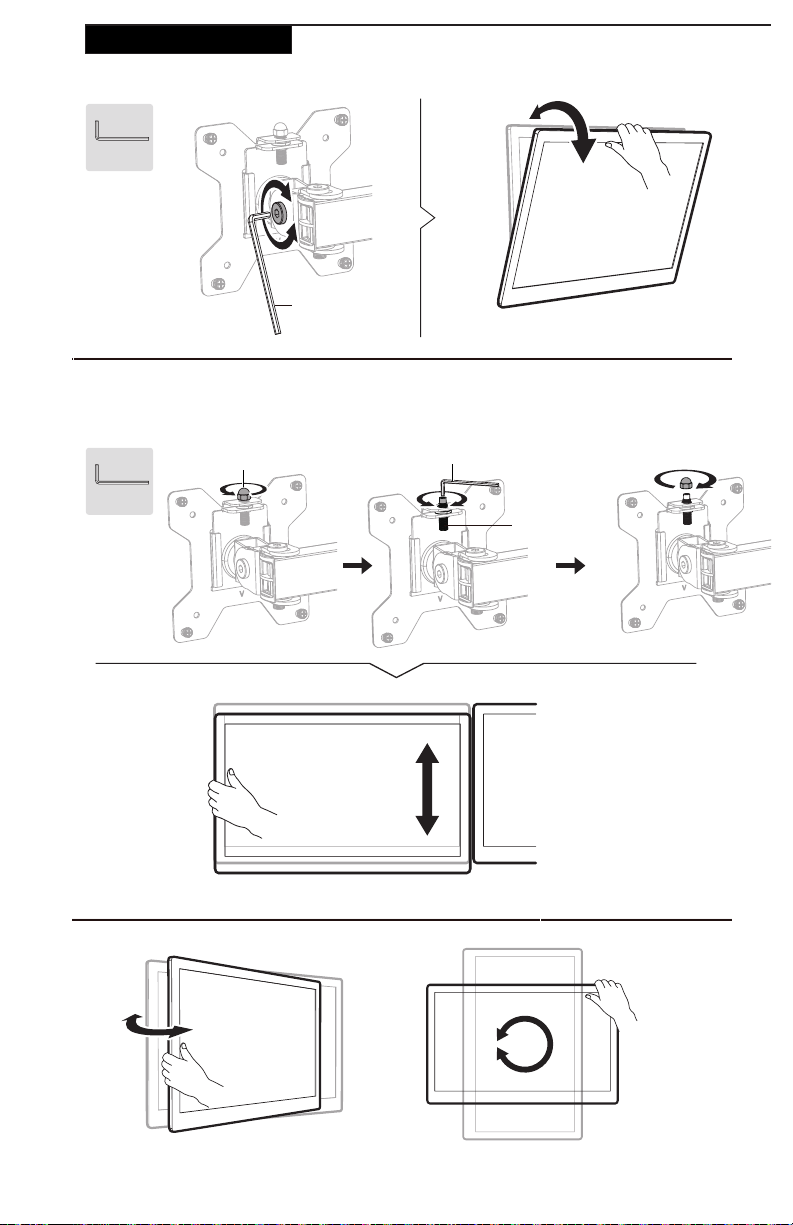

ADJUSTMENTS

Adjust the tilt joint resistance using 6mm Allen Wrench (T-B).

Remove the M6 Cap Nuts (S-A) and adjust the VESA height adjustment screws using 3mm

Allen Wrench (T-A). Reinstall the M6 Cap Nuts.

T-B

S-A T-A

T-A

LAST UPDATED: 11/22/23

REV1

v1.0

[email protected]om www.vivo-us.com 309-278-5303

Chat live with an agent!

Monday-Friday from 7:00am-7:00pm CST

Need Help? Get In Touch

FOR MORE GREAT VIVO PRODUCTS,

CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM

VIVO-us @vivo_us
