FD7141(V)

EN - 1

English

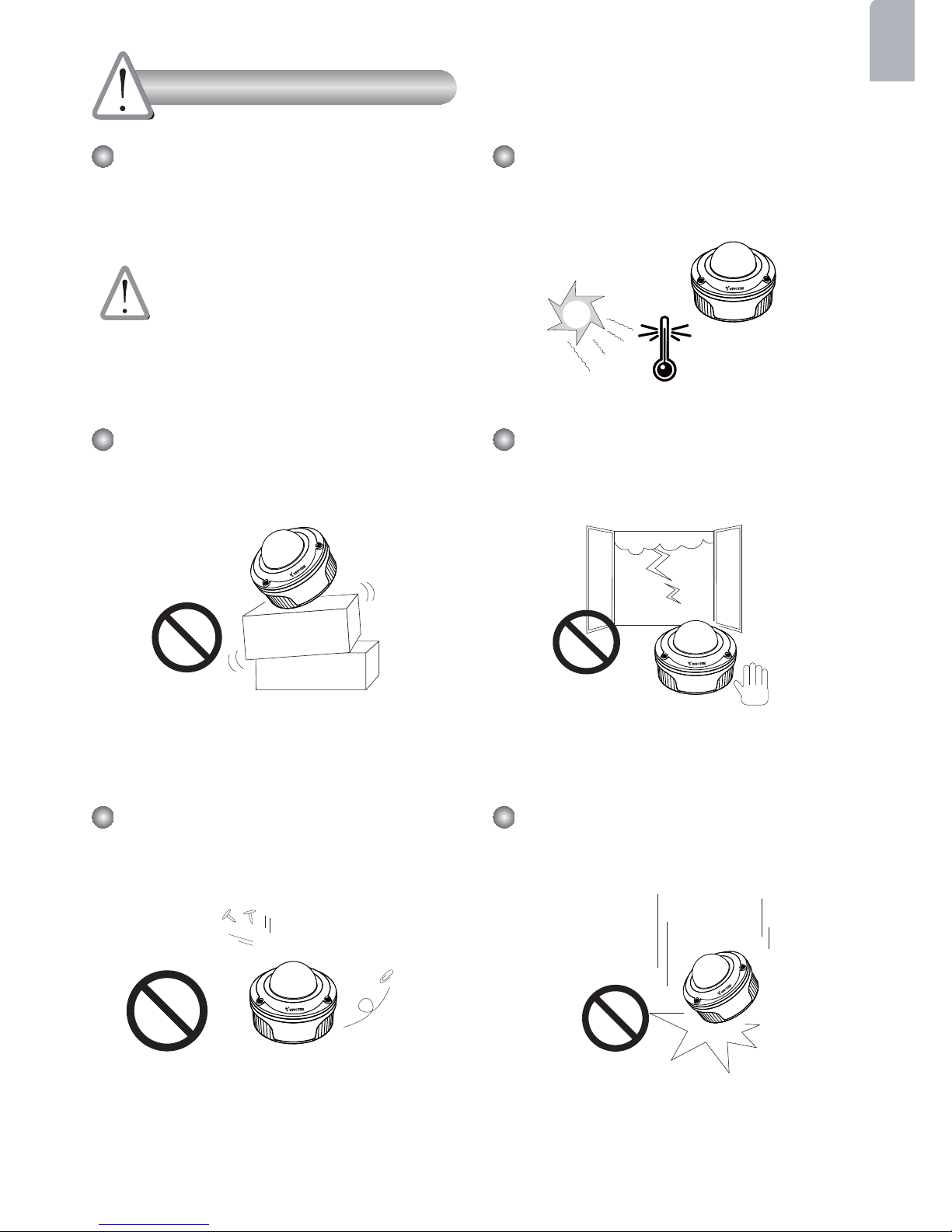

Power off the Network Camera as

soon as it is found smoking or smelt

unusual.

Contact your distributor when such cases

happen.

Refer to your user's manual for the

operating temperature.

Warning Before Install

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

when it's lightening.

Do not insert any object into the

Network Camera, such as needles.

Do not drop the Network Camera.

EN - 2

Software CD

FD7141 (FD7141V)

Quick installation guide /

Warranty card

Alignment sticker /

Ceiling hole template sticker

Alignment Sticker

Drill hole

At least drill 2 pilot holes

symmetrically on each

side to avoid falling.

Bottom base

Plastic cover (FD7141V only)

Power adapter

Package Contents

L-type hex key wrench /

Screws

Ceiling Hole Template Sticker

Drill hole

EN - 3

English

Tilt screw SD card

slot IR LEDs

Indented reset button

N.C.

485B

485A

AC24V

Focus controller

Zoom controller

Image adjustment

screw

Status LED

Light sensor

Physical Description

Pan screw

Lens

Inner View

Ethernet 10/100 RJ45 plug

Audio out (green)

Microphone in (pink)

Power cord socket (black)

General I/O terminal

block

Earth

Fan

The fan will start working once

the temparature inside the

Network Camera is over 50°C.

f= 3.3~12 mm (FD7141 Lens)

f= 9~22 mm (FD7141V Lens)

EN - 4

Keep a note of the MAC address

under the camera base before

installing the camera. Network Camera

Model No: FD7141

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D1083236

Bottom base

Outer View

Dome cover

N.C.

485B

485A

AC24V

Camera base

Hole a~c:

Holes for ceiling mount or for

attaching the bottom base.

EN - 5

English

First, use the supplied screwdriver to loose three screws and detach the dome cover from

the camera base. Then, follow the steps below to install the camera; either to a ceiling or to

a wall.

Hardware Installation

Ceiling mount with the bottom base

1. Attach the supplied Alignment Sticker to the ceiling.

2. Through the 10 circles on the sticker, drill 2 pilot holes symmetrically on each side into the ceiling.

Then hammer the supplied four plastic anchors into the holes.

3. Through four holes on the bottom base, insert the supplied four screws to corresponding holes and

secure the bottom base with a screwdriver.

4. Feed the cables through hole A or B. If you want to use hole B, remove the rubber with a screwdriver.

5. Secure the camera base to the bottom base with supplied three screws.

N.C.

485B

485A

AC24V

Alignment Sticker

Drill hole

At least drill 2 pilot holes

symmetrically on each

side to avoid falling.

EN - 6

Wall mount with the bottom base

1. Attach the supplied Alignment Sticker to the wall.

2. Through the 10 circles on the sticker, drill 2 pilot holes symmetrically on each side into the wall. Then

Hammer the supplied four plastic anchors into the holes.

3. Through four holes on the bottom base, insert the supplied four screws to corresponding holes and

secure the bottom base with a screwdriver.

4. Feed the cables through hole A or B. If you want to use hole B, remove the rubber with a screwdriver.

5. Secure the camera base to the bottom base with supplied three screws.

Alignment Sticker

Drill hole

At least drill 2 pilot holes

symmetrically on each

side to avoid falling.

EN - 7

English

General Connection (without PoE)

N.C.

485B

485A

AC24V

POWE

OLLIS

ION

LINK

IVE

PAR

TITION

12345

Network Deployment

1. If you have external devices such as sensors and alarms, make

connections from general I/O terminal block.

2. Use the supplied RJ45 female/female coupler

to connect the Network Camera to a switch.

Use Catagory 5 Cross Cable when Network

Camera is directly connected to PC.

3. Connect the power cable from the Network

Camera to a power outlet.

N.C.

AC24V

N.C.: NoConnector

AC24V: Power in AC 24V

GND: Ground

D I : Digital Input

D O : Digital Output

+12V : Power, 12V DC

GND

+12V

Ceiling mount without the bottom base (Embedded)

1. Attach the supplied Ceiling Hole Template Sticker to the wall.

2. Dig a hole along the inner circle of the sticker.

3. Through the 3 circles on the sticker, drill 3 pilot holes into the ceiling. Then hammer the supplied three

plastic anchors into the holes.

4. Mount the Netwrok Camera to the ceiling and feed the cables.

5. Through the three holes on the side of the camera base, insert the supplied three screws to corre-

sponding holes and secure them with a screwdriver.

Ceiling Hole Template Sticker

Drill hole

EN - 8

Power over Ethernet (PoE)

POWER COLLISION

LINK

RECEIV E

PARTITI ON

12345

N.C.

485B

485A

AC24V

PoE switch

POWER COLLISION

LINK

RECEIV E

PARTITION

12345

N.C.

485B

485A

AC24V

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via

single Ethernet cable. See the following illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

non-PoE switch

PoE power injector

(optional)

EN - 9

English

Network Camera

Model No: FD7141

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to

the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D1083236

1. Install the "Installation Wizard 2" under the Software Utility directory from software CD.

2. The program will conduct analyses on your network environment. After your network is

analyzed, please click on the "Next" button to continue the program.

3. The program will search the VIVOTEK Network Devices in the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches the

one labeled on the bottom of your device to connect the Internet Explorer to the Network

Camera.

0002D1083236

Installation

Wizard 2

Assigning IP Address
