FD8131V Fixed Dome

Network Camera

H.264 • Vandal-proof • IP66

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user's manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Warning Before Installation

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

Replacing or failing to properly install

the waterproof components, e.g.,

cables or cable glands, will void our

IP65/66/67 warranty.

EN - 2

Software CD

FD8131V Alignment Sticker

Cable hole

Drill hole

RJ45 Female/Female Coupler /

Screwdriver/ Screws / Clamp Core

Package Contents

Quick Installation Guide / Warranty

Card

Physical Description

Lens

Reset Button

General I/O Terminal Block

Status LED

MicroSD/SDHC

Card Slot

Black Cover

Ethernet 10/100 RJ45 Plug

Power Cord Socket

Ground Wire

EN - 3

English

Hardware Installation

First, follow the instructions below to remove the dome cover.

Record the MAC address before

installing the camera.

Network Camera

Model No: FD8131V

Made in Taiwan

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

RoHS

V I

MAC:0002D107258A

Tilt Adjustment Screw

Then remove the black cover as shown below.

Dome Cover

EN - 4

Cable hole

Drill hole

Cable hole

Drill hole

1. Attach the alignment sticker to the ceilling/wall.

2. Through the two circles on the sticker, drill two pilot holes into the ceilling/wall.

3. The Network Camera can be mounted with the cable routed through the ceiling/wall or

from the side. If you want to feed the cable through the ceiling/wall, drill a cable hole A

as shown in the above picture.

4. Hammer the supplied plastic anchors into the holes.

5. Align the two holes on each side of the camera base with the two plastic anchors on

the ceilling/wall, insert the supplied screws to corresponding holes and secure them

with a screwdriver.

Wall Mount

Ceiling Mount

6. Buckle the supplied clamp core onto the cable to prevent EMI radiation.

5 cm

The clamp core should be away

from the device at least 5 cm.

EN - 5

English

General Connection (without PoE)

Network Deployment

+ : Digital input

- : Digital input

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

Ethernet Switch

1. If you have external DI devices, make the connection from general I/O terminal block.

2. Use the supplied RJ45 female/female coupler to connect the Network Camera to a

switch.

Use a Category 5 Cross Cable when Network Camera is directly connected to PC.

3. Connect the supplied power cable from the Network Camera to a power outlet.

Power over Ethernet (PoE)

POWER C

OLLIS

ION

LINK

CEIVE

PARTITION

12345

PoE Switch

When using a PoE-enabled switch

This Network Camera is PoE-compliant, allowing transmission of power and data via a

single Ethernet cable. Follow the below illustration to connect the Network Camera to a

PoE-enabled switch via Ethernet cable.

EN - 6

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a

non-PoE switch.

PoE Power Injector

(optional)

Non-PoE Switch

IMPORTANT:

Although the camera and the cable gland on the camera's end are waterproof, the cable

molding at the other end is not waterproof.

Measures should be taken to prevent water from leaking in through the cable-end molding,

such as the use of expanding foam sealant, putties, and so on. Note that the cable gland

on the camera should also be securely fastened to attain its waterproof functionality.

Waterproof Not Waterproof

Cable Molding

EN - 7

English

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for all VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the S/N number on the

package box label to open a browser management session with the Network Camera.

Assigning an IP Address

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-

channel recording software from the software CD in a deployment consisting of multiple

cameras. For its installation details, please refer to its related documents.

EN - 8

Based on the live image retrieved from the camera, adjust the camera lens to the desired

viewing angle:

1. Turn the lens module left and right.

2. Loosen the tilt adjustment screws on both sides of the camera and then turn the lens

module up and down. Upon completion, tighten the screws.

3. Turn the lens to adjust the image orientation.

Adjusting the Lens

Loosen Tighten

Pan 350°

Rotate 340°

Tilt: 70°

The sophisticated 3-axis mechanism design offers very exible, easy hardware installation

for either ceiling or wall mount.

3-axis Mechanism Design

Pan 340°

Rotate 350°

Tilt Adjustment Screw

DO NOT over rotate the lens. Doing

so will damage the camera lens

module.

Tilt: 70°

EN - 9

English

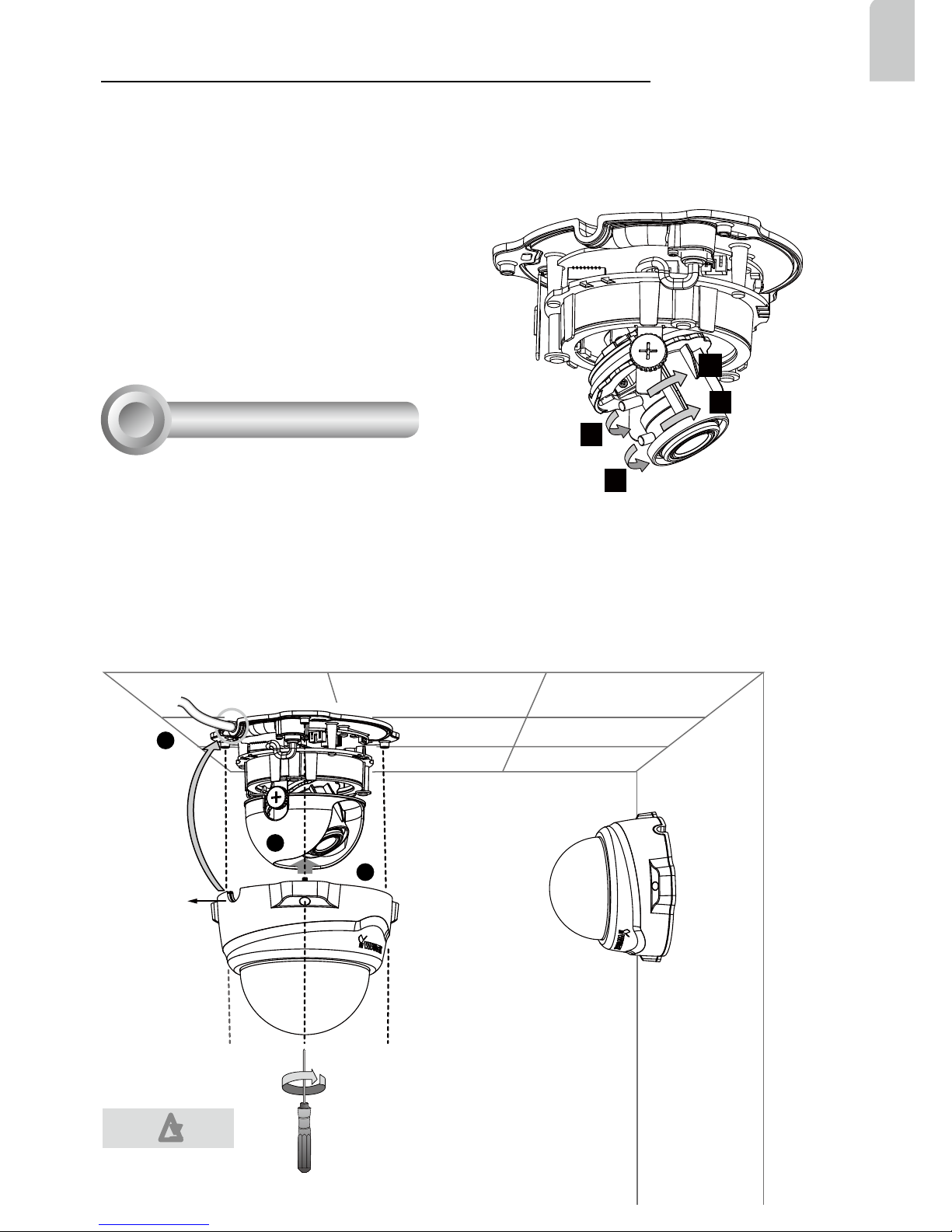

1. Align the inner side of the black cover with

the notch on both sides of the lens, x the black cover.

2. If you choose to feed the cable through the ceiling/wall, arrange the cable neatly through

the cable hole. If you choose to feed the cable from the side, remove plate B.

3. Attach the dome cover to the camera as shown below. The dome cover cannot be

attatched if installed in the wrong orientation. Align the side cover (or side cutout) with

where the cable comes out from the camera. Push the dome cover to join with the

camera.

4. Finally, make sure all parts of the camera are securely installed.

Completion

Be aware of the

cable route!

To adjust the zoom factor and focus range

1. Loosen the zoom controller and then adjust zoom factor by moving the controller left

and right. Upon completion, tighten the zoom controller screw.

2. Loosen the focus controller and then adjust focus range by moving the controller left

and right. Upon completion, tighten the focus controller screw.
