Vivotek FD8156 Bedienungsanleitung

1

Reset button

Microphone

Lens

Lens retention screw

MicroSD card

slot

Status LED

FD8156/8168

Quick Installation Guide

Before you begin:

You can connect the

Ethernet cable to a PC or

laptop for a live view. (See

page 5). Raise the camera

to the estimated position,

and evaluate the eld of

view by turning the mount

bracket and lens.

Shooting

direction

Loosen the retention screw

to change shooting angle.

1. The camera can only be powered by Power

over Ethernet (PoE).

2. The camera can only be installed in an

indoor environment.

NOTE:

Part no.: 625024500G

2

30mm Front mark

Ceiling Mount Procedure:

1. Attach the alignment sticker to

a preferred location, with the

Front mark facing the shooting

direction.

3. Install the mount bracket

using the self-tapping

screws.

2. Drill a 30mm cabling

hole if preferred.

4. Pass the Ethernet cable through the cabling hole or along the

wall. 5. Join the camera with the mount bracket by

sliding it along the grooves to t into place.

Mount

bracket

3

30mm

15mm

Wall Mount Procedure:

1. Attach the mount bracket to the wall-mount bracket, with

the Front mark facing the shooting direction. Note that you

should turn the bracket to aim the Front mark at the shooting

direction.

2. Attach the alignment sticker to a preferred location.

3. Mark the drill holes and drive screws into the wall. Leave

15mm of the screws off the wall surface.

4. If preferred, drill a 30mm cabling hole on the wall.

4

5. Hang the bracket onto the screws. You can then fasten the

screws to wall.

6. Connect the Ethernet cable and pass cable through the

hole. Join the camera with the bracket by sliding it along the

grooves.

5

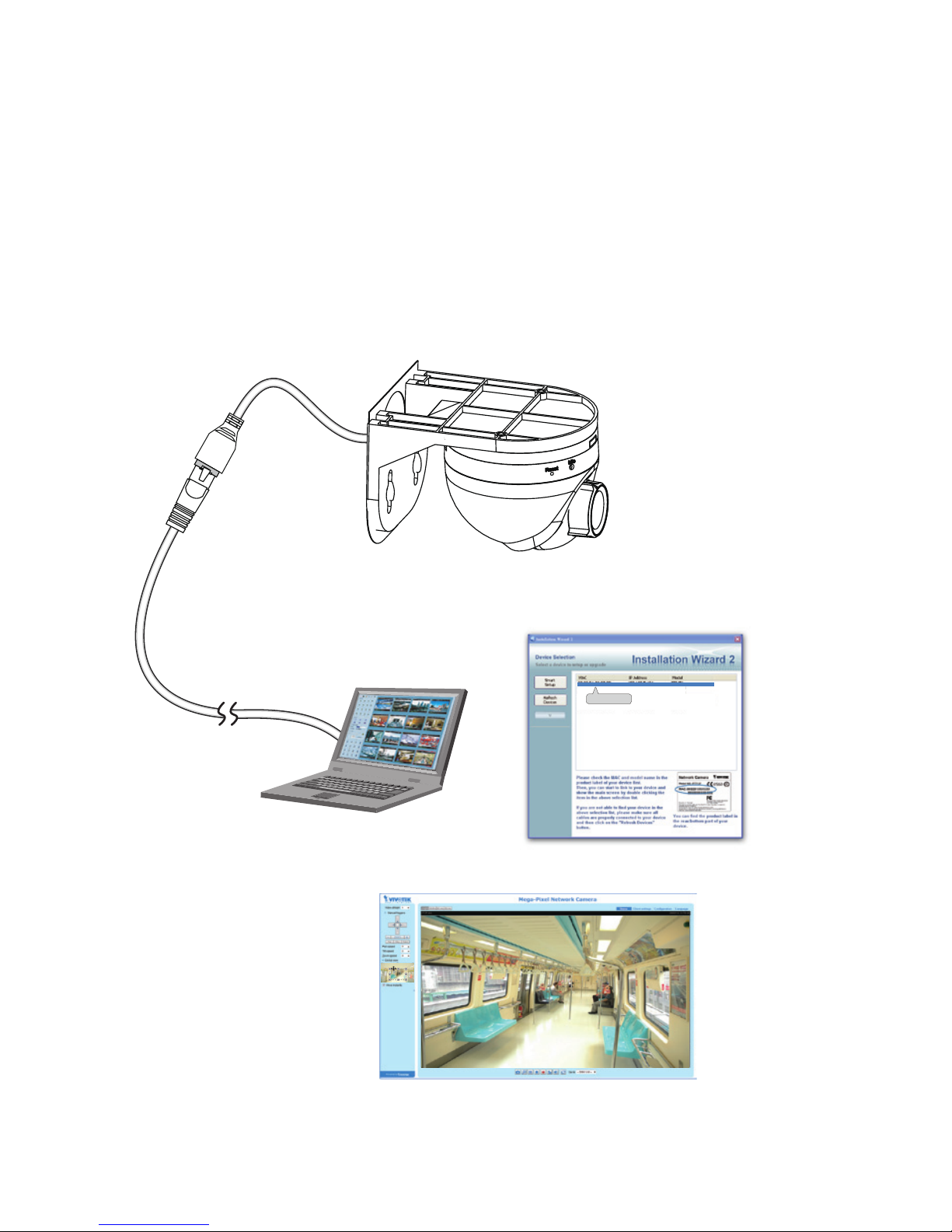

Connect the camera to a PC or laptop. Install and use the IW2

utility to discover your camera on LAN. Double-click on the

camera entry to open a web session.

If your image appears to be out of focus, use the included focus

adjustment tool to tune the focus.

Tune the focus:

0002D1730202

00-02-D1-73-02-02 192.168.5.151 FD8168

IW2

Browser

6

Press the release button if you should need to re-install the

camera.

Carefully place the tool onto the lens, and turn clockwise or

counter-clockwise to adjust the focus.

Release button

NOTE:

7

This page is intentionally left blank.

8
