Vivotek FE8172 Bedienungsanleitung

Quick Installation Guide

VIVOTEK INC.

6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.

|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]

VIVOTEK USA, INC.

2050 Ringwood Avenue, San Jose, CA 95131

|T: 408-773-8686|F: 408-773-8298|E: [email protected]

5MP • 360° Surround View • PoE

All specications are subject to change without notice.

P/N:625018100G Rev.: 1.0

FE8172 Fixed Dome

Network Camera

English 繁中日本語 Español Português

簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska

Dansk

Dutch

Indonesia

EN - 1

English

Warning Before Installation

Power off the Network Camera

as soon as smoke or unusual

odors are detected.

Do not place the Network

Camera on unsteady surfaces.

Do not insert sharp or tiny

objects into the Network

Camera.

Refer to your user's manual

for the operating temperature.

Do not touch the Network

Camera during a lightning

storm.

Do not drop the Network

Camera.

Package Contents

FE8172

Alignment Sticker

Screws / Anchors / Cable tie

Quick Installation Guide /

Warranty Card

Software CD

Power & I/O Cables

EN - 2

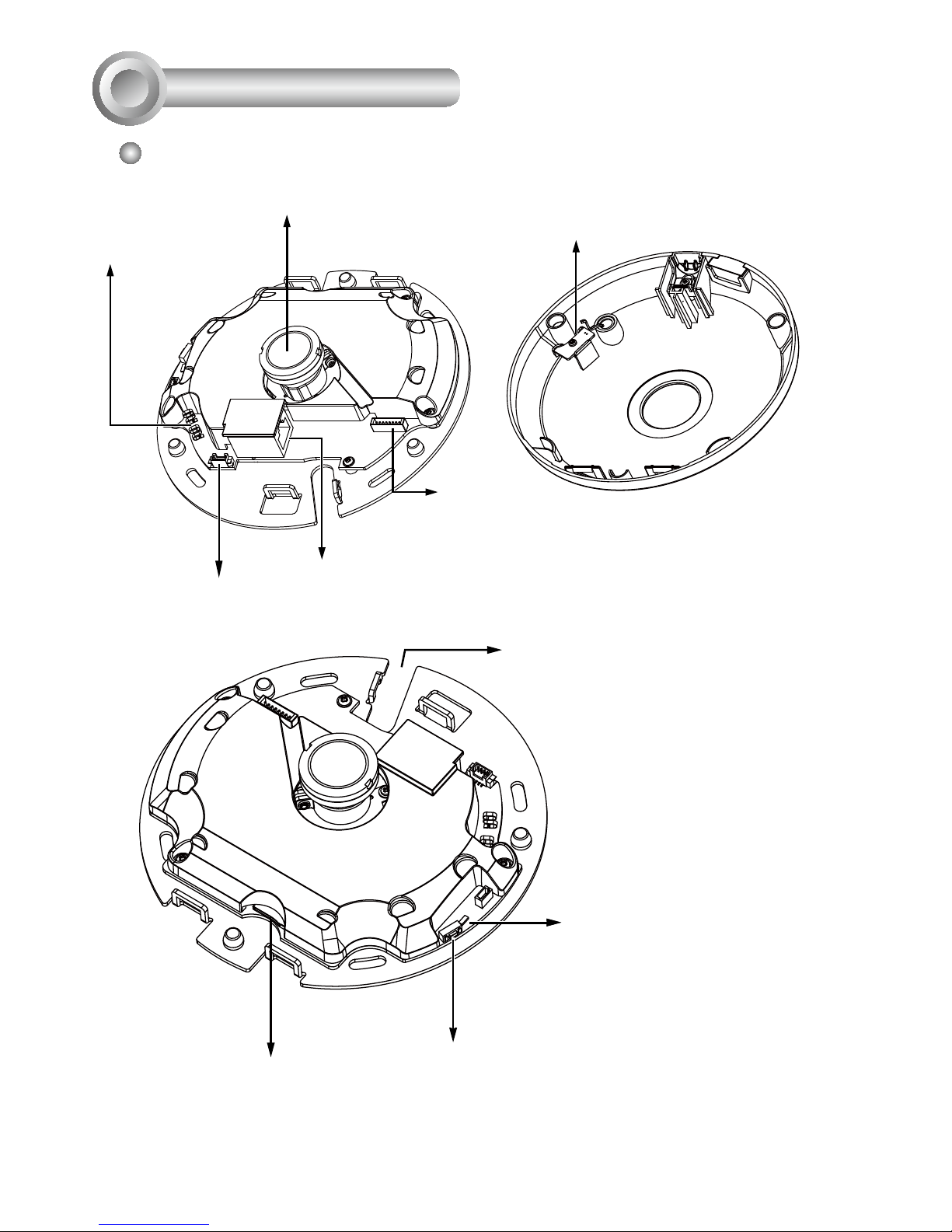

Physical Description

Inner View

Header (J7)

Spring Contacts

(A)

Lens Contacts for Internal Microphone

(B)

Header (J6)

Ethernet 10/100 RJ45 Socket

MicroSD/SDHC/SDXC Card Slot

Reset Button

Status LEDs

Cabling Cutout

EN - 3

English

Outer View

Built-in Microphone

Dome Cover

IMPORTANT:

Record the MAC address under the

camera base before installing the

camera.

Hardware Installation

Release button

First, open the dome cover by pressing the release button. You may squeeze the opposite edge of

the dome cover if the dome cover does not come off easily. Then, follow the steps below to install the

camera to either a ceiling or a wall.

083236

If you plan to route cables from the side of camera, re-

move the rubber slide cover from the dome cover.

Slide cover

EN - 4

Connect the supplied power & IO cables if your

switch does not support PoE. Connect the white

header connectors to J6 and J7 on the camera.

Power and IO

cables

Connecting Ethernet Cable

& the Power and IO Cable

Connecting Cables

If you need to route cables through the side opening, proceed with

the following:

1. Connect the Ethernet and the Power & IO cables. The Ethernet cable

is user-supplied.

2. Use an included cable tie to secure the Ethernet and IO cable to the base plate. Insert the cable

tie through the vertical mounting tab located on the edge of the cabling cutout.

3. Make a clearance between cables and the vertical mounting tab. Arrange the cables neatly to

avoid getting in the way when the dome cover is attached.

4. Cut the extra length from the cable tie.

It is recommended to remove the strain relief boot if your Ethernet cable

comes with one.

Ethernet

Power & IO Cable

Make a clearance

between cables and

the vertical tab

Strain relief boot

If you route cables through a drill hole on

a wall/ceiling, simply route cables through

the cabling cutout.

EN - 5

English

Ceiling or Wall Mount

1. Attach the supplied alignment sticker for the camera base to the a ceiling or wall.

2. Using the circles on the sticker, drill pilot holes into the ceiling. Then hammer the supplied plastic

anchors into the holes.

3. (Optional) Drill a cable hole on the ceiling/wall, and feed the cables through the hole.

4. Secure the camera base to the ceiling/wall with the supplied screws.

You may also install the camera to a U.S. standard 4 in. junction box.

You can align the camera’s curved slots with the mounting holes on

a junction box. Use diagonal mounting positions on the camera to

match those on a junction box.

NOTE:

EN - 6

Install the plastic dome cover by aligning the snap-

t tabs on the dome cover with the slotted tabs on the

camera base. Install the dome cover by pressing it

evenly to the camera base.

Make sure the dome cover and the base plate are

ush-aligned before pressing down. The dome cover is

secured using a snap-t mechanism.

Attach the Dome Cover

Snap-t tabs

Dome cover

Slotted tabs

EN - 7

English

1. Connect RJ45 Ethernet cable to a switch.

2. Connect the power cable from the Network Camera to a power outlet.

3. If you have external devices such as sensors and alarms, make the connection from the general

I/O terminal block.

General Connection (without PoE)

Network Deployment

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

+3V3

GND

General I/O Terminal Block

Power Cord Socket (Black)

Microphone In (Pink)

Audio Out (Green)

+3V3: Power, 3.3V DC

DO: Digital Output

D I: Digital Input

GND: Ground

NOTE:

If DC power is preferred, it should comply with: O/P:

12VDC, 1.5Amin., L.P.S. per IEC 60950-1.

EN - 8

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE switch.

When using a non-PoE switch

Power over Ethernet (PoE)

The Network Camera is PoE-compliant, allowing transmission of power and data via a single Ether-

net cable. Follow the below illustration to connect the Network Camera to a PoE-enabled switch via

Ethernet cable.

When using a PoE-enabled switch

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Switch

POWER C

OLLIS

ION

LINK

RECEIVE

PARTITION

12345

PoE Power Injector

(optional)

Non-PoE Switch

NOTE:

1. This equipment is only to be connected to PoE

networks without routing to outside plants.

2. For PoE input, use only UL listed I.T.E. with PoE

output.

EN - 9

English

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network Cameras

on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC address

that matches the one printed on the camera label or the serial number on the package box label

to open a browser management session with the Network Camera.

Assigning an IP Address

1. A browser session with the Network Camera should prompt as shown below.

2. You should be able to see live video from your camera. You may also install the 32-channel

recording software from the software CD in a deployment consisting of multiple cameras. For its

installation details, please refer to its related documents.

Ready to Use

For further setup, please refer to the user's manual on the software CD.

NOTE:

If you encounter problems with displaying live view or the onscreen plug-in control, you may try to

remove the plug-ins that might have been installed on your computer. Remove the following folder: C:\

Program Files (x86)\Camera Stream Controller\.
