Vivotek IP8132 Bedienungsanleitung

EN - 1

English

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Contact your distributor in the event of

occurrence.

Keep the Network Camera away

from water. If the Network Camera

becomes wet, power off immediately.

Do not place the Network Camera

around heat sources, such as a

television or oven.

Refer to your user’s manual for the

operating temperature.

Keep the Network Camera away from

direct sunlight.

Do not place the Network Camera in

high humidity environments.

Contact your distributor in the event of

occurrence.

Warning Before Installation

EN - 2

Do not place the Network Camera on

unsteady surfaces.

Do not touch the Network Camera

during a lightning storm.

Do not disassemble the Network

Camera.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN - 3

English

Camera Stand

IP8132

Warranty Card

Screws

Quick Installation Guide

Power Adaptor (+5V, 2A) & Ferrite

Core

Package Contents

Software CD

IP8133

Antennas (IP8133W)

IP8133W

EN - 4

Physical Description

Front Panel Status LED

Lens

Microphone

IP8132

IP8133W

Microphone

White-light LED

Speaker

PIR Sensor

NOTE:

Status LED

Item LED status Description

LED Denitions

1 Steady Red Power on and system boot

Red LED off Power off

2 Blink Green every 1 sec. Network connected

Steady Red Network failed

3 Blink Green every 2 sec. Audio muted

4 Blink Orange every 2 sec. Privacy button pressed

5 Blink Green, RED, and Orange

intermittently Upgrading rmware

6 Blink Orange every 0.15 sec. Restoring default

The front view of IP8133 is identical to

that of IP8133W except the wireless

antenna.

EN - 5

English

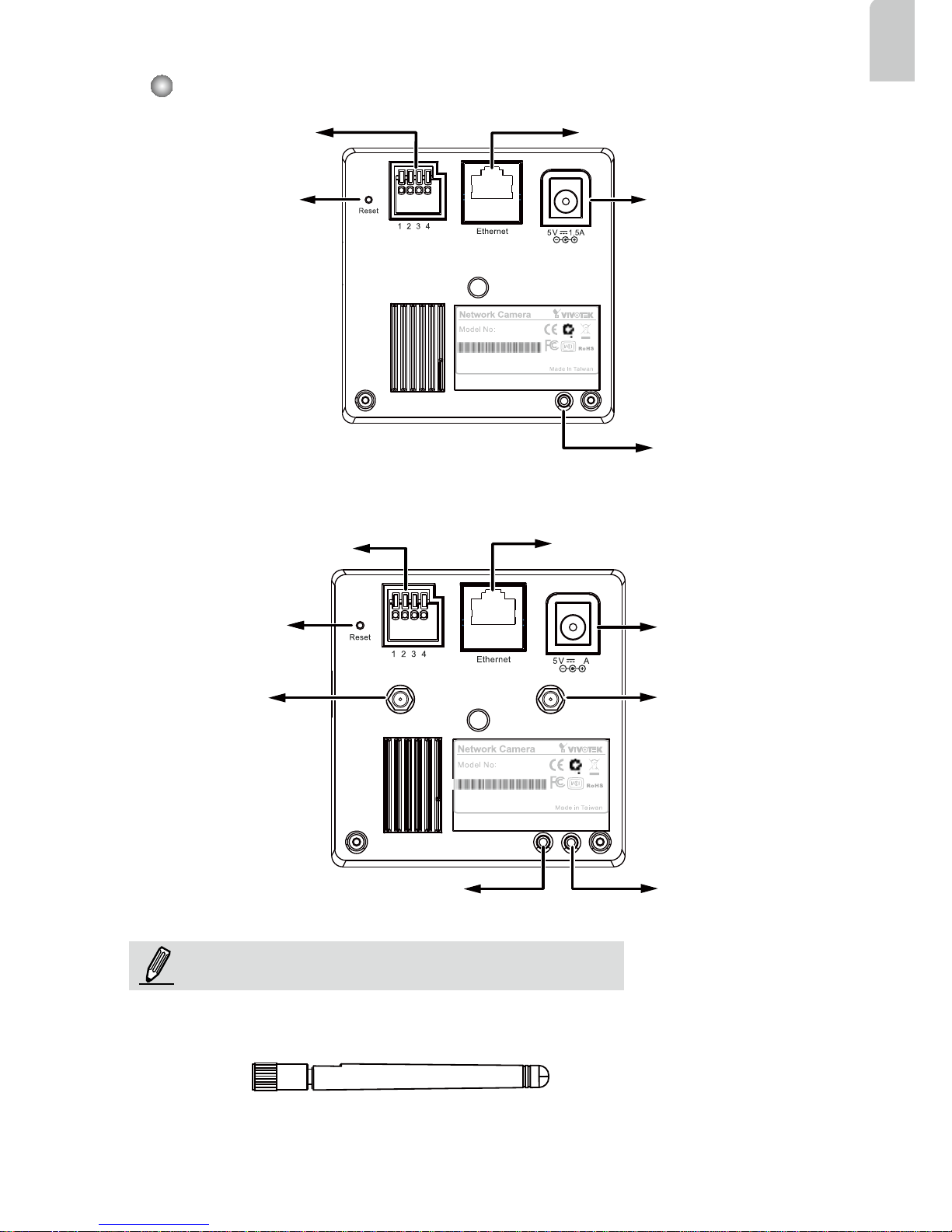

Back Panel

MAC:0002D132C353

IP8132

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

General I/O Terminal

Block

Recessed Reset Button Power Cord Socket

Ethernet 10/100 RJ45 Socket

Privacy Button

MAC:0002D132C353

IP8133W

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

IP8133 & 8133W

IP8132

Privacy Button

Antenna

Connector

(IP8133W)

Power Cord

Socket

WPS Button

(IP8133W)

Reset Button

Ethernet 10/100

RJ45 Socket

Antenna

Connector

(IP8133W)

General I/O

Terminal Block

NOTE:

Two antennas come with the IP8133W. They are installed

by users by turning clockwise to attach to connectors.

EN - 6

Network Deployment

1. If you have external devices such as sensors and alarms, make connections from

general I/O terminal block.

MAC:0002D132C353

IP8132

Thisdevice complies with part 15 of the FCC rule s. Operation is subject to the following two conditions:

(1)Thisdevice may not cause harmful inte rference, and

(2)this device must accept any interference rece ived, including interference that may cause undesired operation.

Pat. 6,930,709

POW ER COLLISION

LINK

RECEIV E

PARTITION

12345

3. Connect the supplied

power cable from the

camera to a power

outlet.

2. Connect the camera to a switch

via Ethernet cable.

4: Power

3: Digital output

2: Digital input

1: Ground

LAN Connection

NOTE:

1. Use a Category 5 Cross Cable when

Network Camera is directly connected

to a PC.

2. The IP8133 can acquire power through

a cable connection with a PoE switch.

However, when so connected, the camera

is only to be connected to PoE networks

without routing to outside plants.

Install Ferrite Core

1. Unsnap the two halves of the ferrite core.

2. Attach the ferrite core to the power cord as close to the DC connector as possible.

Fold the ferrite core over the power cord, wrap the power cord once, and snap the

small latches together.

Ferrite Core

EN - 7

English

WPS

Wireless Connection: Using the WPS Button

1. Make sure your AP (Access Point) and Operating System support WPS (Wi-Fi

Protected Setup) functions. WPS enables easy setup with compatible APs.

2. Disconnect your LAN cable, and wait for the LED to turn red.

3. Press the WPS button for 1 second. You can then hear vocal instructions (in English)

from the camera speaker. 4. Press and hold down the WPS button on your AP

(some router/AP will have a virtual button on their

management software instead). Refer to your AP's

documentation for details using its WPS functions.

When WPS conguration is done, wireless connectivity will be established and the

security encryption, such as WEP or WPA-PSK, will be synchronized with the AP.

Use the IW2 utility to nd the camera. As for IP setting, the camera's use of DHCP

or static IP is determined by your conguration on the network camera via the web-

based conguration of rmware. The camera's default is DHCP.

NOTE:

WPS Button

Wireless AP

1. WPS may not work if your AP is congured with a "hidden" SSID.

2. If no WPS-enabled AP is detected, the camera will repeat vocal instructions by

every 20 seconds, and if the camera still can not detect an AP after 2 minutes, the

wireless setup will be cancelled.

3. If a camera is assigned with a xed IP outside the AP's network segment, wireless

setup will fail.

4. A wired connection always has a higher priority, and hence wireless setup will not

take effect when the RJ45 LAN port is connected.

EN - 8

MAC:0002D132C353

IP8132

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

(1)This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Pat. 6,930,709

1. Install “Installation Wizard 2” from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network is

analyzed, please click on the “Next” button to continue the program.

0002D132C353

Installation

Wizard 2

Assigning an IP Address

2011/01/05 01:50:28

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After a brief search, the main installer window will pop up. Double-click on the MAC

address that matches the one printed on the camera label or the serial number on the

package box label to open a browser management session with the Network Camera.

5. A browser session with the

Network Camera should

prompt as shown below.

6. You should be able to see

live video from your camera.

You may also install the

32-channel recording soft-

ware from the software CD

in a deployment consisting

of multiple cameras. For its

installation details, please

refer to its related docu-

ments.
