Vivotek IP7142 Bedienungsanleitung
EN-1
English

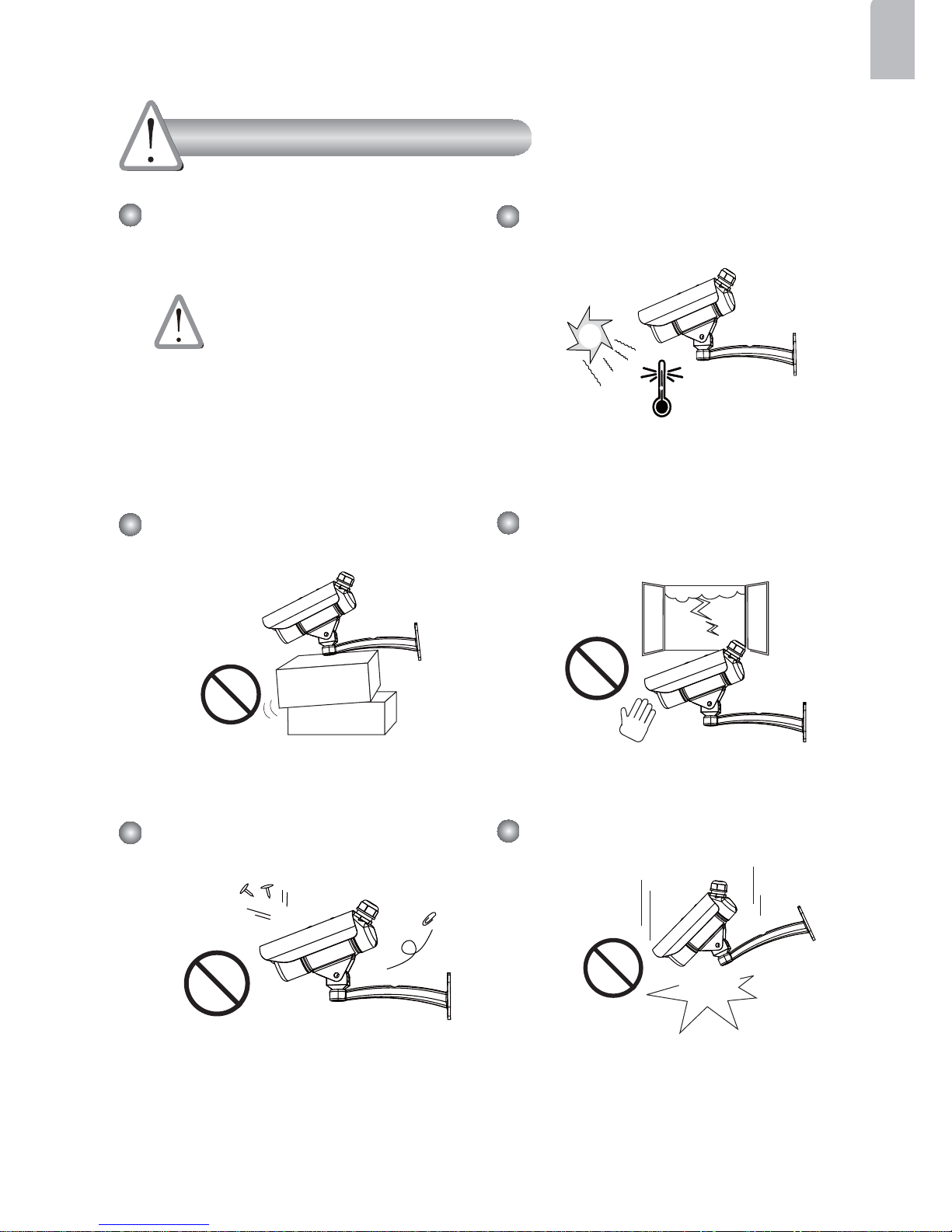

Warning Before Installation
Contact your distributor in the
event of occurrence.
Refer to your user's manual for the
operating temperature.
Power off the Network Camera as
soon as smoke or unusual odors are
detected.
Do not touch the Network Camera
during a lightning storm.
Do not place the Network Camera on
unsteady surfaces.
Do not drop the Network Camera.
Do not insert sharp or tiny objects
into the Network Camera.
EN-2
Package Contents
1
Software CD
IP7142
Screws / RJ45 Female/Female
Coupler
Warranty Card
Spanner Quick Installation Guide
Camera Stand
Sun Shield
Power Adapter Silica Gel
EN-3
English
Physical Description
2
Connectors
Ethernet 10/100 RJ45 Plug
Audio Out (green)
Microphone In (pink)
Power Cord Socket (black)
General I/O Terminal Block
Ground
Front Panel
IR LED
Lens
Reset Button
Status LED
Light Sensor
EN-4
Hardware Installation
3
1. Open the lens cover.
2. Secure the Network Camera to the wall/ceiling by the supplied camera stand.
1
2
3
EN-5
English
Network Deployment
4
POWE
RC
OLLIS
ION
LINK
REC
E
IVE
PARTITION
12345
1. If you have external devices such as
sensors and alarms, connect them to the
general I/O terminal block.
2. Use the supplied RJ45 female/female
coupler to connect the Network Camera
to a switch.
Use Category 5 Cross Cable when
Network Camera is directly connected to
PC.
3. Connect the power cable from the
Network Camera to a power outlet.
N.C.
485B
485A
AC24V
AC24V
N.C.: NoConnector
485B: RS485-
485A: RS485+
AC24V: Power in AC 24V
AC24V: Power in AC 24V
G N D : Ground
D I : Digital Input
D O : Digital Output
+12V : Power, 12V DC
GND
DI
DO
+12V
General Connection (without PoE)
EN-6
Power over Ethernet (PoE)
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a
non-PoE switch.
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via
avsingle Ethernet cable. Follow the below illustration to connect the Network Camera
to a PoE-enabled switch via Ethernet cable.
POWER COLLISION
LINK
RECEIV E
PARTITI ON
12345
Non-PoE Switch
PoE Power Injector
(optional)
POWER COLLISION
LINK
RECEIV E
PARTITION
12345
PoE Switch
EN-7
English
1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.
2. The program will conduct an analysis of your network environment. After your network
is analyzed, please click on the "Next" button to continue the program.
3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network
Cameras on the same LAN.
4. After searching, the main installer window will pop up. Click on the MAC that matches
the one labeled on the side of the camera lens or S/N number on the label of carton
to connect the Internet Explorer to the Network Camera.
0002D17151CD
1
2
Model No.: IP7142
P/N: 100043690G
F/W Ver.: 0100G
CARTON OF NO. 01
MADE IN TAIWAN
!!0!!
Q'ty: 1 PCS
EAN: 4712123671550
S/N: 0002D17151CD
0002D17151CD
Installation
Wizard 2
IW
2
Assigning an IP Address
5
EN-8
For further setup, please refer to the user's manual on the software CD.
Ready to Use
6
1. Access the Network Camera from the Internet.
2. Retrieve live video through web browsers or recording software.
3. Unscrew the zoom controller to adjust the
zoom factor. Upon completion, tighten the
zoom controller.
4. Unscrew the focus controller to adjust the
focus range. Upon completion, tighten the
focus controller.
T
W
∞
N
W
∞
NT
EN-9
English
5. Tear down the aluminum foil vacuum bag and take out the silica gel. Attach the silica
gel to the inner side of the Network Camera, then tighten the lens cover. (Please
replace the silica gel with a new one if you open the back cover after installation.)
Note
If you want to use the supplied sun shield for outdoor environments, please follow the steps below to
install:
1. Tighten the supplied two screws.
2. Attach the supplied sun shield to the Network Camera and slide it to the desired position.
3. Fix the sun shield with the supplied two screws. (Please use different screws for ceiling mount.)
4. Secure the Network Camera to the wall/ceiling by the supplied camera stand.
123
4
Wall MountCeiling Mount
Wall MountCeiling Mount
