EN-1

English

Warning Before Installation

Contact your distributor in the

event of occurrence.

Refer to your user's manual for the

operating temperature.

Power off the Network Camera as

soon as smoke or unusual odors are

detected.

Do not touch the Network Camera

during a lightning storm.

Do not place the Network Camera on

unsteady surfaces.

Do not drop the Network Camera.

Do not insert sharp or tiny objects

into the Network Camera.

EN-2

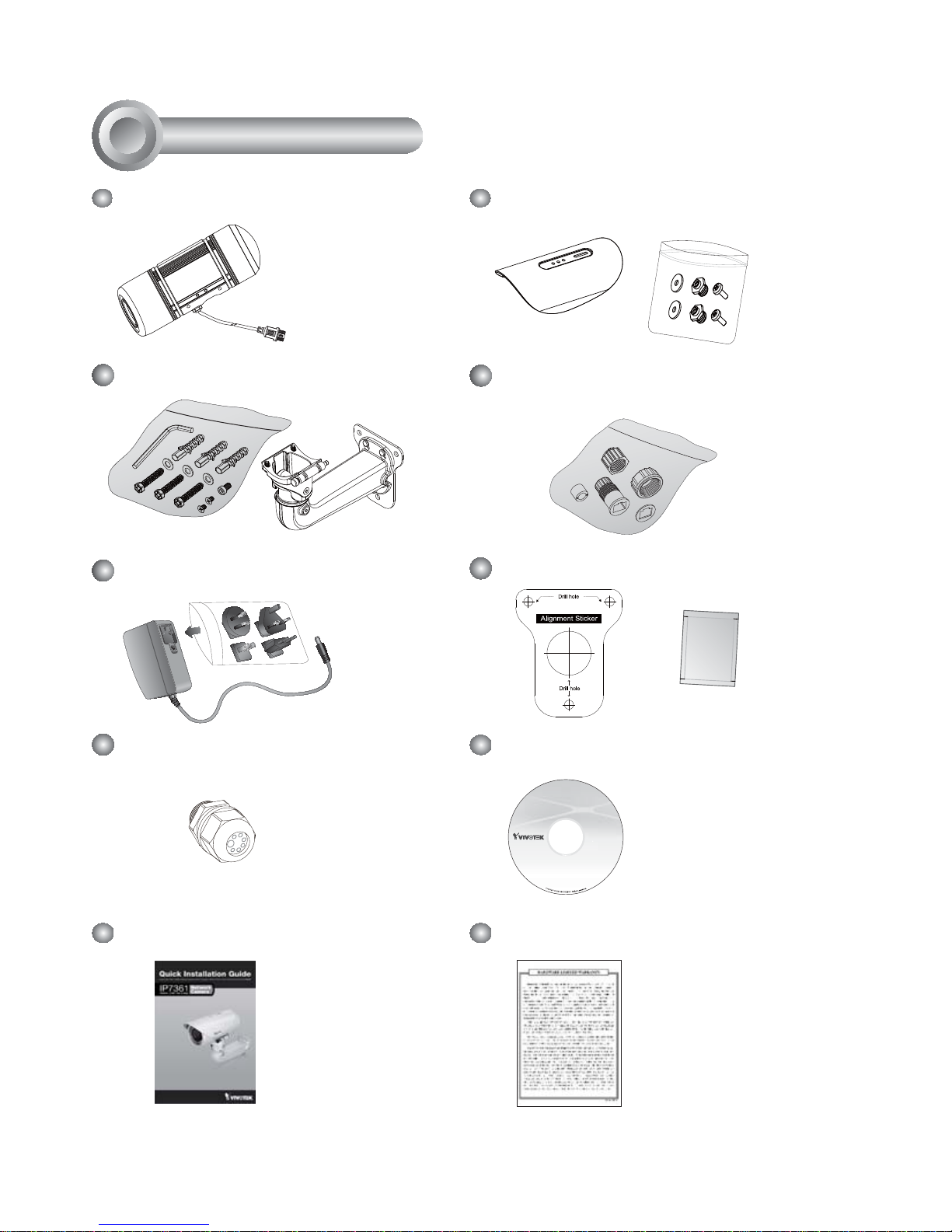

Package Contents

Software CD

IP7361 with an RJ45 Cable

Quick Installation Guide

Waterproof Connector (for backup

use)

Alignment Sticker / Silica Gel

Wall Mount Bracket

Sun Shield

Power Adapter

Waterproof Connector for RJ45

Ethernet Enclosure

RJ45

Warranty Card

EN-3

English

Physical Description

IR LED

Lens

Light Sensor

Power Cord Socket

General I/O

Terminal Block Reset Button

Status LED

SD/SDHC Card Slot

RJ45 Cable

EN-4

1. Attach the alignment sticker to the wall. Drill four holes into the wall. Then hammer the supplied

plastic anchors into the holes and secure the plate with supplied screws.

2. Fix the ͱ-bracket to the side of the Network Camera with two screws.

3. Feed the RJ45 cable through the front opening of the wall mount bracket. (If you want to use

external devices such as sensors and alarms, please refer to the assembling steps on the next

page.)

4. Open the lens cover.

5. Push the spring mortise and hook the bracket onto the groove of the wall mount bracket.

6. Secure the two screws on the other side of the wall mount bracket.

7. Hang the wall mount bracket on the plate.

8. Fix the wall mount bracket with the supplied screw.

9. Adjust the angle of the wall mount bracket to aim at the shooting area.

Hardware Installation

EN-5

English

Waterproof Connector

1 Power +12V

2 Digital Output

3 Digital Input

4 Ground

5 AC 24V

6 AC 24V

7 RS485 +

8 RS485 -

1 External MIC In

2 Ground

3 Audio Out

4 Ground

87654321

4321

1. Disassemble the components of the waterproof connector into part (A) ~ (E) as shown above.

2. Open the back cover of the Network Camera.

3. Remove the rubber stopper from the bottom of the Network Camera and secure the screw nut (A)

tightly.

4. If you need extra power for external devices, please feed the power cable through the wall mount

bracket and the waterproof connector (E --> D --> B --> A) as the illustration shown below. Then

connect the power cord to the socket. Note: There are 7 holes on the seal (B), and the widest hole

with a crack on the side is speciﬁc for power cord.

5. If you have external devices such as sensors and alarms, feed the cables through the wall mount

bracket and the waterproof connector (E --> D --> B --> A) as the illustration shown below. Then

refer to the pin deﬁnition to connect them to the general I/O terminal block. Note: The recom-

mended cable gauge is 2.0 ~ 2.8 mm.

6. Push the seal (B) into the housing (D).

7. Insert the seals (C) into the empty holes on the seal (B) to avoid moisture.

8. Secure the sealing nut (E) tightly.

Components of the Waterproof Connector

Seals (C)

Housing (D)

Sealing Nut (E)

Seal (B)

Screw Nut (A)

Pin Deﬁnition

Assembling Steps

(E)

(D)

(B)

(A)

(C)

(B)

(D)

(E)

EN-6

Cabling Assembly

123

(D) (B)

(C)

(A)

(E)

Components of the Waterproof

Connector

Screw Nut (C)

Housing (D)

Gasket (E)

Seal (B)

Sealing Nut (A)

RJ45 Cable Dimension (unit: mm)

Prepare an Ethernet cable

and strip part of the sheath.

Insert the housing into the

screw nut.

Insert the seal into the housing.

Insert the stripped Ethernet

cable through the sealing

nut and the housing.

Clamp the cable with

an RJ45 plug.

Push the RJ45 plug into the

housing, then secure the

sealing nut tightly.

Attach the gasket to the front

of the housing.

Assembling Steps

Recommended cable gauge: 24AWG

(0.51 mm)

Connect the Ethernet cable to the RJ45 cable and secure the

connectors tightly.

RJ45 Cable Connector

EN-7

English

Network Deployment

Power over Ethernet (PoE)

When using a non-PoE switch

Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE

switch.

When using a PoE-enabled switch

The Network Camera is PoE-compliant, allowing transmission of power and data via a single

Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-enabled

switch via Ethernet cable.

POWER COLLISION

LINK

RECEIVE

PARTITIO N

12345

Non-PoE Switch

PoE Power Injector

(optional)

POWER COLLISION

LINK

RECEIVE

PARTITION

12345

PoE Switch

EN-8

1. Install "Installation Wizard 2" from the Software Utility directory on the software CD.

2. The program will conduct an analysis of your network environment. After your network

is analyzed, please click on the "Next" button to continue the program.

3. The program will search for VIVOTEK Video Receivers, Video Servers, and Network

Cameras on the same LAN.

4. After searching, the main installer window will pop up. Click on the MAC that matches

the one labeled on the side of the camera or S/N number on the label of carton to

connect the Internet Explorer to the Network Camera.

0002D17151CD

Model No.: IP7361

P/N: 100043690G

F/W Ver.: 0100d

CARTON OF NO. 01

MADE IN TAIWAN

!!0!!

Q'ty: 1 PC S

EAN: 4712123671550

S/N: 0002D17151CD

0002D17151CD

00-02-D1-07-25-8A 192.168.5.151 IP7361

Installation

Wizard 2

Assigning an IP Address

EN-9

English

For further setup, please refer to the user's manual on the software CD.

Ready to Use

1. Access the Network Camera from the LAN.

2. Retrieve live video through a web browser or recording software.

3. Unscrew the zoom controller to adjust the

zoom factor. Upon completion, tighten the

zoom controller.

4. Unscrew the focus controller to adjust the

focus range. Upon completion, tighten the

focus controller.

∞
