Vivotek PT3112 Bedienungsanleitung

- 2 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Product name: Network Camera (PT31x2)

Release Date: 2005/03/14

Manual Revision: 2.10

Web site: www.vivotek.com

Email: technical@vivotek.com

[email protected]

- 3 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Before You Use This Product

The use of surveillance devices may be prohibited by law in your country. The

Network Camera is not only a high-performance web-ready camera but also can be

part of a flexible surveillance system. It is the user’s responsibility to ensure that the

operation of such devices is legal before installing this unit for its intended use.

It is important to first verify that all contents received are complete according to the

list in the "Package Contents" chapter. Take notice of the warnings in “Quick

installation guide” before the Network Camera is installed, then carefully read and

follow the instructions in the “Installation” chapter to avoid damages due to faulty

assembly and installation. This also ensures the product is used properly as

intended.

The Network Camera is a network device and its use should be straightforward for

those who have basic network knowledge. The “Troubleshooting” chapter in the

Appendix provides remedies to the most common errors in set up and configuration.

You should consult this chapter first if you run into a system error.

The Network Camera is designed for various applications including video sharing,

general security/surveillance, etc. The “How to Use” chapter suggests ways to best

utilize the Network Camera and ensure proper operations. For the creative and

professional developers, the "URL Commands of The Network Camera" chapter

serves to be a helpful reference to customize existing homepages or integrating with

the current web server.

For paragraphs preceded by the reader should use caution to understand

completely the warnings. Ignoring the warnings may result in serious hazards or

injuries.

- 4 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Table of Contents

Before You Use This Product 3

Package Contents 6

Installation 7

Hardware Installation 7

Software Installation 8

Initial Access to the Network Camera 12

Check Network Settings 12

Add Password to prevent Unauthorized Access 12

How to Use 13

Authentication 13

Installing Plug-in 14

Primary User’s Capabilities 15

Main Screen with Camera View 15

Client Settings 18

Administrator’s Capabilities 20

Fine-tuning for Best Performance 20

Opening Accounts for New Users 22

Building a multimedia web attraction site 23

Building a security application 26

Software revision upgrade 29

Definitions in Configuration 30

System parameters 31

User group administration 32

Network settings 33

SMTP 33

FTP 34

HTTP 35

Streaming 35

DDNS and UPnP Settings 36

Audio/Video Codec Parameters 37

Audio Parameters 37

Video Parameters 37

- 5 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Camera Control 39

Motion detection 41

Application setup 42

Weekly Schedule 42

Event operation 42

Sequential operation 43

Remote controller 44

Viewing system parameters 45

Factory default 45

Appendix 46

A. Troubleshooting 46

B. Frequently asked questions 45

C. URL commands of the Network Camera 48

Capture update Snapshot of JPEG image 48

Query status of the digital input 48

Drive the digital output 48

Restore factory default settings 48

Restart system 49

Page URL 49

System resource URL 50

General format of command URL 50

System configuration URL 50

Security configuration URL 51

Network configuration URL 52

DDNS & UPnP configuration URL 53

Audio/Video configuration URL 54

Camera control URL 56

Image quality configuration URL 57

Application configuration URL 57

D. Pan/Tilt Data 59

Pan 59

Tilt 59

E. Technical specifications 61

- 6 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Package Contents

PT3112/PT3122

Camera stand

Power adapter

Software CD

A/V Cable

Remote Controller

Warranty card

Quick installation guide

- 7 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

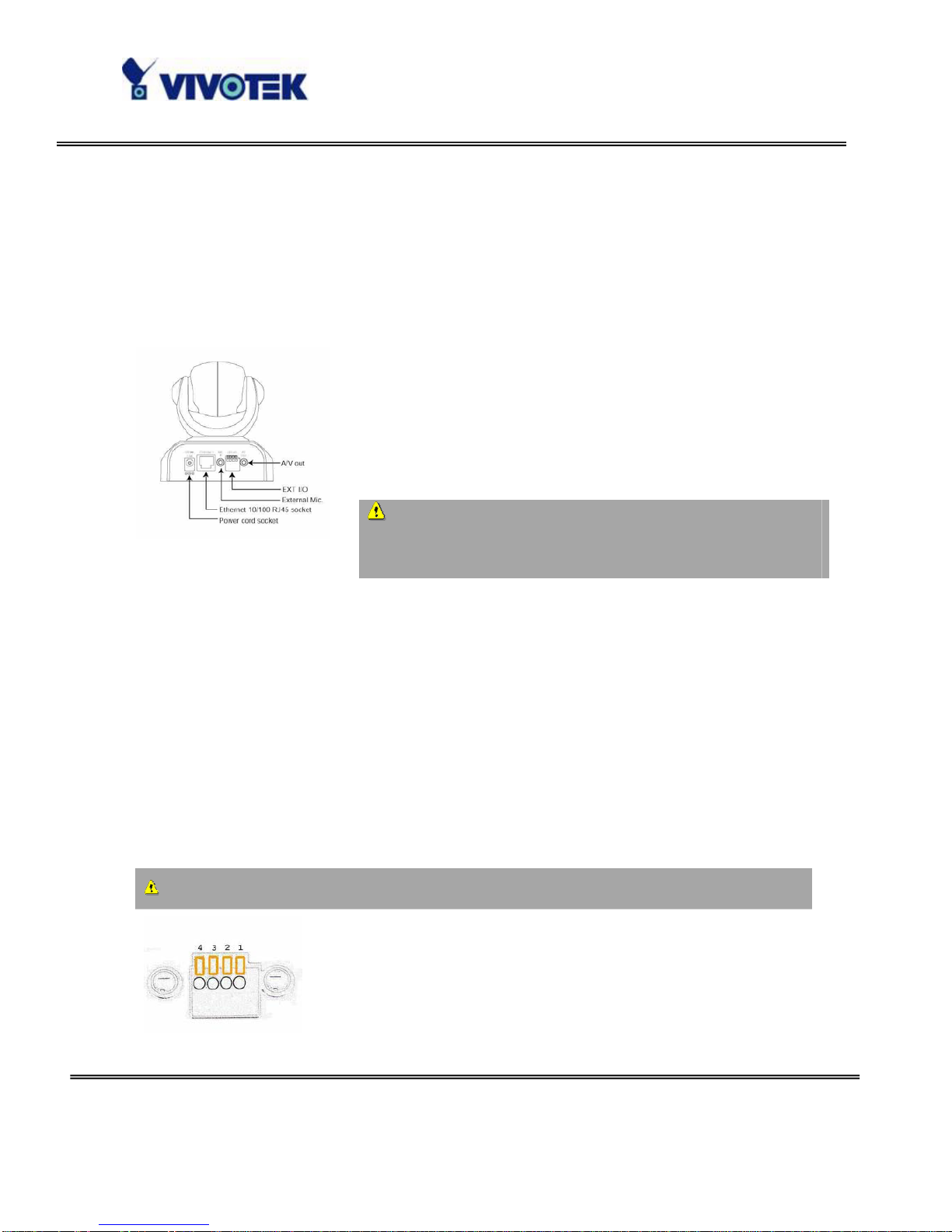

Installation

Hardware Installation

Please verify that your product package contains all the

accessories listed in the foregoing Package Contents.

Depending on the user’s application, an Ethernet cable

may be needed. The Ethernet cable should meet the

specs of UTP Category 5 and not exceed 100 meters in

length.

Connect the power adapter jack to the Network

Camera before plugging in to the power socket. This will

reduce the risk of accidental electric shock.

Upon powering up, the device runs through a self-test procedure and the front LEDs

will blink between green and red a few times. If self-test passes, the LEDs will shut

off and the Network Camera will be on stand-by and ready for software installation.

If self-test fails the red LED will blink several times. Refer to Appendix A for

troubleshooting.

The Network Camera provides a general I/O terminal block with one digital input and

one relay switch for device control. Pin 1 and Pin 2 can be connected to an external

sensor device and the state of voltage can be monitored from the initial state 'LOW'.

The relay switches Pin 3 and Pin 4 can be used to turn on or off an external device.

Consult with the dealer of the peripherals for correct installation.

1 DI+ INPUT(Max.50mA,12VDC)

2 DI- INPUT(Initialstate ofDI isLow)

3 SW_COMMON OUTPUT (open from SW_OPEN at initial state)

4 SW_NOPEN OUTPUT (Max. 1A, 24VDC or 0.5A, 125VAC)

- 8 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Software Installation

In this manual, "User" refers to whoever has access to the Network Camera, and

"Administrator" refers to the person who can configure the Network Camera and

grant user access to the camera.

At the end of the hardware installation, the Administrator must place the product

software CD into the CD-ROM drive of the PC running in MS Windows. An auto-run

program will pop up (If the program is not on auto-run, go to the root directory of the

software CD and click on “autorun.exe”).

Click on “Software Utility” item, after the window contains changed, click on

“Installation Wizard” to run Vivotek’s installation program.

- 9 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

Upon Installation Wizard’s start up, a searching box will pop up. This program

searches for Vivotek’s product on the same LAN:

After searching, Vivotek Video Servers

or Network Cameras will be located by

the Installation Wizard. There may be

several entries shown in the window.

The Administrator may differentiate the

Network Cameras with the serial

number.

- 10 -

www.vivotek.com

T: 886-2-82455282

F: 886-2-82455532

For the series number in the “Serial Number” field, please check the label on the

bottom of the camera.

The IP addresses shown in the "Current IP Address" field reflect those on the local

network. They may be from the DHCP server. If there is no DHCP server, the

camera will try to find a free IP address (this takes from 15 second to 3 minutes,

depending on the LAN status). The method of finding IP address is seeking from

192.168.0.99, to 192.168.0.254. If any of the address inside this range is free, the

Network Camera will be assigned to this IP address, and its subnet mask would be

255.255.255.0. If none of the addresses is free, the Network Camera will try the

range from 192.168.0.2 to 192.168.0.98. After an IP address is assigned to the

camera, the “Activity” status LED blinks.

The Vivotek’s new UPnP function will always assign an IP address for the Network

Camera. The Administrator can click on button “Link to selected device” to connect

the I.E. to the camera.

If the camera is not on the IP installer list, click on the “Search” button to search for

the camera on the LAN.
