Vivotek Supreme SD9363 Bedienungsanleitung
Quick Installation Guide
VIVOTEK INC.
6F, No.192, Lien-Cheng Rd., Chung-Ho, New Taipei City, 235, Taiwan, R.O.C.
|T:+886-2-82455282|F:+886-2-82455532|E:[email protected]
VIVOTEK USA, INC.
2050 Ringwood Avenue, San Jose, CA 95131
|T: 408-773-8686 |F: 408-773-8298 |E: [email protected]
2MP • 20x / 30x Zoom • 60fps • NEMA 4x • IP66 • Extreme Weatherproof
All specications are subject to change without notice.
Copyright 2016 VIVOTEK INC. All rights reserved.
c
P/N: 625034301 Rev.: 1.1
SD9364 Speed Dome
Network Camera
English 繁中 日本語 Español Português
簡中 Français Deutsch Italiano Türkçe Polski Русский Česky Svenska
Dansk
Nederlands
Indonesia
VIVOTEK Europe
Randstad 22-133, 1316BW Almere, The Netherlands
T:+31(0)36-5298-434 E:[email protected]
SD9363
EN-1
English
Warning Before Installation
Refer to your user’s manual for the
operating temperature.
Power off the Network Camera as soon as
smoke or unusual odors are detected.
Do not touch the Network Camera during
a lightning storm.
Do not disassemble the Network Camera.
Do not drop the Network Camera.
Do not insert sharp or tiny objects into the
Network Camera.
Do not manually pan and tilt the Network
Camera when the power is on.

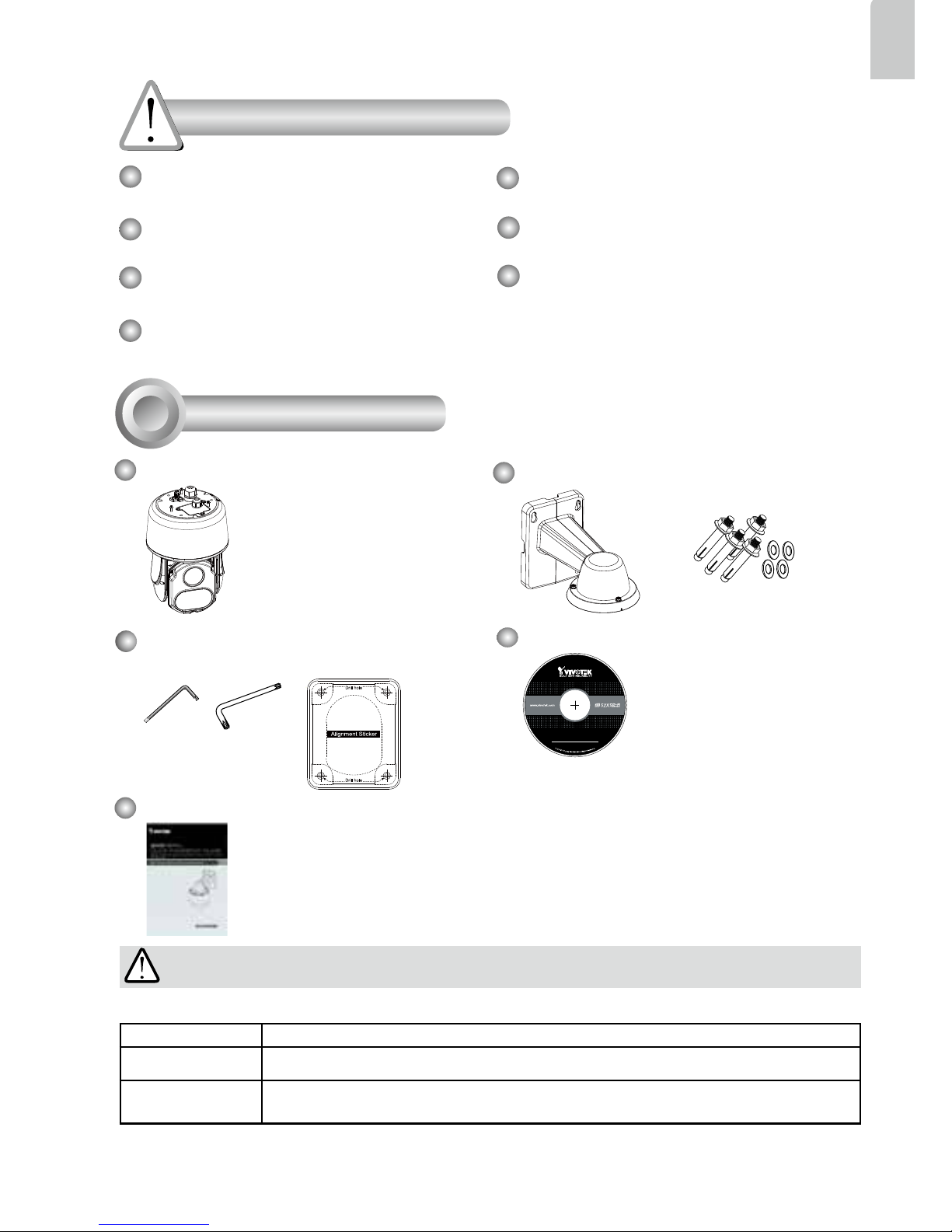

Package Contents
1
5
1
0
0
0
0
2
1
0
G
Software CD
Wall Mount Bracket / ScrewsSD9363/9364
Quick Installation Guide
Screws / Alignment Sticker / T20 and T25
L-wrench
IMPORTANT:
Below are the requirements for powering the the speed dome:
Power source Power Consumption
DC 48V Max. 106W (heater and fan on); Max. 39W (heater and fan off)
High power PoE Max. 87W (heater and fan on); Max. 39W (heater and fan off), using VIVOTEK's
AW-IHU-0101 & AW-IHU-0201
EN-2
Top View
Outer View
Physical Description
2
LAN connector
Safety wire hook
I/O combo connector
Alignment marks
TM
T10
SD card slot
Lens
IR LEDs
Reset button
EN-3
English
Hardware Installation
3
Ø 9.5mm or 3/8”
1. Jot down the camera's MAC address for later reference.
2. The camera weighs 6kg. Select a rigid mounting location to prevent vibration to the
camera. Attach the alignment sticker to the wall.
3. Drill 4 pilot holes (9.5mm in diameter and 4cm deep) into the wall, and then hammer
in threaded anchors. Note that you should hammer the anchors with hex nuts on
them so that the threaded poles will not be deformed! If preferred, drill another hole
for routing cables.
4. Remove the hex nuts, washers, and leave one washer on each of the threaded poles.
0002D10766AD
SDXXXX
SD card slot
EN-4
LAN I/O combo
5. Connect power or I/O wires, and use foam tapes or seal foam to ensure the back-end
connection is waterproof.
6. Route your I/O combo and Ethernet cables along the routing guide poles to form drip
loops.
EN-5
English
7. Secure the bracket to wall.
15cm
8. Remove the cable gland from the LAN port. If I/O wires
or DC 48V power are preferred, use the T20 L-wrench
to remove the top cover on the I/O connectors.
T20
The cable length hanging on the out-
side of the bracket should be 15cm
EN-6
9. Hook up the safety wire between the bracket and the camera.
4.3 ~ 6.4mm
10. Install the components of the waterproof cable gland to the Ethernet and I/O com-
bo cables.
The outer jacket
of the combo
cable is ush with
cabling hole.
EN-7
English
11. Connect the I/O wire headers to camera and then secure the top cover.
T20
12. Connect the Ethernet cable (along with its cable gland) to the camera.
NOTE:
To disconnect a LAN cable, loosen the cable
gland and pull the cable against the socket
wall towards the side of the locking tab.
IMPORTANT:
Make sure all waterproof cable glands have
been properly installed. Water leakage will
cause irrepairable damage to the camera.
EN-8
13. Install the camera to bracket by aligning the mark on bracket with the #1 marking
on the camera.
1
2
14. Turn the camera clockwise. The camera should be locked in place.
15. Secure the connection using the T25 L-wrench from
the top.
T25
EN-9
English
AM-118
AM-116/117
3/4”
AM-529
The camera can also be mounted through
a pendant mount combination as shown
below. The rest of the installation prcedure
is the same as described above.
Pendant Mount
IMPORTANT:
These devices(IR LED) emit highly concentrated infrared light, which view angle(range) is smoothly
varied depending on operation mode. To avoid risk of eye injury, please do not look directly at the
LEDs at a near distance and remember to use the camera live view to check if the IR illumination is
active.
